Description

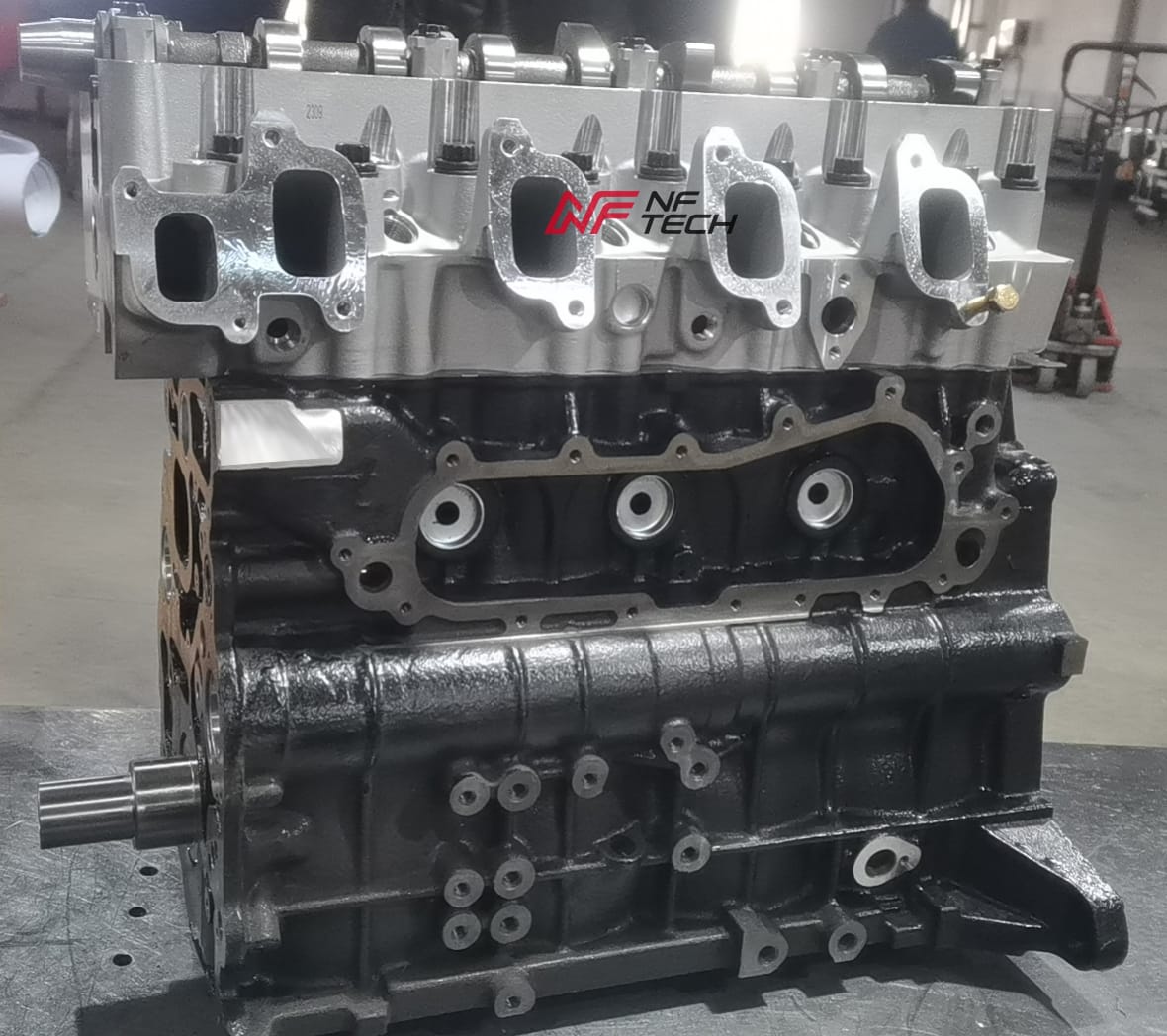

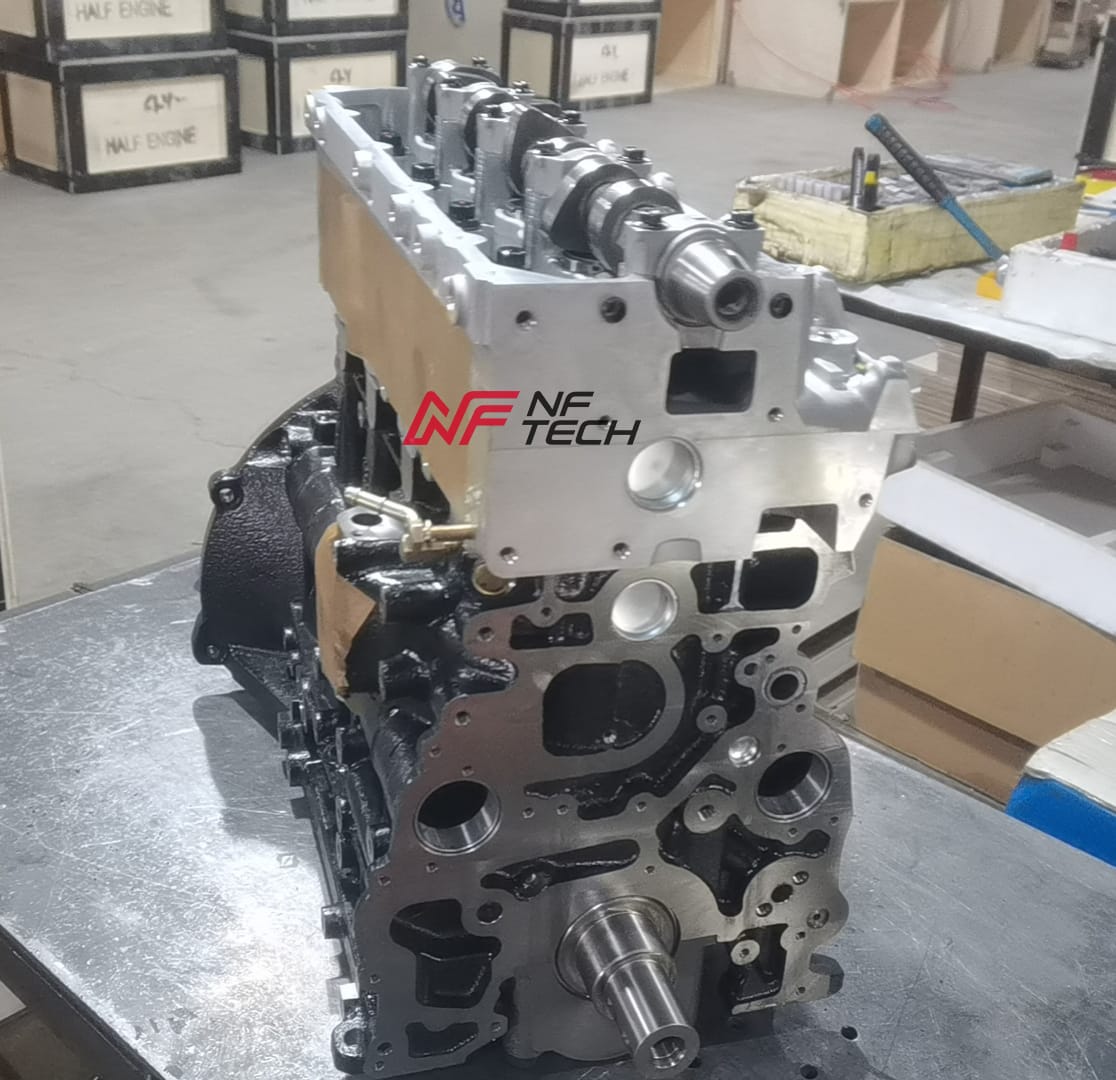

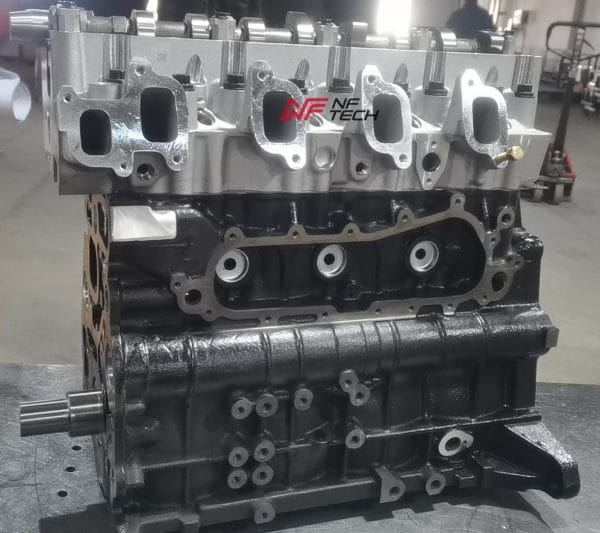

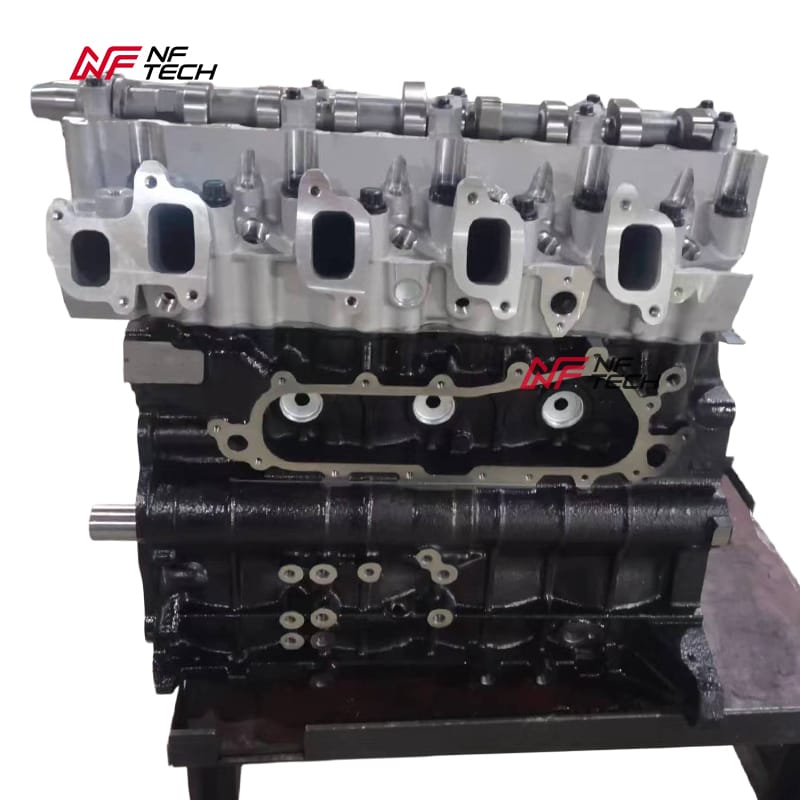

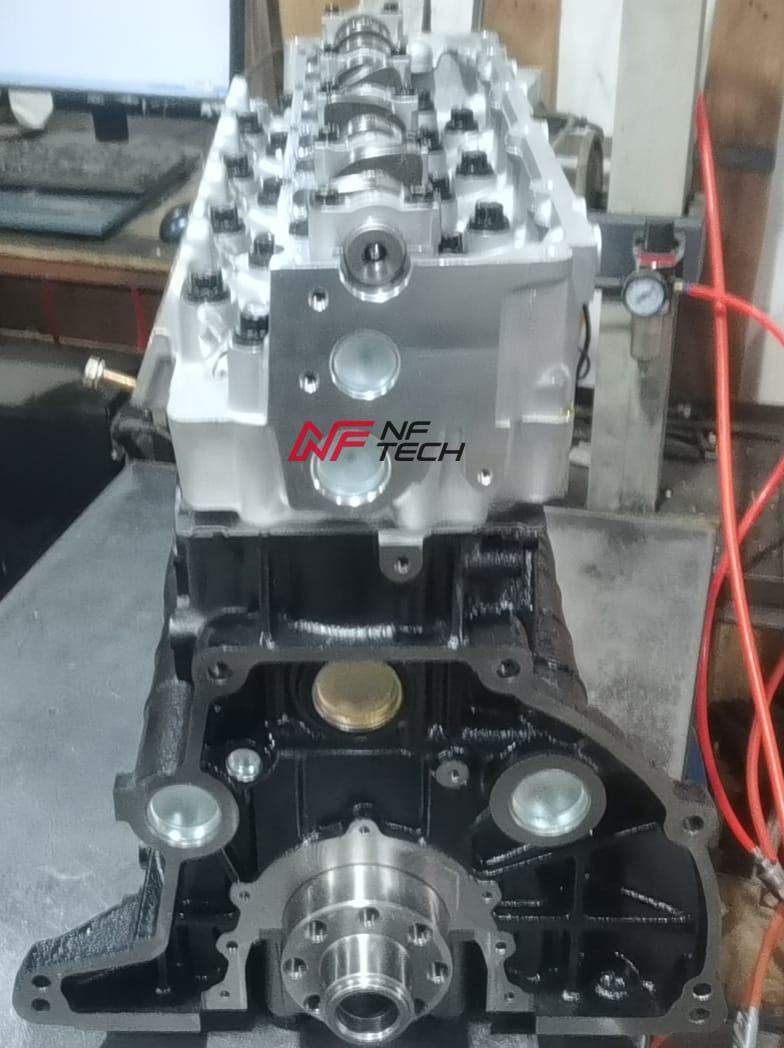

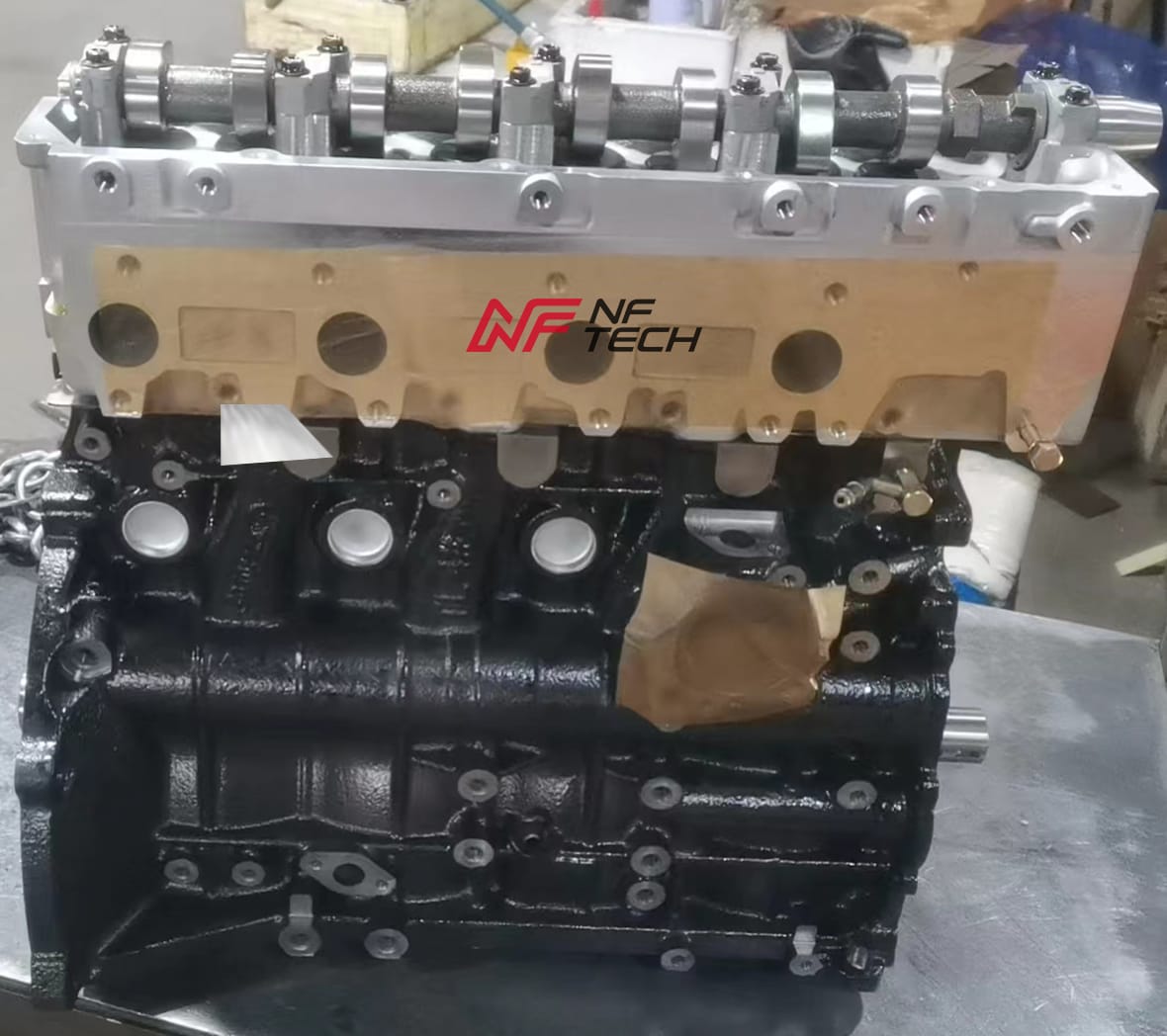

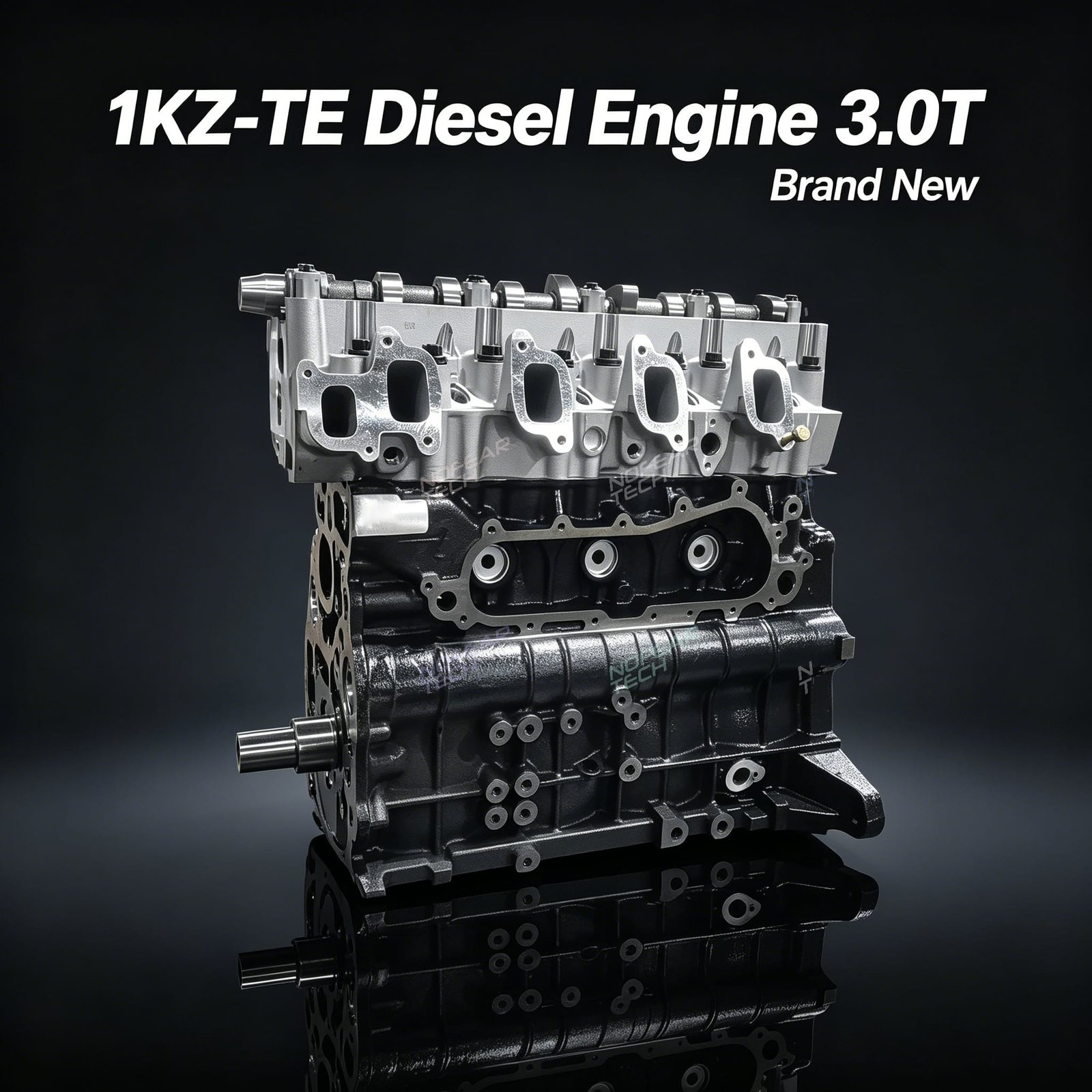

Toyota 1KZ 3.0L Turbo Diesel Bare Engine / Long Block – Complete Head & Block Assembly (No Valve Cover, No Timing, No Oil Pan)
This 1KZ bare engine is a complete long block core built to OEM standards for Toyota vehicles. It includes the complete cylinder head assembly (valves, springs, camshaft, rocker arms) and the complete cylinder block assembly (pistons, rings, crankshaft, connecting rods). It is supplied without the valve cover, timing cover & timing belt, oil pan, and all external accessories – exactly as required for a cost‑effective rebuild where those components are transferred from your original engine. The 1KZ is the legendary 3.0‑litre turbo diesel known for its durability and torque.
Vehicle Compatibility
The Toyota 1KZ 3.0L turbo diesel engine powered a wide range of 4x4s, SUVs and commercial vehicles. Always verify your engine code (“1KZ”, “1KZ-T” or “1KZ-TE”) before purchase. Common applications include:
- Toyota Land Cruiser Prado 3.0 TD (1993 – 2002, 90/120 Series)
- Toyota Hilux / Hilux Surf 3.0 TD (1993 – 2005, various generations)
- Toyota 4Runner 3.0 TD (1993 – 2002, select markets)
- Toyota Hiace 3.0 TD (1993 – 2006, some variants)
- Toyota Dyna / ToyoAce 3.0 TD (1995 – 2001, light trucks)
- Other Toyota models originally fitted with the 1KZ engine code
Please confirm your engine code is “1KZ”, “1KZ-T” or “1KZ-TE” before ordering. This is a bare engine / long block assembly; the valve cover, timing components, oil pan and all external parts must be transferred from your original engine.
Technical Specifications
| Engine Code | 1KZ / 1KZ-T / 1KZ-TE (3.0L Turbo Diesel) |
| Displacement | 3.0 Litre (2982 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | SOHC 8-valve (2 valves per cylinder) |
| Fuel System | Direct Injection |
| Power Output | 125 hp @ 3600 rpm (1KZ-T) / 130 hp @ 3600 rpm (1KZ-TE) / 145 hp @ 3600 rpm (1KZ-TE later versions) |
| Torque Output | 287 Nm @ 2000 rpm (1KZ-T) / 332 Nm @ 2000 rpm (1KZ-TE) / 343 Nm @ 2000 rpm (later 1KZ-TE) |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum 8V |
| Bore × Stroke | 96 mm × 103 mm |
| Compression Ratio | 21.2:1 |
| Hydraulic Lifters | No |
| Timing Drive | Belt and Gears |
| Phase Regulator | No |
| Turbocharging | Toyota CT12B turbocharger |
| Recommended Engine Oil | 5W-30, 5W-40, 10W-30, 10W-40, 15W-40 |
| Engine Oil Capacity | 7.7 litres (1KZ-T) / 7.0 litres (1KZ-TE) |
| Emission Standards | EURO 1/2 (1KZ-T) / EURO 2/3 (1KZ-TE) |
| Fuel Type | Diesel |
| Engine Type | Bare Engine / Long Block (Head & Block Only) |
| Condition | Brand New |
What’s Included – What’s NOT Included
Included (supplied with this assembly):

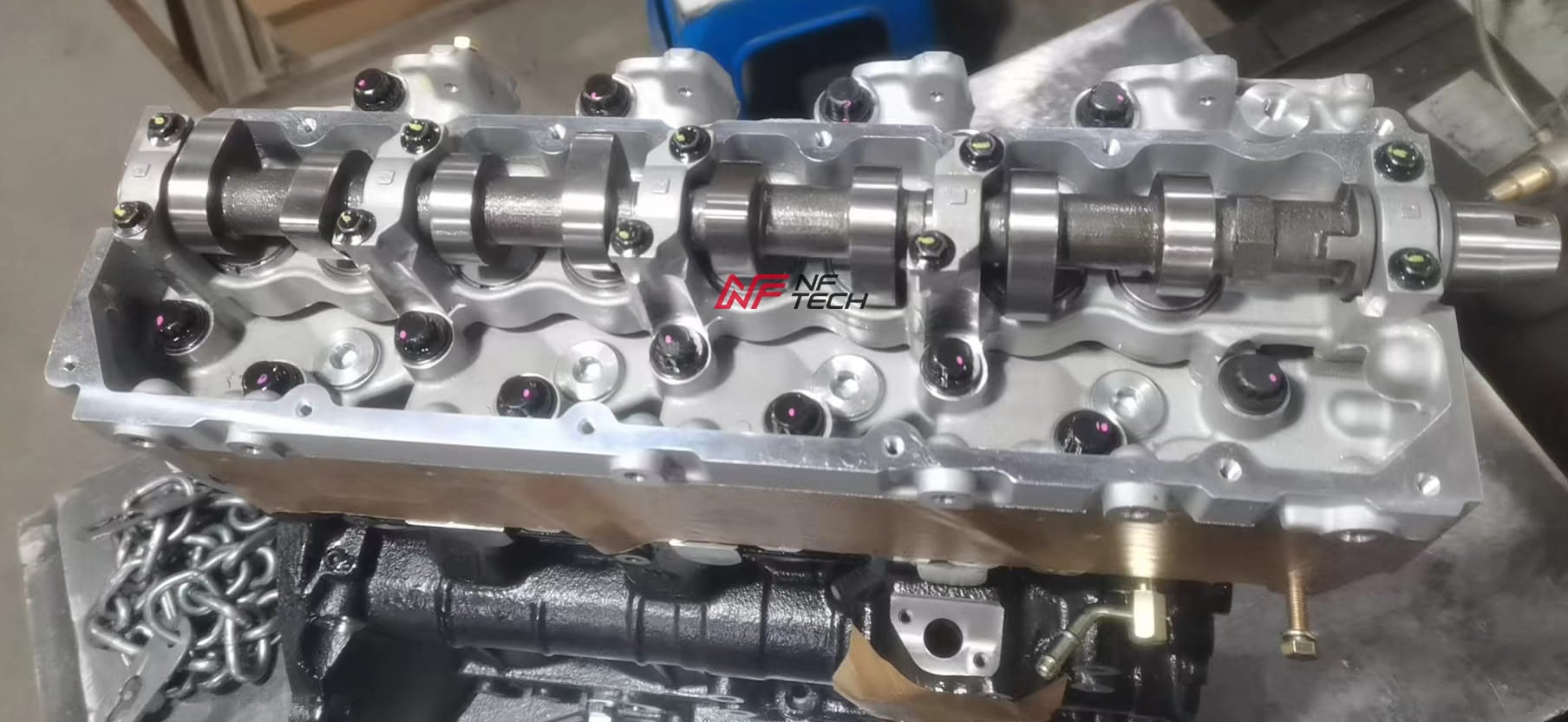

- Complete cylinder head assembly – valves, valve springs, camshaft, rocker arms
- Complete cylinder block assembly – pistons, piston rings, crankshaft, connecting rods, bearings
NOT Included (must be transferred from your old engine):
- Valve cover / rocker cover
- Timing cover & timing belt/gear kit
- Oil pan / sump
- Intake manifold, exhaust manifold
- Turbocharger (Toyota CT12B)
- Fuel injection pump, injectors, glow plugs
- Alternator, starter motor
- Water pump
- Engine wiring harness, ECU (if applicable) and all external sensors
This bare engine is intended for workshops and experienced installers. The missing parts must be taken from your original engine.
Why Choose This 1KZ Bare Engine
- 100% brand new – not remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Complete head and block package – ideal for rebuilds
- Packed in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a 1KZ engine for sale, a 1KZ-T or 1KZ-TE replacement engine, or a Toyota 3.0 turbo diesel long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
