Description

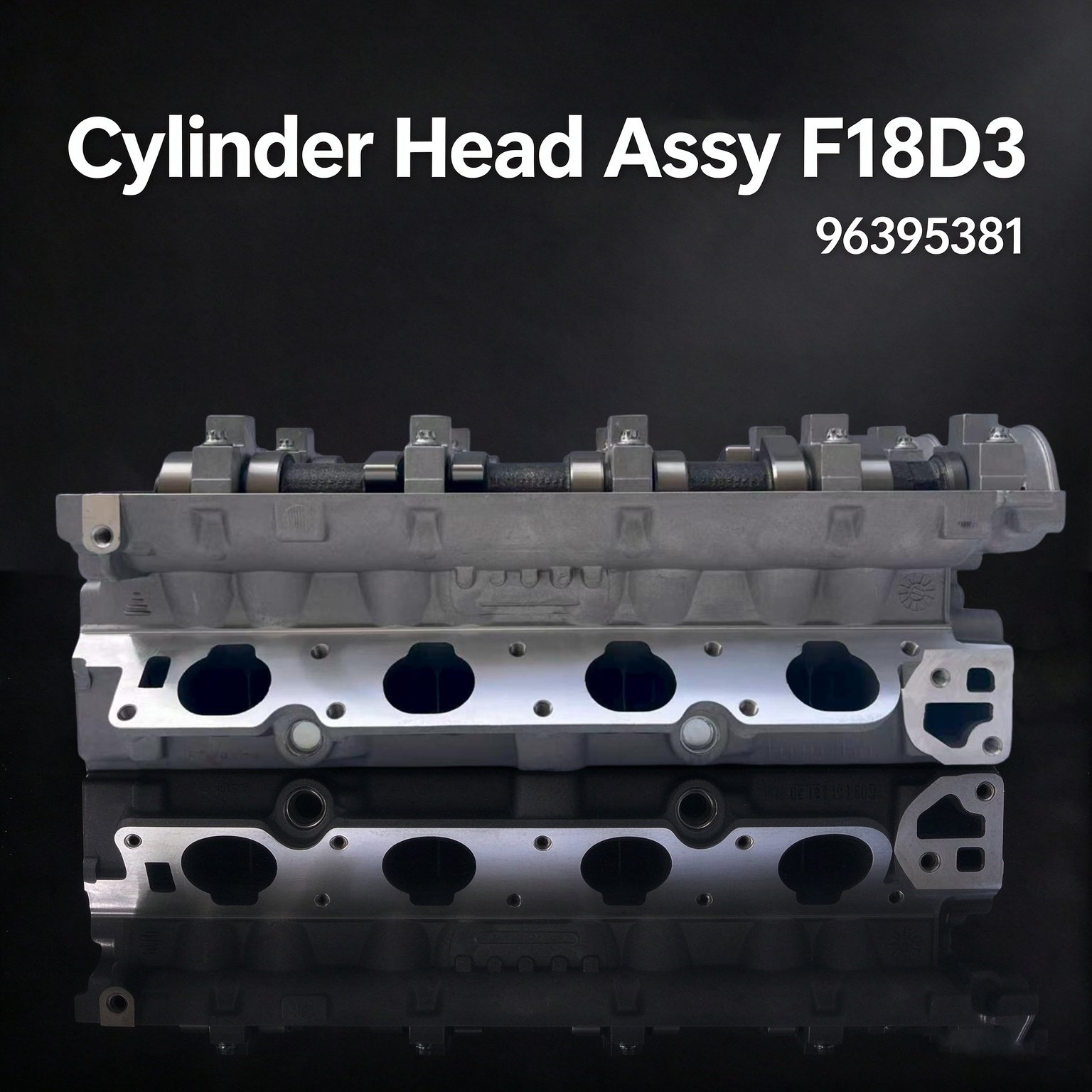

Chevrolet / Daewoo F18D3 Cylinder Head Assembly – Lacetti / Nubira / Holden Viva / Buick Excelle
This Chevrolet / Daewoo F18D3 cylinder head assembly is a brand new, factory-fresh replacement for the 1.8-litre DOHC petrol engine used across the Lacetti, Nubira, Holden Viva and Buick Excelle ranges. It is supplied with valves and camshafts fitted — intake and exhaust valves, springs, retainers, stem seals, guides and both DOHC camshafts are already installed, so the head arrives ready for installation after transferring your external components.
The F18D3 is the 1.8-litre four-cylinder engine from the GM Family II / E-TEC II architecture, produced from the mid-2000s through to the mid-2010s and fitted across Chevrolet, Daewoo, Holden and Buick-badged models in Europe, Asia, Australasia and South America. It is a DOHC 16-valve design with an aluminium cylinder head on a cast-iron block, producing 88–89 kW (120–121 PS) and 164 Nm of torque.These engines remain in daily service worldwide, and the cylinder head is a documented replacement item on high-mileage or timing failure examples.
What’s Included – Fitted to the Head
- Complete cylinder head casting — precision-machined and pressure-tested

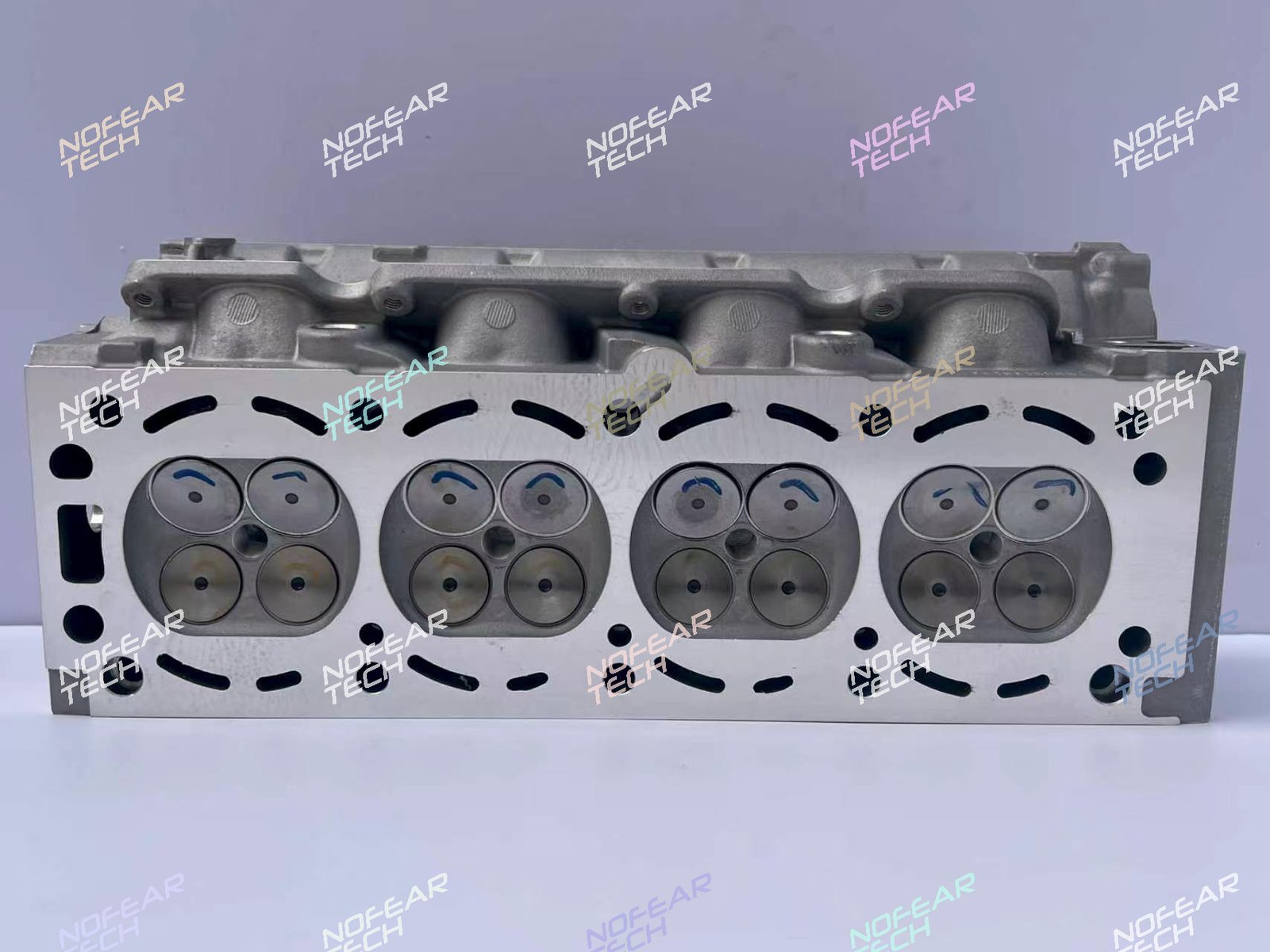

- 16 valves — intake and exhaust, heat-resistant (4 per cylinder)
- Valve springs, spring seats and retainers
- Valve stem seals and valve guides — fitted

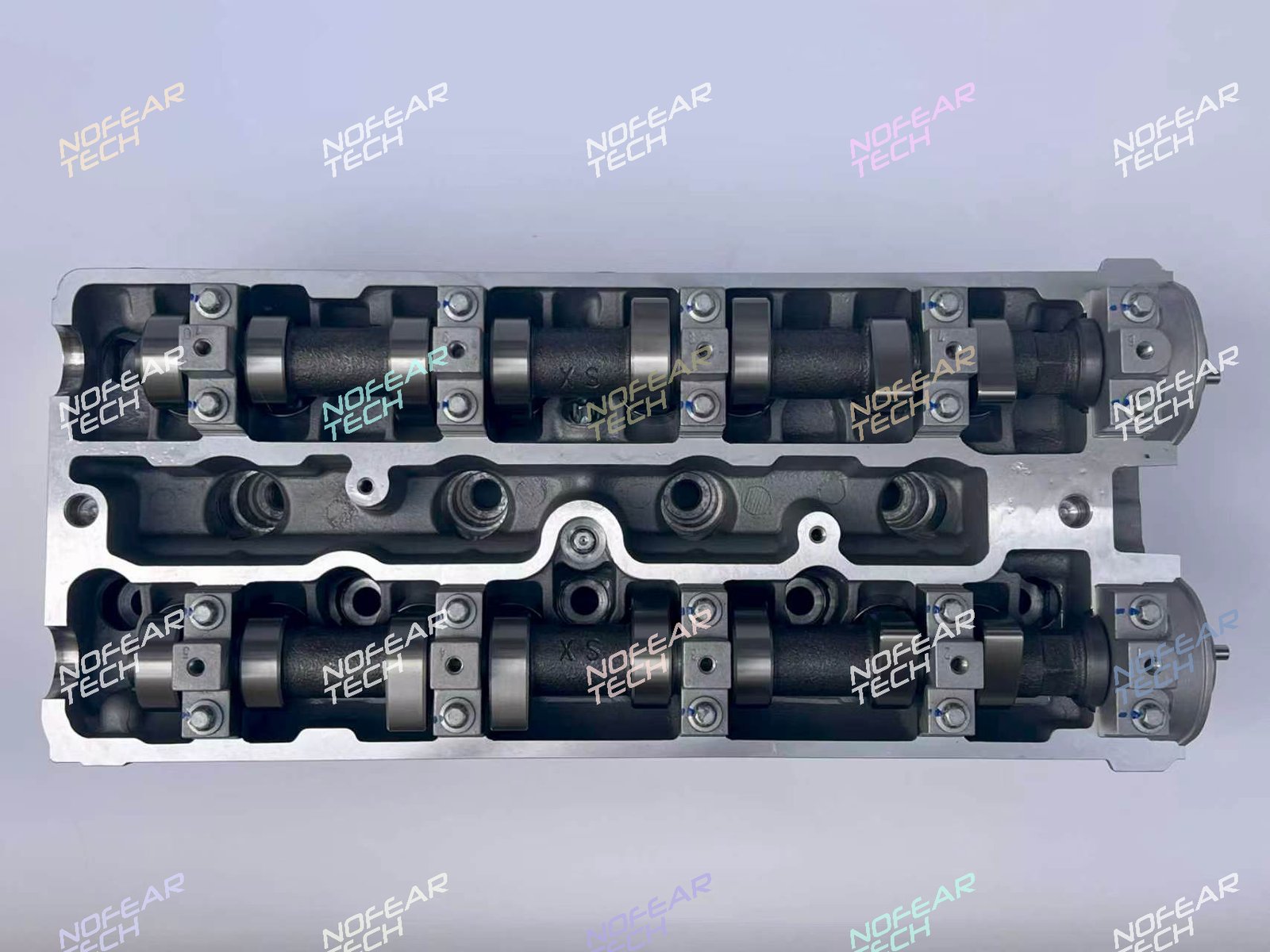

- DOHC camshafts — intake and exhaust
- Hydraulic lifters / tappets — pre-installed
- Camshaft bearing caps — torqued to specification
- Core plugs and oil gallery plugs — installed
What you transfer from your original head: valve cover, timing belt or timing chain kit (depending on production year — confirm against your original engine), head bolts (always fit new stretch bolts), head gasket and remaining gaskets, fuel injectors, spark plugs, ignition coils, intake manifold, exhaust manifold and any sensors or brackets mounted to the head.
Vehicle Compatibility — Model and Engine Code Detail
The Short Description lists the basic model range. The fitment below is the model-level detail needed to confirm the correct casting before ordering. The 93357885 casting is shared across a wide range of GM platforms, but emission equipment and calibration differ between model years and markets — match the OE reference to your original head.
- Chevrolet Lacetti (J200 / J300) — F18D3 1.8L DOHC, approximately 2003–2013
- Daewoo Nubira (J100 / J150) — F18D3 / T18SED 1.8L DOHC, approximately 2003–2010
- Holden Viva (JF) — F18D3 1.8L DOHC, approximately 2005–2009
- Buick Excelle / New Excelle — F18D3 / T18SED 1.8L DOHC, approximately 2003–2013 (China and export markets)
- Chevrolet Optra — F18D3 1.8L DOHC, approximately 2003–2011
- Suzuki Forenza / Reno — F18D3 1.8L DOHC, approximately 2004–2008 (North America)
This cylinder head is specific to the F18D3 / T18SED 1.8L DOHC 16-valve petrol engine. It is NOT interchangeable with the 1.6L F16D3, the 1.4L F14D3, the 2.0L T20SED, or any diesel engine in the Chevrolet / Daewoo range.
OEM Part Number Cross-Reference
- Primary reference: 93357885
- Interchangeable references: 93333317, 93328939, 96378619, 25181240, 93333315
- Engine code cross-reference: F18D3, T18SED, LDA, 2H0
Why Buy This F18D3 Cylinder Head Assembly
- 100% brand new — not reconditioned or repaired
- Pressure-tested and vacuum-tested for leaks and porosity before dispatch
- Flatness-checked to OEM tolerance
- Valves, lifters and DOHC camshafts pre-installed — saves hours of fitting time
- Correct F18D3 casting for Lacetti, Nubira, Viva, Excelle, Optra and Forenza applications
- Packed in a reinforced crate for safe international freight
- Fast global shipping to port or door
More Cylinder Heads & Quick Contact
- Browse more Chevrolet cylinder heads: View our complete Chevrolet cylinder head catalog.
- Fitment check: Send us your OEM number and a photo of your original head on WhatsApp for a same-day compatibility confirmation and freight quote.
