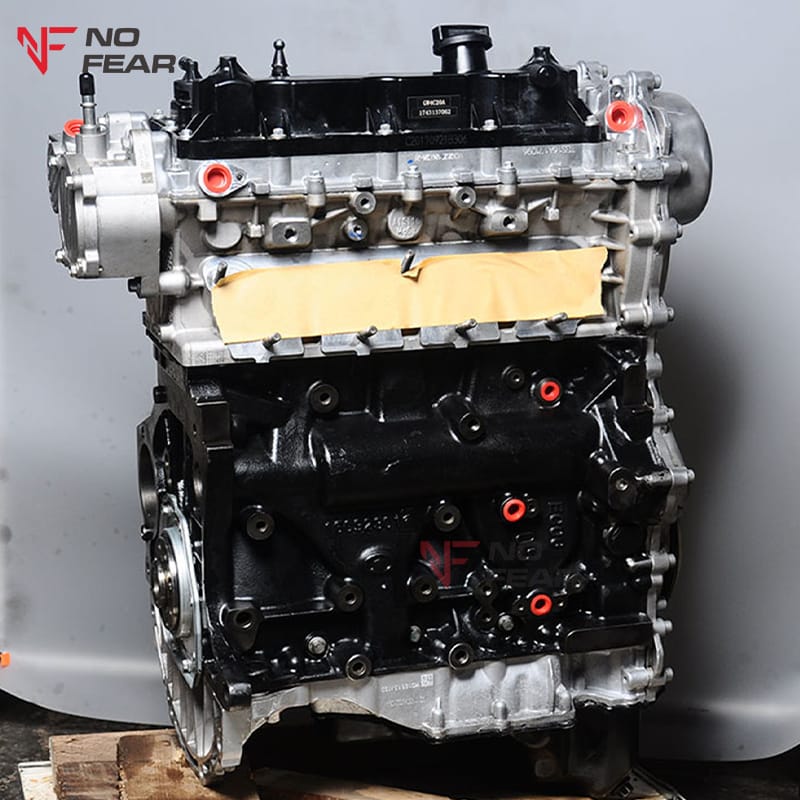

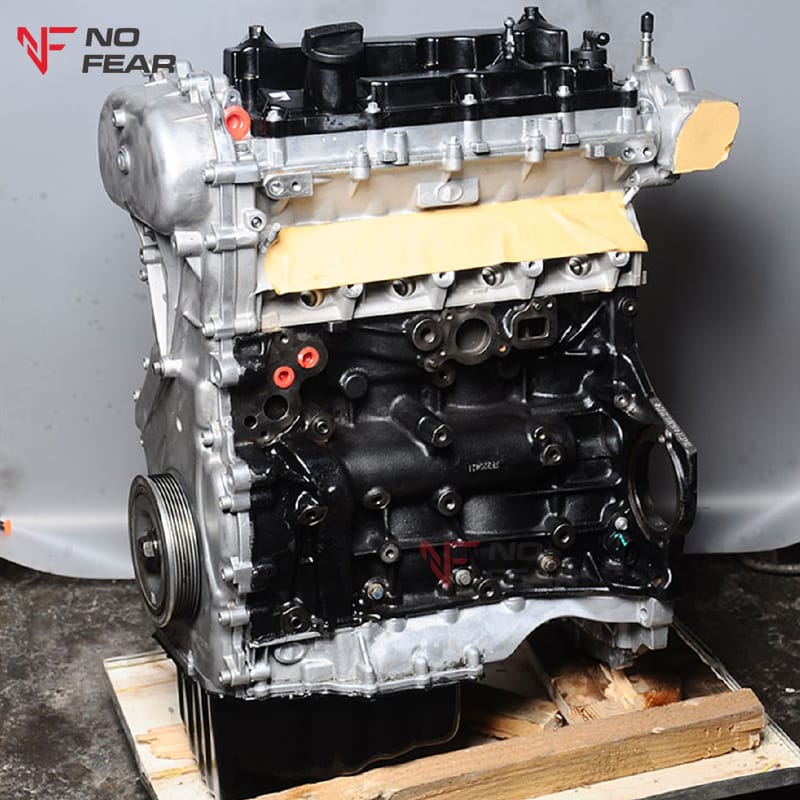

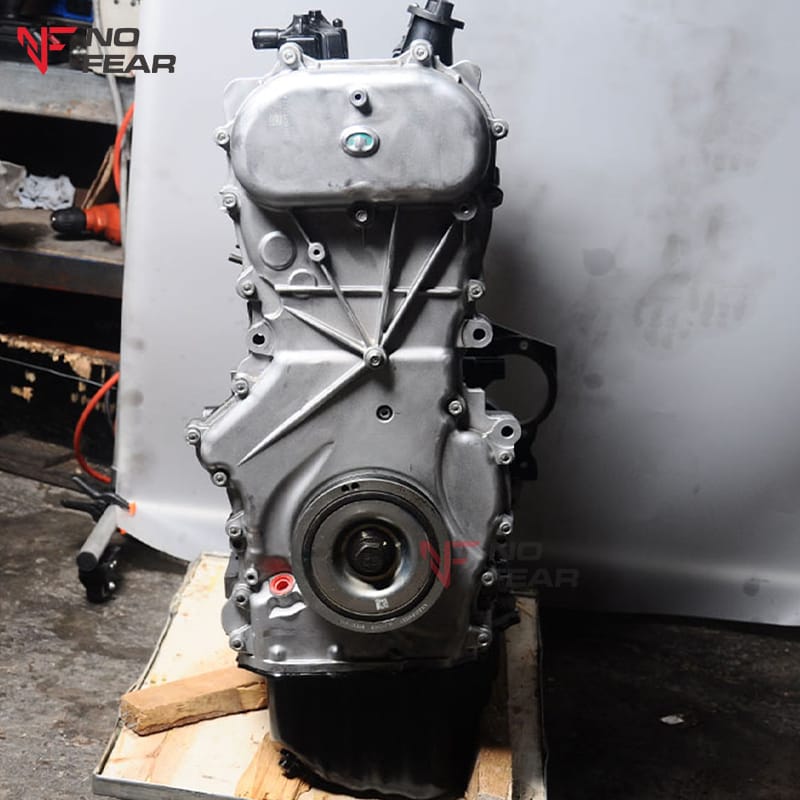

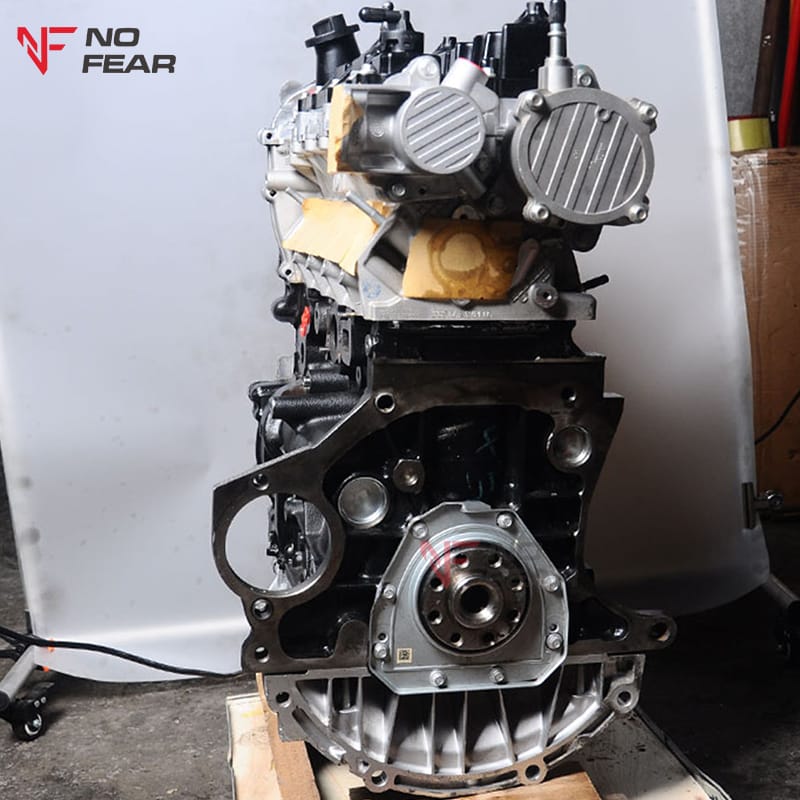

GreatWall GW4C20 ENGINE LONG BLOCK

NameGreatWall GW4C20 ENGINE LONG BLOCK
Engine CodeGW4C20
Displacement2.0L
Cylinder Number4 Cylinder
MOQ1 Pc
Quality100% Tested
Condition100% New
CertificationTS16949,ISO9001
Warranty1Year/20,000Km
Car ModelHaval H6 Coupe I in 2015 – 2019;
Haval H8 I in 2013 – 2018;
Haval H9 I in 2014 – 2017.

Description

Production years2013-2019
Displacement, cc1967
Fuel systemdirect injection
Power output, hp190 – 218
Torque output, Nm310 – 324
Cylinder blockcast iron R4
Block headaluminum 16v
Cylinder bore, mm82.5
Piston stroke, mm92
Compression ratio9.6
FeaturesDOHC
Hydraulic liftersyes
Timing drivechain
Phase regulatoron both shafts
TurbochargingBorgWarner K03
Recommended engine oil5W-40
Engine oil capacity, liter5.5
Fuel typepetrol
Euro standardsEURO 5

The 2.0-liter turbo engine Great Wall GW4C20 or 2.0 GDIT was produced from 2013 to 2019 and was installed on such popular concern models as the H6 Coupe, H8 and H9 before restyling.

Many sources confuse this motor with the GW4C20NT engine, which was installed on the F7 and F7x crossovers.

The engine was installed on:

  • Haval H6 Coupe I in 2015 – 2019;
  • Haval H8 I in 2013 – 2018;
  • Haval H9 I in 2014 – 2017.
