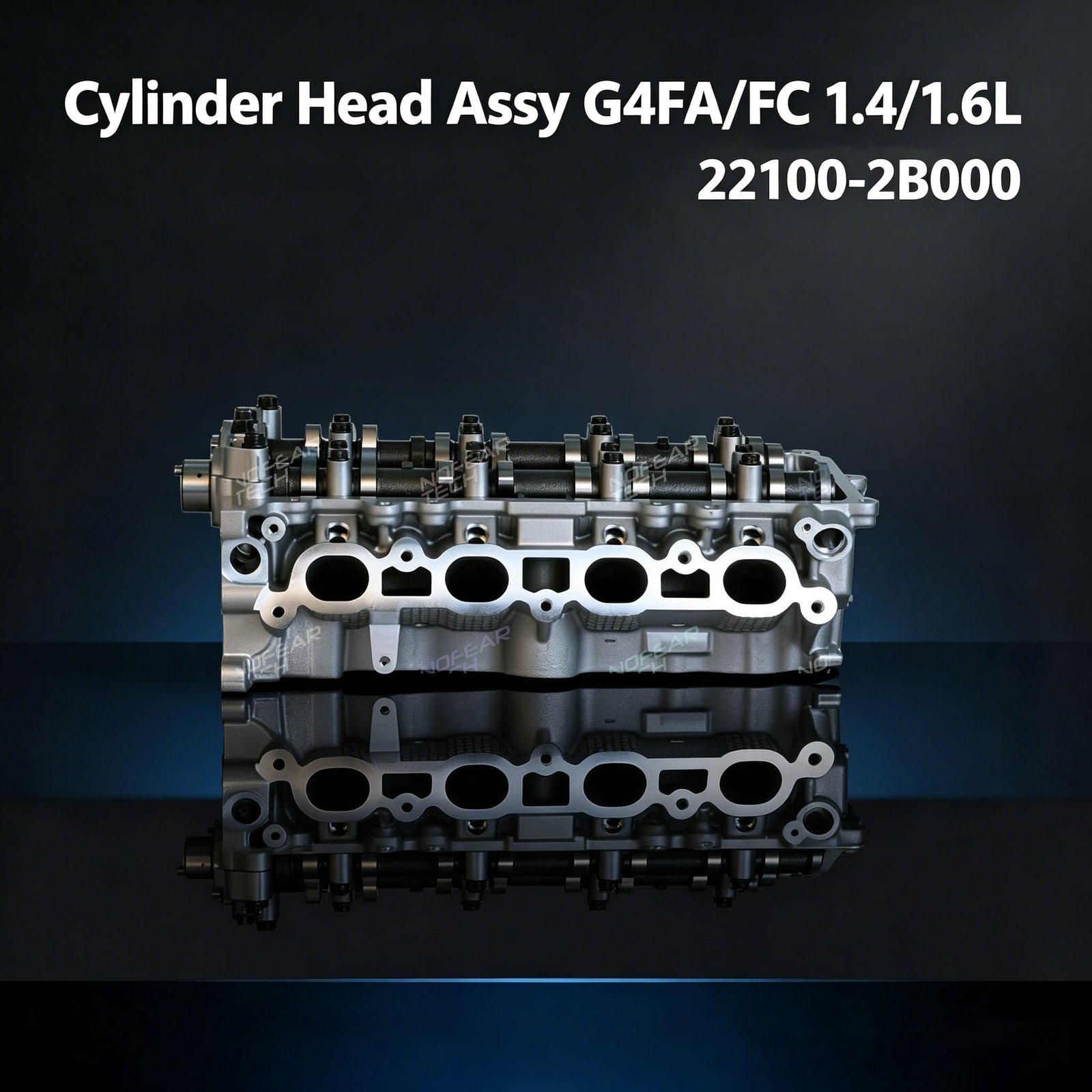

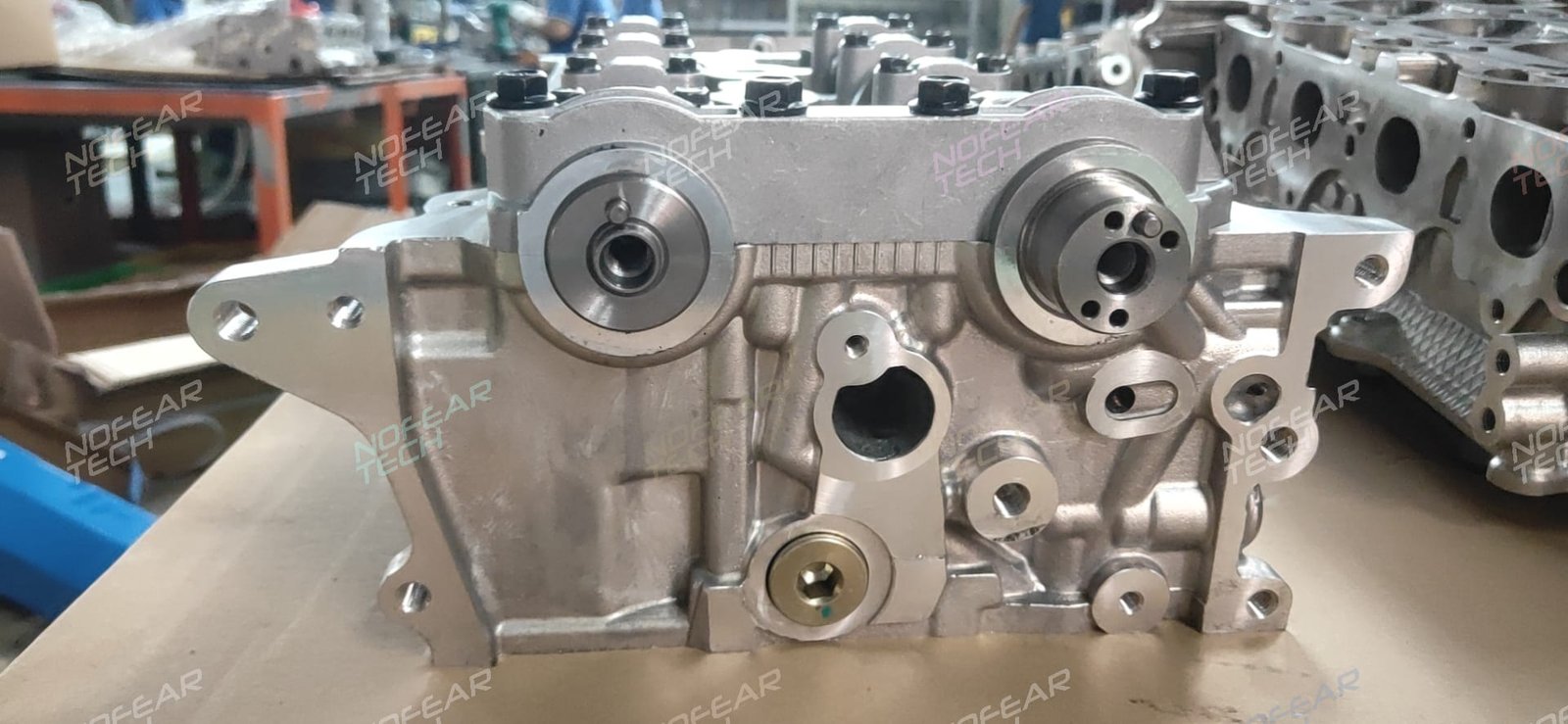

Hyundai / Kia G4FA 1.4L Cylinder Head Assembly – Valves & Camshafts Pre-Installed

This G4FA cylinder head assembly is a brand new, factory-fresh cylinder head built to OEM standards. It comes with the complete valvetrain pre-installed, including intake and exhaust valves, valve springs, camshafts and all related internal components. You simply transfer your existing external parts – saving significant time and labour during installation.

The G4FA is a 1.4-litre 4-cylinder petrol engine from the Hyundai/Kia Gamma engine family, produced since 2006 at the company’s Chinese plant. It is the base power unit for popular models including the Hyundai Accent, i20, i30 and Kia Cee’d, Rio and Venga. The engine features an aluminium cylinder block with an open cooling jacket, an aluminium 16-valve DOHC cylinder head without hydraulic lifters, a maintenance-free timing chain with hydraulic tensioner, and a phase regulator on the intake camshaft (CVVT). Fuel injection is distributed (MPI), and the engine produces 99–109 hp and 135–137 Nm of torque. This cylinder head is manufactured to exact original tolerances and pressure-tested for reliable, long-lasting performance.

What’s Included – Complete Cylinder Head Assembly

This listing is for the cylinder head with the following components pre-installed and ready to use:

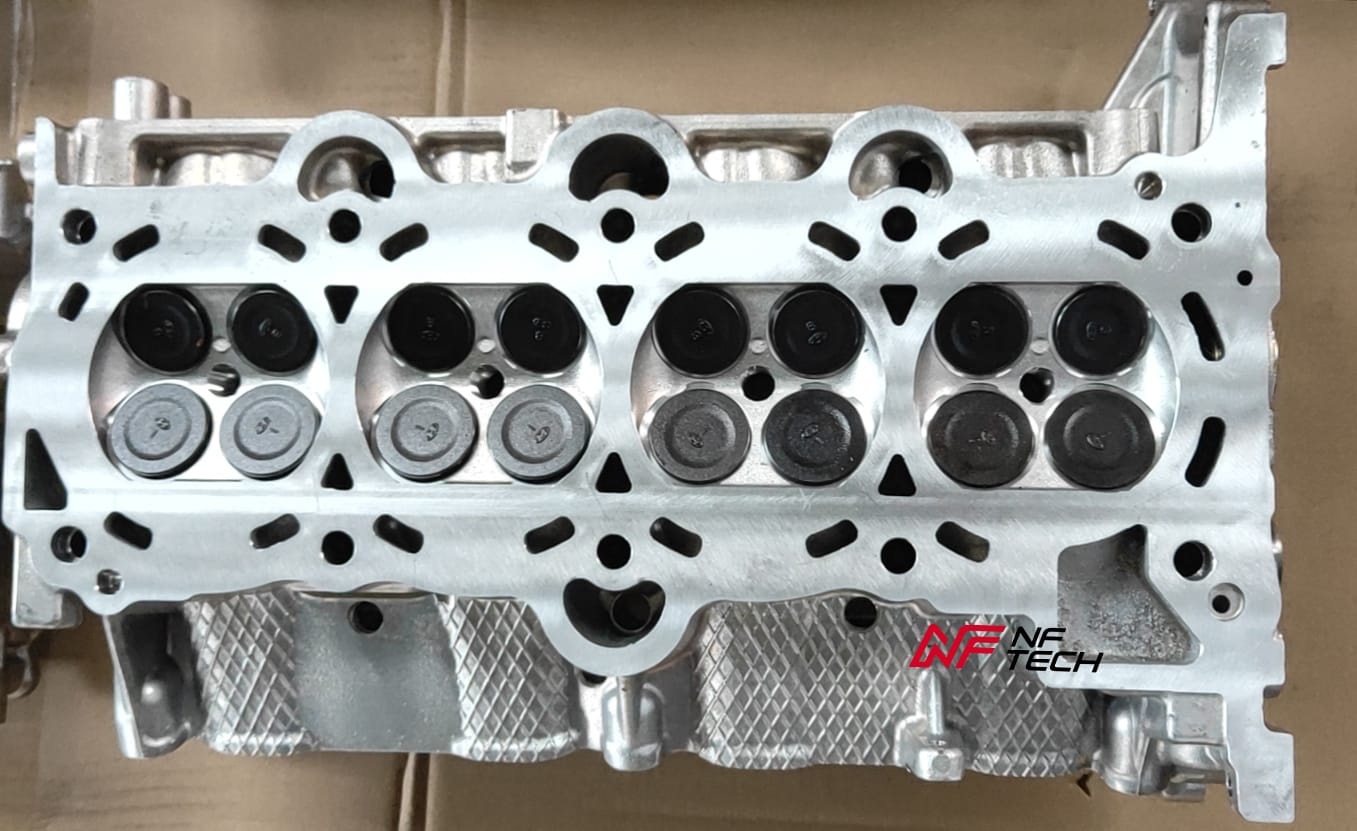

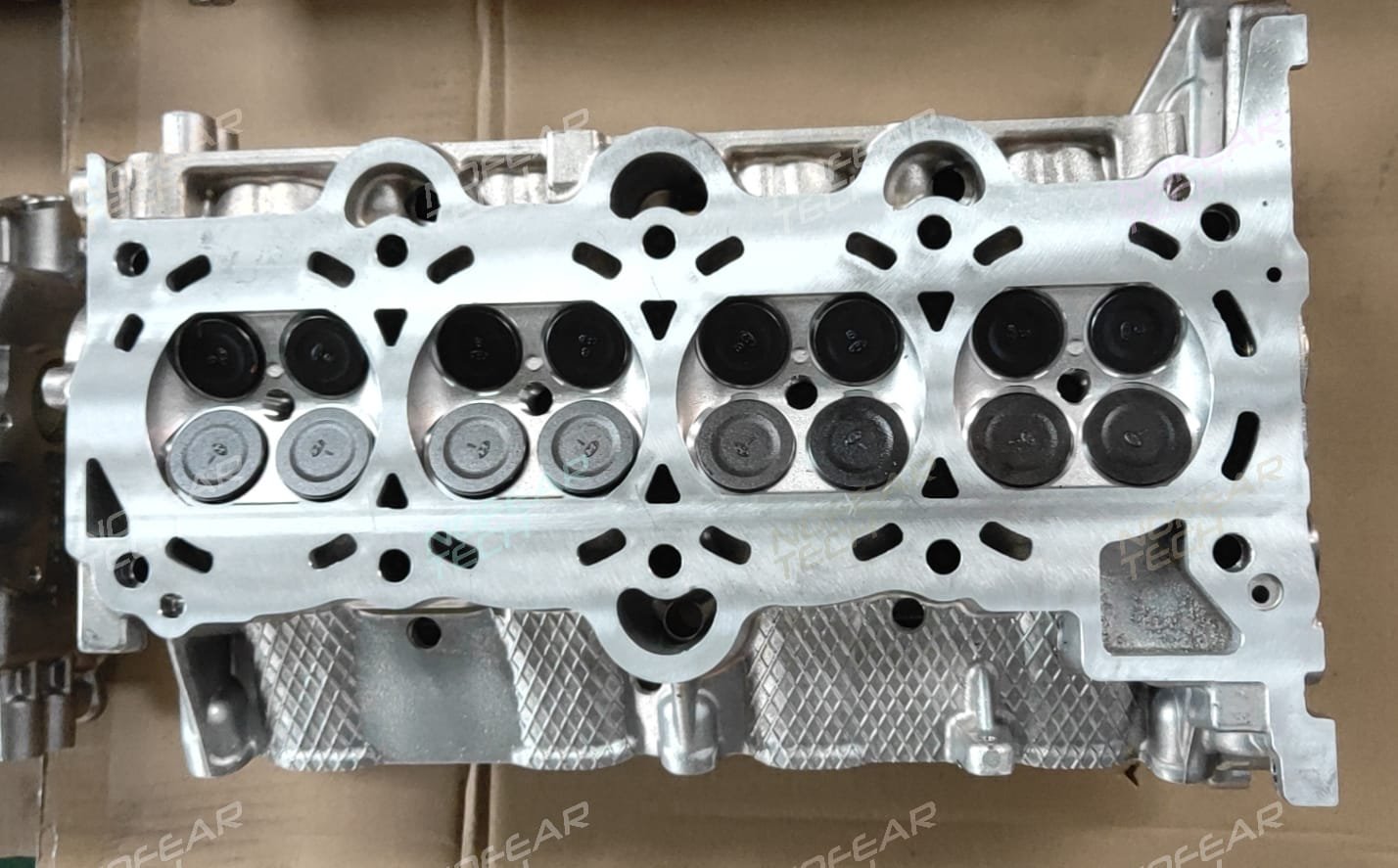

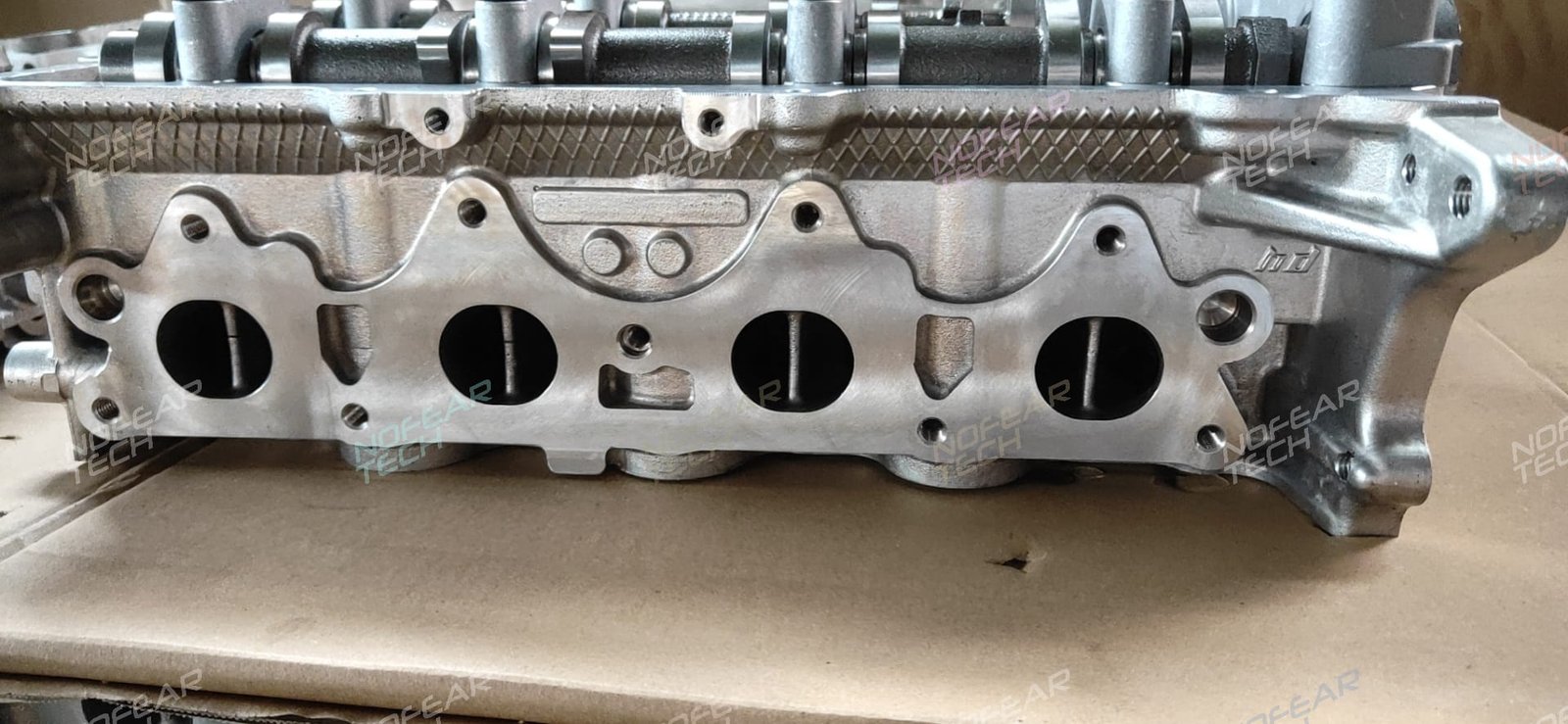

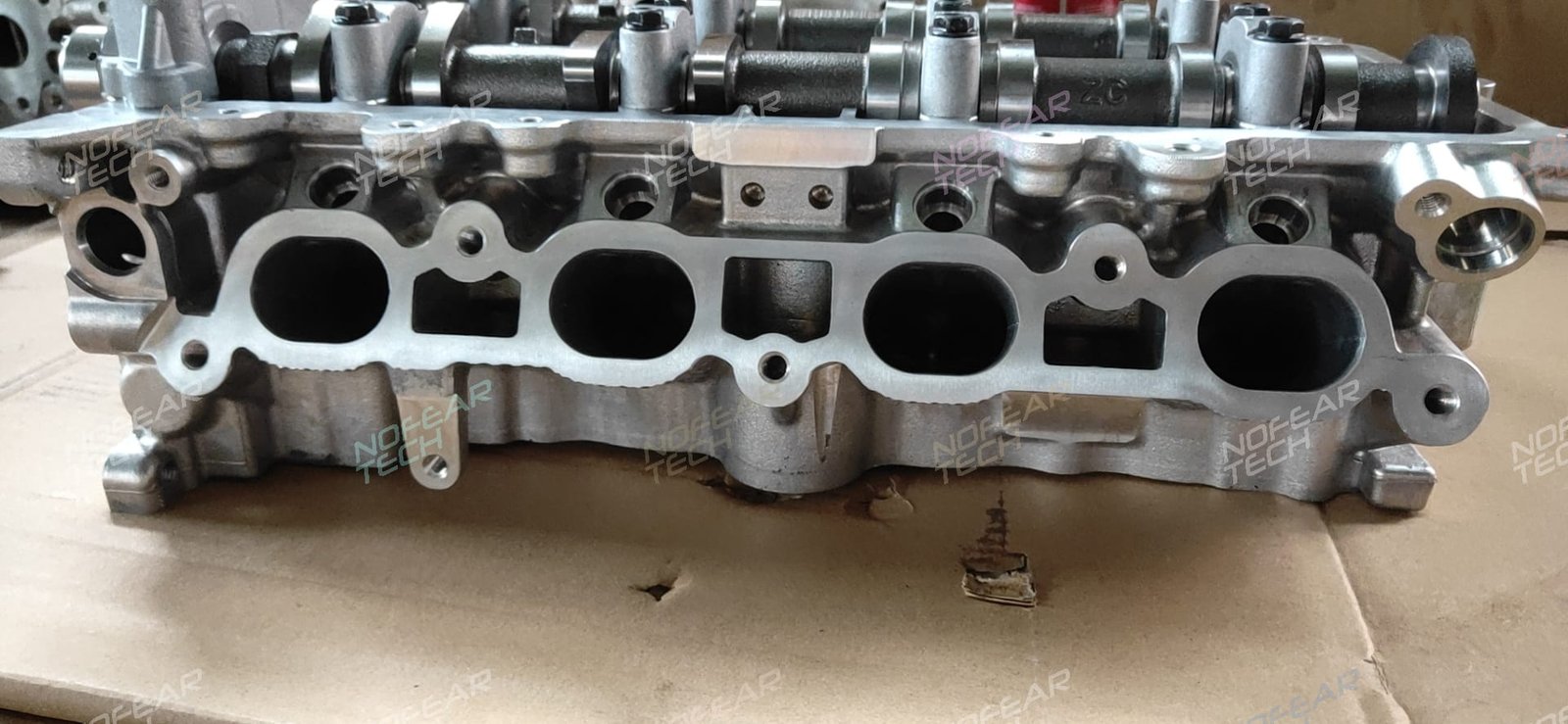

• Cylinder head casting – precision-machined, pressure-tested
• 16 valves – intake and exhaust valves, heat-resistant (4 per cylinder)
• Valve springs, spring seats and retainers
• Valve stem seals (already fitted)
• Valve guides (pressed in)

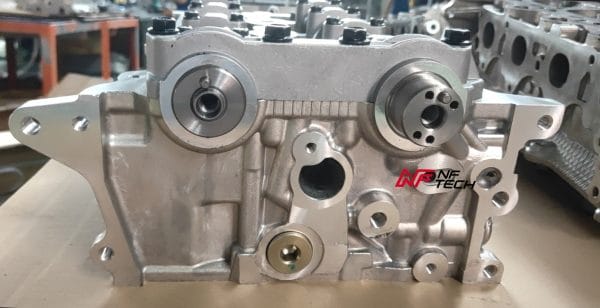

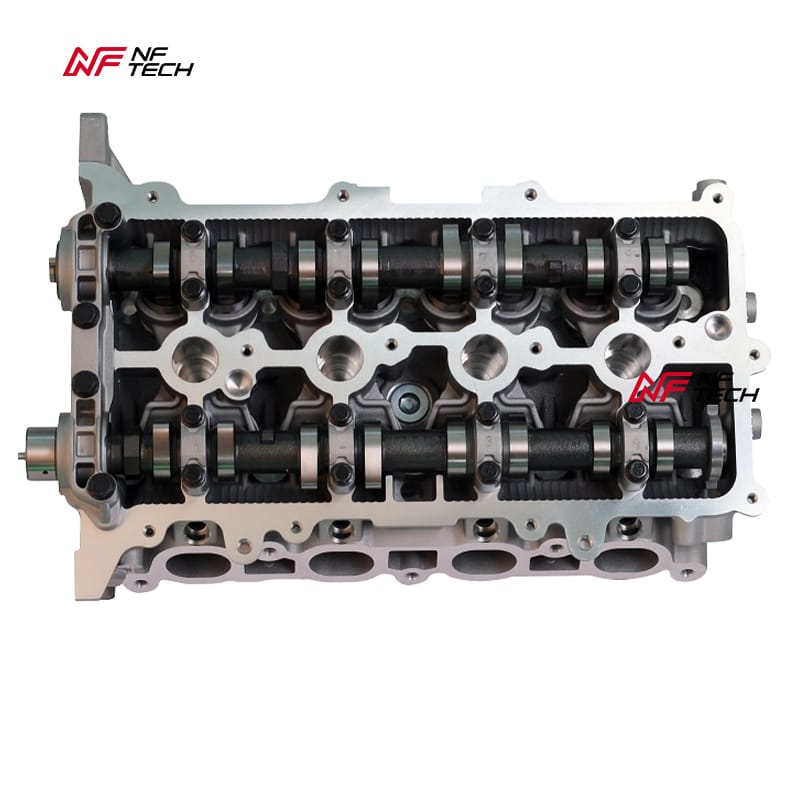

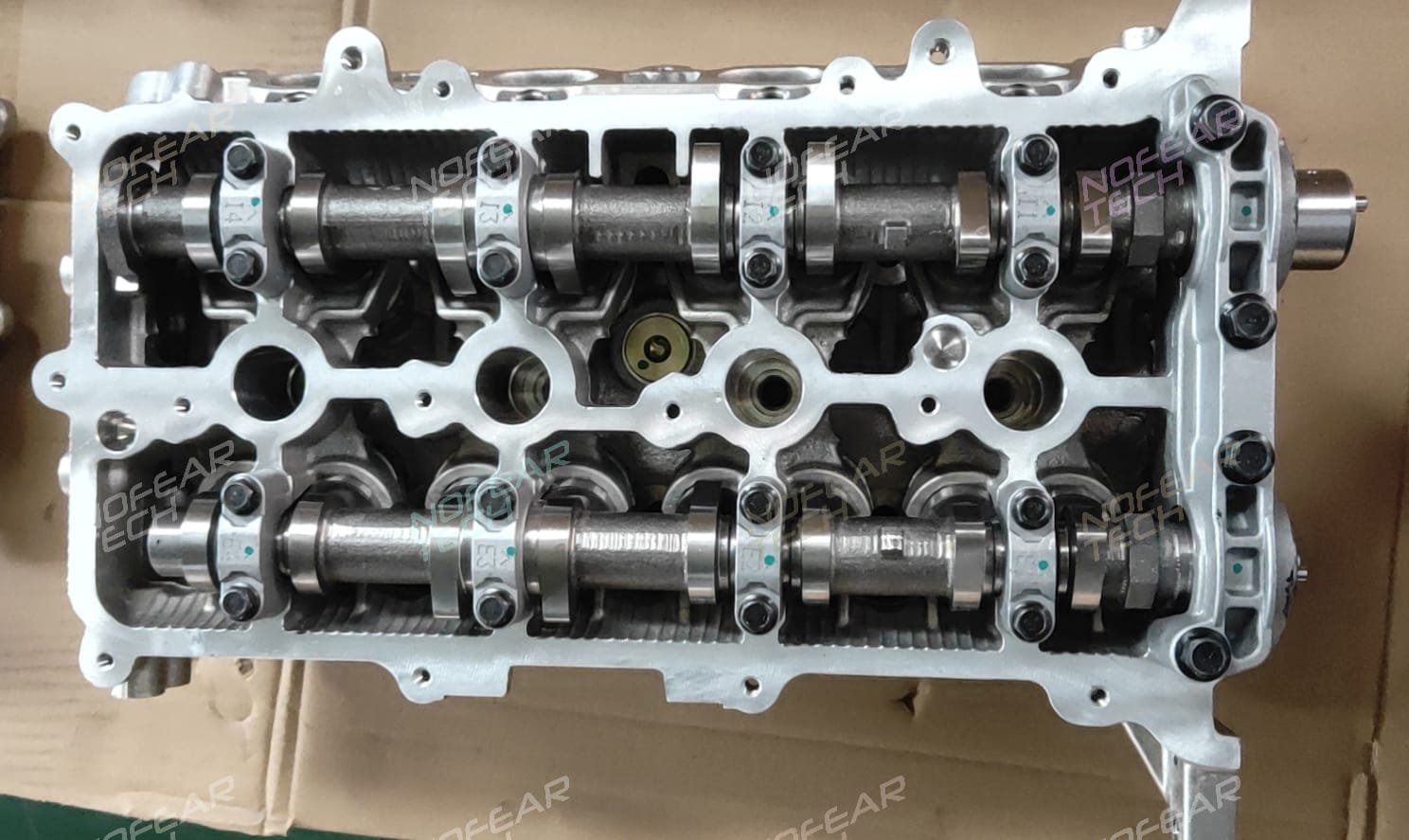

• Camshafts – intake and exhaust (DOHC)
• Camshaft bearing caps and bolts (torqued to specification)
• Core plugs and oil gallery plugs (installed)
• Valve clearances pre-set – no manual adjustment required

Note: This is a cylinder head assembly, so the following external components are NOT included and must be transferred from your old head or purchased separately:

• Valve cover / rocker cover
• Timing chain, tensioner and guides
• Fuel injectors and ignition coils

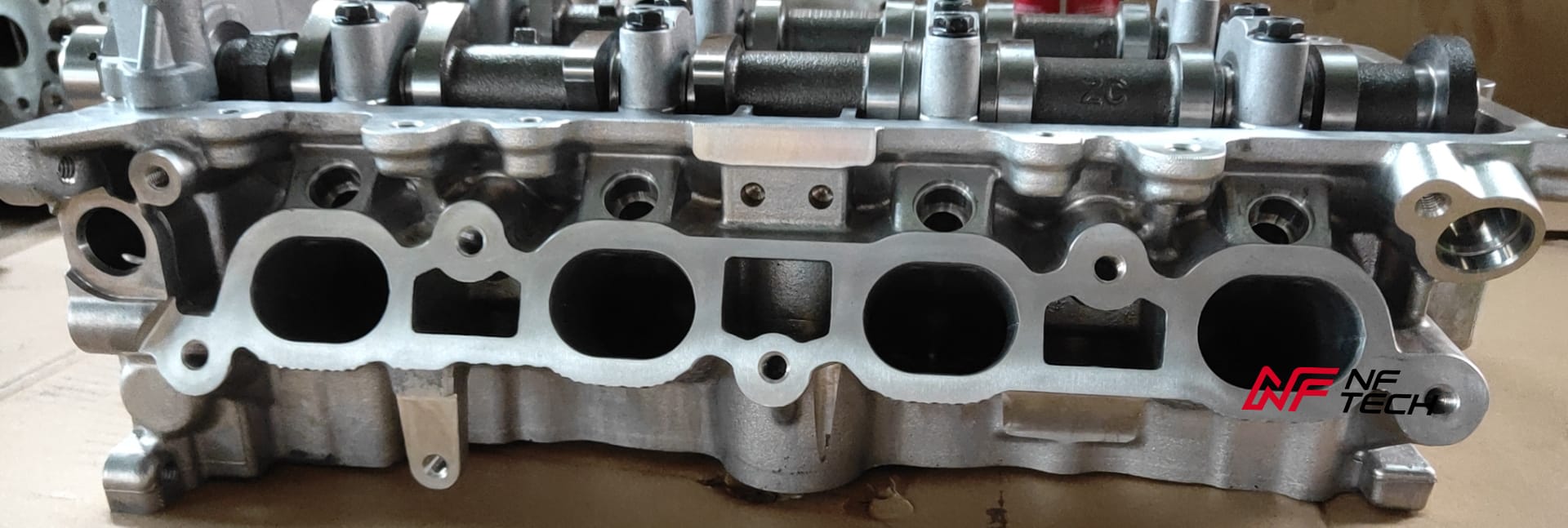

• Intake manifold (plastic, without variable geometry)

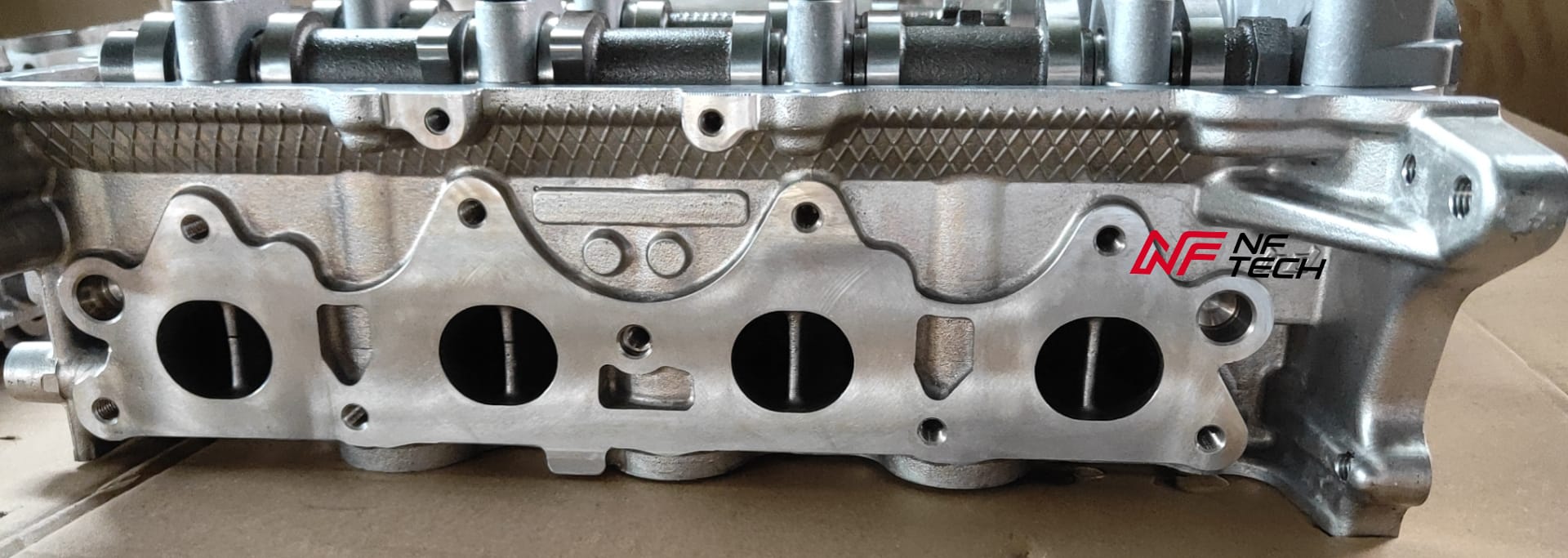

• Exhaust manifold / catalytic converter
• Camshaft sensors, CVVT oil control valve and wiring

Vehicle Compatibility

The G4FA 1.4L Gamma engine was fitted to a wide range of Hyundai and Kia compact models. Always verify your engine code and OEM part number before purchase. Common applications include:

• Hyundai Accent 4 (RB) – 1.4 CVVT (2010 – 2018)
• Hyundai i20 1 (PB) – 1.4 CVVT (2008 – 2014)
• Hyundai ix20 1 (JC) – 1.4 CVVT (2010 – 2019)
• Hyundai i30 1 (FD) – 1.4 CVVT (2007 – 2012)
• Hyundai i30 2 (GD) – 1.4 CVVT (2011 – 2015)
• Hyundai Solaris 1 (RB) – 1.4 CVVT (2010 – 2017)
• Kia Cee’d 1 (ED) – 1.4 CVVT (2006 – 2013)
• Kia Cee’d 2 (JD) – 1.4 CVVT (2012 – 2015)
• Kia ProCeed 1 (ED) – 1.4 CVVT (2007 – 2010)
• Kia Rio 3 (QB/UB) – 1.4 CVVT (2011 – 2017)
• Kia Venga 1 (YN) – 1.4 CVVT (2009 – 2019)
• Other vehicles equipped with the G4FA engine (confirm via OEM number)

Why Choose This G4FA Cylinder Head Assembly

• 100% brand new – never reconditioned or repaired
• Pressure-tested and vacuum-tested for leaks
• OEM-grade materials and exact machining tolerances
• Pre-installed valves and camshafts save hours of fitting time
• Comes with an 18-month warranty for peace of mind
• Packed in a reinforced crate for safe international freight
• Fast global shipping to port or door

If you need a Hyundai G4FA cylinder head for sale or a complete replacement head assembly, this unit gives your engine a factory-fresh start. Order now for a reliable, direct-fit solution.
