Description

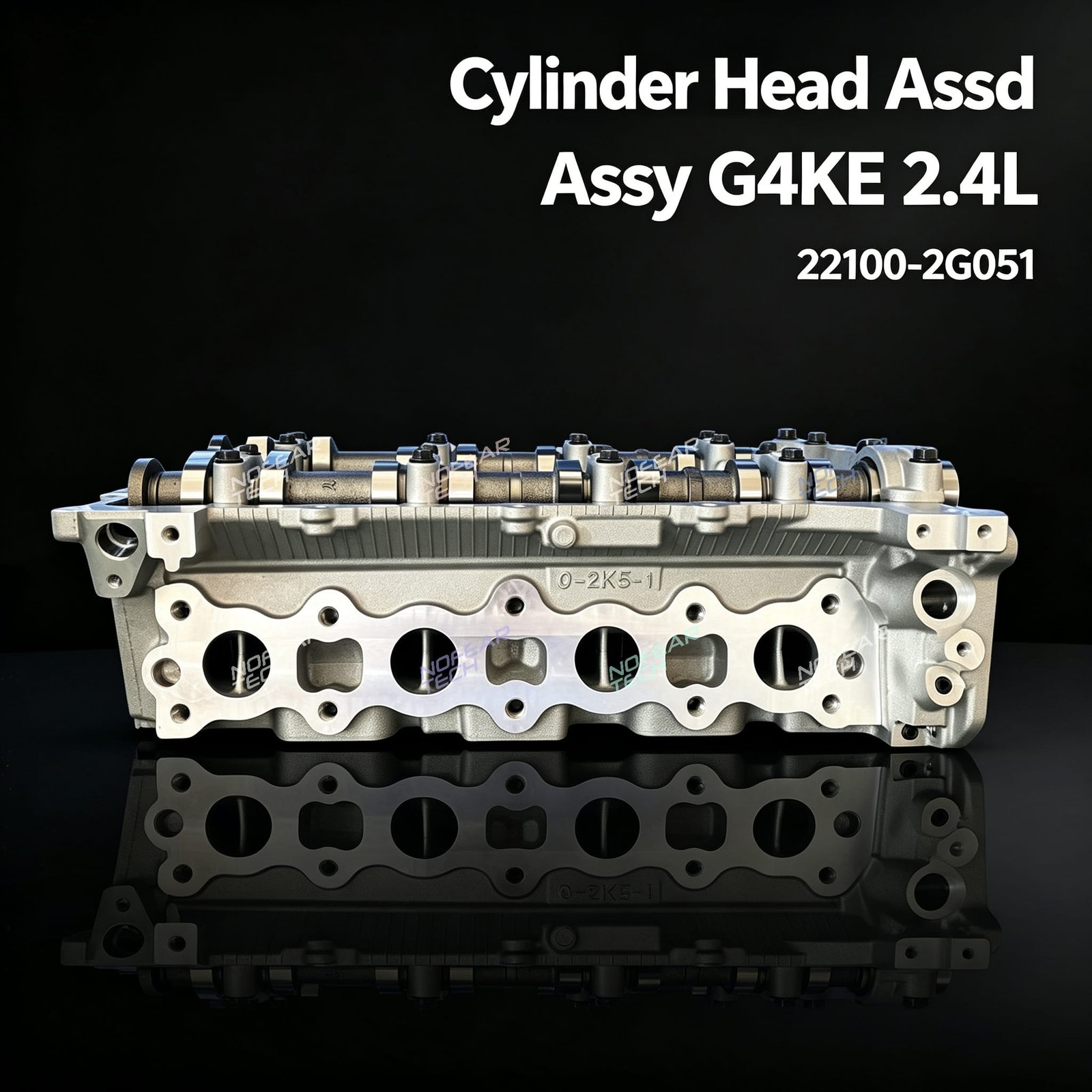

Hyundai / Kia G4KE 2.4L Cylinder Head Assembly – Valves & Camshafts Pre-Installed
This G4KE cylinder head assembly is a brand new, factory-fresh cylinder head built to OEM standards. It comes with the complete valvetrain pre-installed, including intake and exhaust valves, valve springs, camshafts, hydraulic lifters and all related internal components. You simply transfer your existing external parts – saving significant time and labour during installation.
The G4KE is a 2.4-litre 4-cylinder petrol engine from the Hyundai/Kia Theta II family, produced from 2008 to 2019. It features a lightweight aluminium cylinder block with cast-iron sleeves, an aluminium 16-valve DOHC cylinder head without hydraulic lifters, and a maintenance-free timing chain. The engine uses dual CVVT (continuously variable valve timing on both intake and exhaust camshafts) and multi-point fuel injection (MPI) to deliver 170–180 hp and 220–230 Nm of torque[reference:0][reference:1]. Since 2012, G4KE engines have also been equipped with piston cooling oil nozzles for improved durability[reference:2]. This cylinder head is manufactured to exact original tolerances and pressure-tested for reliable, long-lasting performance.
What’s Included – Complete Cylinder Head Assembly
This listing is for the cylinder head with the following components pre-installed and ready to use:
- Cylinder head casting – precision-machined, pressure-tested
- 16 valves – intake and exhaust valves, heat-resistant (4 per cylinder)
- Valve springs, spring seats and retainers
- Valve stem seals (already fitted)
- Valve guides (pressed in)

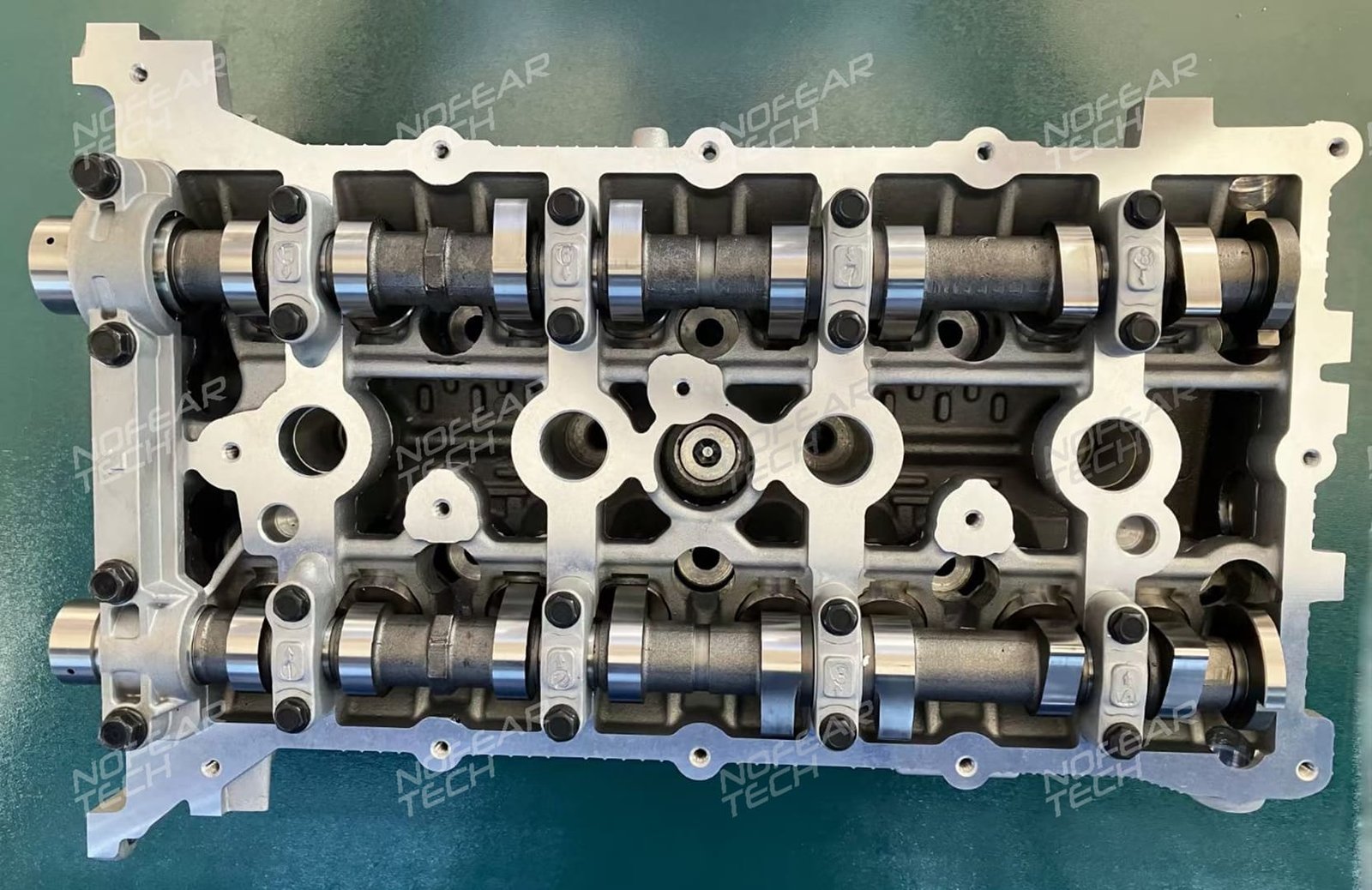

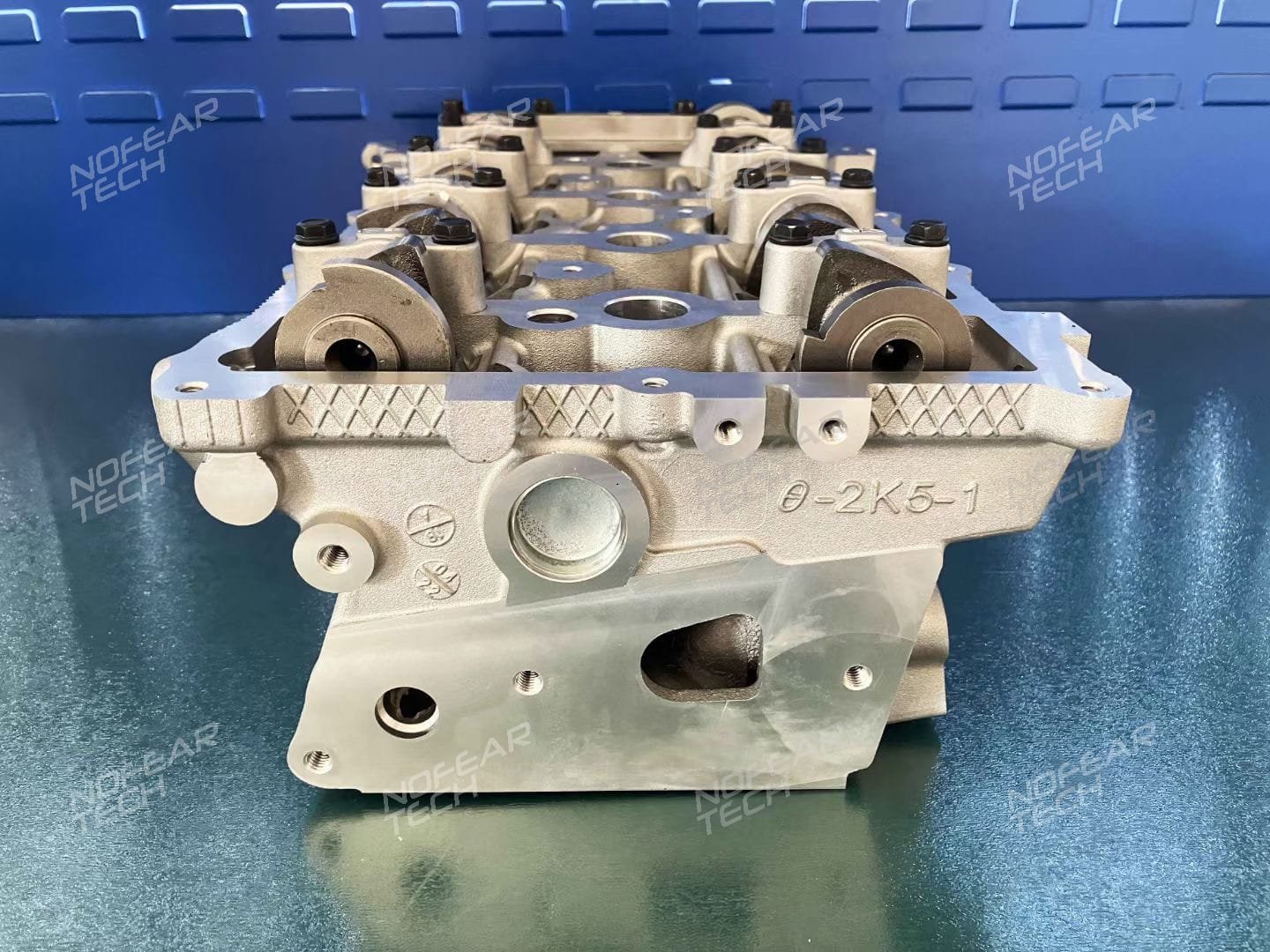

- Camshafts – intake and exhaust (DOHC)
- Camshaft bearing caps and bolts (torqued to specification)
- Core plugs and oil gallery plugs (installed)
- Valve clearances pre-set – no manual adjustment required
Note: This is a cylinder head assembly, so the following external components are NOT included and must be transferred from your old head or purchased separately:
- Valve cover / rocker cover
- Timing chain, tensioner and guides
- Fuel injectors (8-hole or standard MPI configuration – confirm your application)
- Ignition coils and spark plugs
- Intake manifold (with VIS variable intake system)
- Exhaust manifold
- Camshaft sensors, CVVT oil control valves and wiring
Vehicle Compatibility
The G4KE 2.4L engine was fitted to a wide range of Hyundai and Kia mid-size models. Always verify your engine code and OEM part number before purchase. Common applications include:
- Hyundai Sonata (NF/YF/LF) – 2.4L (2008 – 2019)[reference:3]
- Hyundai Santa Fe (CM/DM) – 2.4L (2009 – 2018)[reference:4]
- Hyundai ix35 (LM) – 2.4L (2009 – 2015)[reference:5]
- Hyundai Grandeur (TG/HG) – 2.4L (2009 – 2016)[reference:6]
- Kia Sorento (XM) – 2.4L (2009 – 2017)[reference:7]
- Kia Sportage (SL) – 2.4L (2010 – 2016)[reference:8]
- Kia Optima / Magentis (MG/TF) – 2.4L (2008 – 2015)[reference:9]
- Kia Forte (TD) – 2.4L (2008 – 2013)[reference:10]
- Kia Rondo (UN) – 2.4L (2009 – 2010)[reference:11]
- Kia Cadenza (VG) – 2.4L (2009 – 2011)[reference:12]
- Other vehicles equipped with the G4KE engine (confirm via OEM number)
Technical Specifications
| Engine Code | G4KE (2.4L Theta II MPI) |
| Displacement | 2.4 Litre (2359 cc) |
| Configuration | Inline 4-cylinder, DOHC 16-valve, Dual CVVT |
| Fuel System | Multi-Point Fuel Injection (MPI) |
| Power Output | 170 – 180 hp (127 – 132 kW) |
| Torque Output | 220 – 230 Nm |
| Cylinder Block Material | Aluminum R4 with cast-iron sleeves |
| Cylinder Head Material | Aluminum 16V |
| Bore × Stroke | 88 mm × 97 mm |
| Compression Ratio | 10.5:1 |
| Hydraulic Lifters | No |
| Timing Drive | Chain |
| Phase Regulator | Dual CVVT (intake & exhaust) |
| Turbocharging | No |
| Recommended Engine Oil | 5W-30 or 5W-40 |
| Engine Oil Capacity | 5.2 litres |
| Emission Standards | EURO 4/5 |
| Fuel Type | Petrol / Gasoline |
| Engine Type | Cylinder Head Assembly |
| Condition | Brand New |
Why Choose This G4KE Cylinder Head Assembly
- 100% brand new – never reconditioned or repaired
- Pressure-tested and vacuum-tested for leaks
- OEM-grade materials and exact machining tolerances
- Pre-installed valves and camshafts save hours of fitting time
- Comes with an 18-month warranty for peace of mind
- Packed in a reinforced crate for safe international freight
- Fast global shipping to port or door
If you need a Hyundai G4KE cylinder head for sale or a complete replacement head assembly, this unit gives your engine a factory-fresh start. Order now for a reliable, direct-fit solution.
