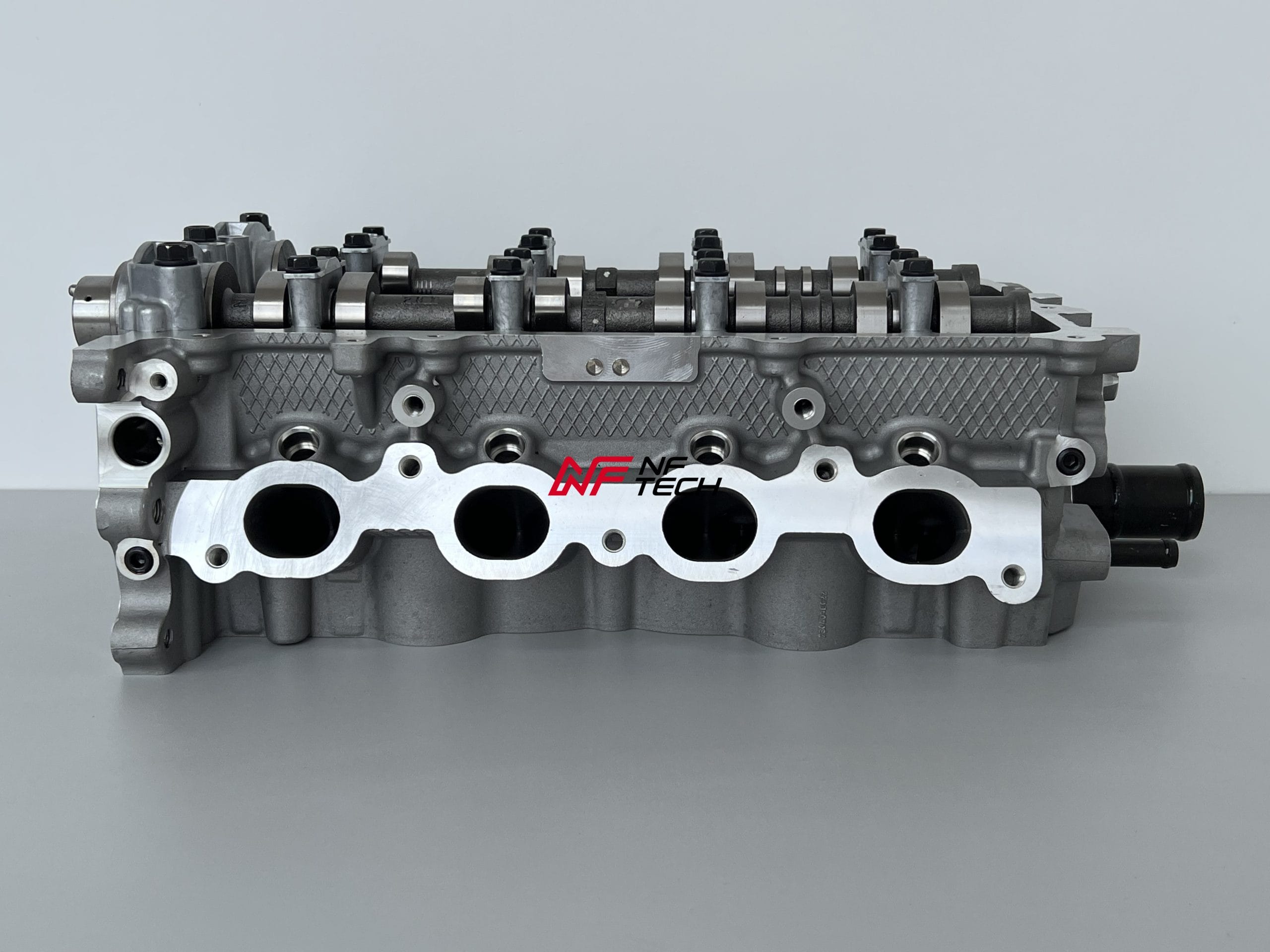

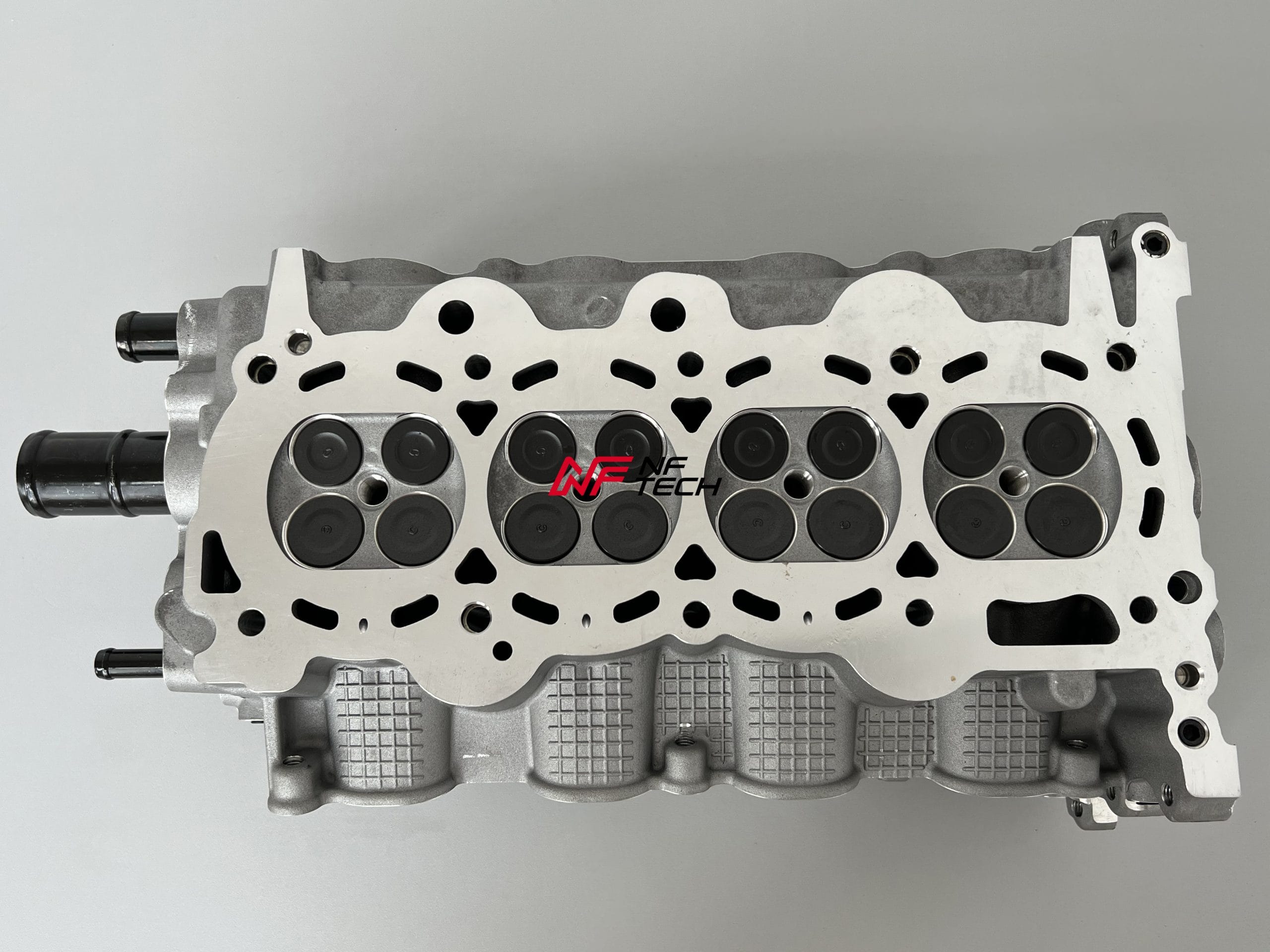

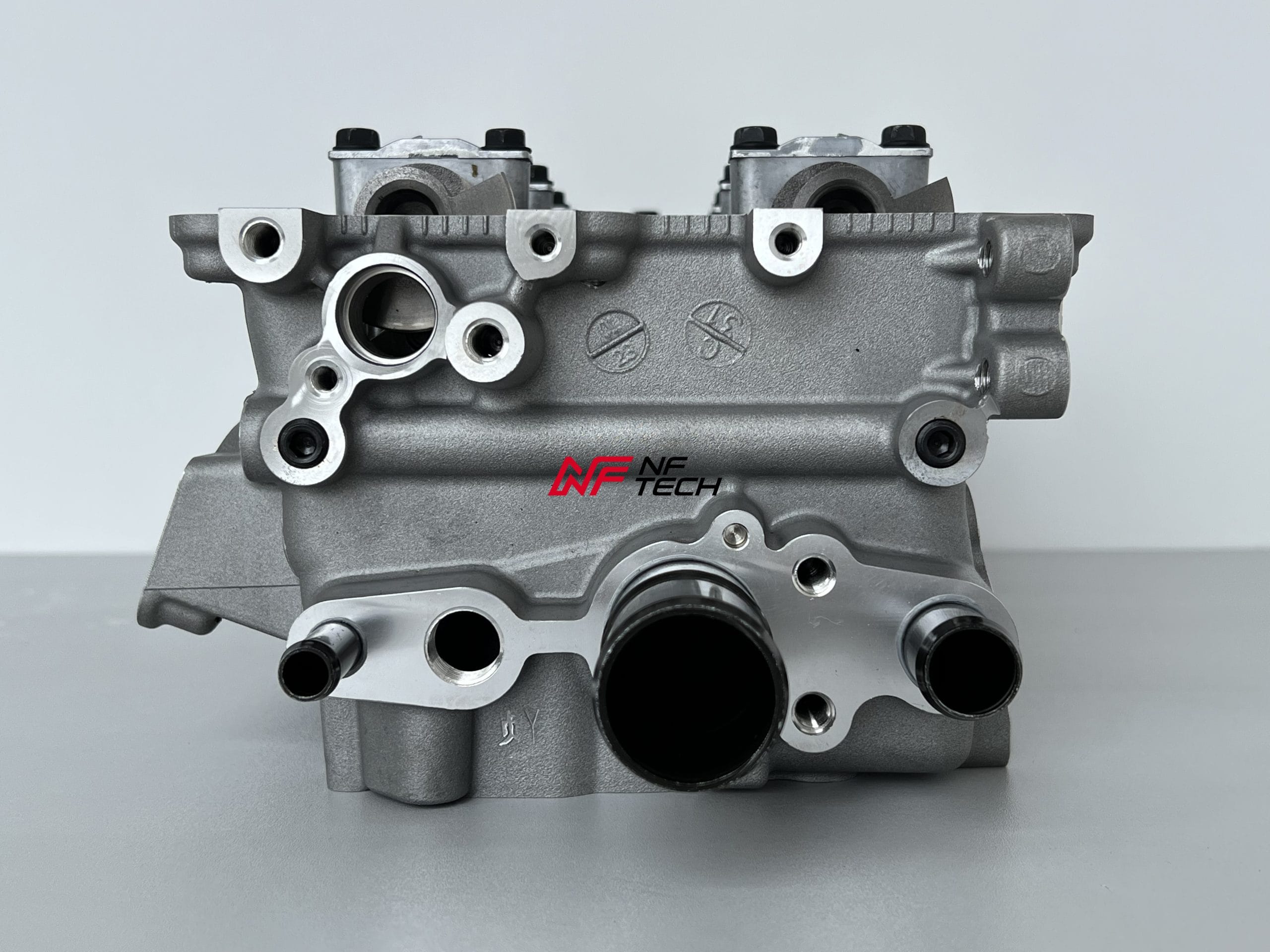

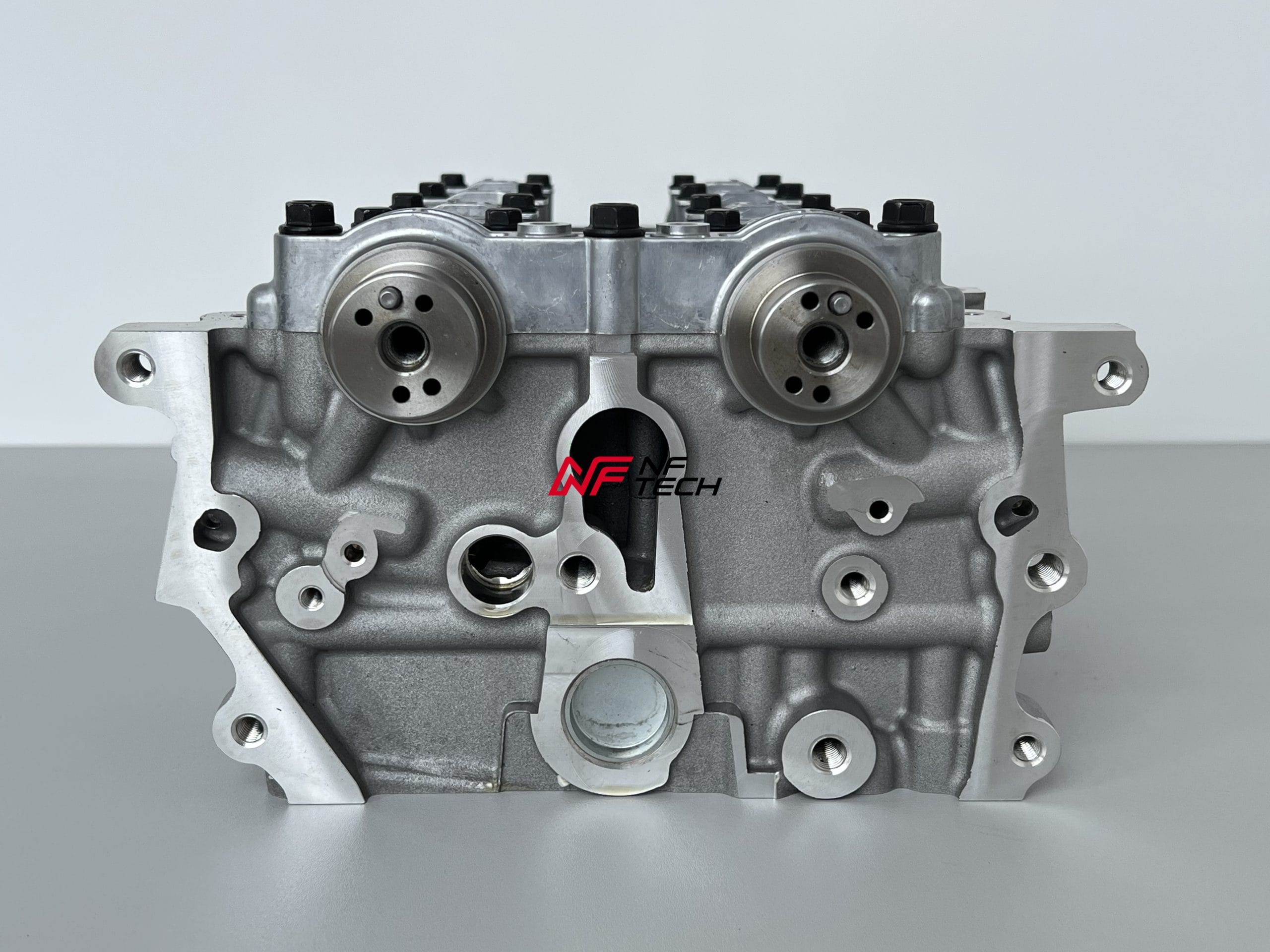

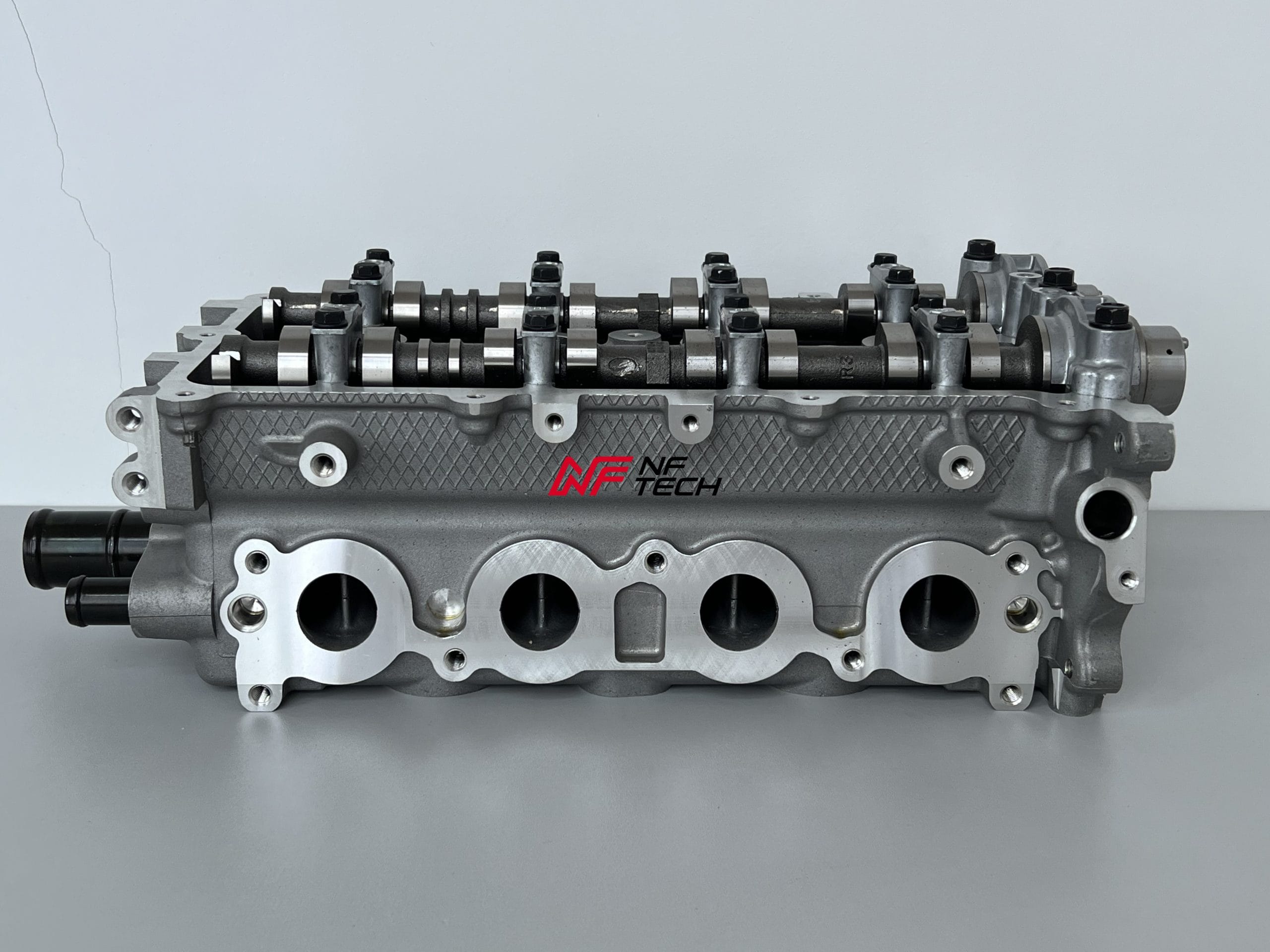

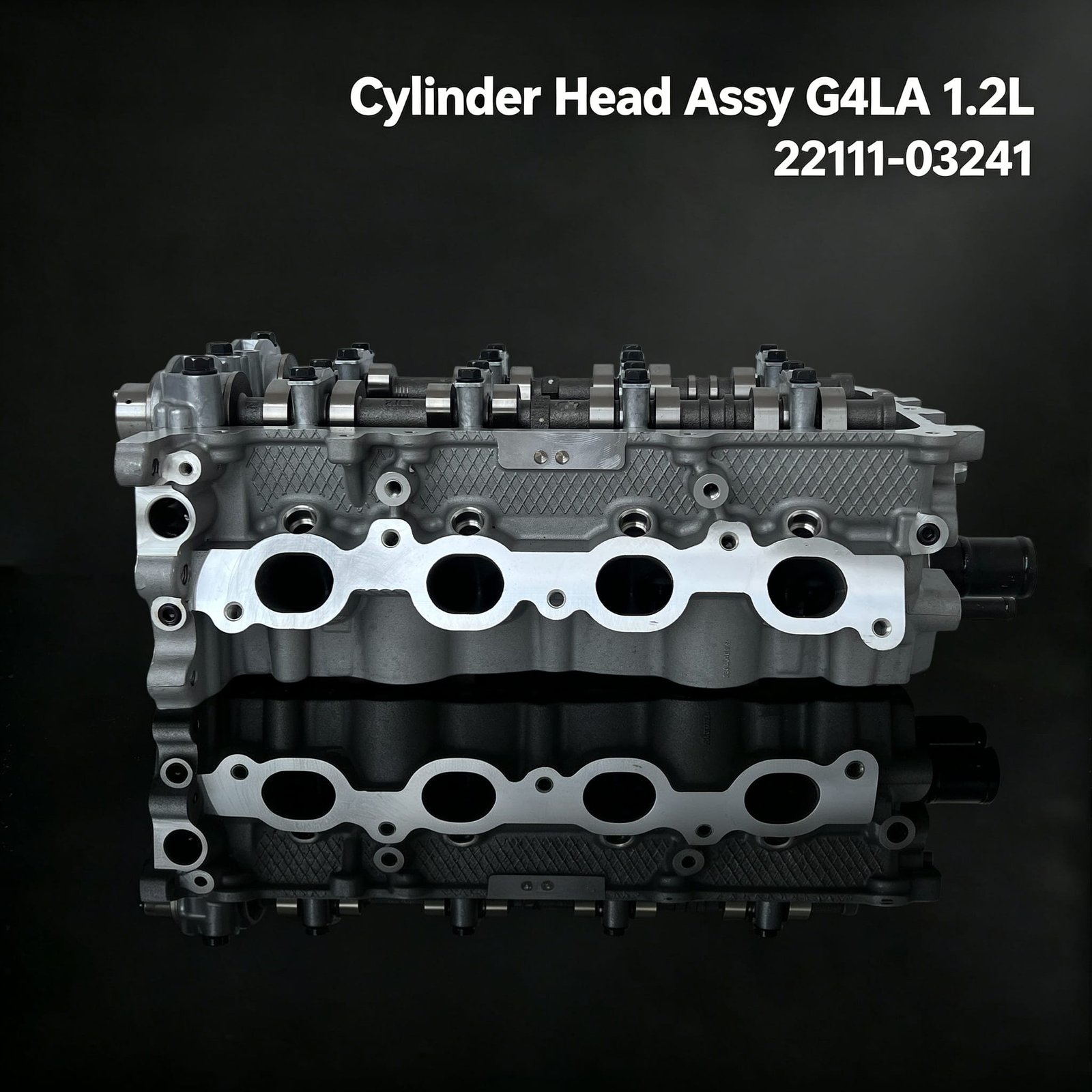

Hyundai / Kia G4LA Cylinder Head Assembly – Valves & Camshafts Pre-Installed

This G4LA cylinder head assembly is a brand new, factory-fresh cylinder head built to OEM standards. It comes with the complete valvetrain pre-installed, including intake and exhaust valves, valve springs, camshafts, hydraulic lifters and all related internal components. You simply transfer your existing external parts – saving significant time and labour during installation.

The G4LA is a 1.2-litre 4-cylinder petrol engine from the Hyundai/Kia Kappa engine family, produced from 2008 onwards. It features a lightweight aluminium cylinder block and head, DOHC 16-valve valvetrain with Dual CVVT (continuously variable valve timing on both intake and exhaust camshafts), a maintenance-free timing chain, and hydraulic lifters. The engine delivers 78–87 hp and 118–121 Nm of torque, providing excellent fuel efficiency for compact city cars. This cylinder head is manufactured to exact original tolerances and pressure-tested for reliable, long-lasting performance.

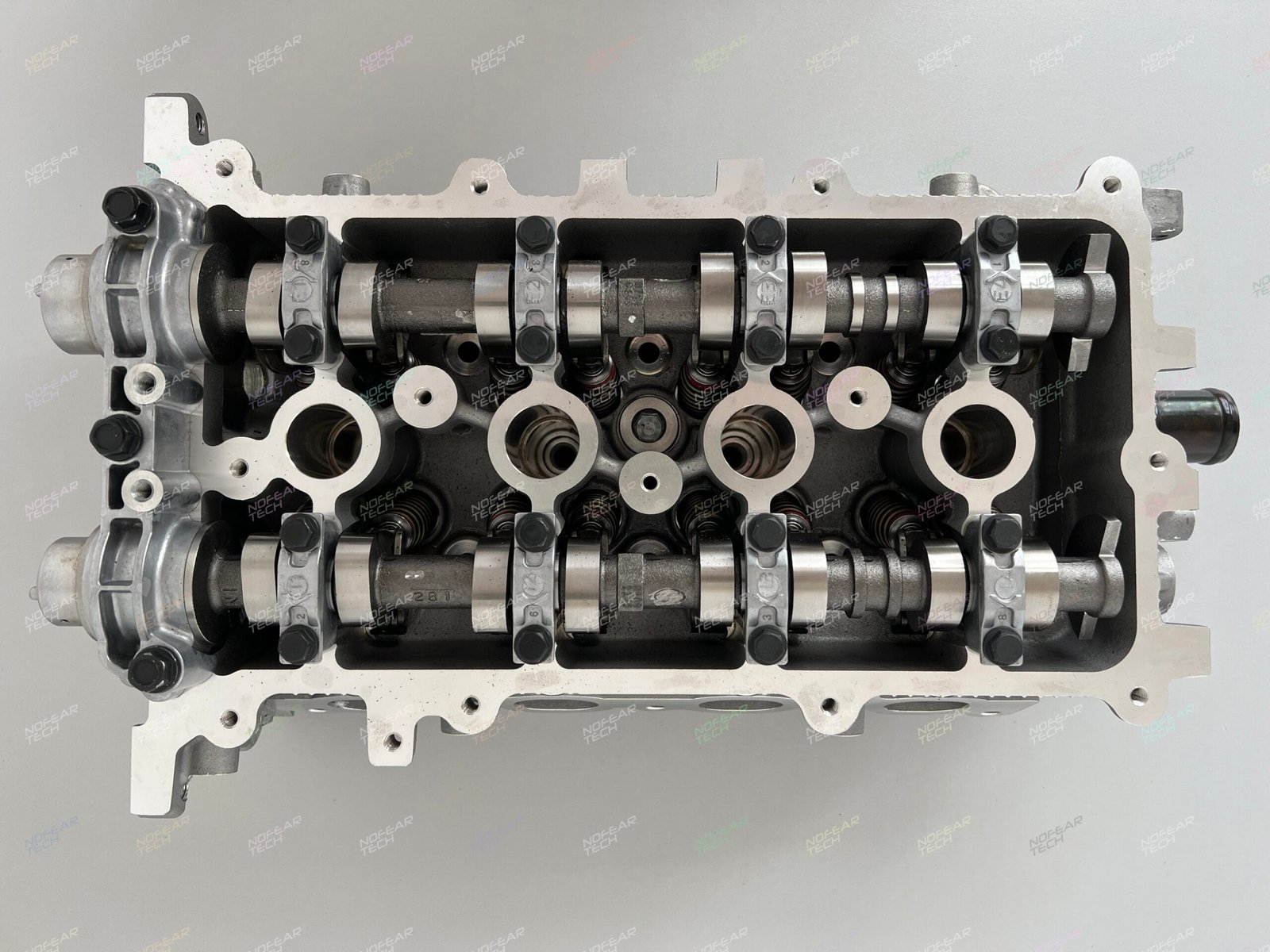

What’s Included – Complete Cylinder Head Assembly

This listing is for the cylinder head with the following components pre-installed and ready to use:

• Cylinder head casting – precision-machined, pressure-tested
• 16 valves – intake and exhaust valves, heat-resistant (4 per cylinder)
• Valve springs, spring seats and retainers
• Valve stem seals (already fitted)
• Valve guides (pressed in)

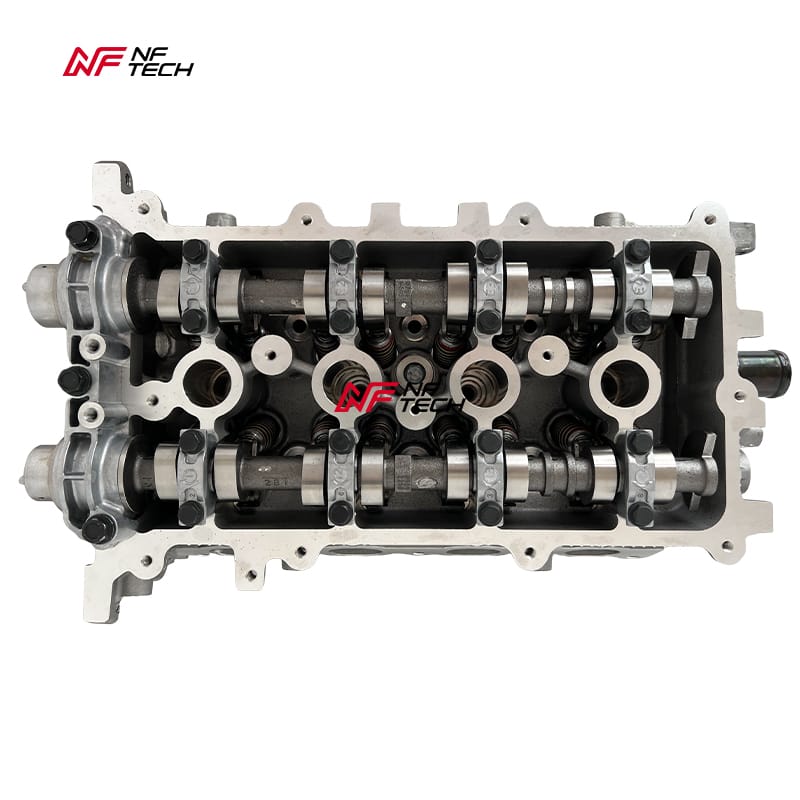

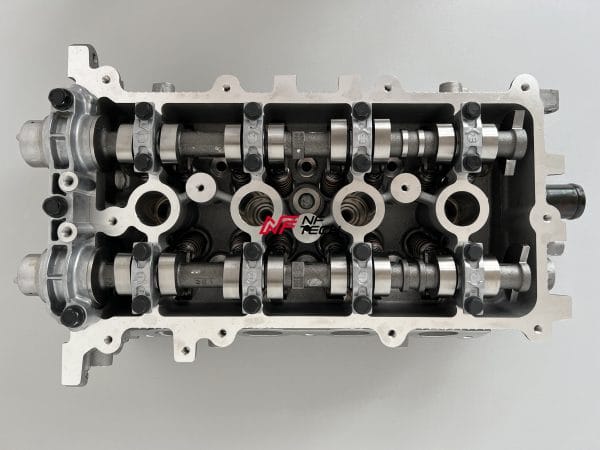

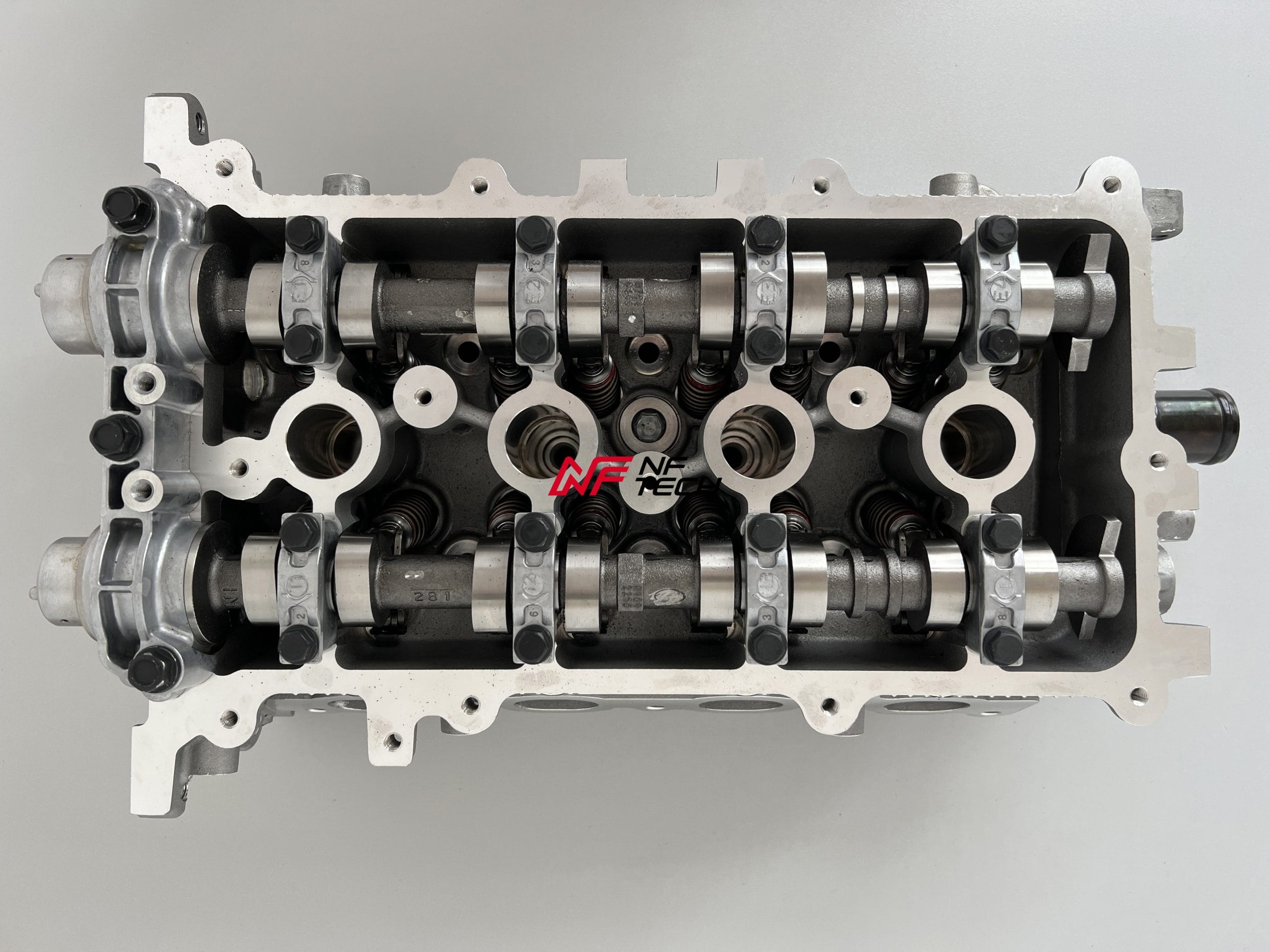

• Camshafts – intake and exhaust (DOHC)
• Hydraulic lifters / tappets (pre-installed)
• Camshaft bearing caps and bolts (torqued to specification)
• Core plugs and oil gallery plugs (installed)
• Valve clearances pre-set – no manual adjustment required

Note: This is a cylinder head assembly, so the following external components are NOT included and must be transferred from your old head or purchased separately:

• Valve cover / rocker cover
• Timing chain, tensioner and guides
• Fuel injectors and ignition coils
• Intake manifold (with VIS variable intake system)
• Exhaust manifold
• Camshaft sensors, actuator solenoids and wiring

Vehicle Compatibility

The G4LA 1.2L Kappa engine was fitted to a range of Hyundai and Kia compact models. Always verify your engine code and OEM part number before purchase. Common applications include:

• Hyundai i10 I (PA) – 1.2 MPI (2008 – 2013)
• Hyundai i20 I (PB) – 1.2 MPI (2008 – 2014)
• Hyundai i20 II (GB) – 1.2 MPI (2014 – 2020, select markets)
• Kia Picanto II (TA) – 1.2 MPI (2011 – 2017)
• Kia Rio III (UB) – 1.25 CVVT (2011 – 2017)
• Kia Rio IV (YB) – 1.25 MPI (2017 – 2020, select markets)
• Other vehicles equipped with the G4LA engine (confirm via OEM number)

Why Choose This G4LA Cylinder Head Assembly

• 100% brand new – never reconditioned or repaired
• Pressure-tested and vacuum-tested for leaks
• OEM-grade materials and exact machining tolerances
• Pre-installed valves and camshafts save hours of fitting time
• Comes with an 18-month warranty for peace of mind
• Packed in a reinforced crate for safe international freight
• Fast global shipping to port or door

If you need a Hyundai G4LA cylinder head for sale or a complete replacement head assembly, this unit gives your engine a factory-fresh start. Order now for a reliable, direct-fit solution.
