DV6 cylinder head assembly front view – Peugeot Citroën Ford Volvo 1.6 HDi
DV6 cylinder head intake side with valves and camshaft installed

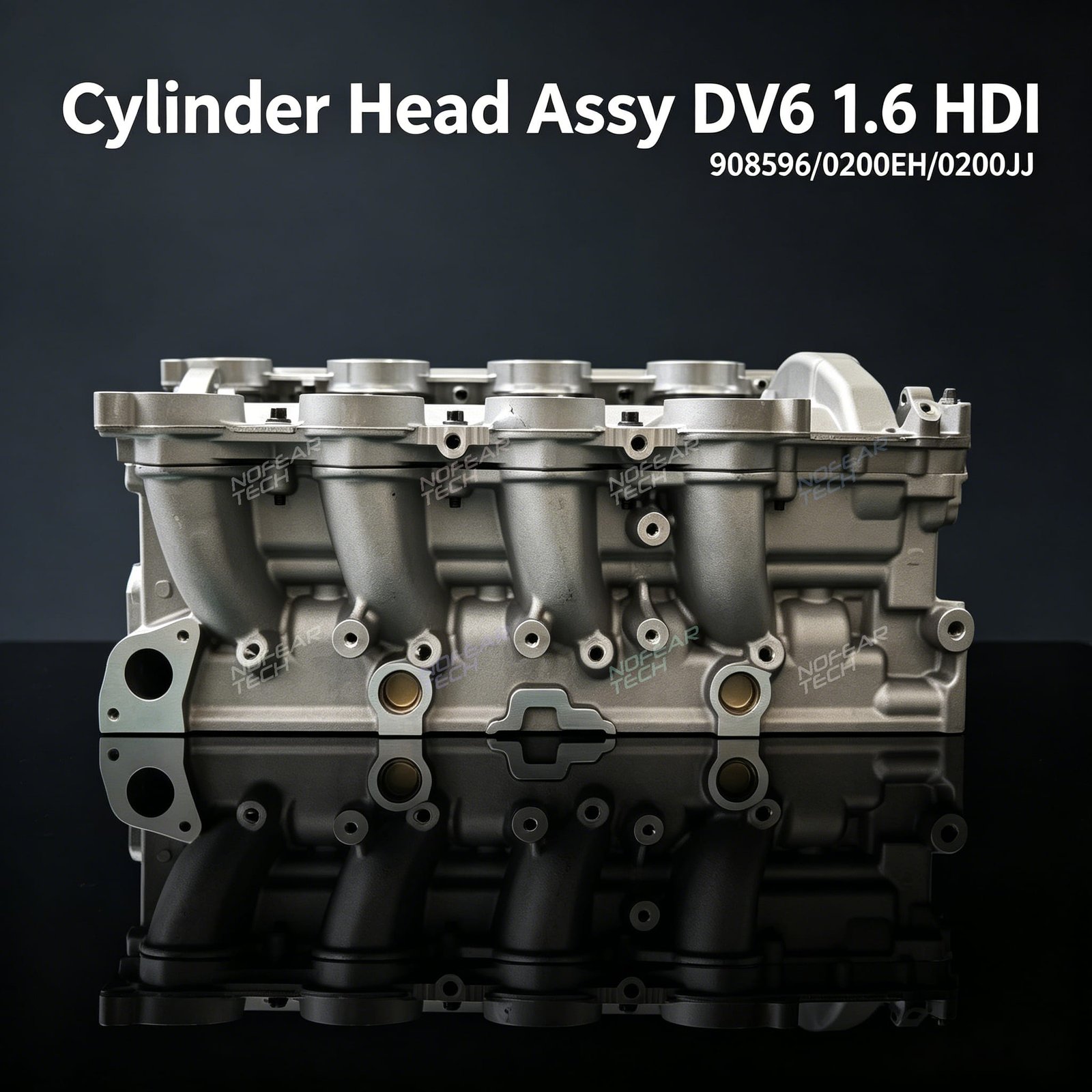

DV6 cylinder head assembly front view – Peugeot Citroën Ford Volvo 1.6 HDi
DV6 cylinder head exhaust side – Peugeot Citroën Ford Volvo 1.6 turbo diesel

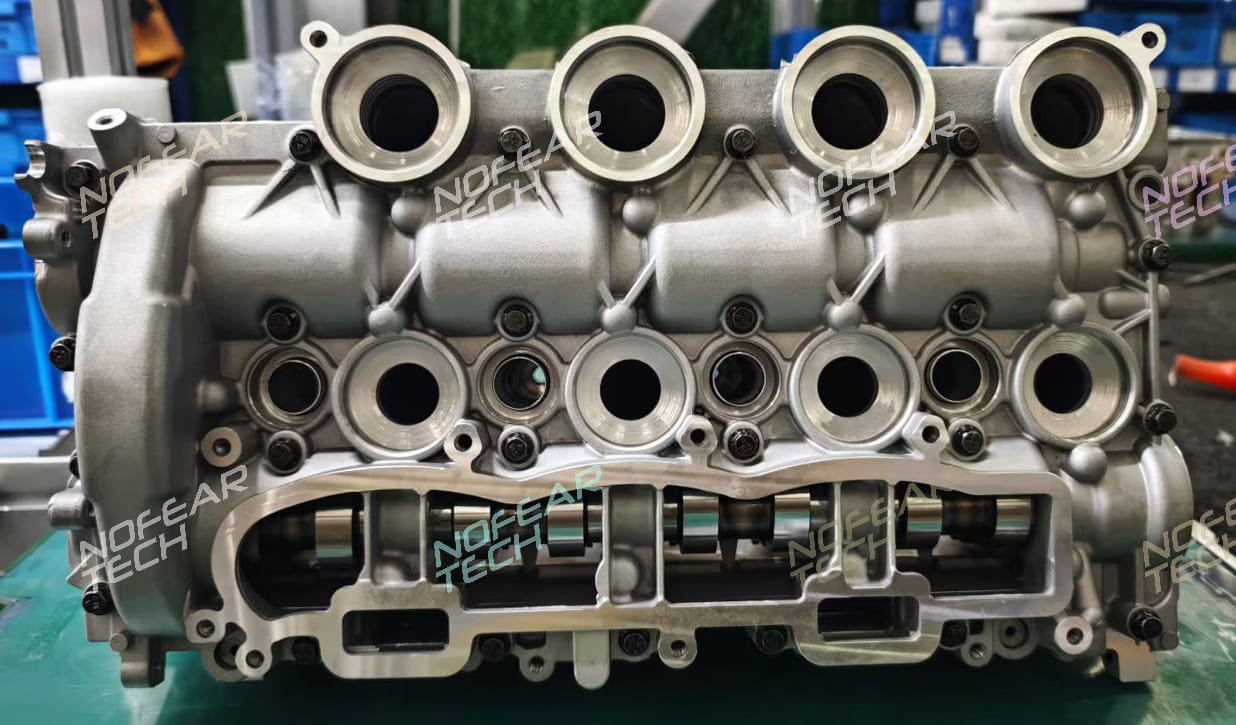

DV6 cylinder head combustion chamber detail – 1.6L HDi TDCi

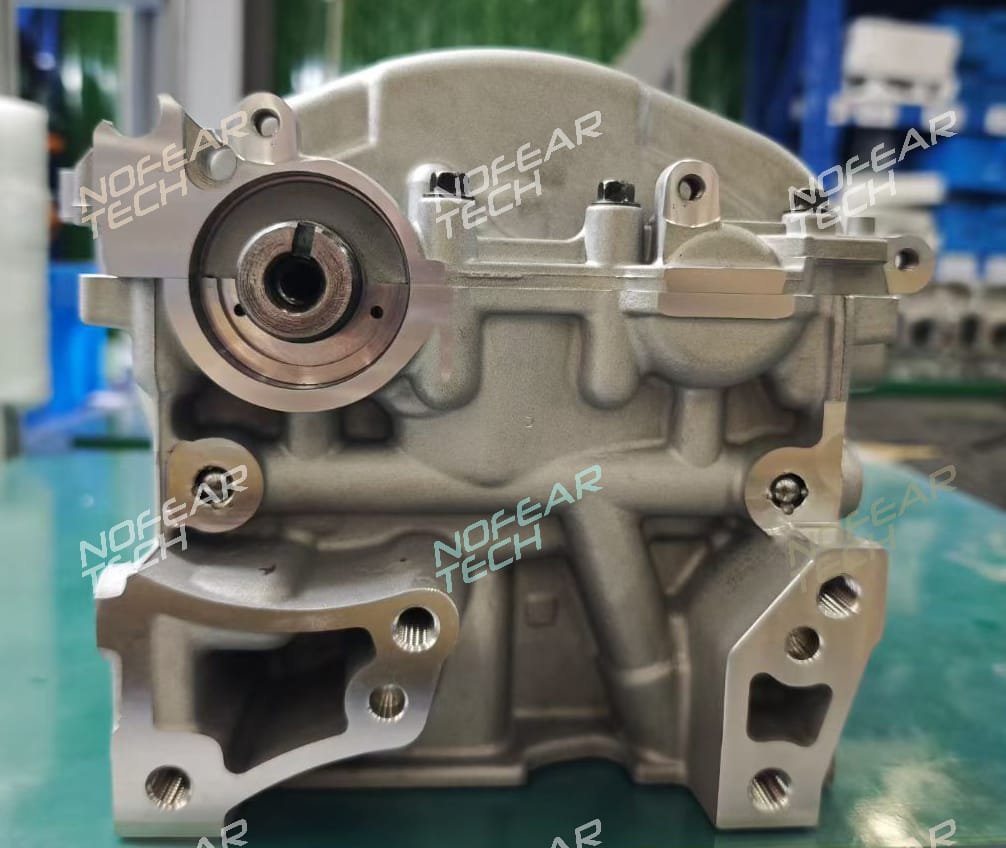

DV6 engine code stamp close-up – OEM 0200EH

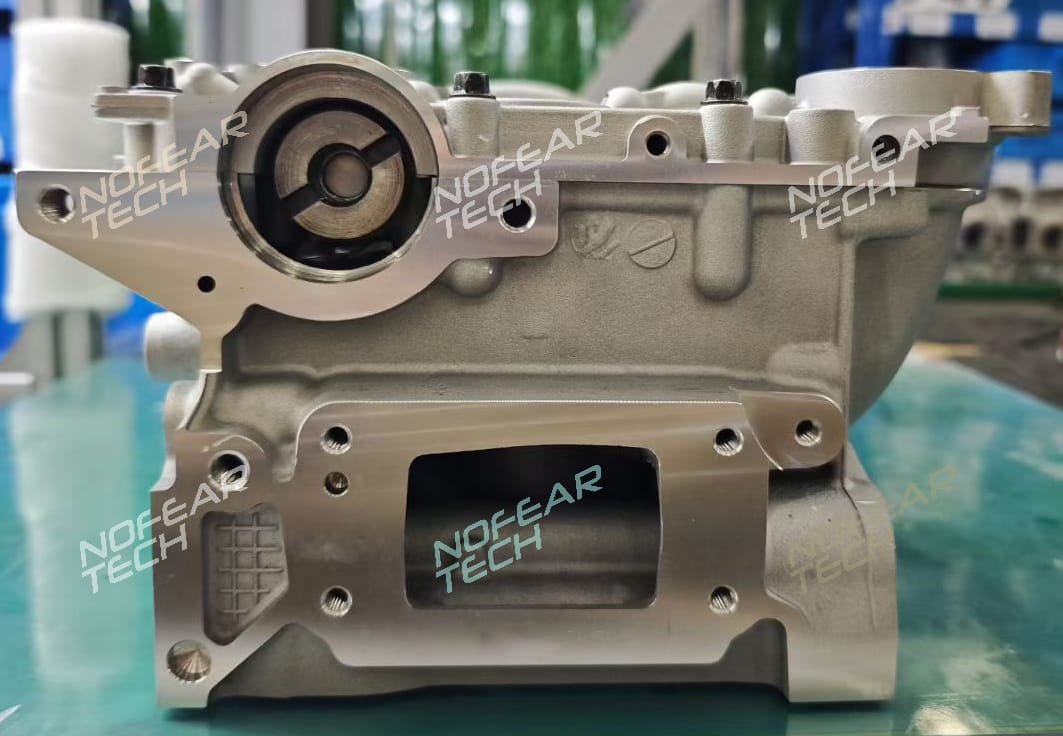

DV6 cylinder head camshaft and valve springs pre-installed

Peugeot DV6 Complete Cylinder Head AMC908596

Brand new 9HW / 9HX / 9HZ DV6 cylinder head assembly with valves and camshaft pre-installed.

Precision-manufactured to OEM specifications for Peugeot, Citroën, Ford and Volvo vehicles powered by the 1.6L HDi / TDCi turbo diesel engine (DV6 platform). Ready to bolt onto your engine block after transferring your external parts. Ideal for head replacement, engine repair or rebuild. 18-month warranty.

  • Engine Code: 9HW (DV6BTED4) / 9HX (DV6ATED4) / 9HZ (DV6TED4) / DV6B
  • Displacement: 1.6 Litre (1560 cc)
  • Configuration: Inline 4-cylinder, DOHC 16-valve, Turbo Diesel
  • Fuel Type: Diesel
  • Condition: New – Cylinder Head Assembly (Valves & Camshaft Pre-Installed)
  • OEM: AMC 908596 / Citroën 0200EH, 0200JJ / Peugeot 0200EH, 0200JJ / Ford 1229884, 1477183, 1676242, 1767479 / Mazda Y60110090 / Volvo 8603391
  • Warranty: 18 months
  • Compatible models: Peugeot 206, 207, 307, 308, 407, Partner, Expert, 1007, 3008, 5008, Citroën C2, C3, C4, C5, Xsara Picasso, Jumpy, Berlingo, Ford Focus, Fiesta, C-Max, Mondeo, Kuga, Volvo S40, V50, C30, Mazda 2, Mazda 3 (confirm via OEM number)
Get A Quote

Description

9HW / 9HX / 9HZ DV6 Cylinder Head Assembly – Peugeot / Citroën / Ford / Volvo 1.6 HDi

9HW / 9HX / 9HZ DV6 cylinder head assembly for Peugeot, Citroën, Ford, Volvo and Mazda 1.6L HDi / TDCi turbo diesel engines. Brand new, with valves and camshaft pre-installed. Direct fit for Peugeot 206, 207, 307, 308, 407, Partner, Expert, 1007, 3008, 5008, Citroën C2, C3, C4, C5, Xsara Picasso, Jumpy, Berlingo, Ford Focus, Fiesta, C-Max, Mondeo, Kuga, Volvo S40, V50, C30 and Mazda 2, Mazda 3. OEM 0200EH, 0200JJ, 1229884, 1477183, 1676242, 1767479, Y60110090, 8603391, AMC 908596. 18-month warranty.

As a leading cylinder head manufacturer and wholesale supplier, we deliver OEM-quality engine components to mechanics, rebuilders and parts distributors worldwide. This DV6 cylinder head is a direct replacement for the original factory part, built to exact tolerances and pressure-tested for reliability. The DV6 engine family is widely used across Peugeot, Citroën, Ford, Volvo and Mazda platforms, making this complete cylinder head assembly an ideal solution for professional engine rebuilds.

What’s Included

  • Complete cylinder head casting – precision-machined and pressure-tested
  • 16 valves – intake and exhaust, heat-resistant (4 per cylinder)
  • Valve springs, spring seats and retainers
  • Valve stem seals and valve guides (pre-installed)
  • Camshaft – DOHC
  • Camshaft bearing caps and bolts (torqued to specification)
  • Core plugs and oil gallery plugs (installed)

Note: Valve cover, timing belt, fuel injectors, glow plugs, intake manifold, exhaust manifold and turbocharger are NOT included. Transfer these from your original engine.

Vehicle Compatibility

Fits the following Peugeot, Citroën, Ford, Volvo and Mazda models equipped with the DV6 engine family:

  • Peugeot 206 (2A/C) – 1.6 HDi 110 (2004 – 2007)
  • Peugeot 207 – 1.6 HDi (2006 – 2014)
  • Peugeot 307 (3A/C) – 1.6 HDi 110 (2004 – 2011)
  • Peugeot 308 (4A/C) – 1.6 HDi 90 / 110 (2007 – 2014)
  • Peugeot 407 (6D) – 1.6 HDi 110 (2004 – 2010)
  • Peugeot Partner (G_/K9) – 1.6 HDi (2008 – present)
  • Peugeot Expert – 1.6 HDi (2007 – 2016)
  • Peugeot 1007 – 1.6 HDi (2005 – 2009)
  • Peugeot 3008 / 5008 – 1.6 HDi (2009 – 2016)
  • Citroën C2 – 1.6 HDi (2004 – 2009)
  • Citroën C3 I / II – 1.6 HDi (2005 – 2015)
  • Citroën C4 I / Coupe – 1.6 HDi (2004 – 2011)
  • Citroën C5 II – 1.6 HDi (2004 – 2008)
  • Citroën Xsara Picasso – 1.6 HDi (2004 – 2010)
  • Citroën Jumpy II – 1.6 HDi (2007 – 2016)
  • Citroën Berlingo II – 1.6 HDi (2008 – 2018)
  • Ford Focus II – 1.6 TDCi (2004 – 2011)
  • Ford Fiesta VI – 1.6 TDCi (2008 – 2012)
  • Ford C-Max I – 1.6 TDCi (2007 – 2010)
  • Ford Mondeo IV – 1.6 TDCi (2007 – 2014)
  • Ford Kuga I – 1.6 TDCi (2008 – 2012)
  • Volvo S40 II / V50 – 1.6 D (2005 – 2012)
  • Volvo C30 – 1.6 D (2006 – 2012)
  • Mazda 2 (DE) – 1.6 CD (2007 – 2010)
  • Mazda 3 (BK/BL) – 1.6 CD (2005 – 2010)

Always verify your engine code and OEM part number before ordering.

OEM Part Number Cross-Reference

  • AMC: 908596, 908596K
  • Citroën / Peugeot: 0200EH, 0200JJ, 0200.EH, 0200.JJ
  • Ford: 1229884, 1477183, 1676242, 1767479, 3M5Q-6090-AD, 3M5Q-6090-AE
  • Volvo: 8603391
  • Mazda: Y60110090, Y601-10-090
  • Related references: 9655911480, 9656339980, 9656339580, 9656339780, W16 DLD-416

Why Buy This DV6 Cylinder Head Assembly

  • 100% brand new – not reconditioned or repaired
  • Pressure-tested for leaks and cracks
  • Pre-installed valves and camshaft save hours of fitting time
  • 18-month warranty included
  • Packed in a reinforced crate for safe international freight
  • Fast global shipping to port or door

Frequently Asked Questions

What vehicles use the DV6 cylinder head?

The DV6 1.6L engine family was fitted to Peugeot 206, 207, 307, 308, 407, Partner, Expert, 1007, 3008, 5008, Citroën C2, C3, C4, C5, Xsara Picasso, Jumpy, Berlingo, Ford Focus, Fiesta, C-Max, Mondeo, Kuga, Volvo S40, V50, C30 and Mazda 2, Mazda 3 produced between 2004 and 2018.

Does this DV6 cylinder head come with valves and camshaft?

Yes. This assembly is supplied fully assembled with intake and exhaust valves, valve springs, the DOHC camshaft and all internal valvetrain components pre-installed.

What is the OEM part number for this cylinder head?

The primary OEM references are AMC 908596, Citroën / Peugeot 0200EH and 0200JJ, Ford 1229884, 1477183, 1676242 and 1767479, Volvo 8603391, and Mazda Y60110090.

Is a warranty included?

Yes, this DV6 cylinder head assembly includes an 18-month warranty.
