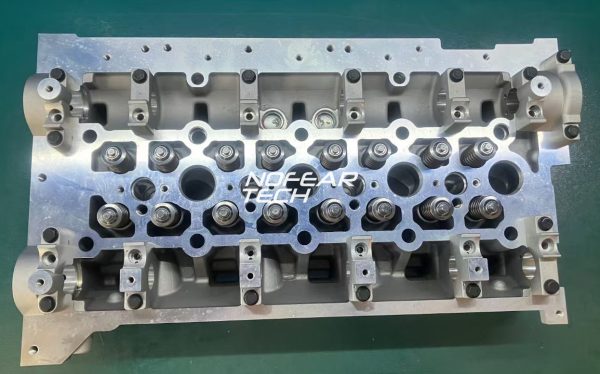

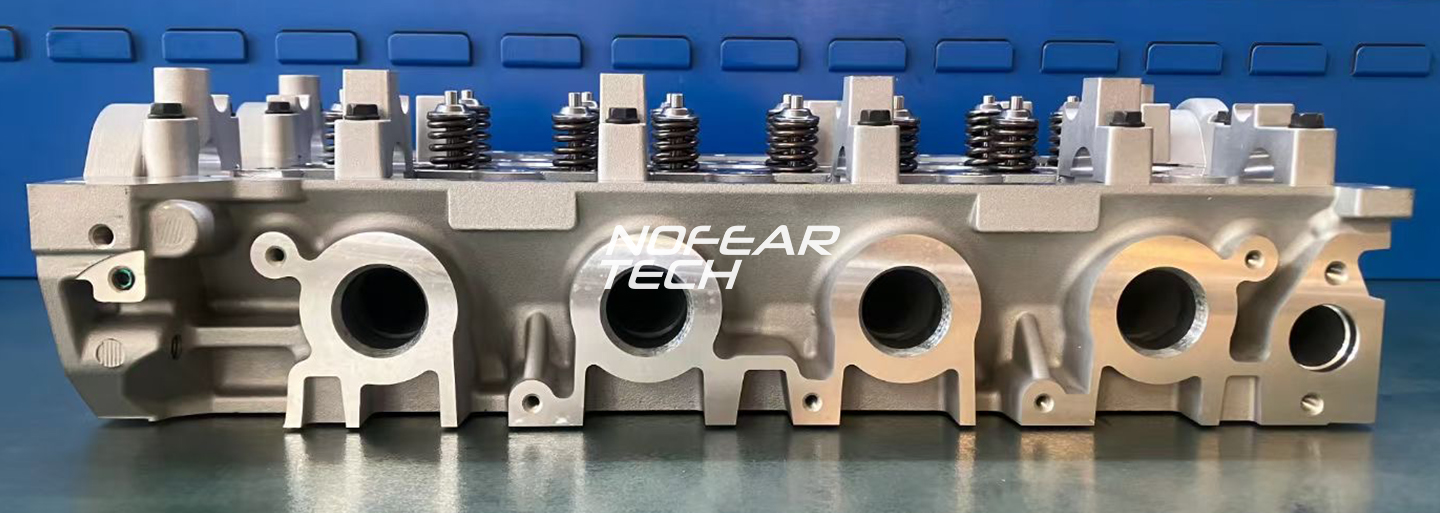

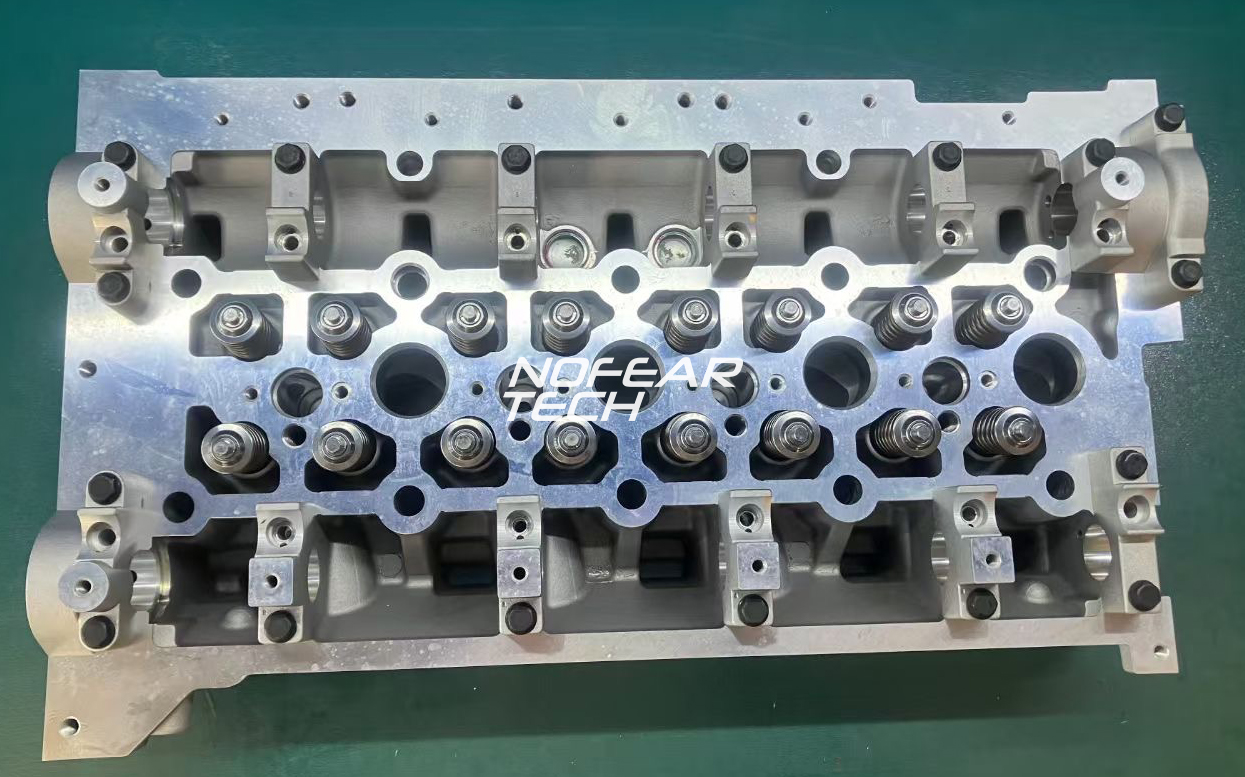

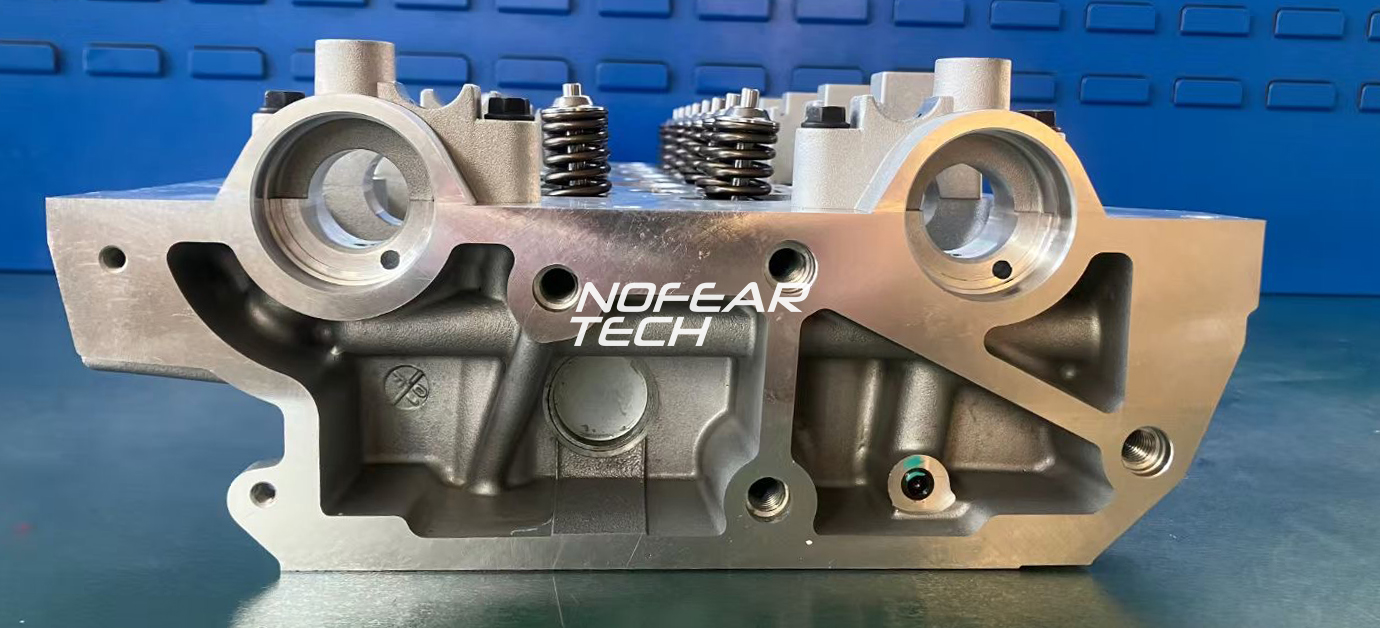

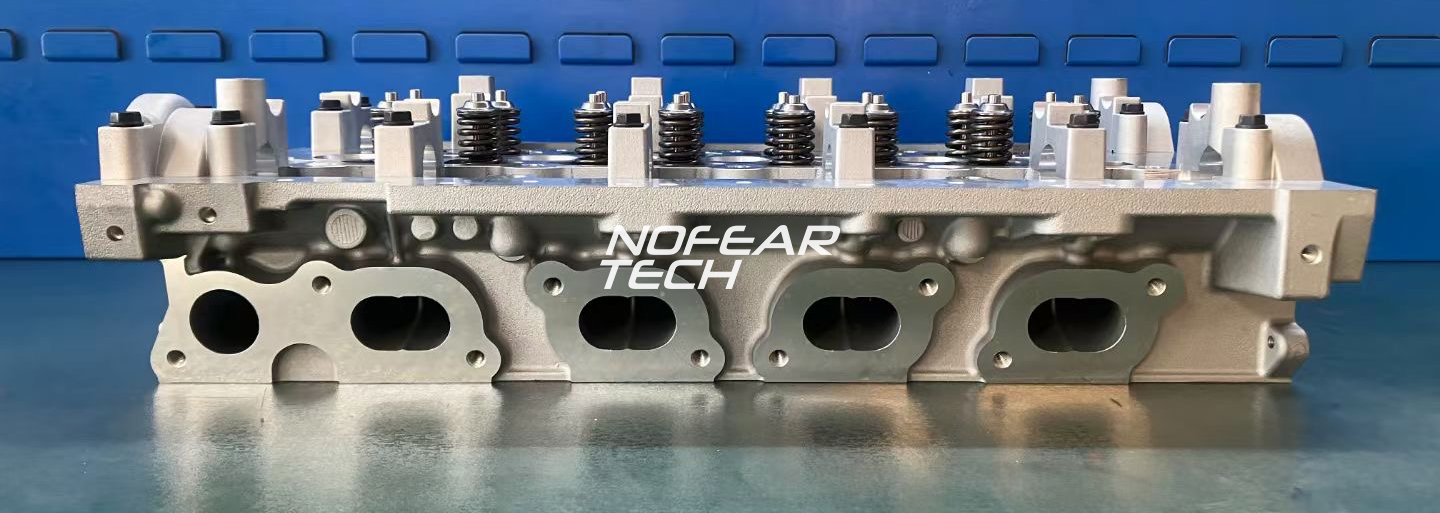

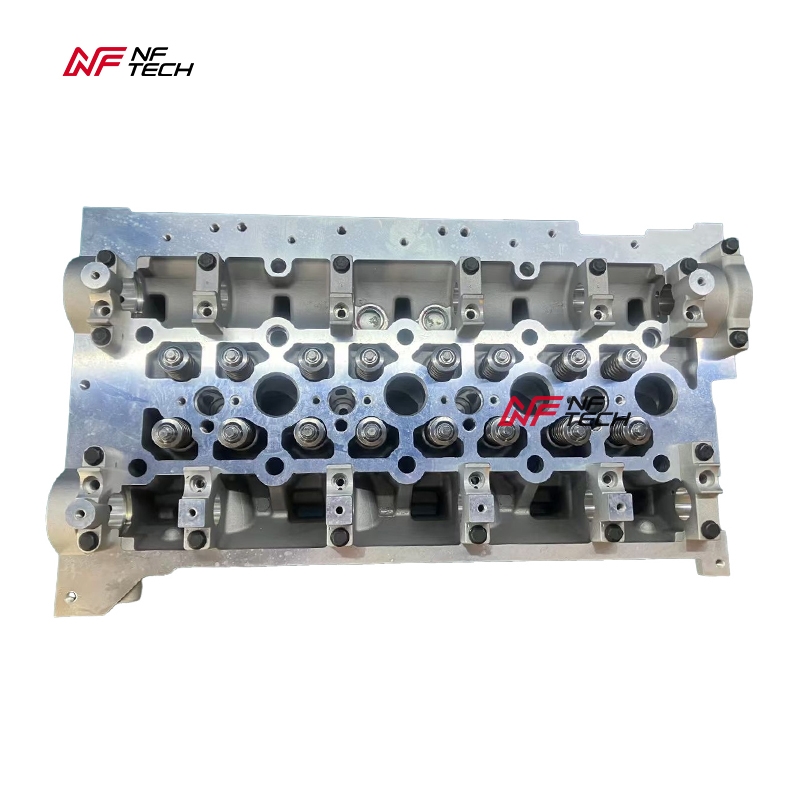

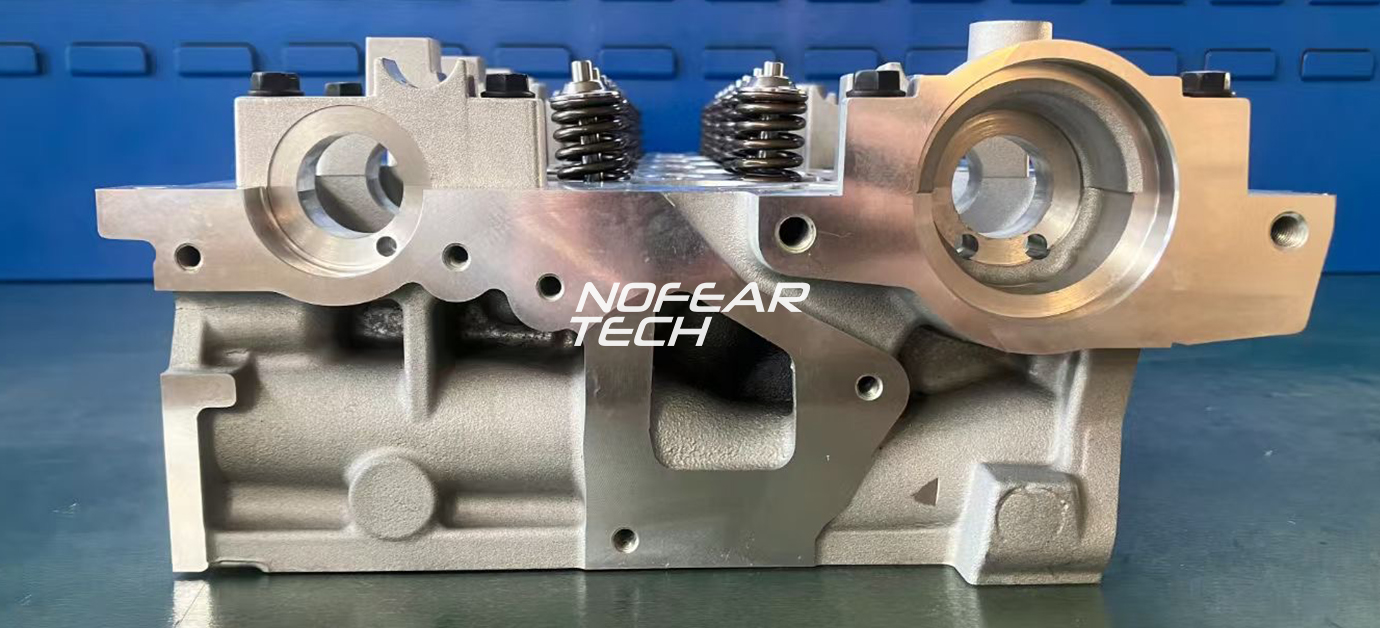

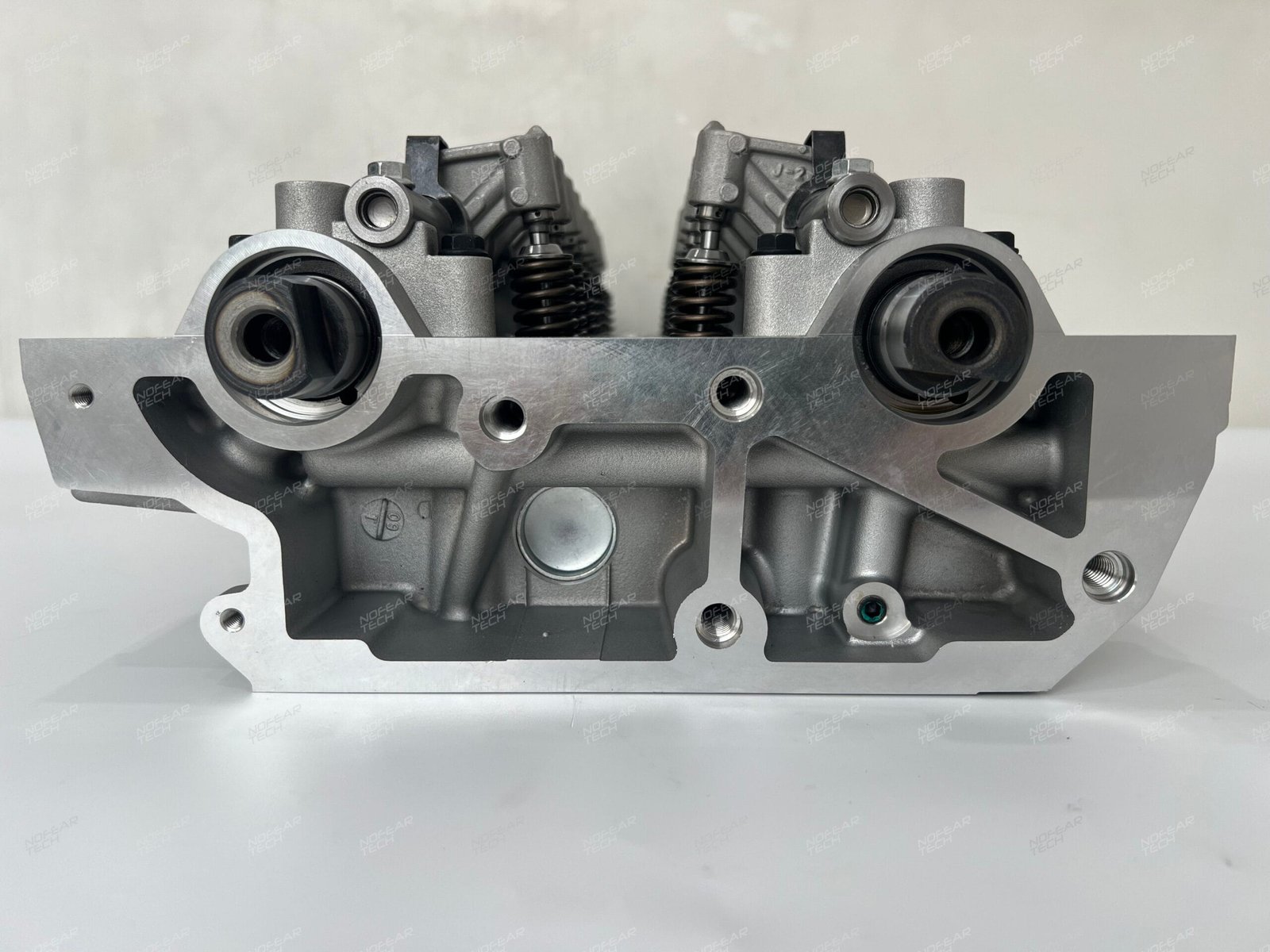

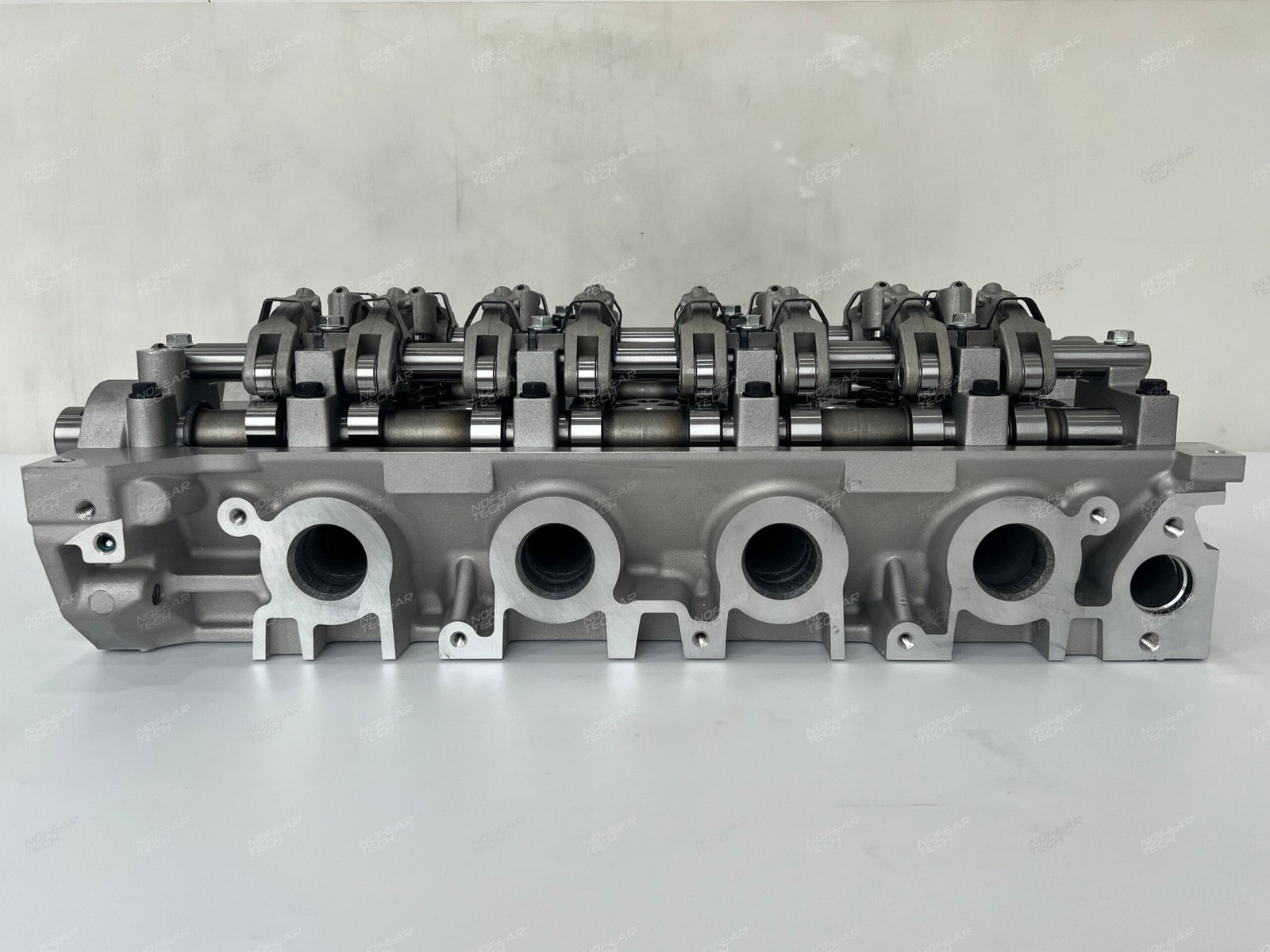

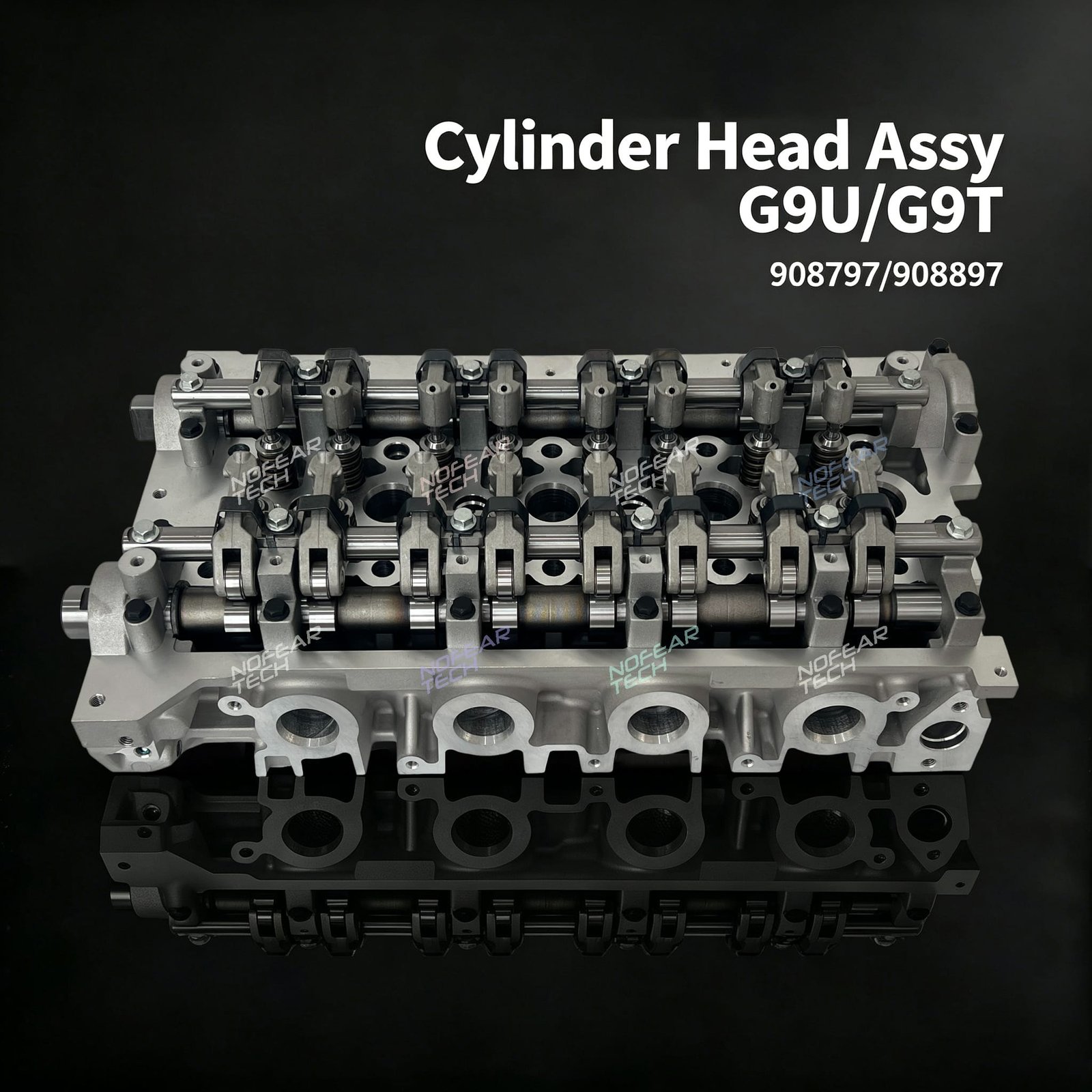

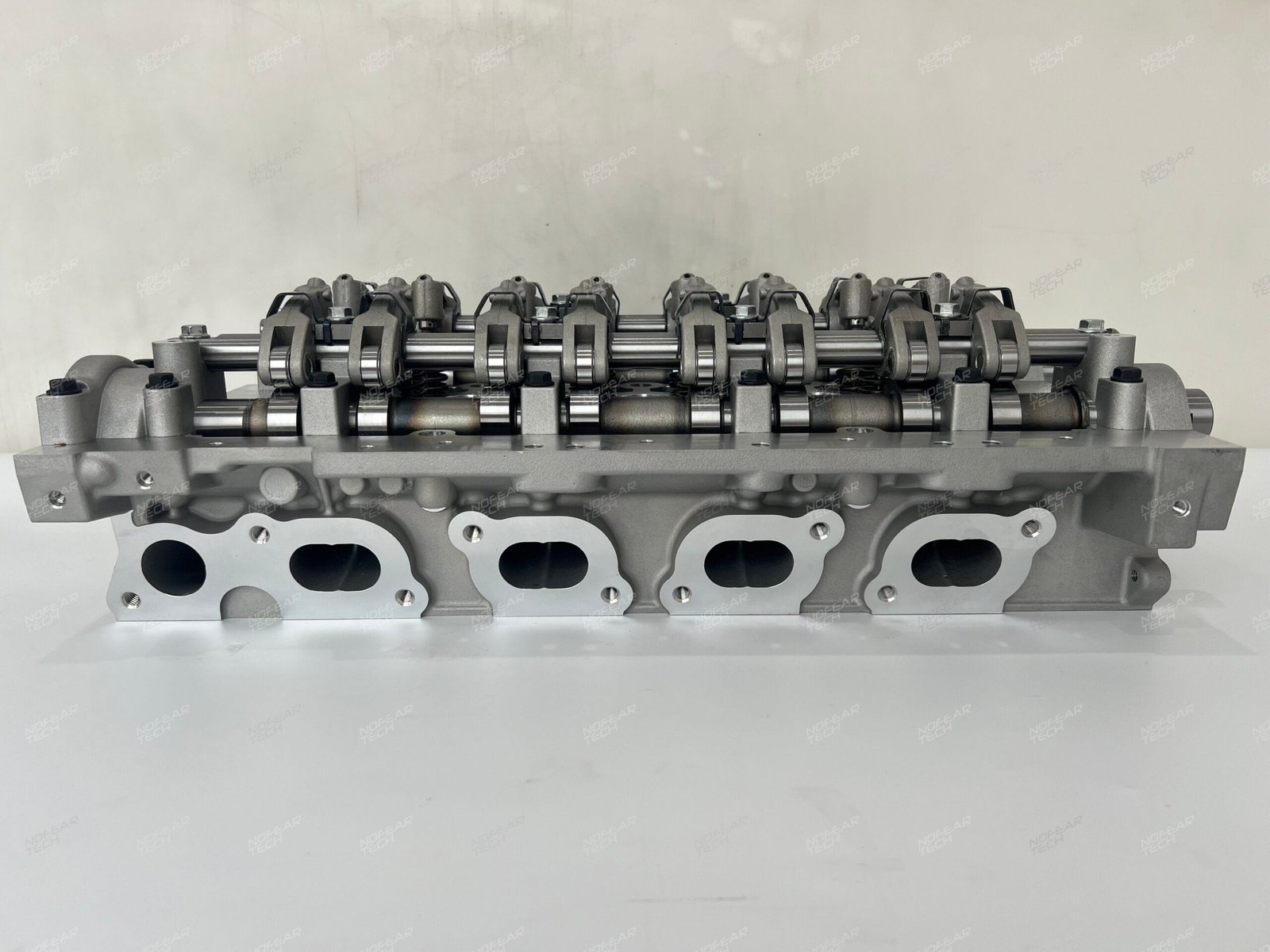

Renault G9U / G9T Cylinder Head Assembly – Valves & Camshafts Pre-Installed
This G9U / G9T cylinder head assembly is a brand new, factory-fresh cylinder head built to OEM standards. It comes with the complete valvetrain pre-installed, including intake and exhaust valves, valve springs, camshafts, hydraulic lifters and all related internal components. You simply transfer your existing external parts – saving significant time and labour during installation.
The G9U is a 2.5-litre 4-cylinder turbo diesel engine, while the G9T is a 2.2-litre dTi/dCi diesel engine. Both are widely used in light commercial vehicles and MPVs from the Renault-Nissan alliance and General Motors. This cylinder head is manufactured to exact original tolerances and pressure-tested for reliable, long-lasting performance.
What’s Included – Complete Cylinder Head Assembly
This listing is for the cylinder head with the following components pre-installed and ready to use:

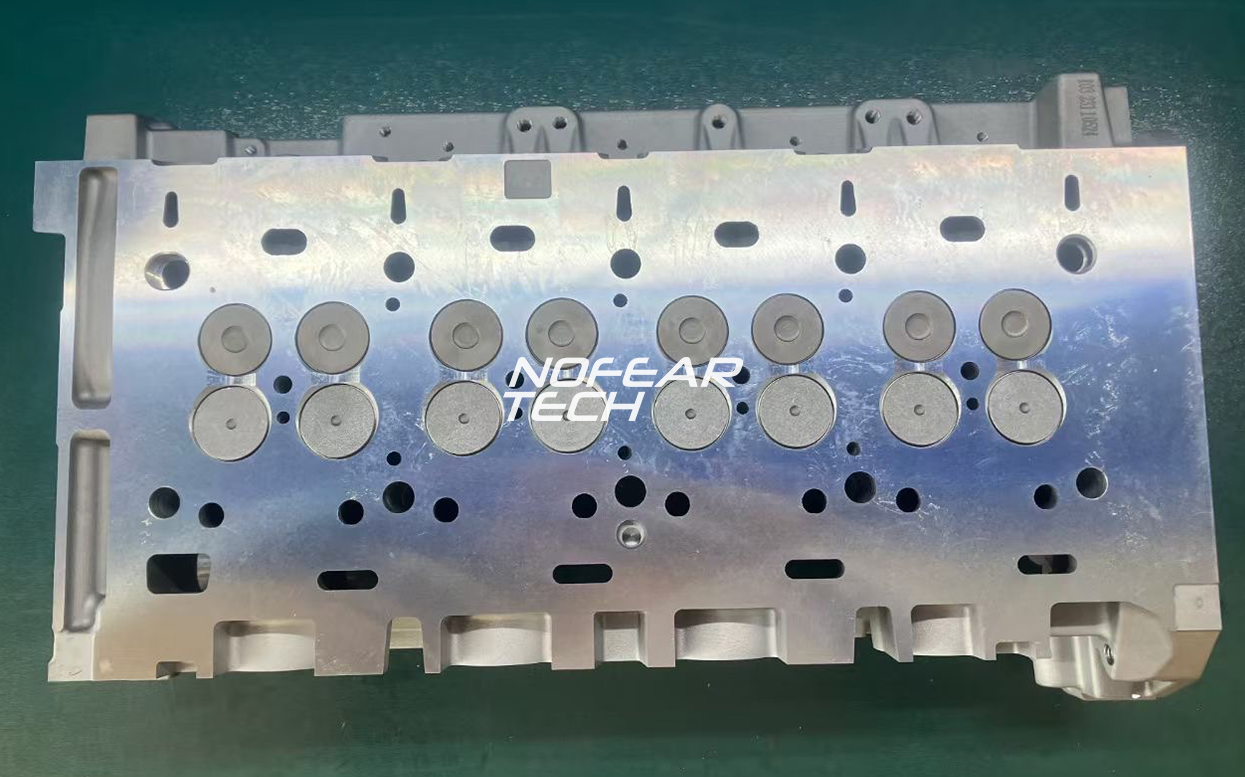

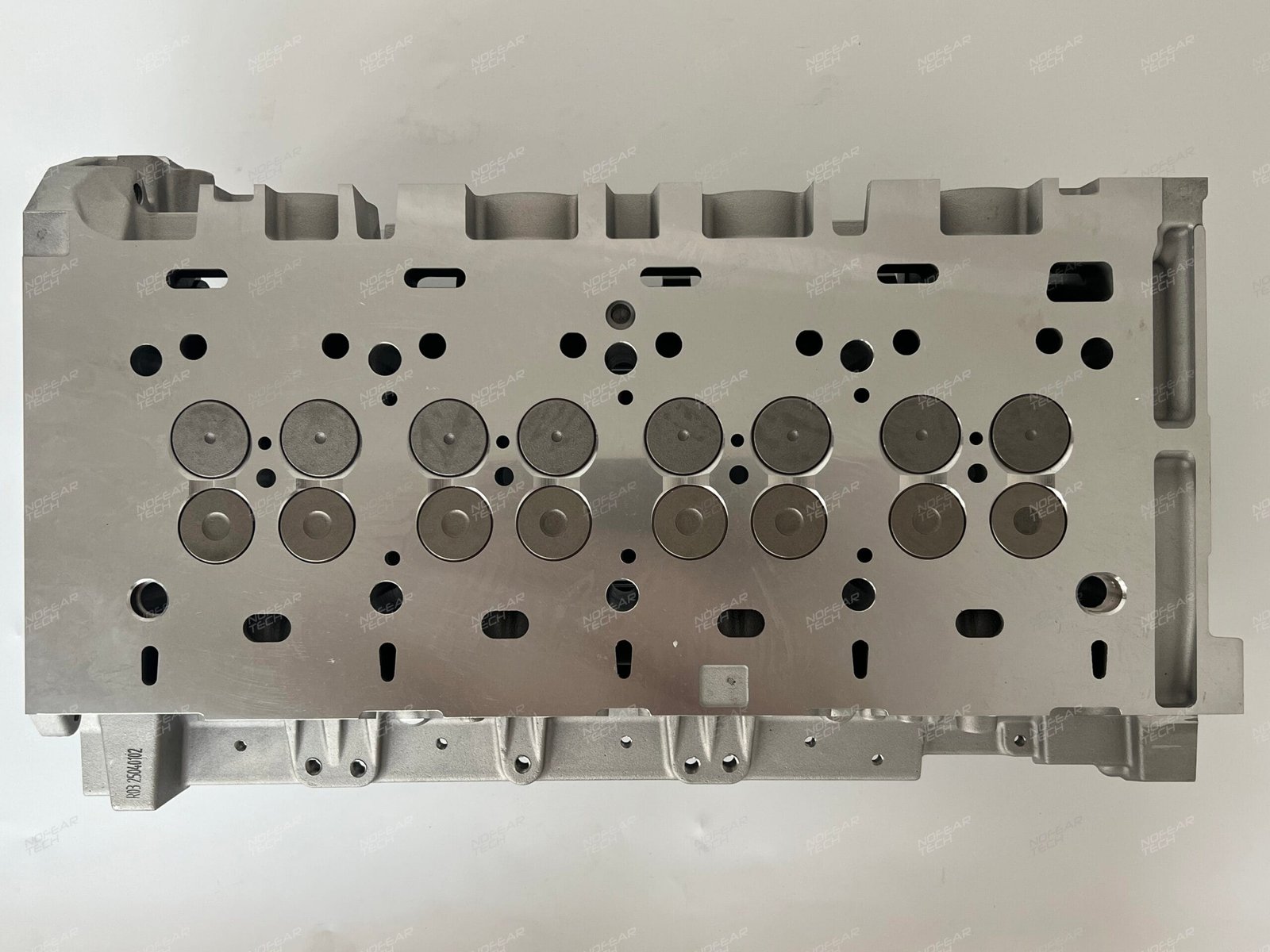

- Cylinder head casting – precision-machined, pressure-tested
- 16 valves – intake and exhaust valves, heat-resistant (4 per cylinder)
- Valve springs, spring seats and retainers
- Valve stem seals (already fitted)
- Valve guides (pressed in)

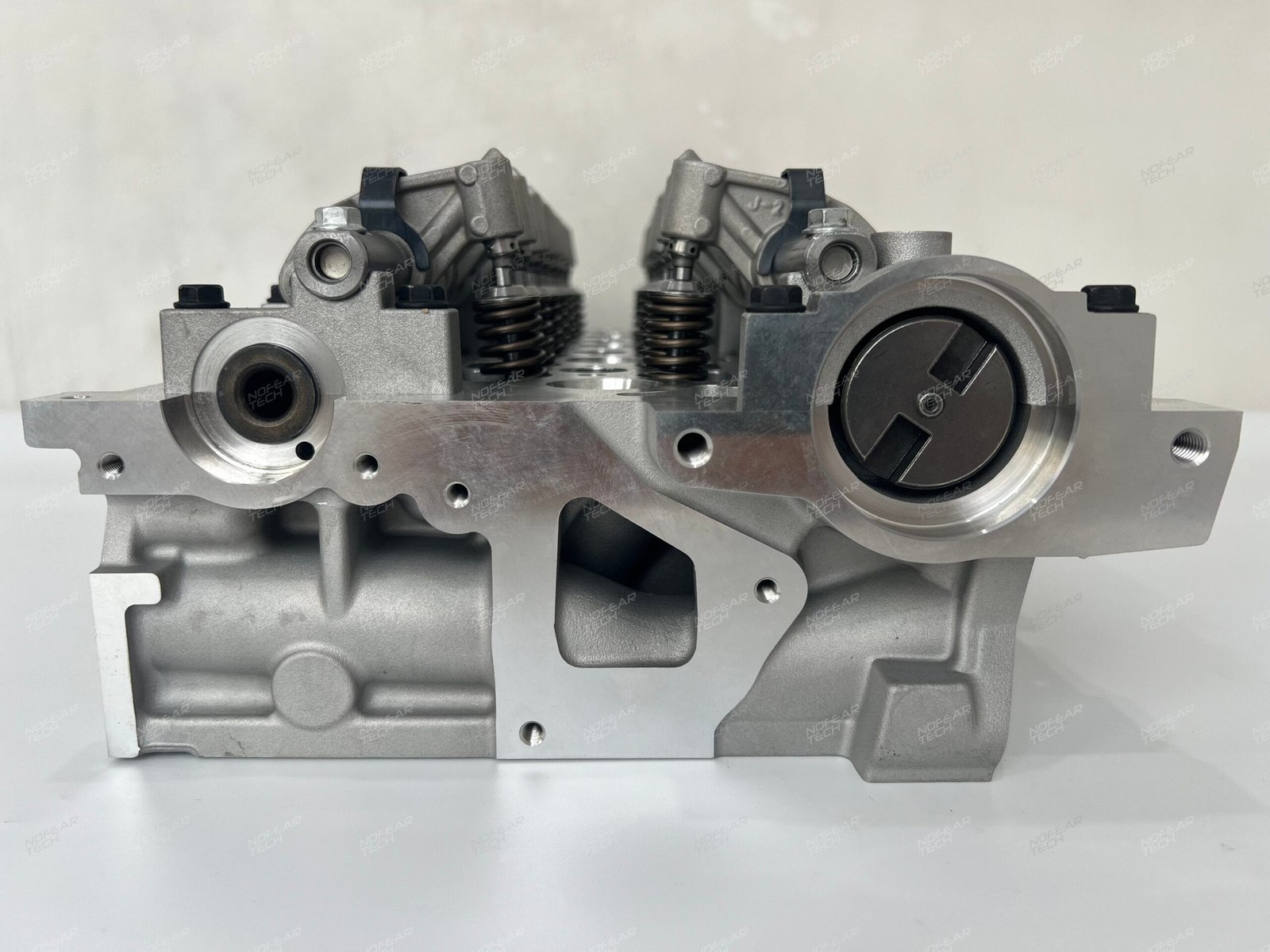

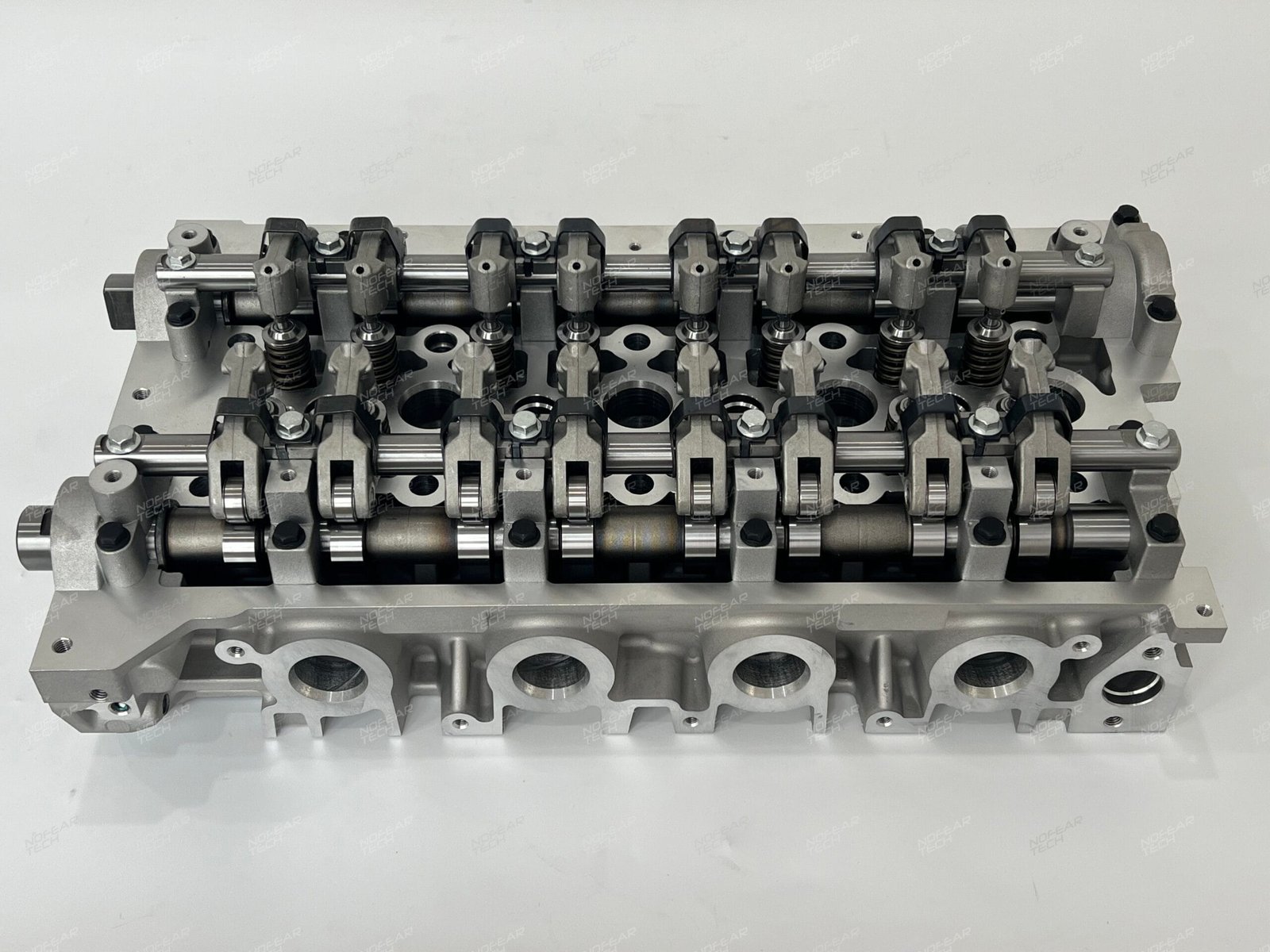

- Camshafts – intake and exhaust (DOHC)

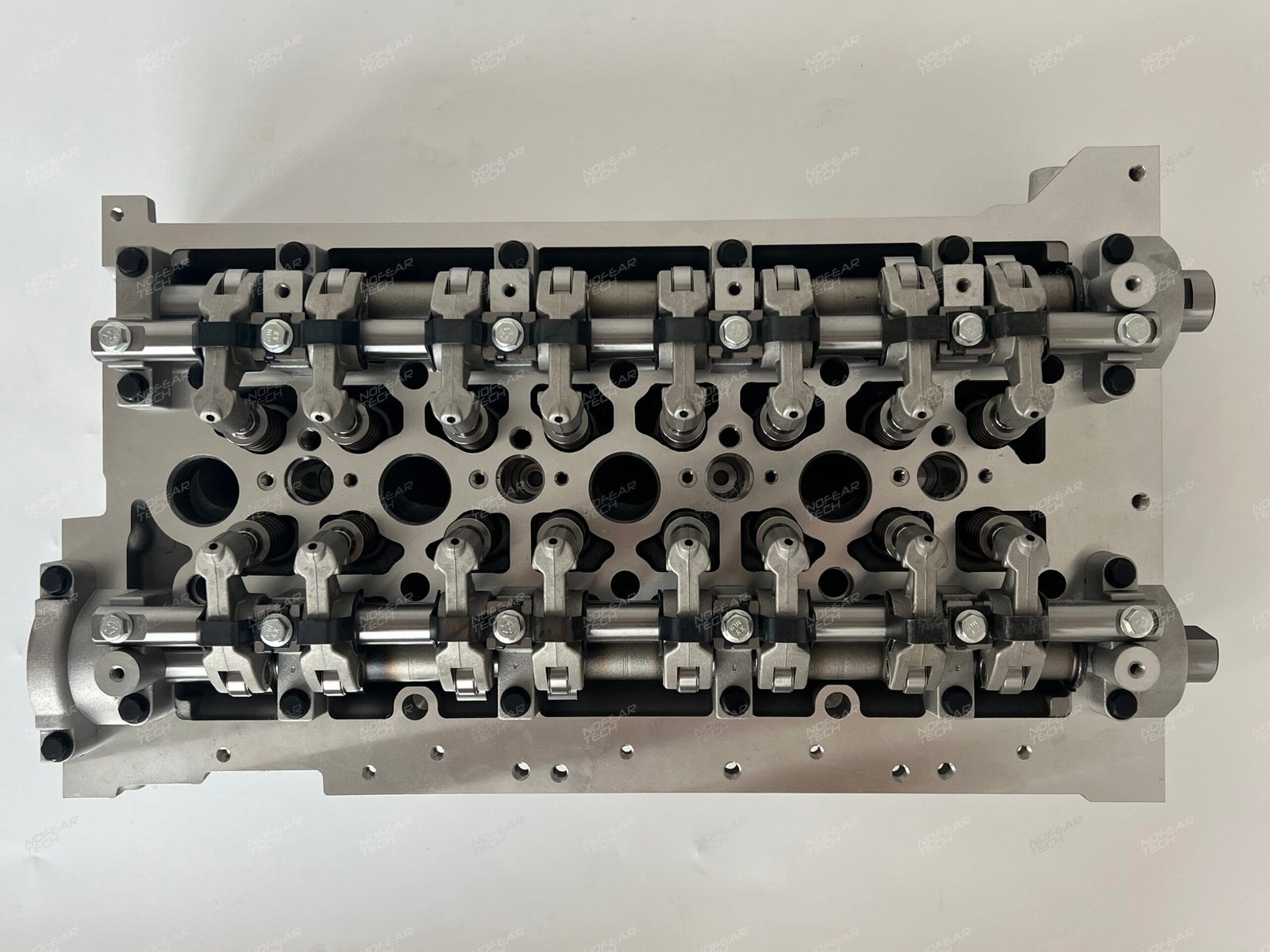

- Hydraulic lifters / tappets (pre-installed)
- Camshaft bearing caps and bolts (torqued to specification)
- Core plugs and oil gallery plugs (installed)
- Valve clearances pre-set – no manual adjustment required
Note: This is a cylinder head assembly, so the following external components are NOT included and must be transferred from your old head or purchased separately:
- Valve cover / rocker cover
- Timing chain/belt, tensioner and guides
- Fuel injectors and glow plugs
- Intake and exhaust manifolds
- Turbocharger
- Camshaft sensors, actuator solenoids and wiring
Vehicle Compatibility
The G9U / G9T diesel engines were fitted to a wide range of Renault, Nissan, Opel and Vauxhall models. Always verify your engine code and OEM part number before purchase. Common applications include:
- Renault Master II / III – dCi 2.2, dCi 2.5
- Renault Trafic II – dCi 2.2, dCi 2.5
- Renault Espace IV – dCi 2.2, dCi 2.5
- Renault Vel Satis – dCi 2.2, dCi 2.5
- Nissan Primastar – dCi 2.2, dCi 2.5
- Nissan Interstar – dCi 2.2, dCi 2.5
- Opel Movano – 2.2 CDTI, 2.5 CDTI
- Vauxhall Movano – 2.2 CDTI, 2.5 CDTI
- Other vehicles equipped with the G9U or G9T engine (confirm via OEM number)
Technical Specifications
| Engine Code | G9U (2.5L) / G9T (2.2 dTi/dCi) |
| Displacement | 2.5 Litre (2463 cc) / 2.2 Litre (2188 cc) |
| Configuration | Inline 4-cylinder, DOHC 16-valve, Turbo Diesel |
| Fuel Type | Diesel |
| Valvetrain | Double overhead camshaft, hydraulic lifters |
| Condition | Brand New – Cylinder Head Assembly |
| OEM Part Numbers | AMC 908797 / Renault 7701474144, 7701474715, 7701476952, 7711135513, 7711368600 / Nissan 1104100QA0, 1104100QAF / Opel 9112238, 9112698, 9201462, 93160825, 93188274, 93192946 / Vauxhall same as Opel |
| Warranty | 18 months |
Why Choose This G9U / G9T Cylinder Head Assembly
- 100% brand new – never reconditioned or repaired
- Pressure-tested and vacuum-tested for leaks
- OEM-grade materials and exact machining tolerances
- Pre-installed valves and camshafts save hours of fitting time
- Comes with an 18-month warranty for peace of mind
- Packed in a reinforced crate for safe international freight
- Fast global shipping to port or door
If you need a Renault G9U / G9T cylinder head for sale or a complete replacement head assembly, this unit gives your engine a factory-fresh start. Order now for a reliable, direct-fit solution.
