Description

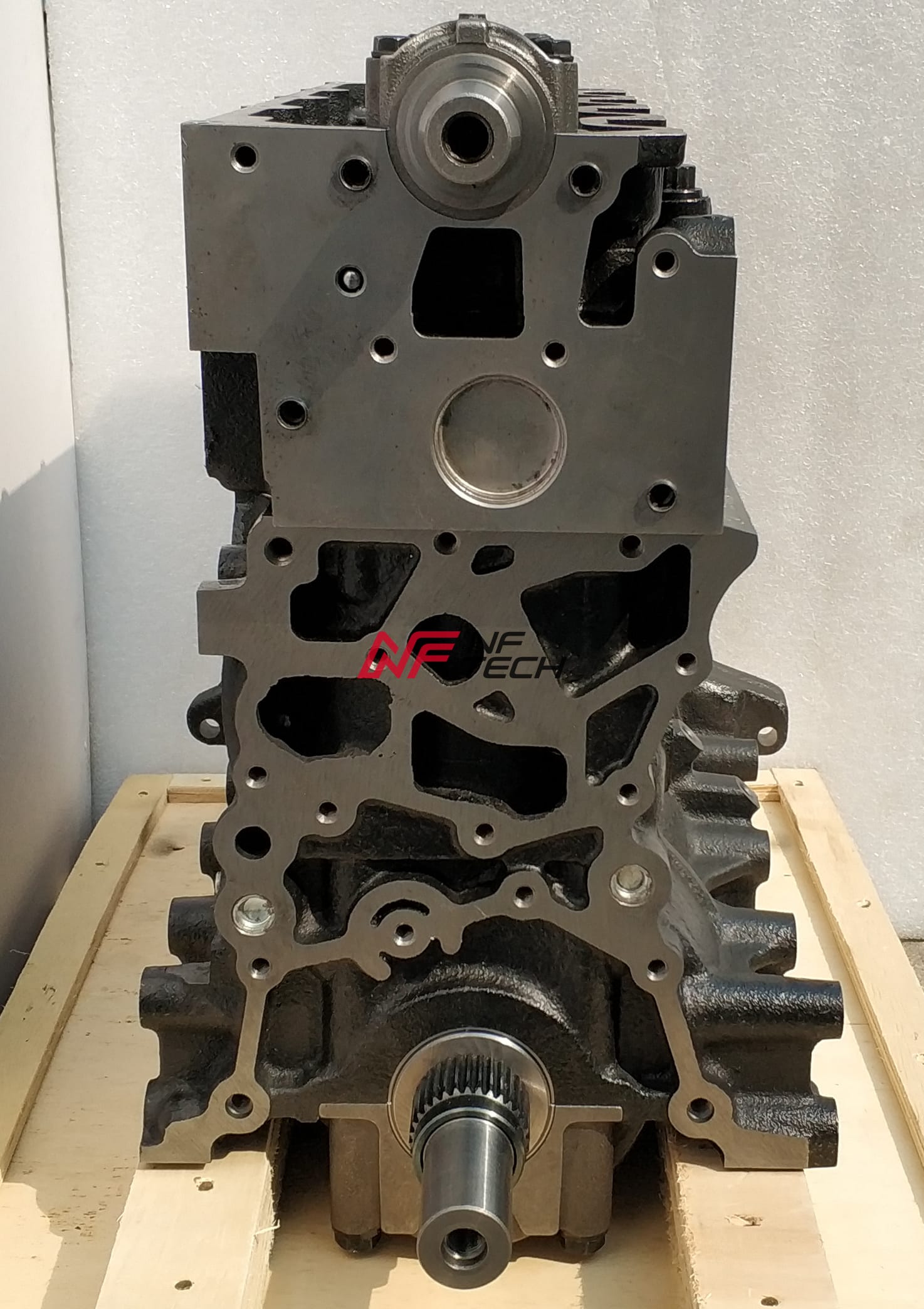

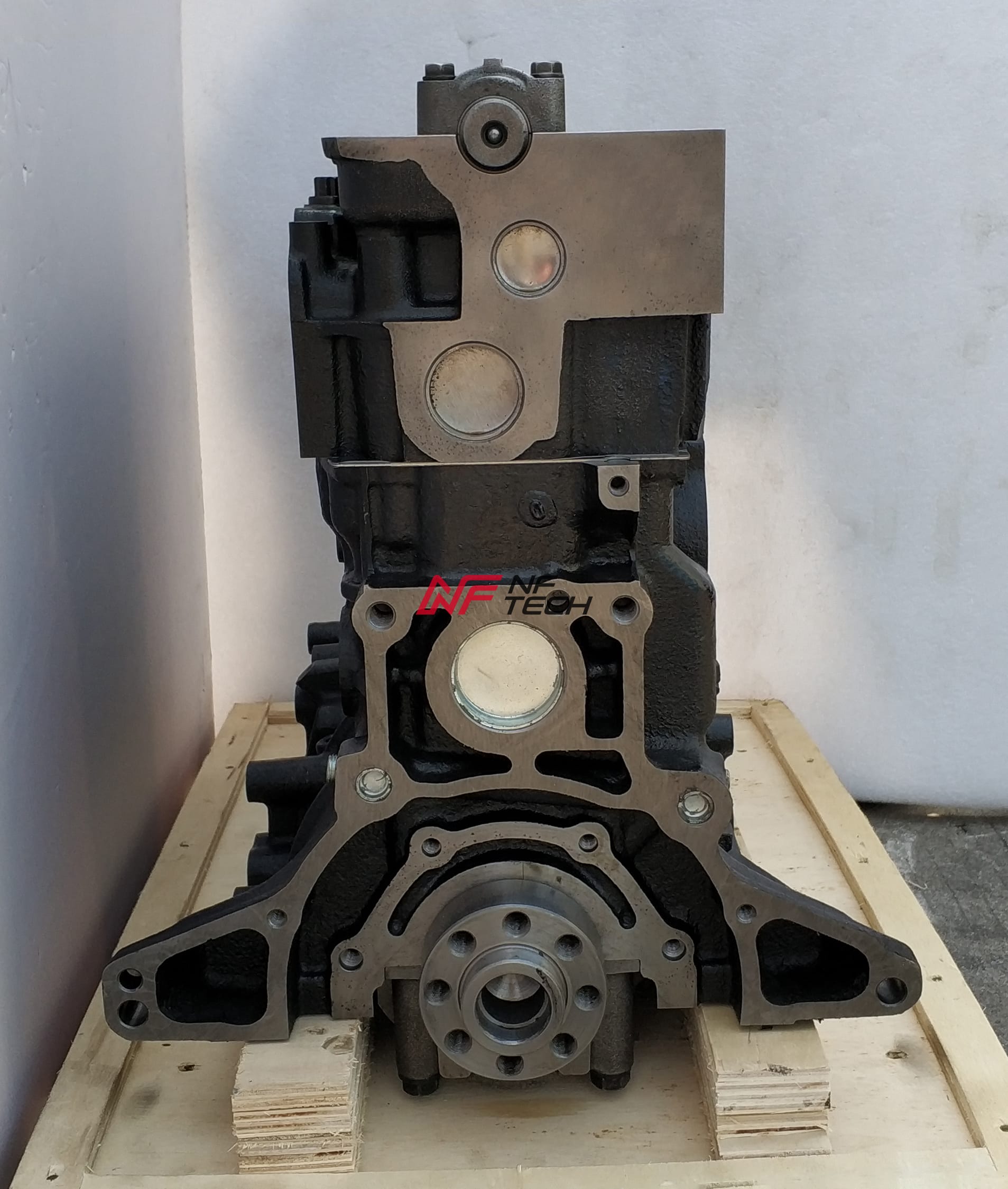

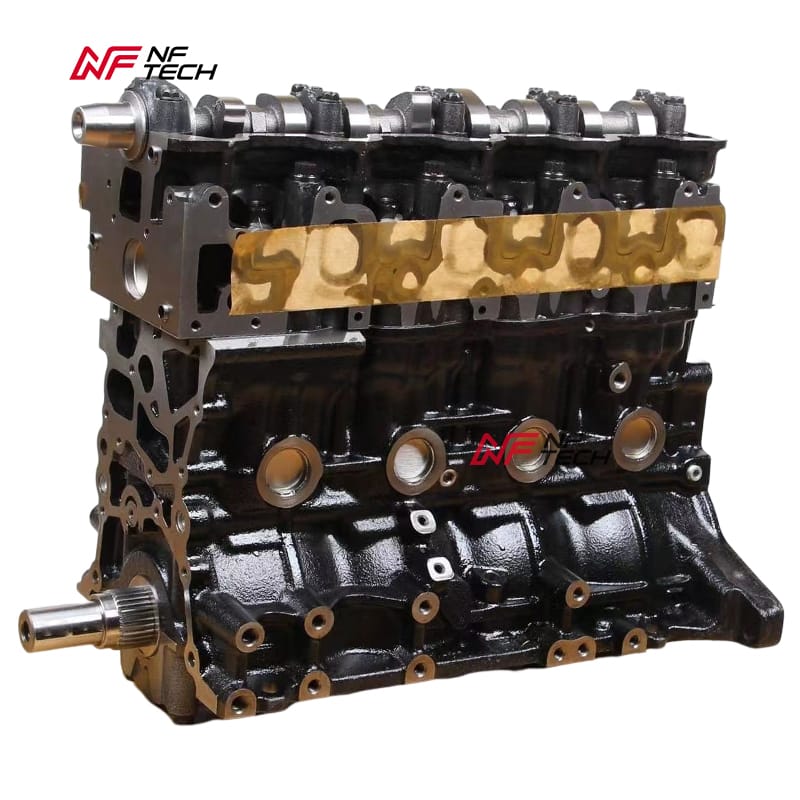

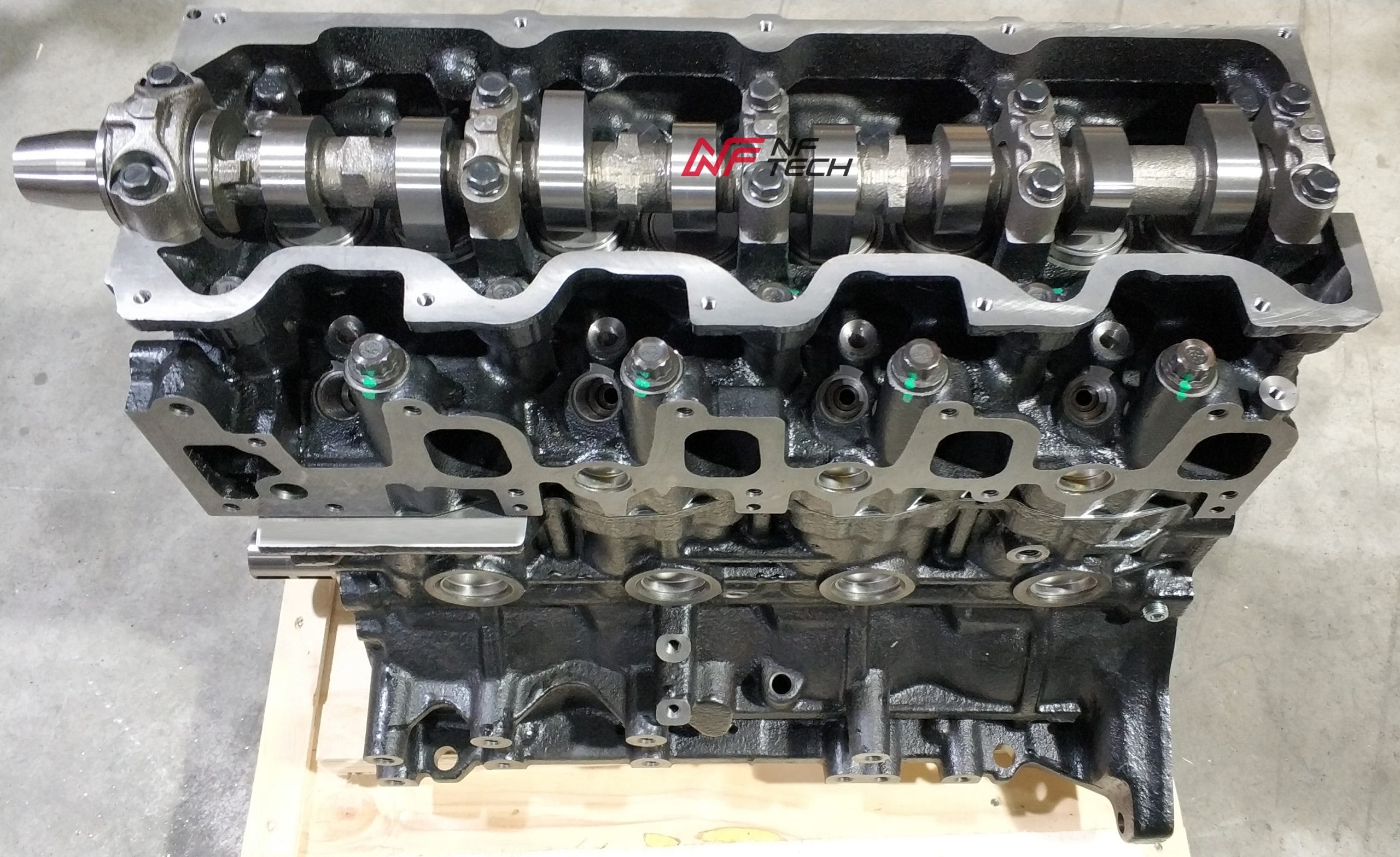

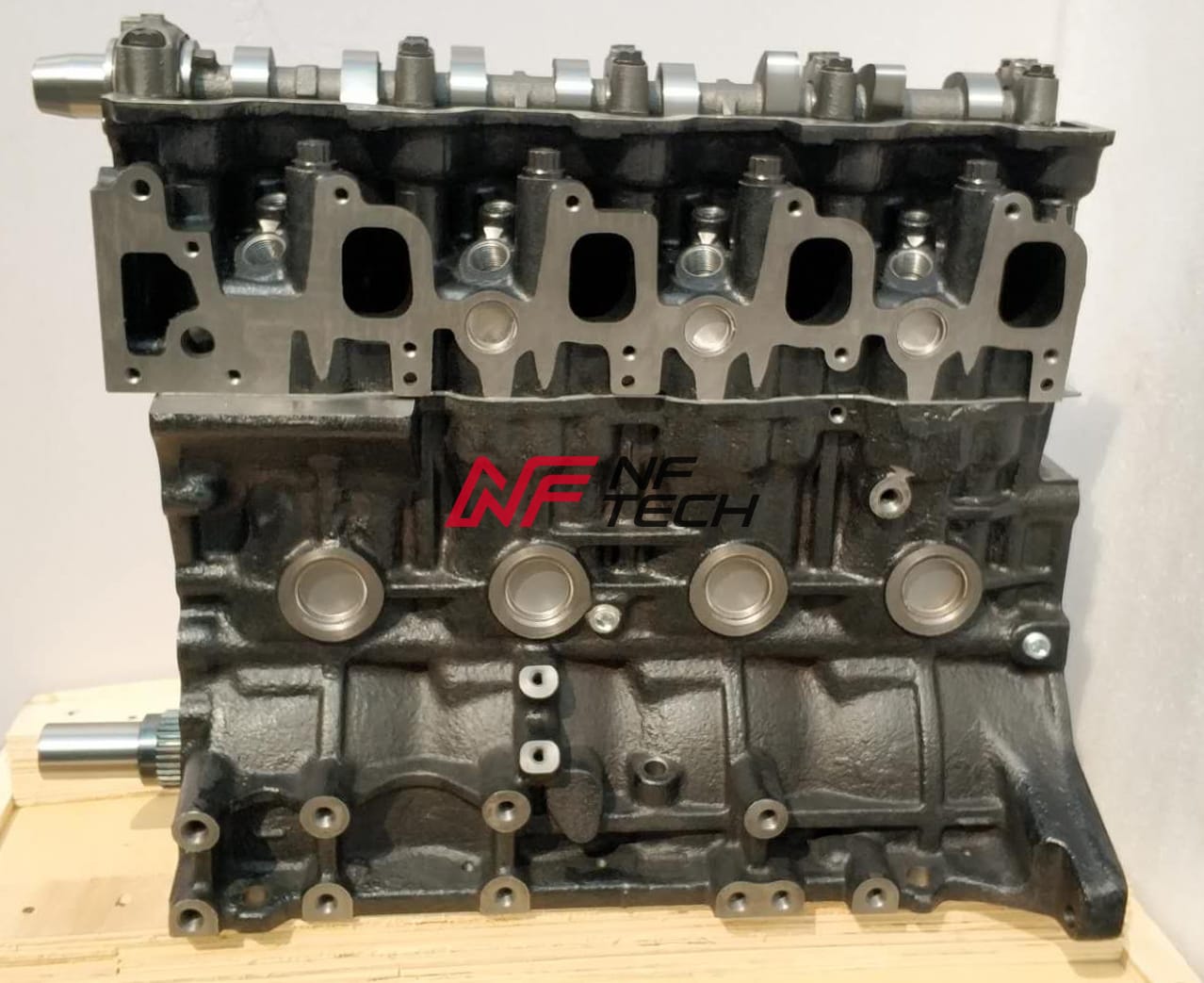

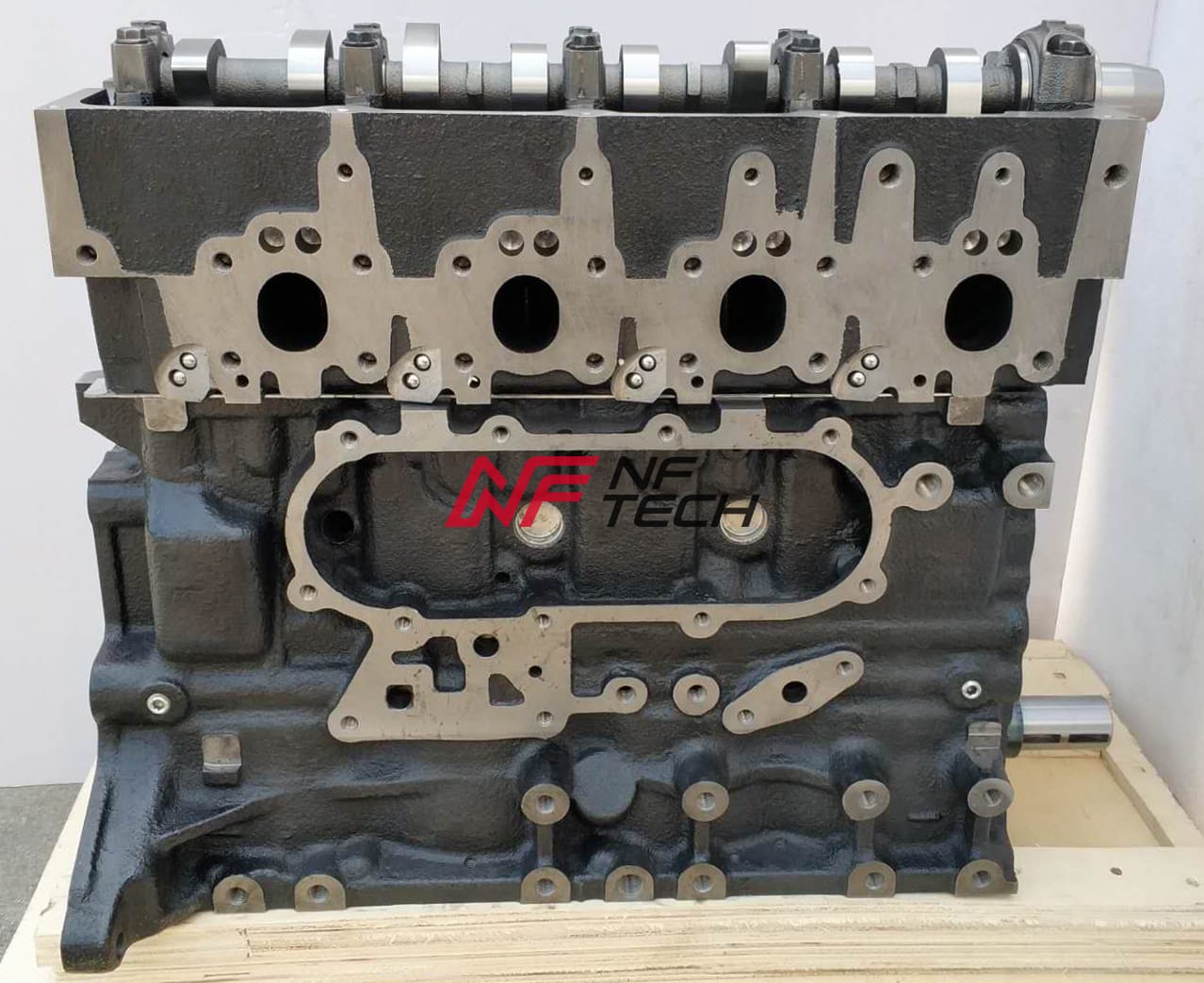

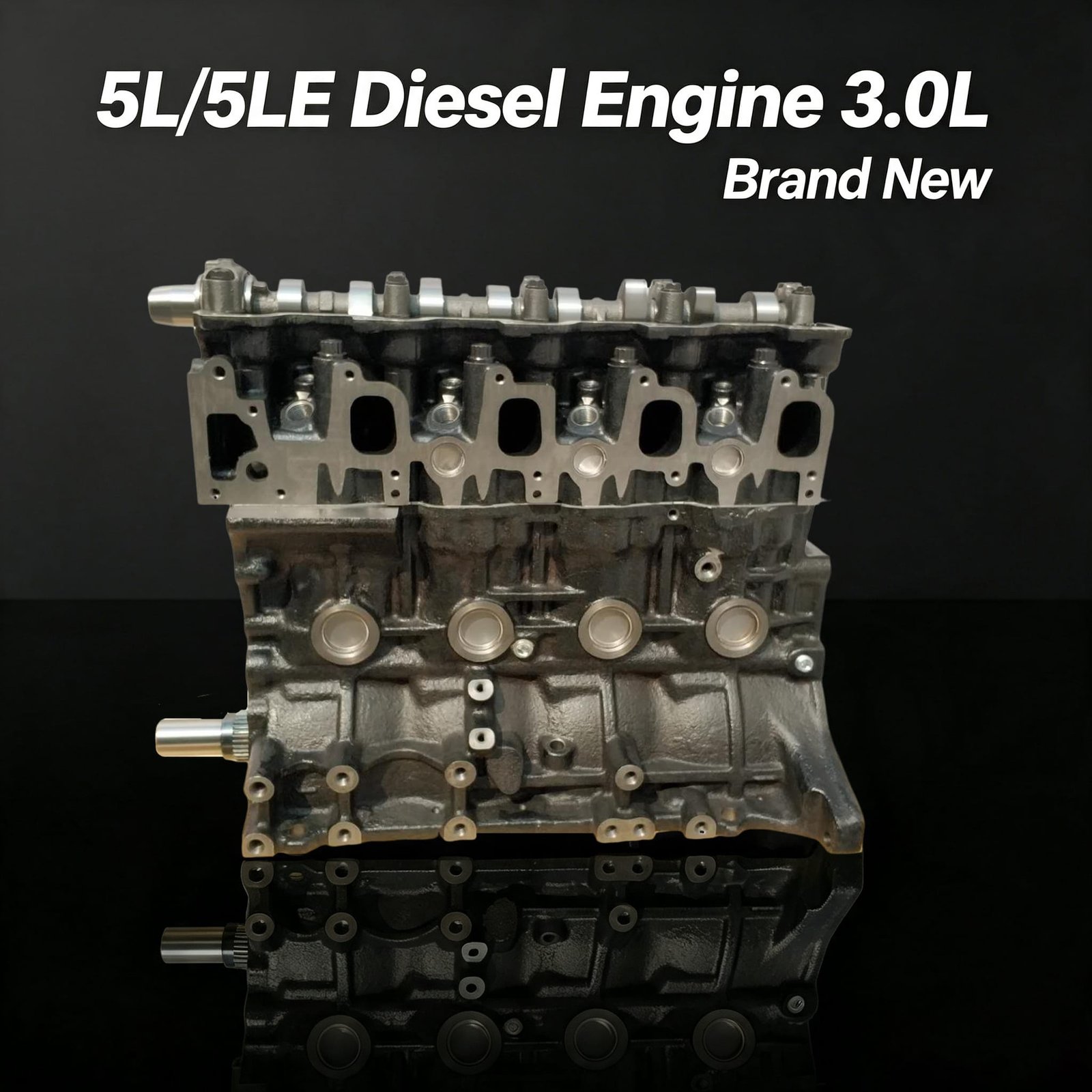

Toyota 5L / 5L-E 3.0L Diesel Bare Engine / Long Block – Complete Head & Block Assembly (No Valve Cover, No Timing, No Oil Pan)
This 5L / 5L-E bare engine is a complete long block core built to OEM standards for Toyota vehicles. It includes the complete cylinder head assembly (valves, springs, camshaft, rocker arms) and the complete cylinder block assembly (pistons, rings, crankshaft, connecting rods). It is supplied without the valve cover, timing cover & timing belt, oil pan, and all external accessories – exactly as required for a cost‑effective rebuild where those components are transferred from your original engine.
Vehicle Compatibility
The Toyota 5L / 5L-E 3.0L diesel engine is a proven workhorse fitted to a wide range of trucks, vans and SUVs. Always verify your engine code (“5L” or “5L-E”) before purchase. Common applications include:
- Toyota Hilux 3.0L Diesel (1988 – 2005, various generations)
- Toyota Hiace 3.0L Diesel (1989 – 2006, various body styles)
- Toyota 4Runner 3.0L Diesel (1989 – 1995, select markets)
- Toyota Land Cruiser Prado 3.0L Diesel (1990 – 1996, LJ71/LJ78)
- Other Toyota models originally fitted with the 5L or 5L-E engine code
Please confirm your engine code is “5L” or “5L-E” before ordering. This is a bare engine / long block assembly; the valve cover, timing components, oil pan and all external parts must be transferred from your original engine.
Technical Specifications
| Engine Code | 5L / 5L-E (3.0L Diesel) |
| Displacement | 3.0 Litre (2986 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | SOHC 8-valve (2 valves per cylinder) |
| Fuel System | Prechamber (Indirect Injection) |
| Power Output | 89–97 hp (5L) / 91–105 hp (5L-E) |
| Torque Output | 191 Nm (5L) / 190–200 Nm (5L-E) |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Cast Iron 8V |
| Bore × Stroke | 99.5 mm × 96 mm |
| Compression Ratio | 22.2:1 |
| Hydraulic Lifters | No |
| Timing Drive | Belt |
| Phase Regulator | No |
| Turbocharging | No |
| Recommended Engine Oil | 5W-40 |
| Engine Oil Capacity | 5.1 litres (5L) / 5.7 litres (5L-E) |
| Emission Standards | EURO 2 (5L) / EURO 2-3 (5L-E) |
| Fuel Type | Diesel |
| Engine Type | Bare Engine / Long Block (Head & Block Only) |
| Condition | Brand New |
What’s Included – What’s NOT Included
Included (supplied with this assembly):
- Complete cylinder head assembly – valves, valve springs, camshaft, rocker arms
- Complete cylinder block assembly – pistons, piston rings, crankshaft, connecting rods, bearings
NOT Included (must be transferred from your old engine):
- Valve cover / rocker cover
- Timing cover & timing belt kit
- Oil pan / sump
- Intake manifold, exhaust manifold
- Fuel injection pump, injectors, glow plugs
- Alternator, starter motor
- Water pump
- Engine wiring harness, ECU (if applicable) and all external sensors
This bare engine is intended for workshops and experienced installers. The missing parts must be taken from your original engine.
Why Choose This 5L / 5L-E Bare Engine
- 100% brand new – not remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Complete head and block package – ideal for rebuilds
- Packed in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a 5L engine for sale, a 5L-E replacement engine, or a Toyota 3.0 diesel long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
