Description

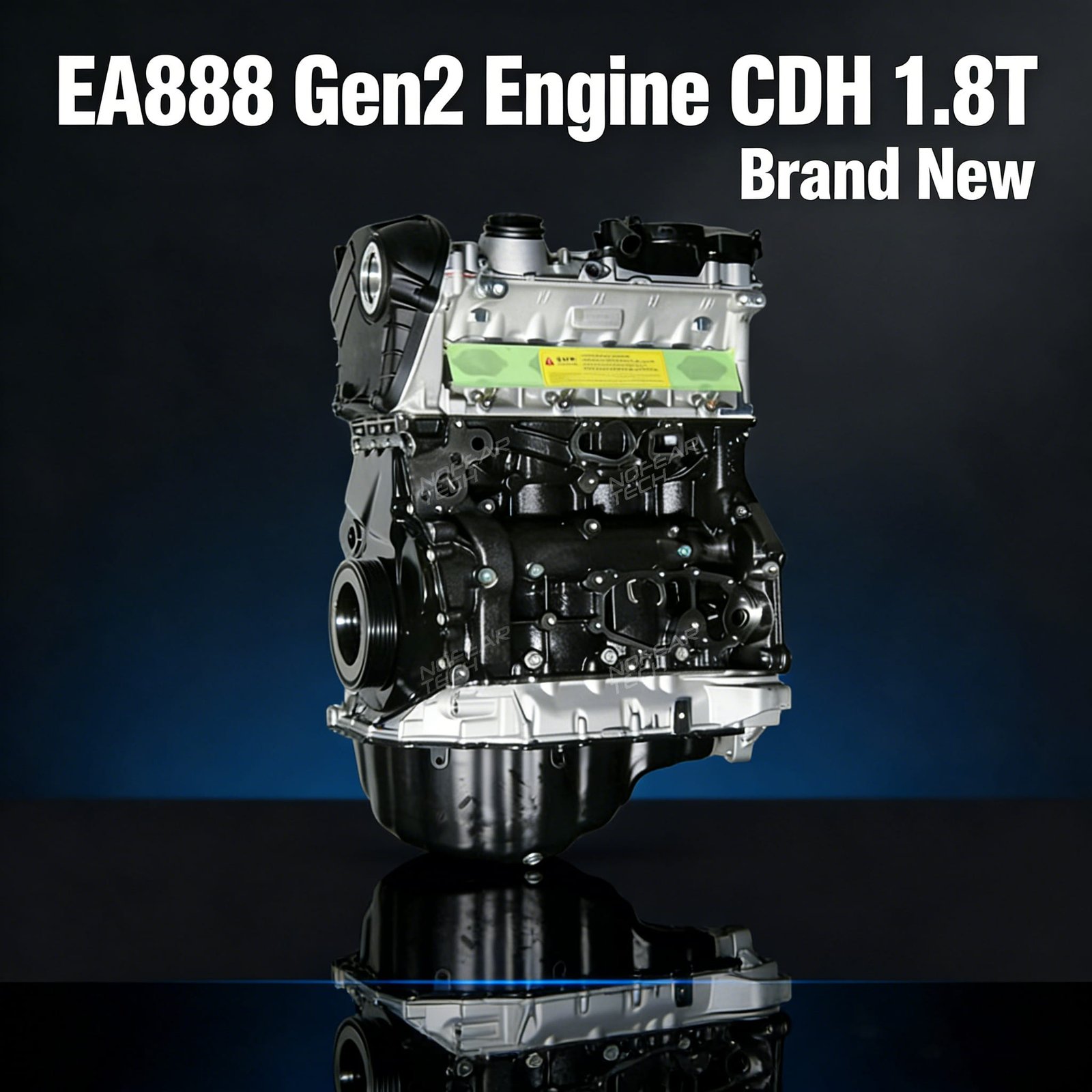

CDHB / CDHA 1.8 TSI/TFSI EA888 Gen2 Bare Engine / Long Block – VAG Replacement Engine
This CDHB / CDHA bare engine is a complete long block assembly built to OEM standards for VAG (Volkswagen Audi Group) vehicles. It is the second‑generation EA888 1.8‑litre turbocharged direct‑injection engine, featuring DOHC 16‑valve technology, variable valve timing on the intake shaft, and a KKK K03 turbocharger. The assembly provides a factory‑fresh foundation for your engine swap or rebuild, saving you time and money compared to repairing a worn or seized unit.
Vehicle Compatibility
The CDHB / CDHA 1.8 TSI/TFSI engine was fitted to a wide range of Volkswagen, Audi, SEAT and Škoda models. Always verify your engine code (CDHB or CDHA) before purchase. Common applications include:
- Volkswagen Golf 1.8 TSI (Mk6, 2008 – 2013)
- Volkswagen Passat 1.8 TSI (B6/B7, 2007 – 2015)
- Volkswagen Jetta 1.8 TSI (2008 – 2015)
- Volkswagen Tiguan 1.8 TSI (2007 – 2016)
- Audi A3 1.8 TFSI (8P, 2007 – 2013)
- Audi A4 1.8 TFSI (B8, 2007 – 2015)
- Audi A5 1.8 TFSI (2007 – 2016)
- SEAT Leon 1.8 TSI (2007 – 2013)
- Škoda Octavia 1.8 TSI (2007 – 2013)
- Škoda Superb 1.8 TSI (2008 – 2015)
- Other VAG models originally fitted with the CDHB or CDHA engine code
Please confirm your engine code is “CDHB” or “CDHA” before ordering. This is a bare engine assembly; all external components must be transferred from your original engine.
Technical Specifications
| Engine Code | CDHB / CDHA (1.8 TSI/TFSI EA888 Gen2) |
| Displacement | 1.8 Litre (1798 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | 16-valve DOHC with AVS (Audi Valvelift System on intake) |
| Fuel System | Direct Injection (FSI/TSI/TFSI) |
| Power Output | 160 hp |
| Torque Output | 250 Nm |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum 16V |
| Bore × Stroke | 82.5 mm × 84.2 mm |
| Compression Ratio | 9.6:1 |
| Hydraulic Lifters | Yes |
| Timing Drive | Chain |
| Phase Regulator | On the intake shaft |
| Turbocharging | KKK K03 turbocharger |
| Recommended Engine Oil | 5W-30 |
| Engine Oil Capacity | 4.6 litres |
| Emission Standards | EURO 5 |
| Fuel Type | Petrol / Gasoline |
| Engine Type | Bare Engine / Long Block |
| Condition | Brand New |
What’s Included
- Complete cylinder block with pistons, rings, crankshaft and connecting rods
- Assembled cylinder head with valves, springs, camshafts, AVS actuator and VVT unit
- Oil pan and valve cover
- Timing chain cover and timing chain kit installed
- Water pump and oil pump pre‑installed
Note: This is a bare engine / long block assembly. Intake manifold, exhaust manifold, turbocharger (KKK K03), fuel injectors, high‑pressure fuel pump, throttle body, alternator, starter, engine wiring harness, ECU and all external sensors are NOT included. They must be transferred from your original engine.
Why Choose This CDHB / CDHA Bare Engine
- 100% brand new – never remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Supports both CDHB and CDHA engine codes for maximum fitment flexibility
- Packed securely in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a CDHB engine for sale, a CDHA replacement engine, or a VAG 1.8 TSI/TFSI EA888 long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
