Description

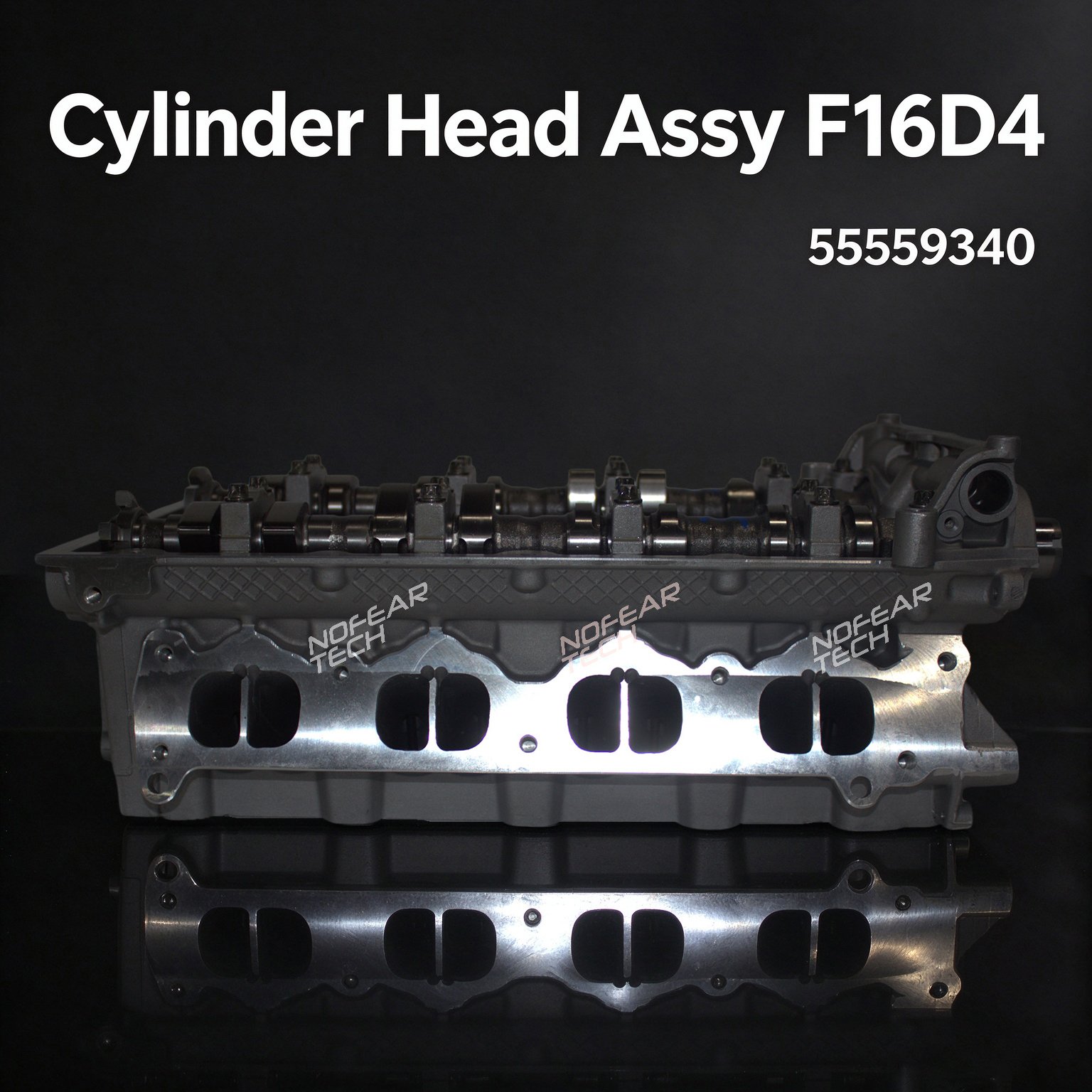

Chevrolet / Opel F16D4 Cylinder Head Assembly – Cruze / Aveo / Orlando / Trax / Astra J

This Chevrolet / Opel F16D4 cylinder head assembly is a brand new, factory-fresh replacement for the 1.6-litre DOHC petrol engine used across the Cruze, Aveo, Orlando, Trax and Astra J ranges. It is supplied with valves and camshafts fitted — intake and exhaust valves, springs, retainers, stem seals, guides and both DOHC camshafts are already installed, so the head arrives ready for installation after transferring your external components.

What’s Included – Fitted to the Head

• Complete cylinder head casting — precision-machined, pressure-tested and surface-ground
• 16 valves — intake and exhaust, heat-resistant (4 per cylinder)
• Valve springs, spring seats and retainers
• Valve stem seals and valve guides — fitted and honed
• DOHC camshafts — intake and exhaust
• Mechanical lifters / tappets — fitted (valve clearances must be set on installation)
• Camshaft bearing caps — torqued to specification
• Core plugs and oil gallery plugs — installed

What you transfer from your original head: valve cover, timing belt kit (belt, tensioner and idler), head bolts (always fit new stretch bolts), head gasket and remaining gaskets, fuel injectors, spark plugs, ignition coils, intake manifold, exhaust manifold, oil heat exchanger (where fitted) and any sensors or brackets mounted to the head.

Vehicle Compatibility — Model and Engine Code Detail

The Short Description lists the basic model range. The fitment below is the model-level detail needed to confirm the correct casting before ordering. The 55559340 casting is shared across a wide range of GM platforms, but emission equipment and calibration differ between model years and markets — match the OE reference to your original head.

• Chevrolet Cruze (J300) — F16D4 / LDE 1.6L DOHC, 2008–2016
• Chevrolet Aveo (T300) — F16D4 / LDE 1.6L DOHC, 2011–2020
• Chevrolet Orlando — F16D4 1.6L DOHC, approximately 2011–2018
• Chevrolet Trax — F16D4 1.6L DOHC, approximately 2013–2020
• Opel Astra J — A16XER / F16D4 1.6L DOHC, approximately 2009–2015
• Opel Insignia — A16XER / F16D4 1.6L DOHC, select years
• Vauxhall Astra — A16XER / F16D4 1.6L DOHC, approximately 2009–2015
• Buick Excelle / Excelle XT — F16D4 1.6L DOHC, approximately 2010–2016 (China and export markets)

This cylinder head is specific to the F16D4 / LDE / A16XER 1.6L DOHC 16-valve petrol engine. It is NOT interchangeable with the 1.8L F18D4, the 1.4L F14D4, the turbocharged 1.6L A16LET (different piston and calibration), or any diesel engine in the Chevrolet / Opel range.

OEM Part Number Cross-Reference

• Primary reference: 55559340
• Interchangeable references: 55571689, 55565192, 55565452, 55570930, 93191982, 55565193
• Engine code cross-reference: F16D4, LDE, LLU, A16XER, A16LET

Why Buy This F16D4 Cylinder Head Assembly

• 100% brand new — not reconditioned or repaired
• Pressure-tested and vacuum-tested for leaks and porosity before dispatch
• Flatness-checked and deck surface-ground to OEM tolerance
• Valves, mechanical lifters and DOHC camshafts pre-installed — saves hours of fitting time
• Correct F16D4 / LDE casting for Cruze, Aveo, Orlando, Trax and Astra J applications
• Packed in a reinforced crate for safe international freight
• Fast global shipping to port or door
