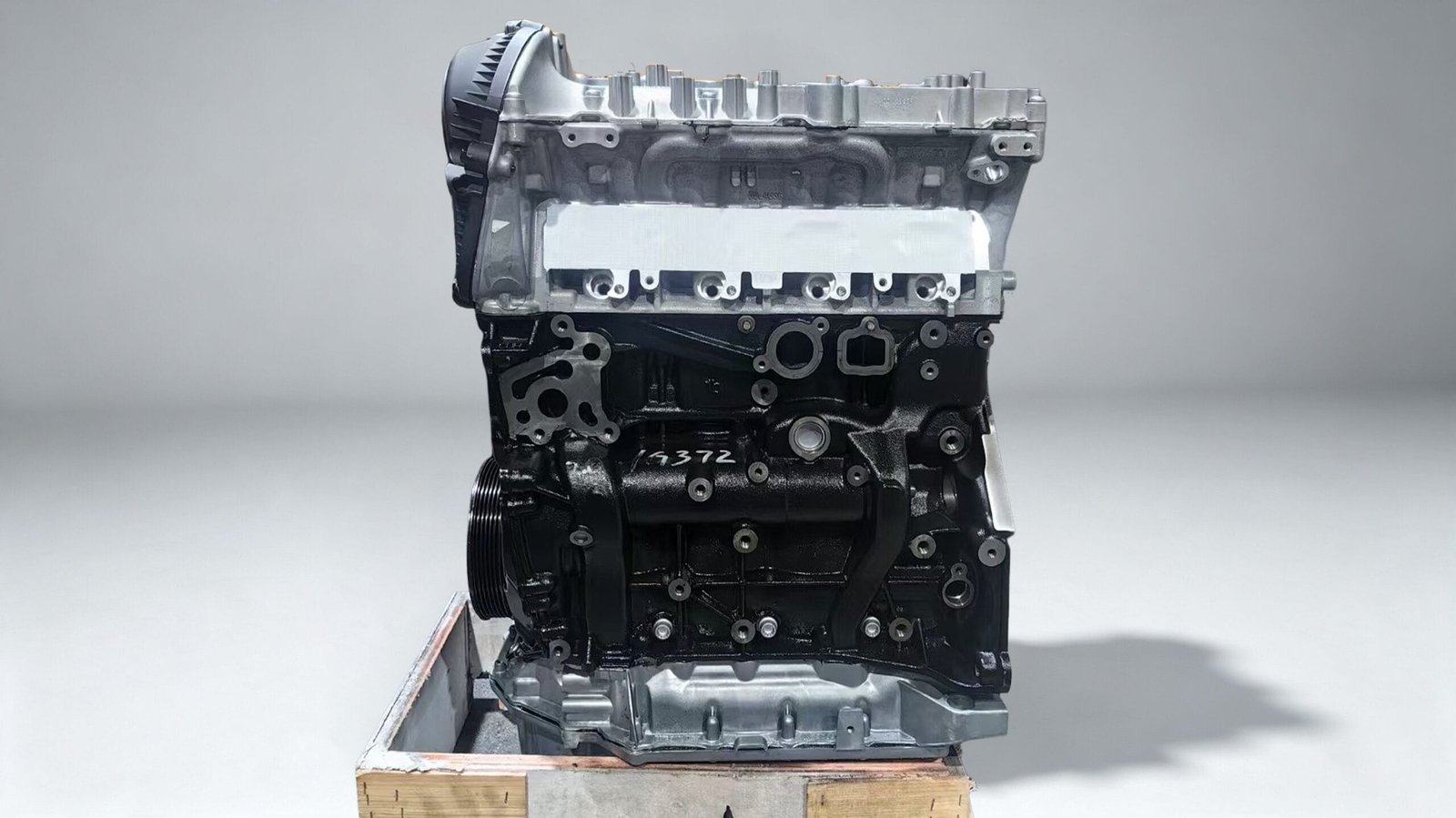

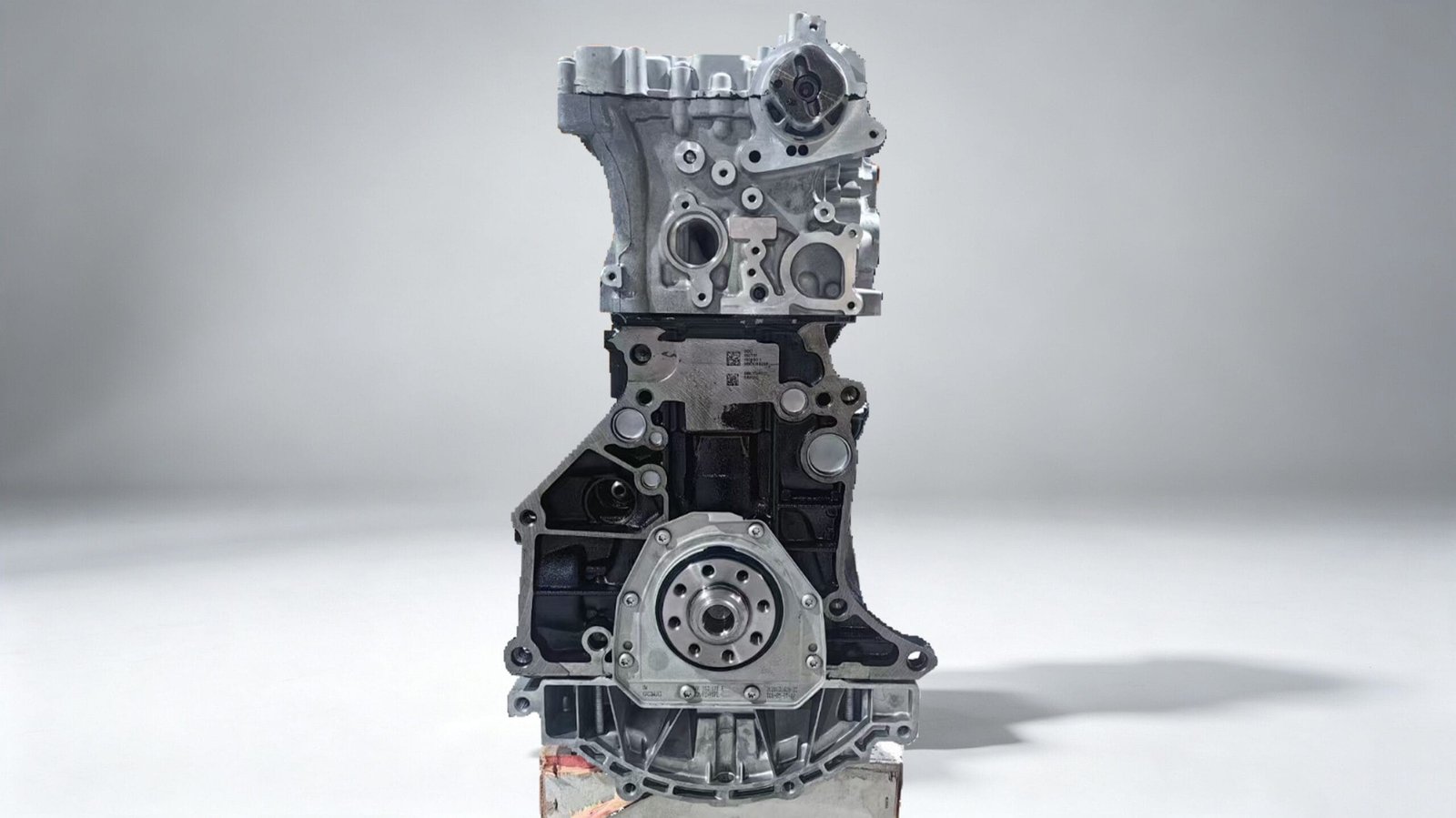

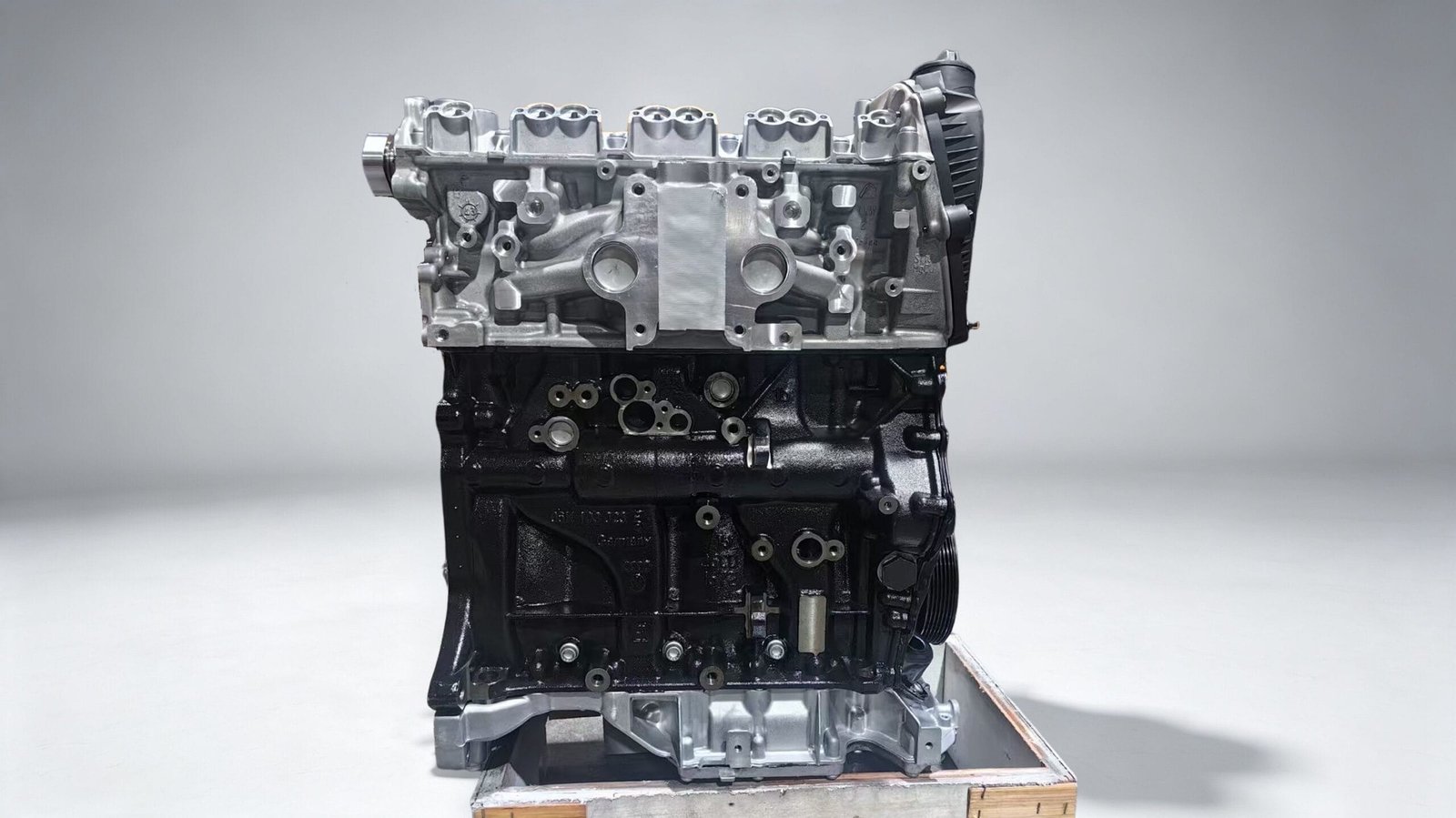

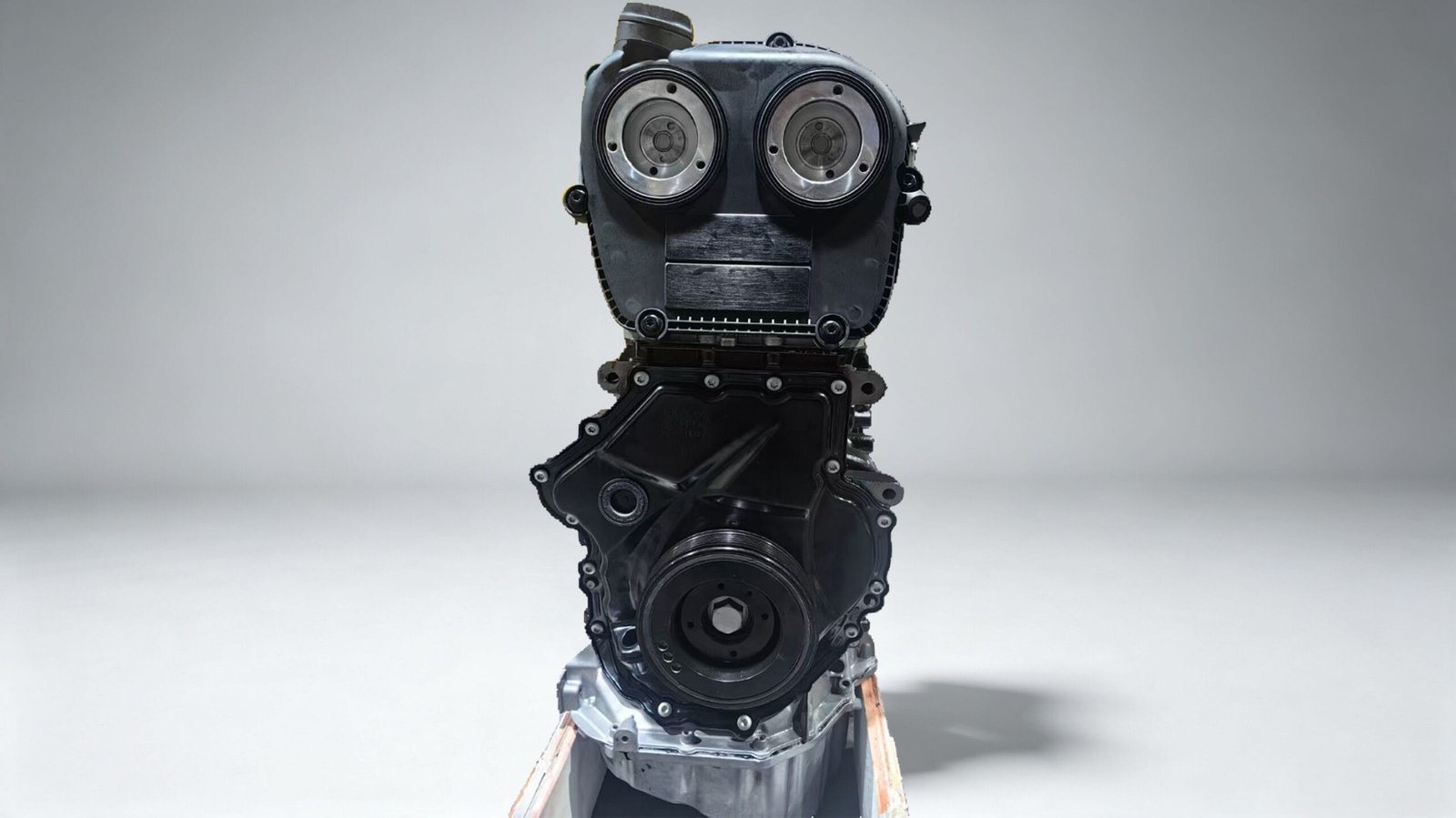

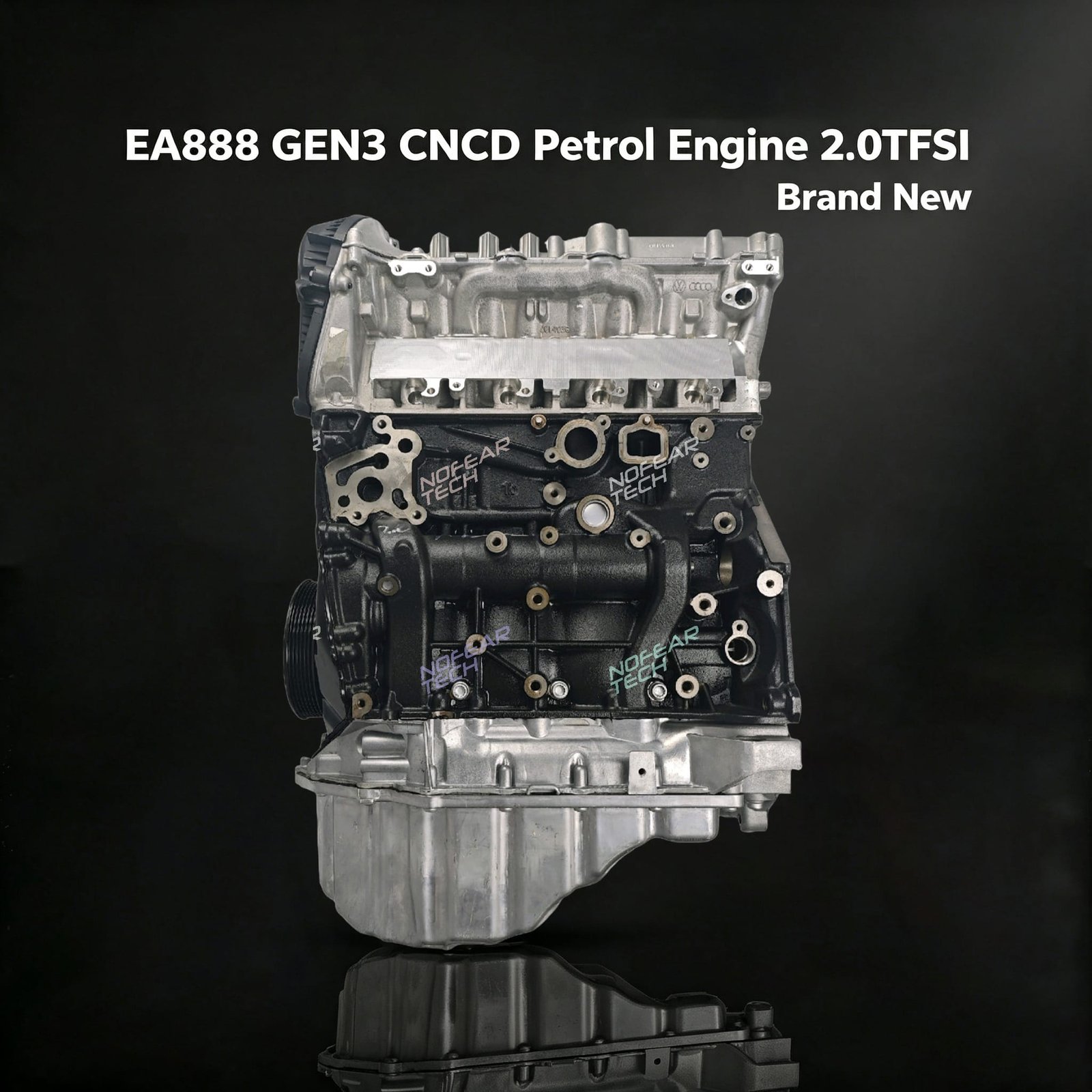

CNCD 2.0 TFSI EA888 Gen3 Bare Engine / Long Block – VAG Replacement Engine
This CNCD bare engine is a complete long block assembly built to OEM standards for VAG (Volkswagen Audi Group) vehicles. It is the third‑generation EA888 2.0‑litre turbocharged direct‑injection engine, featuring DOHC 16‑valve cylinder head with AVS (Audi Valvelift System), dual variable valve timing (phase regulators on both intake and exhaust shafts), and dual injection (FSI + MPI) for improved performance and emissions compliance. The assembly provides a factory‑fresh foundation for your engine swap or rebuild, saving you time and money compared to repairing a worn or seized unit.
Vehicle Compatibility
The CNCD 2.0 TFSI engine is commonly found in longitudinal Audi applications and other VAG models. Always verify your engine code “CNCD” before purchase. Common applications include:
- Audi A4 2.0 TFSI (B8.5, 2013 – 2016)
- Audi A5 2.0 TFSI (2013 – 2016)
- Audi Q5 2.0 TFSI (2013 – 2016)
- Audi A6 2.0 TFSI (C7, 2014 – 2018)
- Volkswagen Passat 2.0 TSI (B8, select markets, longitudinal version)
- Other VAG models originally fitted with the CNCD engine code
Please confirm your engine code is “CNCD” before ordering. This is a bare engine assembly; all external components must be transferred from your original engine.
Technical Specifications
| Engine Code | CNCD (2.0 TFSI EA888 Gen3) |
| Displacement | 2.0 Litre (1984 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | 16-valve DOHC with AVS |
| Fuel System | Direct Injection + Multi-Port Injection (FSI + MPI) |
| Power Output | 225 hp |
| Torque Output | 350 Nm |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum 16V |
| Bore × Stroke | 82.5 mm × 92.8 mm |
| Compression Ratio | 9.6:1 |
| Hydraulic Lifters | Yes |
| Timing Drive | Chain |
| Phase Regulator | On both intake and exhaust shafts (Dual VVT) |
| Turbocharging | IHI IS20 |
| Recommended Engine Oil | 5W-30 |
| Engine Oil Capacity | 5.7 litres |
| Emission Standards | EURO 5/6 |
| Fuel Type | Petrol / Gasoline |
| Engine Type | Bare Engine / Long Block |
| Condition | Brand New |
What’s Included
- Complete cylinder block with pistons, rings, crankshaft and connecting rods
- Assembled cylinder head with valves, springs, camshafts, AVS actuator and Dual VVT units
- Oil pan and valve cover
- Timing chain cover and timing chain kit installed
- Water pump and oil pump pre‑installed
Note: This is a bare engine / long block assembly. Intake manifold, exhaust manifold, turbocharger (IHI IS20), fuel injectors, high‑pressure fuel pump, low‑pressure MPI injectors, throttle body, alternator, starter, engine wiring harness, ECU and all external sensors are NOT included. They must be transferred from your original engine.
Why Choose This CNCD Bare Engine
- 100% brand new – never remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Latest Gen3 EA888 technology with dual injection and dual VVT
- Packed securely in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a CNCD engine for sale or a VAG 2.0 TFSI EA888 Gen3 replacement engine, this premium long block gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
