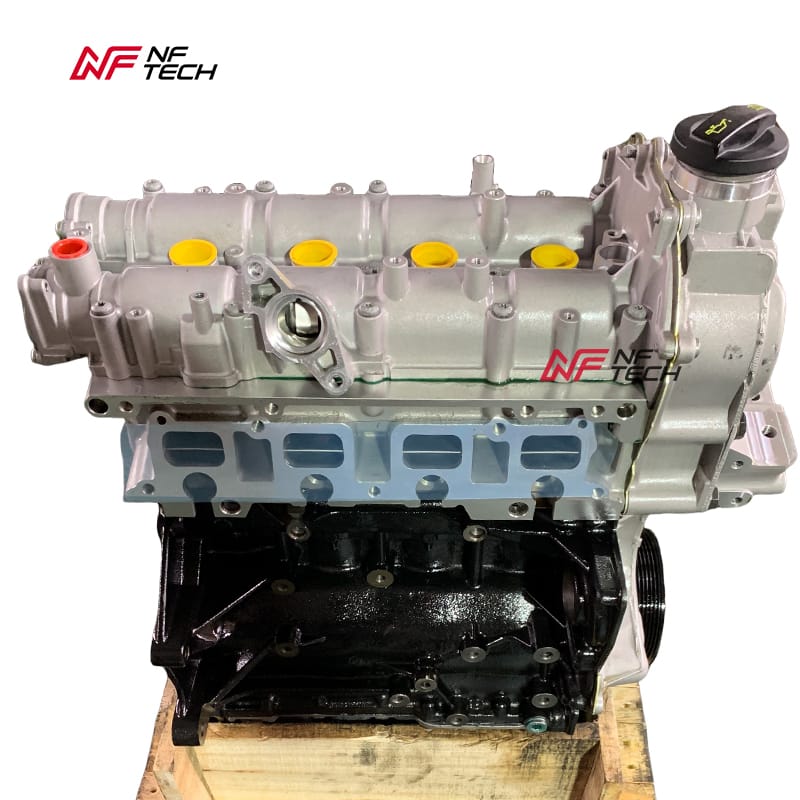

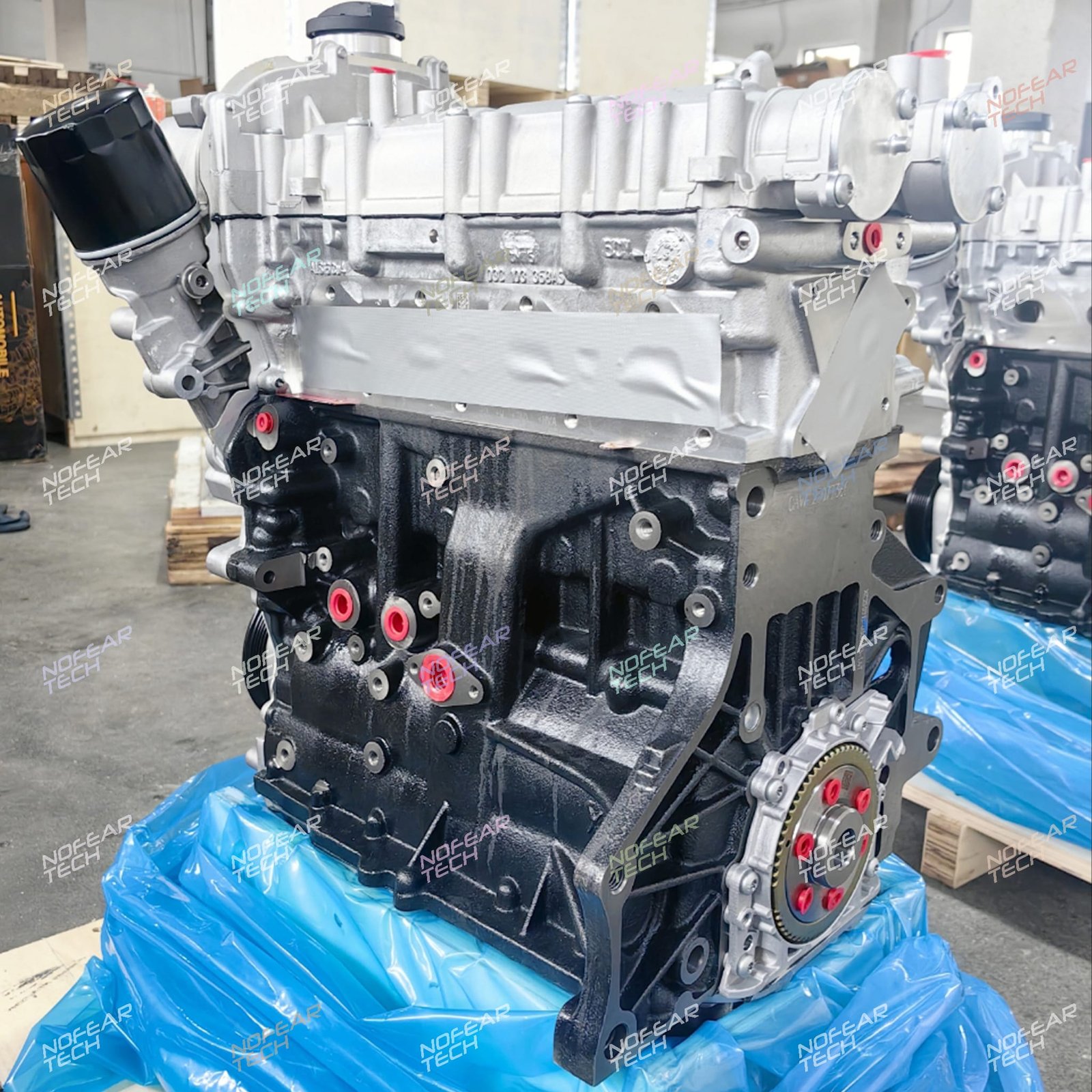

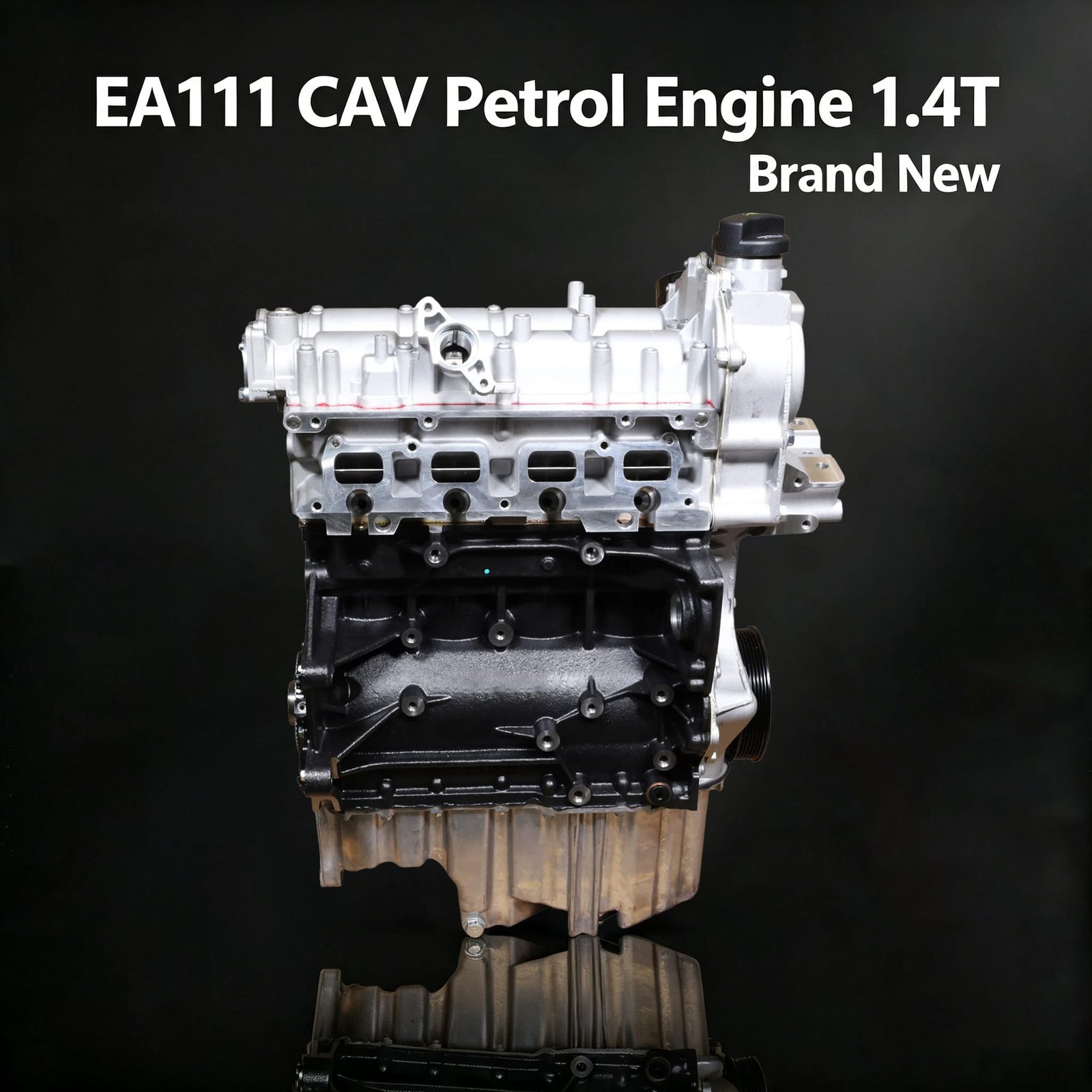

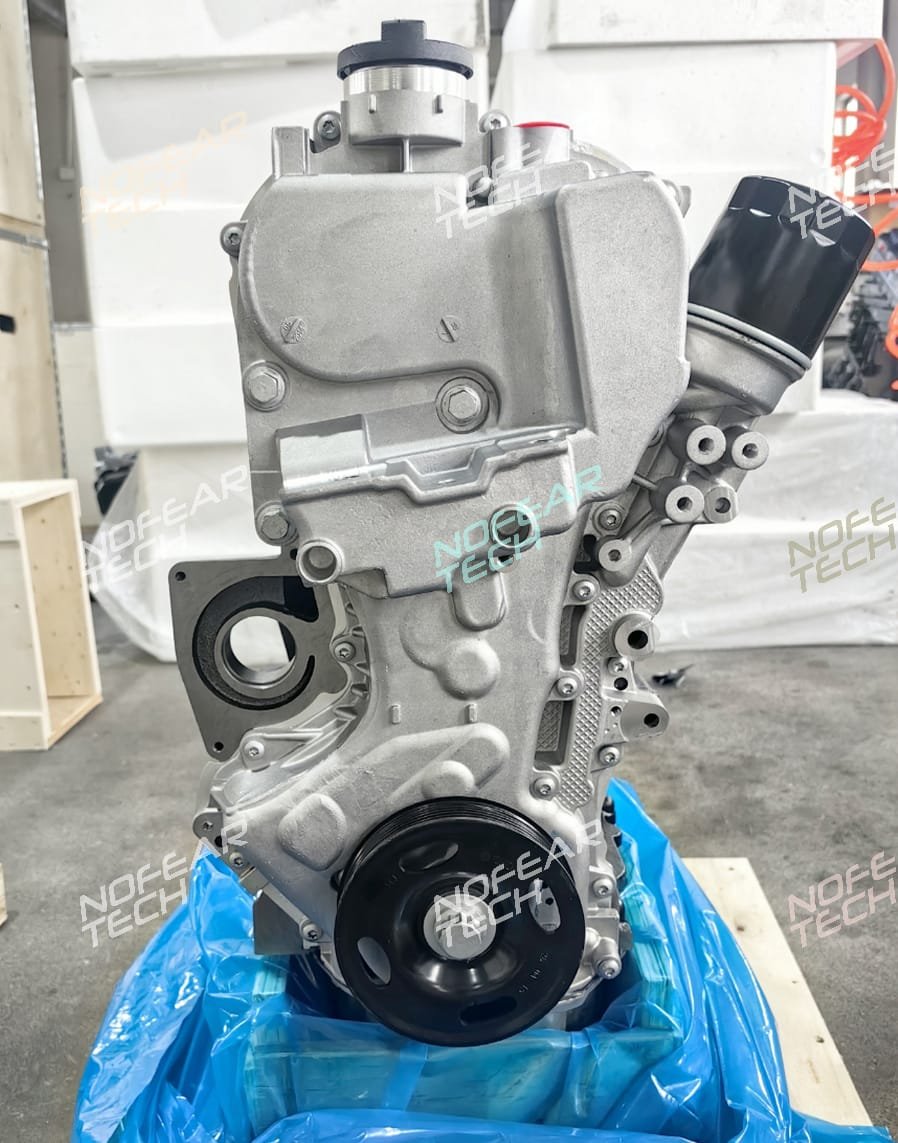

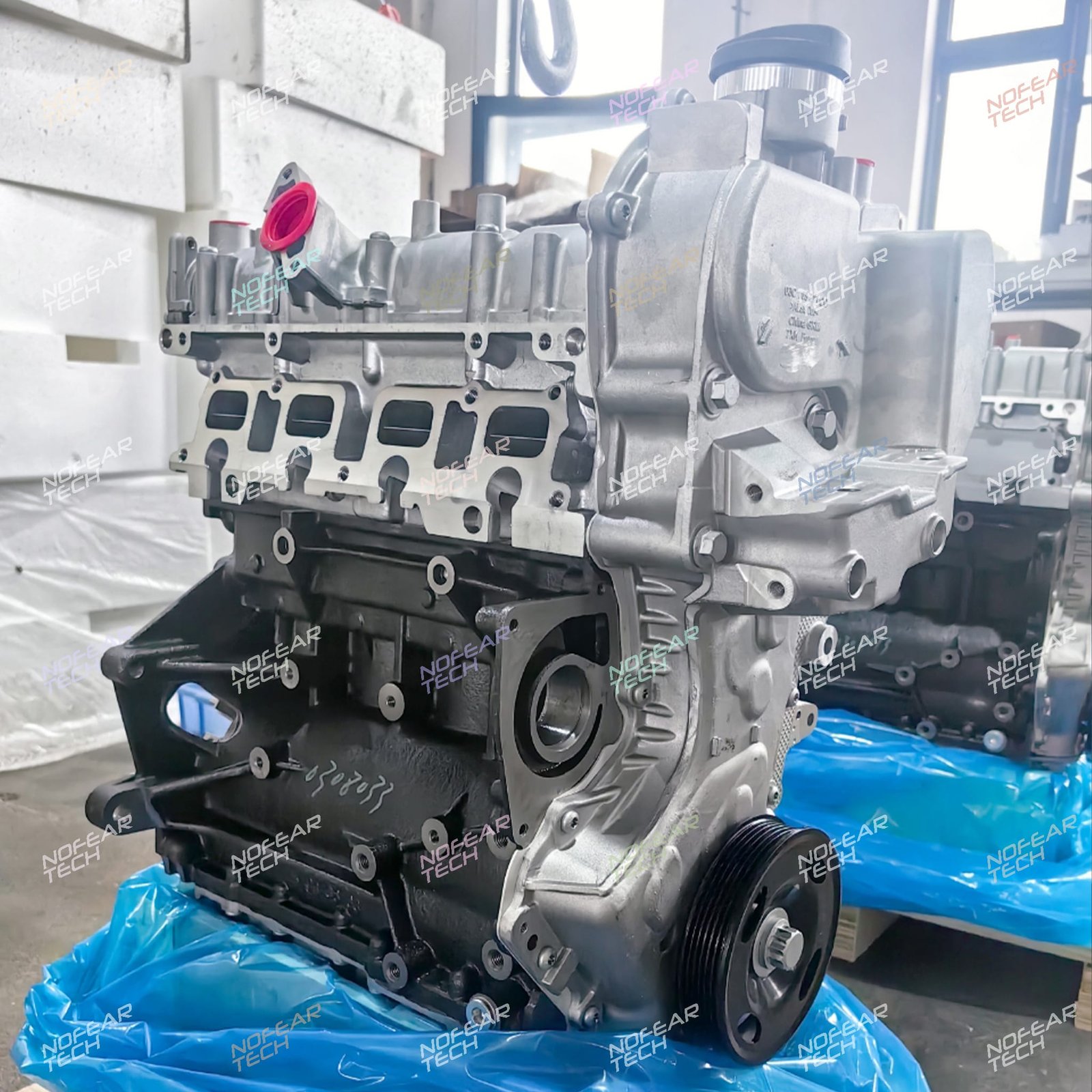

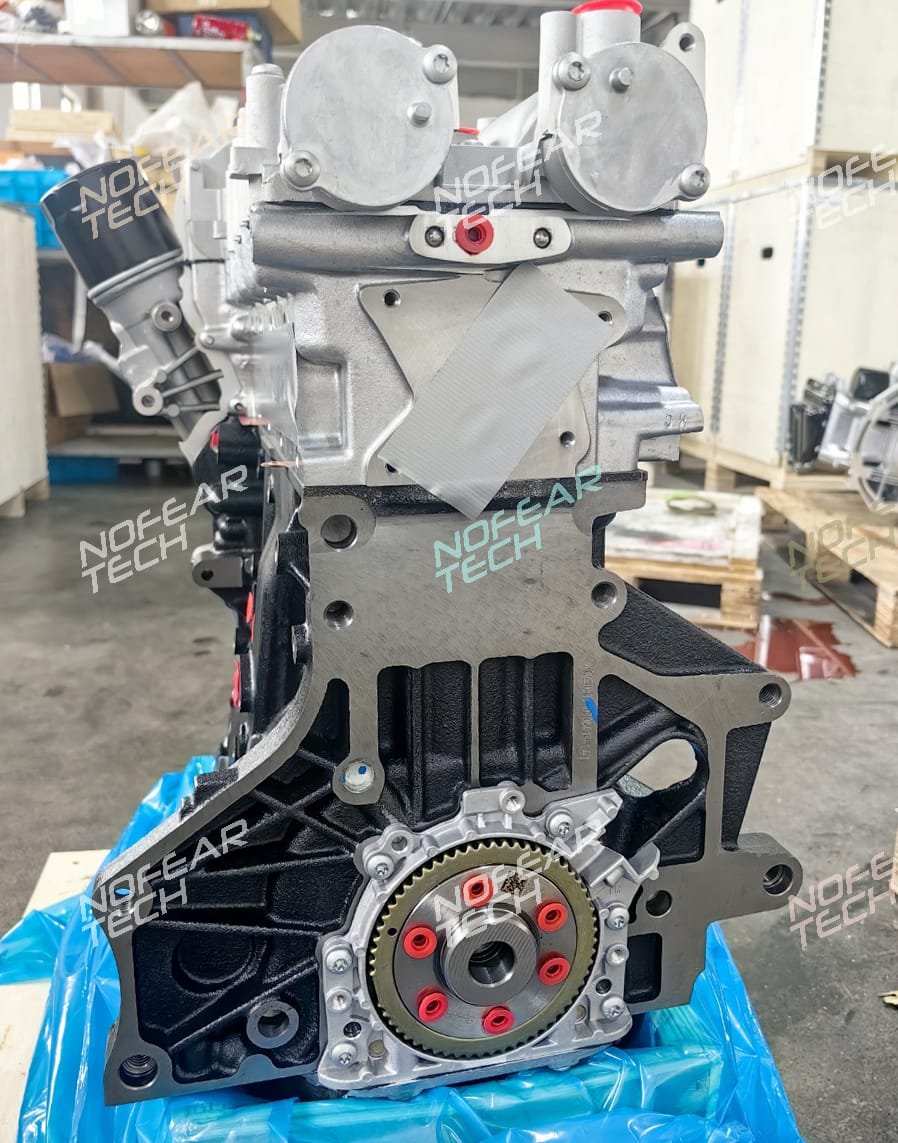

CAVA / CAVD 1.4 TSI EA111 Twincharger Bare Engine / Long Block – VAG Replacement Engine
This CAVA / CAVD bare engine is a complete long block assembly built to OEM standards for VAG (Volkswagen Audi Group) vehicles. It is the renowned 1.4‑litre TSI Twincharger from the EA111 engine family, featuring both a turbocharger (KKK K03) and an Eaton TVS supercharger for exceptional low‑end response and high‑rpm power. The engine utilises direct injection, DOHC 16‑valve cylinder head and variable valve timing on the intake shaft. The assembly provides a factory‑fresh foundation for your engine swap or rebuild, saving you time and money compared to repairing a worn or seized unit.
Vehicle Compatibility
The CAVA / CAVD 1.4 TSI Twincharger engine was fitted to a wide range of Volkswagen, Audi, SEAT and Škoda models. Always verify your engine code (CAVA or CAVD) before purchase. Common applications include:
- Volkswagen Golf 1.4 TSI Twincharger (Mk5/Mk6, 2005 – 2014)
- Volkswagen Scirocco 1.4 TSI Twincharger (2008 – 2017)
- Volkswagen Jetta 1.4 TSI Twincharger (2006 – 2015)
- Volkswagen Touran 1.4 TSI Twincharger (2006 – 2015)
- Volkswagen Tiguan 1.4 TSI Twincharger (2008 – 2016)
- Audi A1 1.4 TFSI Twincharger (2010 – 2014)
- SEAT Leon 1.4 TSI Twincharger (2005 – 2014)
- Škoda Octavia 1.4 TSI Twincharger (2005 – 2013)
- Other VAG models originally fitted with the CAVA or CAVD engine code
Please confirm your engine code is “CAVA” or “CAVD” before ordering. This is a bare engine assembly; all external components must be transferred from your original engine.
Technical Specifications
| Engine Codes | CAVA (150 hp) / CAVD (160 hp) – 1.4 TSI EA111 Twincharger |
| Displacement | 1.4 Litre (1390 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | 16-valve DOHC |
| Fuel System | Direct Injection (TSI/TFSI) |
| Power Output | 150 hp (CAVA) / 160 hp (CAVD) |
| Torque Output | 240 Nm (both versions) |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum 16V |
| Bore × Stroke | 76.5 mm × 75.6 mm |
| Compression Ratio | 10.0:1 |
| Hydraulic Lifters | Yes |
| Timing Drive | Chain |
| Phase Regulator | On the intake shaft |
| Forced Induction | Twincharged – KKK K03 turbocharger + Eaton TVS supercharger |
| Recommended Engine Oil | 5W-30 |
| Engine Oil Capacity | 3.6 litres |
| Emission Standards | EURO 5 |
| Fuel Type | Petrol / Gasoline |
| Engine Type | Bare Engine / Long Block |
| Condition | Brand New |
What’s Included
- Complete cylinder block with pistons, rings, crankshaft and connecting rods
- Assembled cylinder head with valves, springs, camshafts and VVT unit
- Oil pan and valve cover
- Timing chain cover and timing chain kit installed
- Water pump and oil pump pre‑installed
Note: This is a bare engine / long block assembly. Intake manifold, exhaust manifold, turbocharger (KKK K03), supercharger (Eaton TVS), fuel injectors, high‑pressure fuel pump, throttle body, alternator, starter, engine wiring harness, ECU and all external sensors are NOT included. They must be transferred from your original engine.
Why Choose This CAVA / CAVD Bare Engine
- 100% brand new – never remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Supports both CAVA and CAVD versions for maximum flexibility
- Twincharged design for outstanding drivability and performance
- Packed securely in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a CAVA engine for sale, a CAVD replacement engine, or a VAG 1.4 TSI Twincharger EA111 long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
