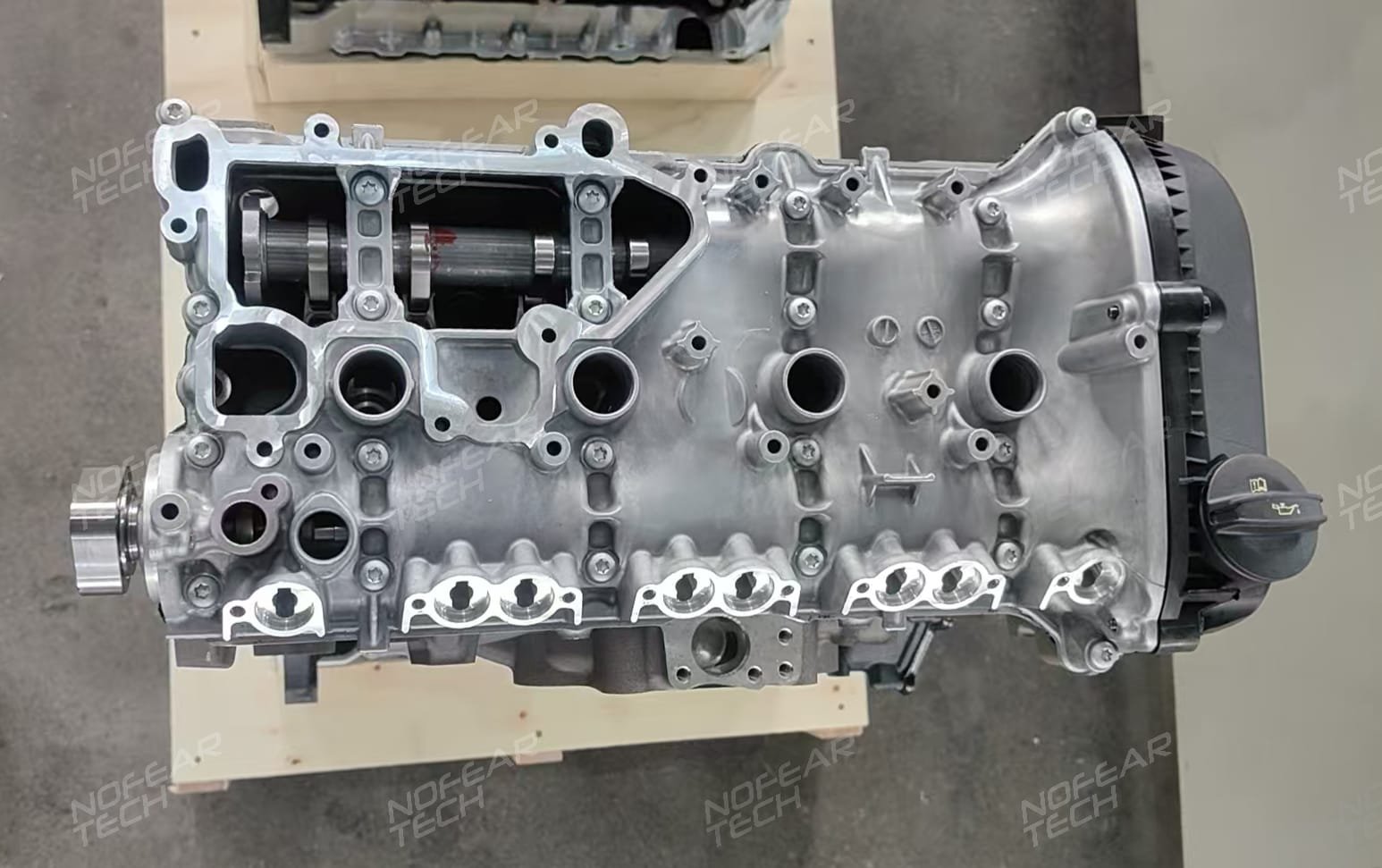

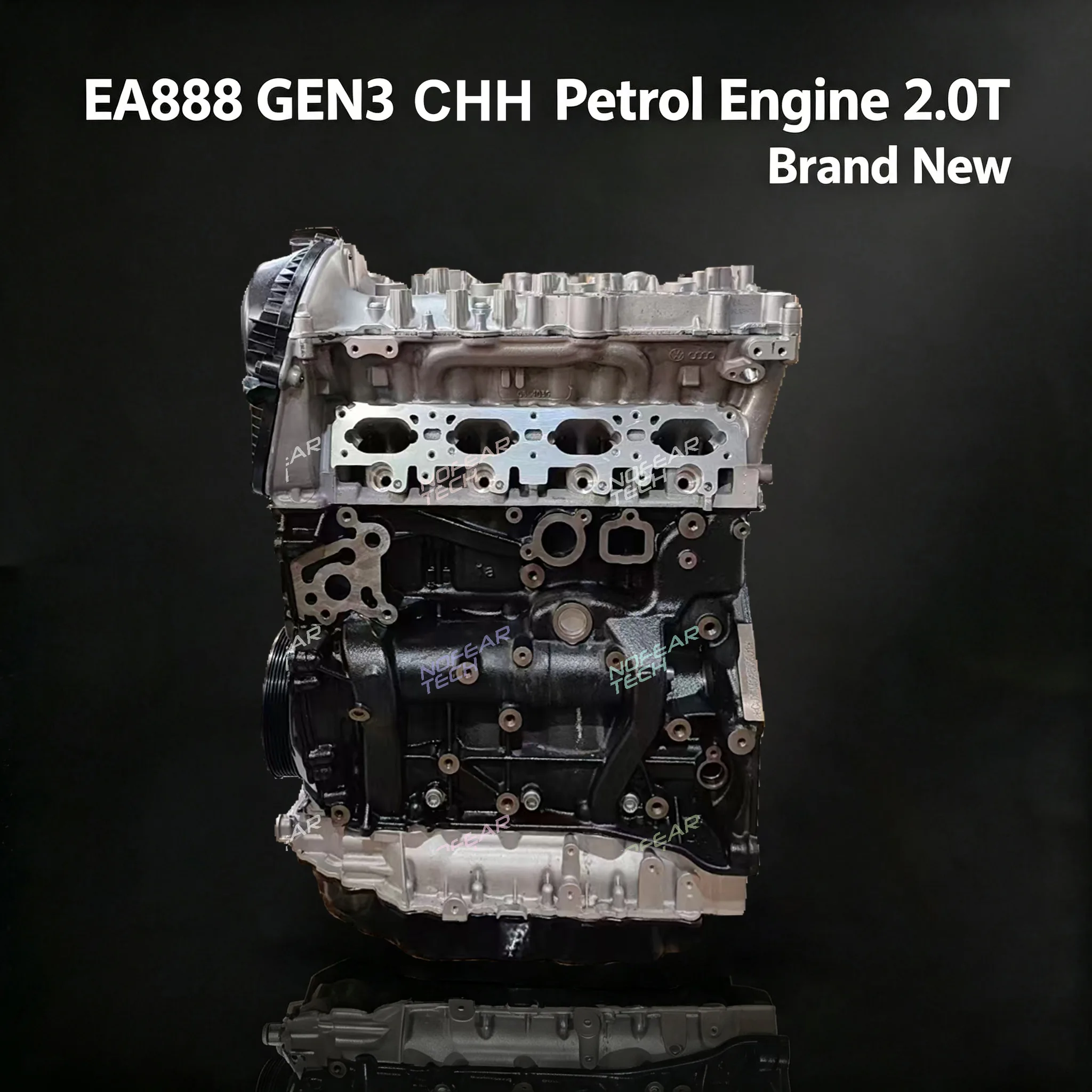

CHHA / CHHB 2.0 TSI EA888 Gen3 Bare Engine / Long Block – VAG Replacement Engine
This CHHA / CHHB bare engine is a complete long block assembly built to OEM standards for VAG (Volkswagen Audi Group) vehicles. It is the third‑generation EA888 2.0‑litre turbocharged direct‑injection engine, featuring Dual VVT (phase regulator on both intake and exhaust shafts), AVS (Audi Valvelift System), and a robust cast‑iron block with an aluminium 16‑valve head. The engine is supplied with dual injection (FSI + MPI) for improved efficiency and emissions compliance.
The assembly is available in two power variants: the CHHB producing 220 hp and 350 Nm, and the CHHA producing 230 hp and 350 Nm. Both use the IHI IS20 turbocharger. The core long block is identical for both codes, making this a flexible replacement for a wide range of VAG models.
Vehicle Compatibility
The CHHA / CHHB 2.0 TSI engine was fitted to many modern Volkswagen, Audi, SEAT and Škoda models. Always verify your engine code (CHHA or CHHB) before purchase. Common applications include:
- Volkswagen Golf 2.0 TSI (Mk7, 2013 – 2020)
- Volkswagen Passat 2.0 TSI (B8, 2014 – 2020)
- Volkswagen Tiguan 2.0 TSI (2016 – 2020)
- Volkswagen Arteon 2.0 TSI (2017 – 2020)
- Audi A3 2.0 TFSI (8V, 2013 – 2020)
- Audi A4 2.0 TFSI (B9, 2015 – 2020)
- Audi Q5 2.0 TFSI (2017 – 2020)
- SEAT Leon 2.0 TSI (2013 – 2020)
- Škoda Octavia 2.0 TSI (2013 – 2020)
- Škoda Superb 2.0 TSI (2015 – 2020)
- Other VAG models originally fitted with the CHHA or CHHB engine code
Please confirm your engine code is “CHHA” or “CHHB” before ordering. This is a bare engine assembly; all external components must be transferred from your original engine.
Technical Specifications
| Engine Codes | CHHA (230 hp) / CHHB (220 hp) – 2.0 TSI EA888 Gen3 |
| Displacement | 2.0 Litre (1984 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | 16-valve DOHC with AVS (on exhaust for CHHA; on intake for CHHB) |
| Fuel System | Direct Injection + Multi-Port Injection (FSI + MPI) |
| Power Output | 220 hp (CHHB) / 230 hp (CHHA) |
| Torque Output | 350 Nm (both versions) |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum 16V |
| Bore × Stroke | 82.5 mm × 92.8 mm |
| Compression Ratio | 9.6:1 |
| Hydraulic Lifters | Yes |
| Timing Drive | Chain |
| Phase Regulator | On both intake and exhaust shafts (Dual VVT) |
| Turbocharging | IHI IS20 |
| Recommended Engine Oil | 5W-30 (CHHB) / 0W-20 (CHHA) |
| Engine Oil Capacity | 5.7 litres |
| Emission Standards | EURO 6 |
| Fuel Type | Petrol / Gasoline |
| Engine Type | Bare Engine / Long Block |
| Condition | Brand New |
What’s Included
- Complete cylinder block with pistons, rings, crankshaft and connecting rods
- Assembled cylinder head with valves, springs, camshafts, AVS actuator and Dual VVT units
- Oil pan and valve cover
- Timing chain cover and timing chain kit installed
- Water pump and oil pump pre‑installed
Note: This is a bare engine / long block assembly. Intake manifold, exhaust manifold, turbocharger (IHI IS20), fuel injectors, high‑pressure fuel pump, low‑pressure MPI injectors, throttle body, alternator, starter, engine wiring harness, ECU and all external sensors are NOT included. They must be transferred from your original engine.
Why Choose This CHHA / CHHB Bare Engine
- 100% brand new – never remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Supports both CHHA and CHHB versions for maximum flexibility
- Packed securely in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a CHHA engine for sale, a CHHB replacement engine, or a VAG 2.0 TSI EA888 Gen3 long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
