Description

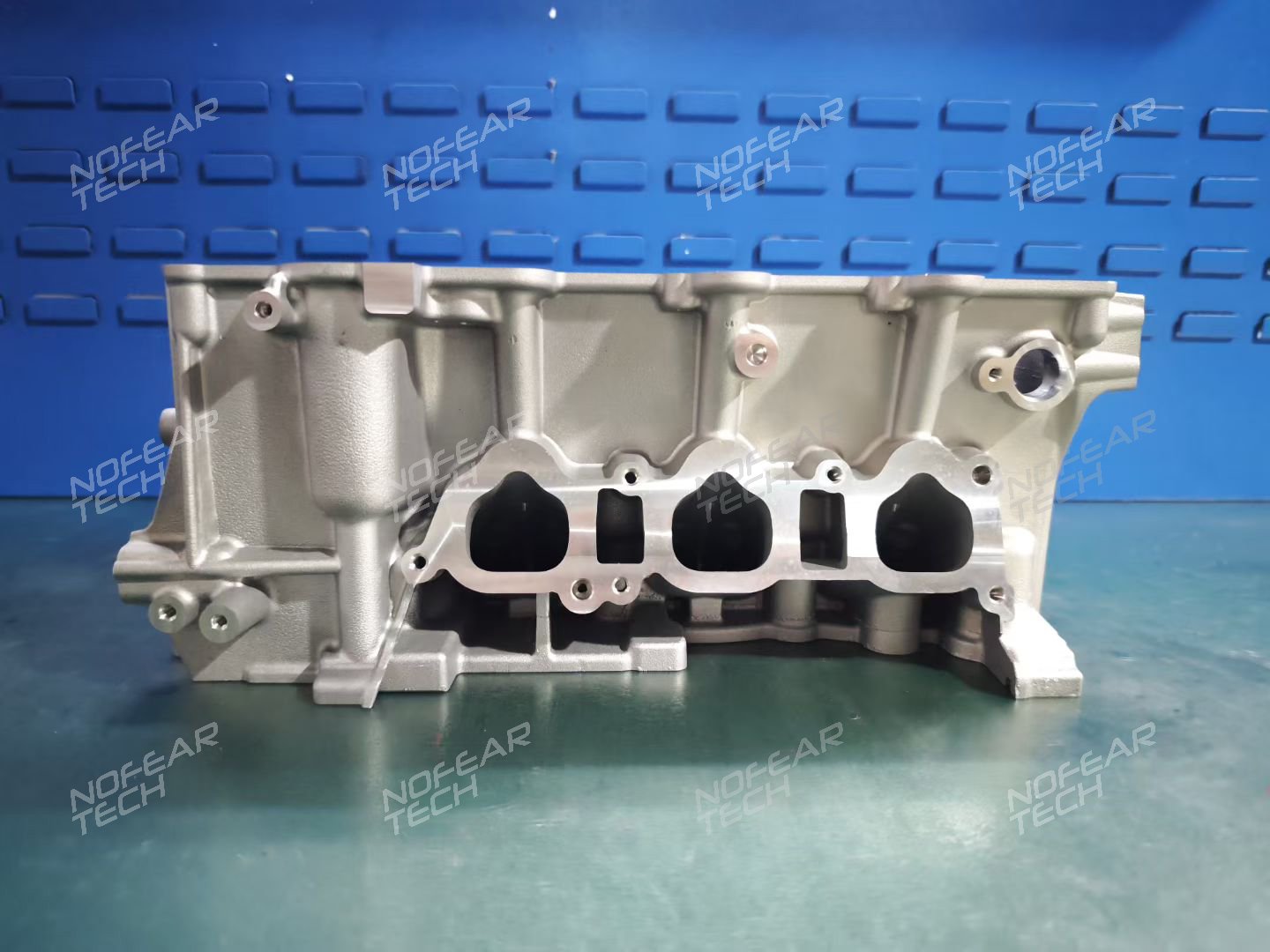

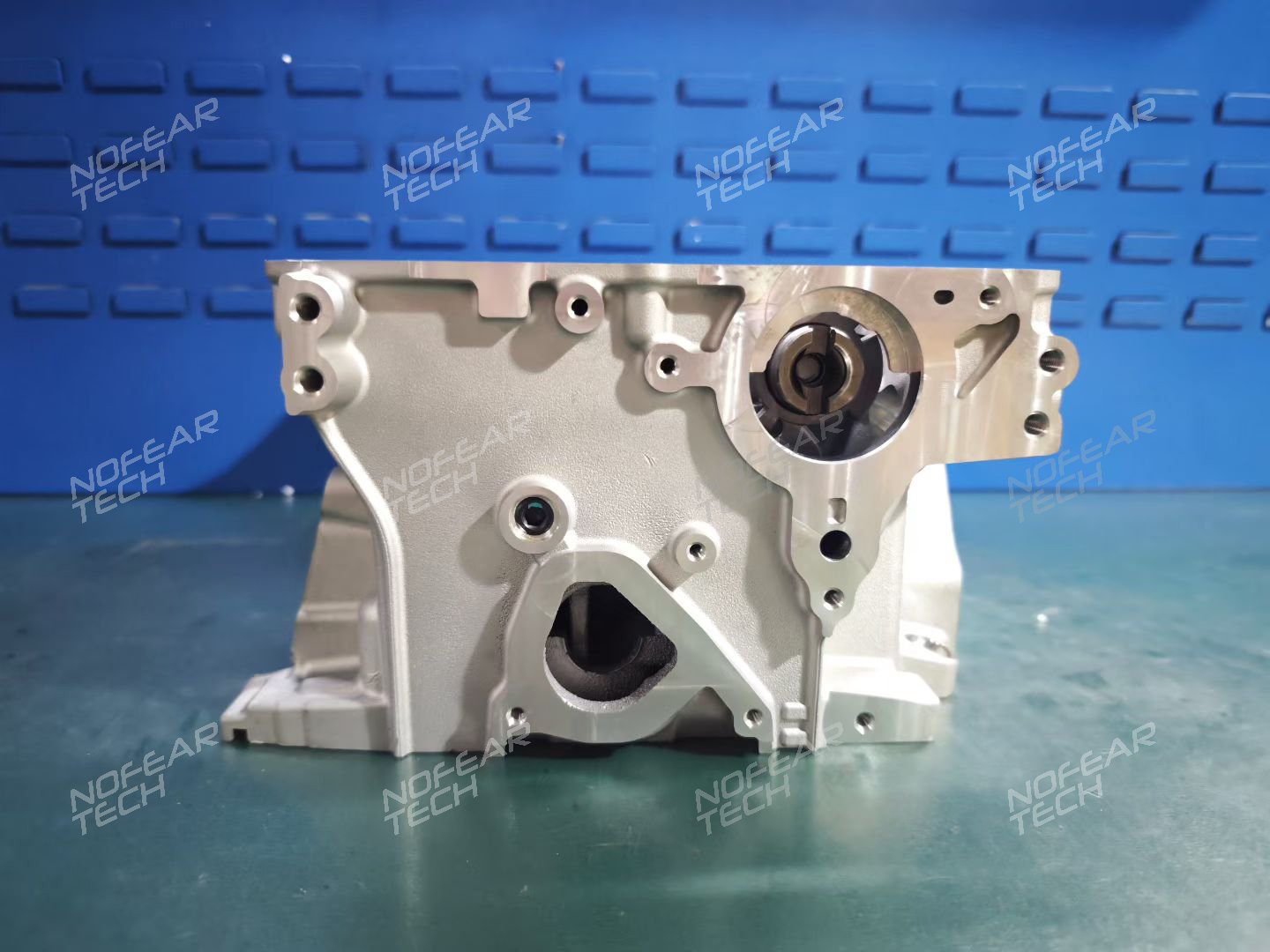

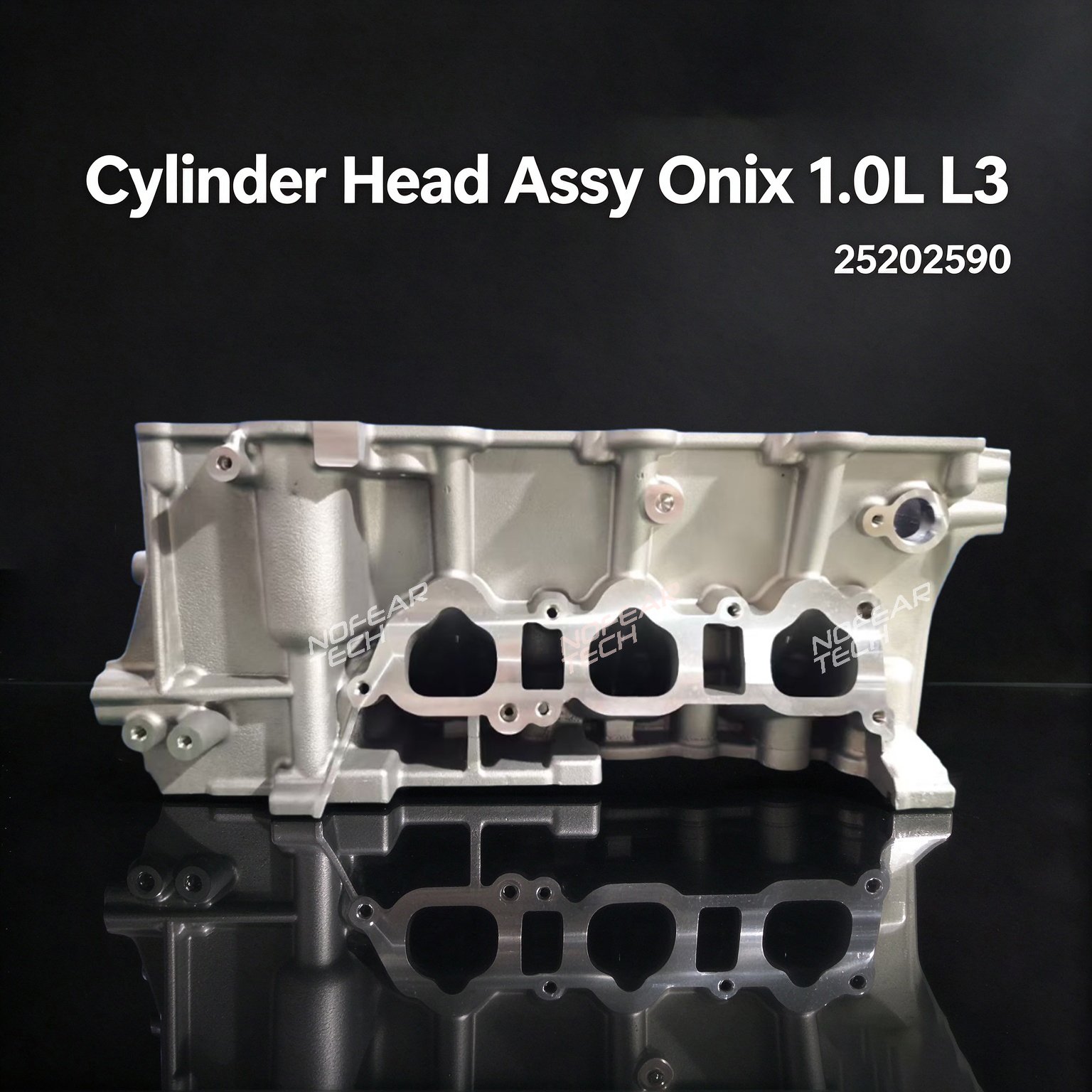

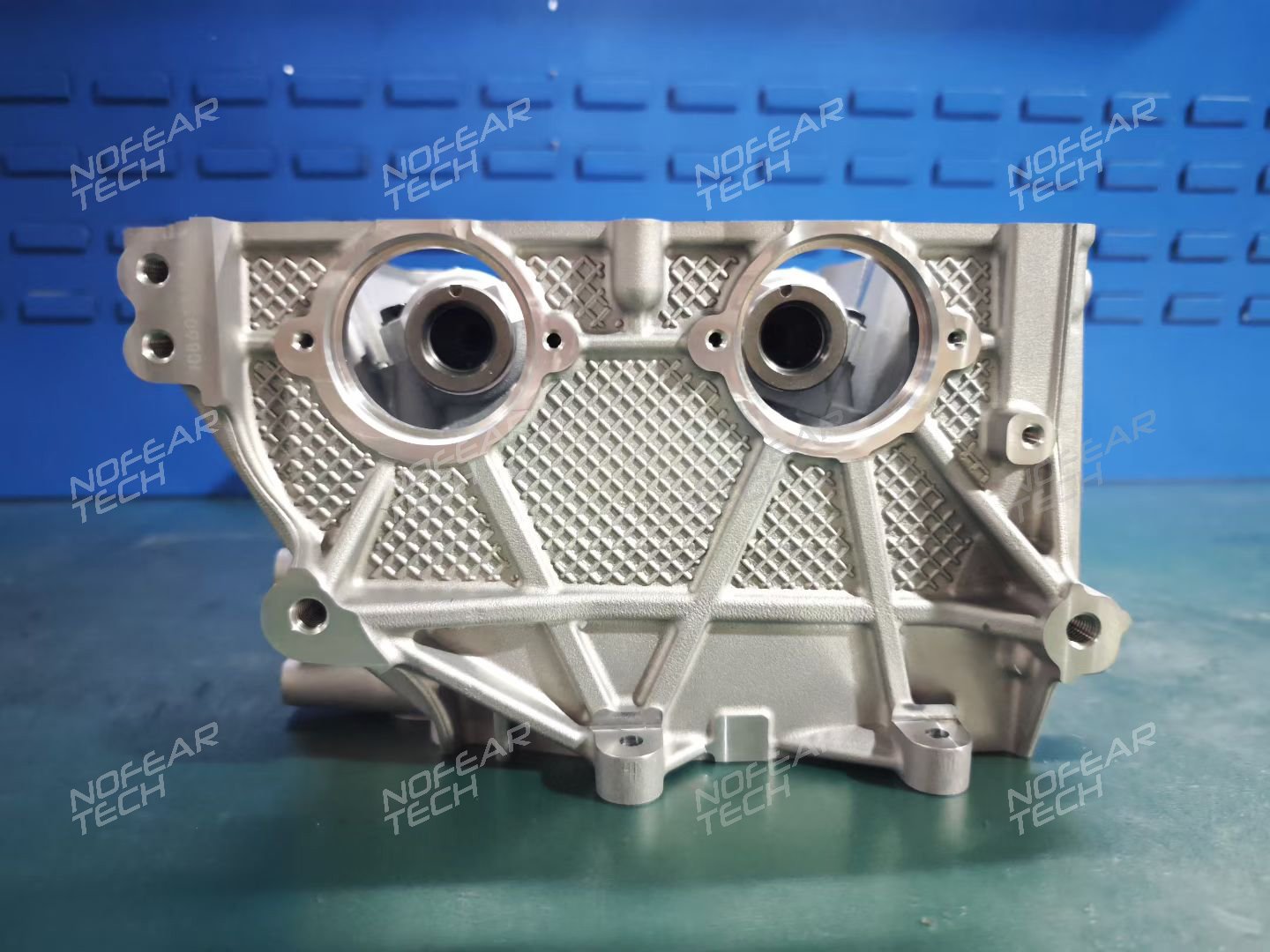

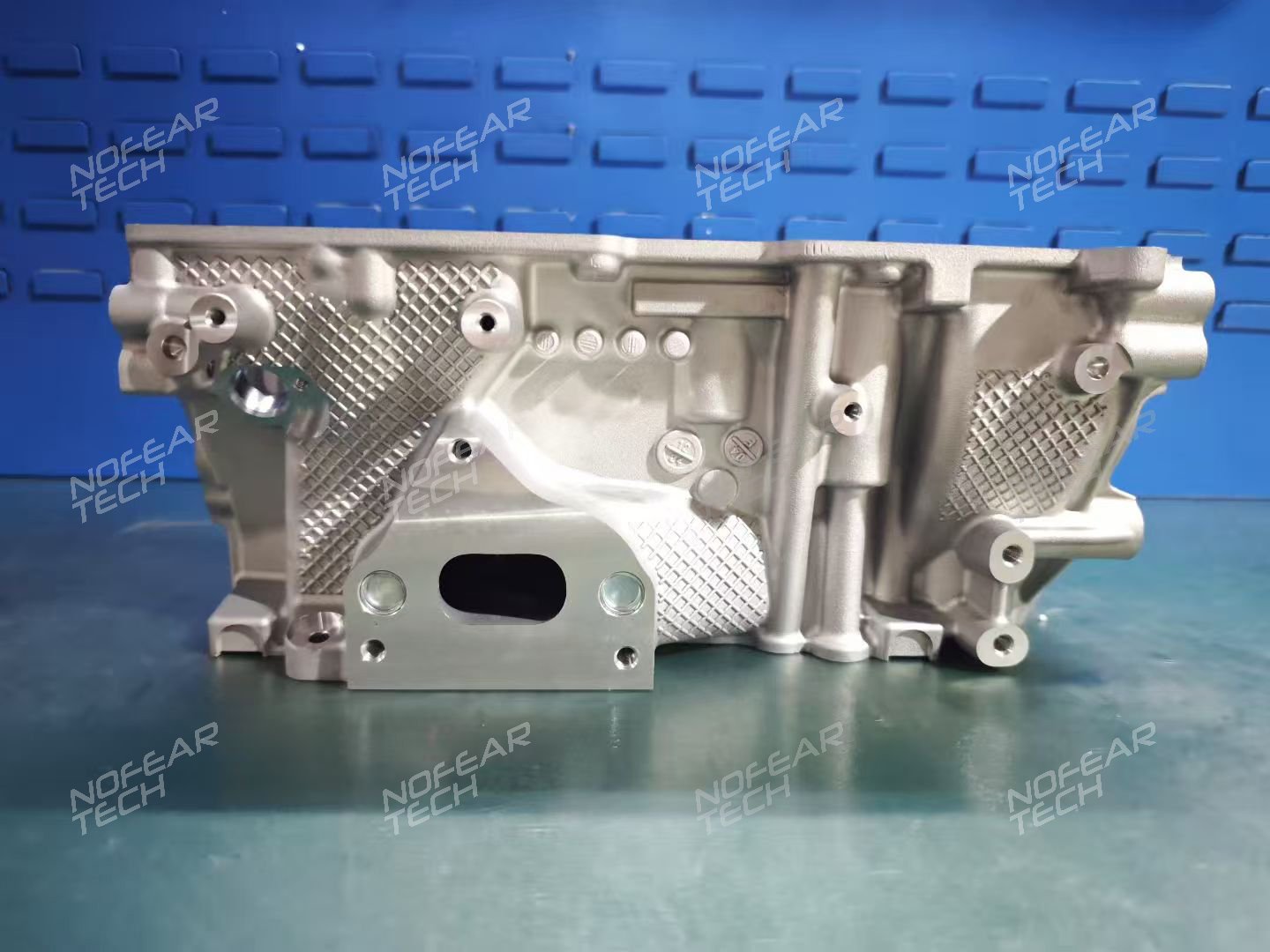

Chevrolet Onix 1.0L L3 Cylinder Head Assembly – Valves Pre-Installed – Onix / Onix Plus

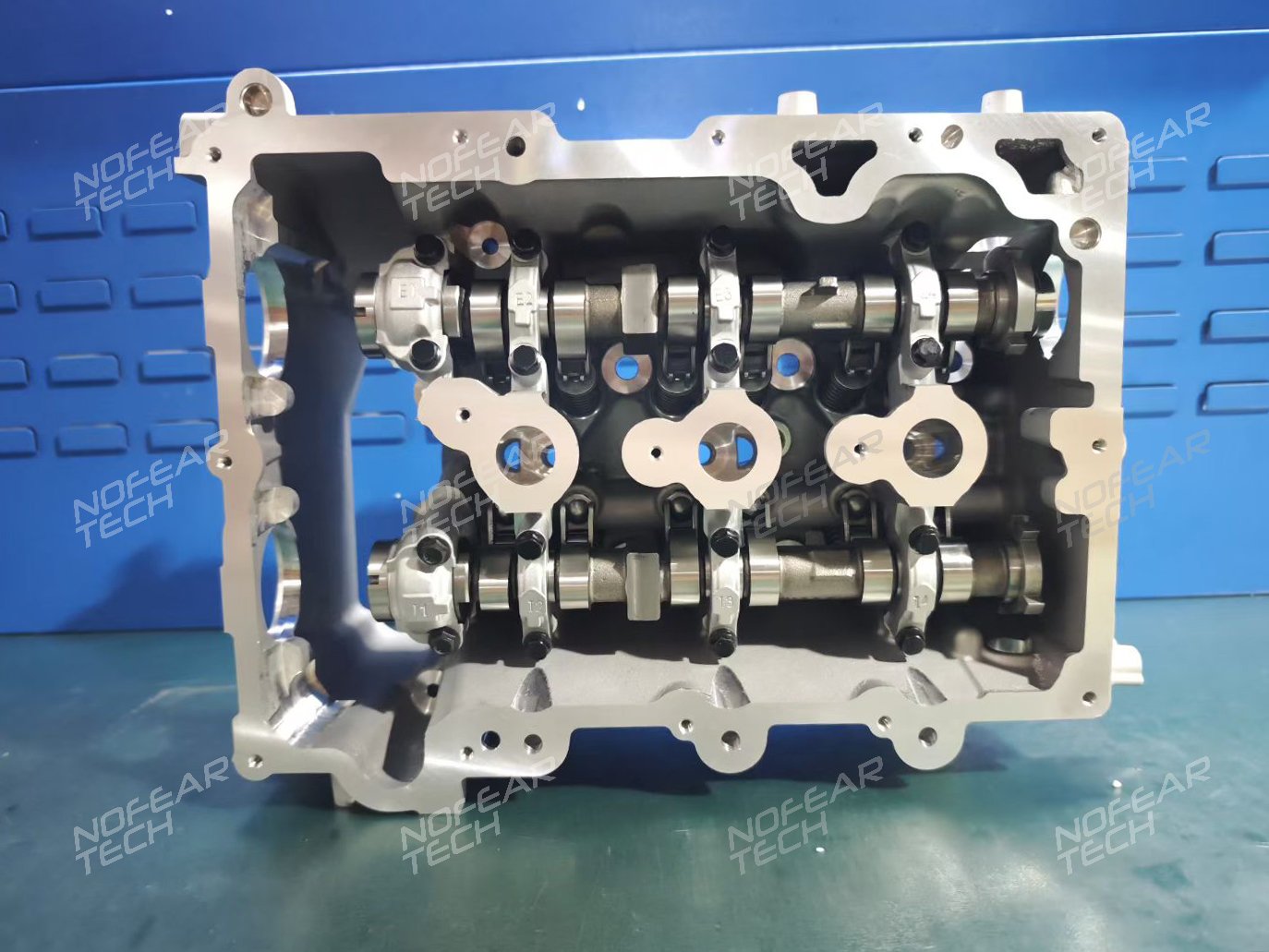

This Chevrolet Onix 1.0L L3 cylinder head assembly is a brand new, factory-fresh replacement for the three-cylinder Ecotec petrol engine used in the Onix and Onix Plus from 2020 onward. It is supplied with valves pre-installed — intake and exhaust valves, springs, retainers, stem seals and guides are already fitted. The camshafts are NOT included because the E22 engine houses them in a separate camshaft carrier integrated into the valve cover — you reuse your existing carrier and camshaft assembly.
What’s Included – Fitted to the Head
- Complete aluminium cylinder head casting — pressure-tested and flatness-checked
- 12 valves — intake and exhaust, heat-resistant (4 per cylinder)
- Valve springs, spring seats and retainers
- Valve stem seals and valve guides — fitted
- Valve seats — machined and sealing-checked
- Core plugs and oil gallery plugs — installed
What you transfer from your original head: camshaft carrier with both camshafts and the valve cover (this listing does not include the camshaft assembly), hydraulic lifters, timing belt kit (wet belt, tensioner and idler), head bolts (always fit new stretch bolts), head gasket and remaining gaskets, fuel injectors, spark plugs, ignition coils, intake manifold, exhaust manifold, turbocharger (on turbo variants — confirm engine code) and any sensors or brackets mounted to the head.
Vehicle Compatibility — Model and Engine Code Detail
The Short Description lists the basic model range. The fitment below is the model-level detail needed to confirm the correct casting before ordering. The E22 head is shared across naturally aspirated and turbocharged 1.0L variants, but valve material and combustion chamber volume differ — match the OE reference and engine code to your original head.
- Chevrolet Onix (2020–2026) — E22-100 1.0L naturally aspirated, manual transmission
- Chevrolet Onix Plus (2020–2026) — E22-100 1.0L naturally aspirated, manual transmission
- Chevrolet Onix 1.0 LT / LTZ (naturally aspirated variants) — confirm engine code E22-100 before ordering
This cylinder head is specific to the E22-100 naturally aspirated 1.0L three-cylinder petrol engine. It is NOT interchangeable with the turbocharged E22-E100 head, the 1.2L three-cylinder engine, or any four-cylinder engine in the Chevrolet range.
OEM Part Number Cross-Reference
- Primary reference: 25202590
- Related references: 25202074
- Engine code cross-reference: E22-100 (naturally aspirated), E22-E100 (turbo — confirm before ordering)
Why Buy This Onix 1.0L L3 Cylinder Head Assembly
- 100% brand new — not reconditioned or repaired
- Pressure-tested and vacuum-tested for leaks and porosity before dispatch
- Flatness-checked to OEM tolerance
- Valves pre-installed — saves valve seating and assembly time
- Camshaft carrier not included — lower cost for rebuilders who already have a serviceable camshaft assembly
- Fast global shipping to port or door
More Cylinder Heads & Quick Contact
- Browse more Chevrolet cylinder heads: View our complete Chevrolet cylinder head catalog.
- Fitment check: Send us your OEM number and a photo of your original head on WhatsApp for a same-day compatibility confirmation and freight quote.
