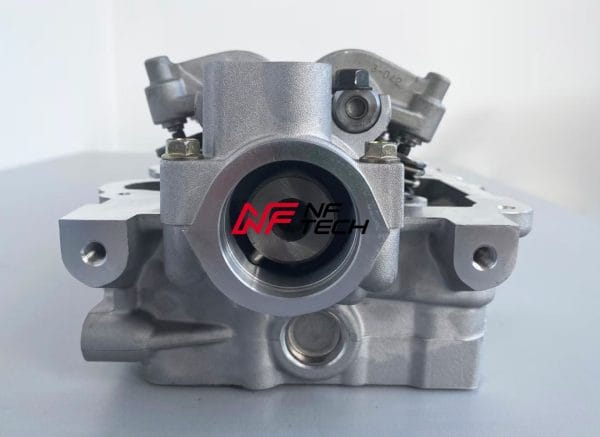

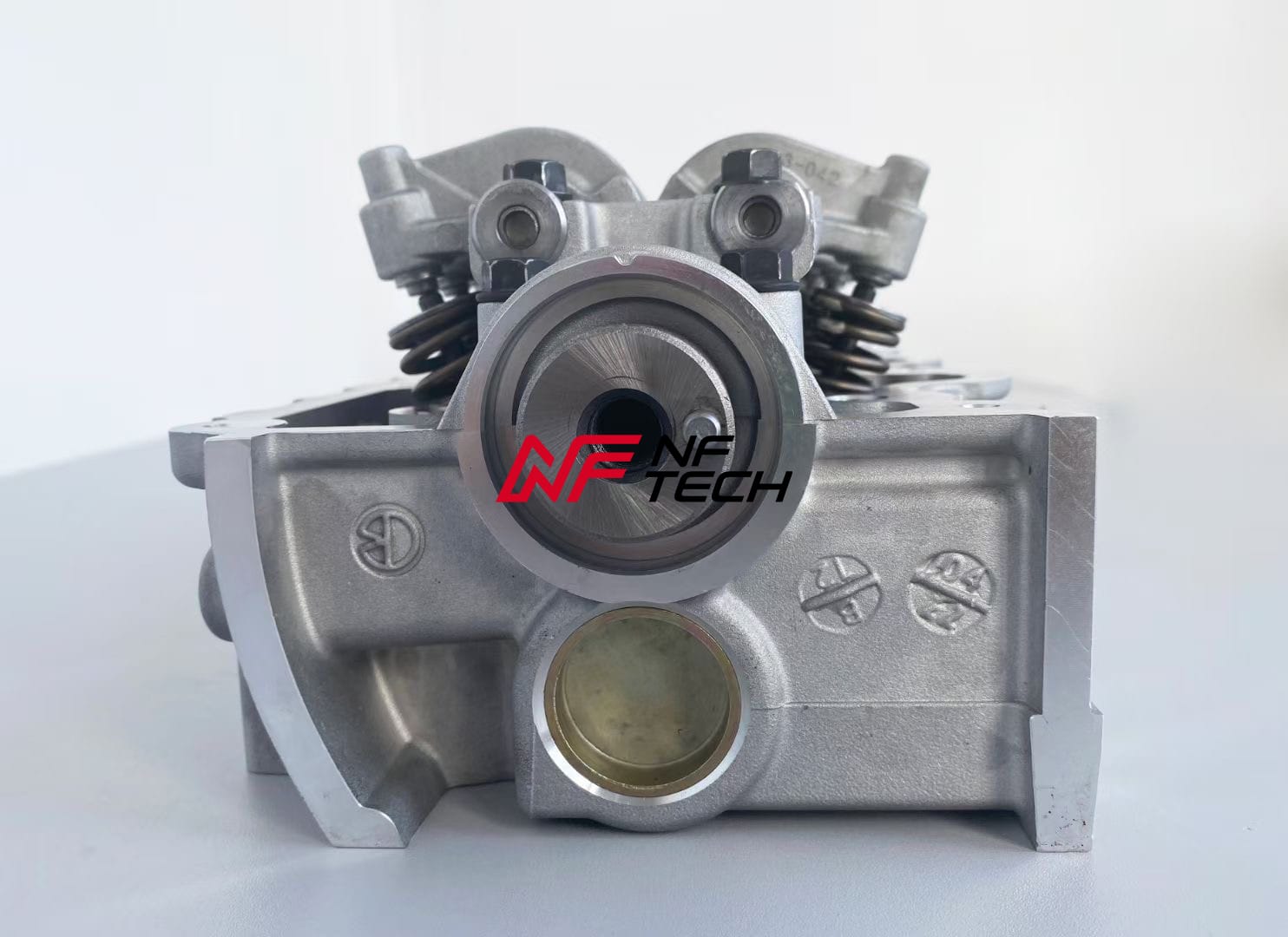

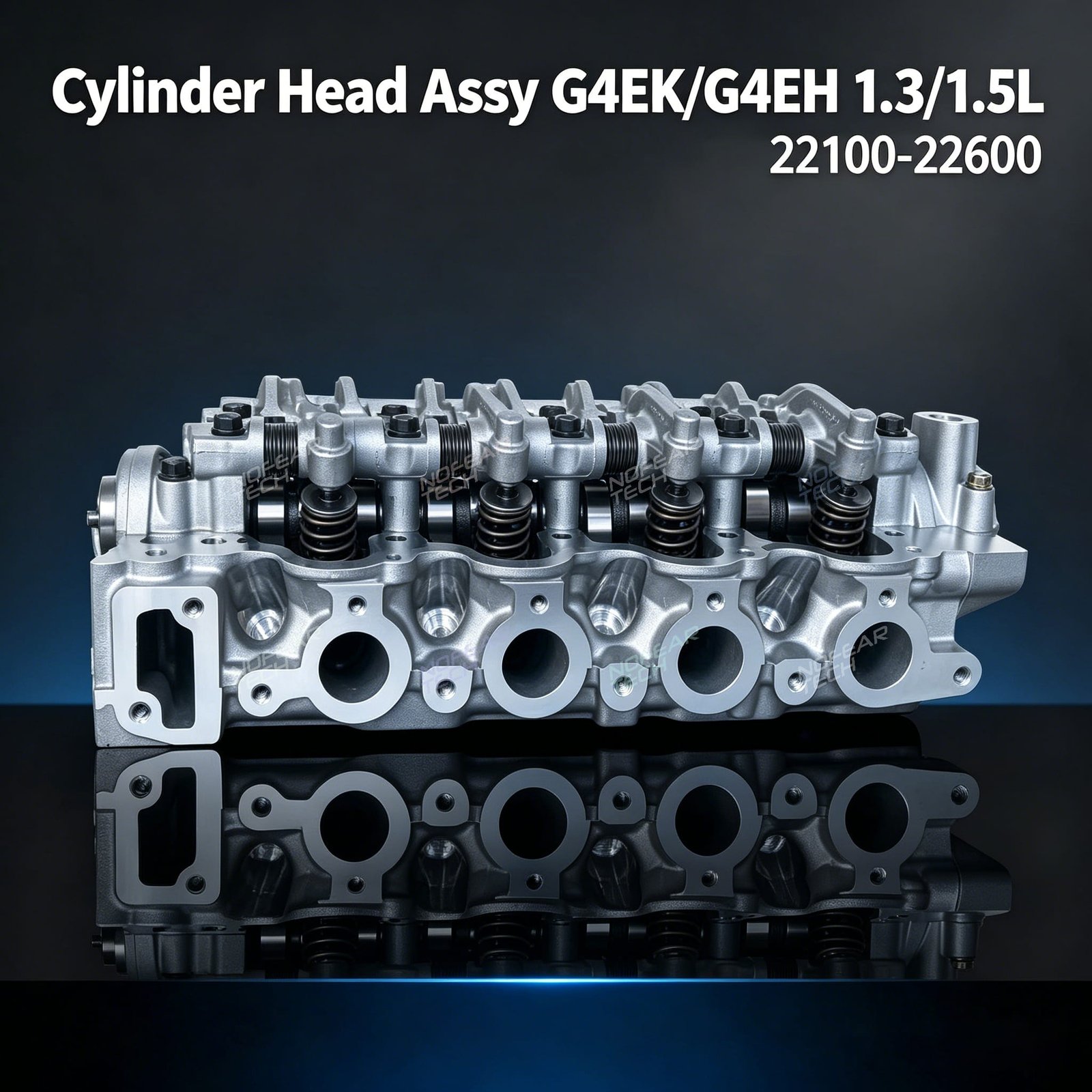

G4EK G4EH cylinder head assembly front view – Hyundai Kia 1.3L 1.5L Alpha
G4EK G4EH cylinder head packed in wooden crate for international shipping

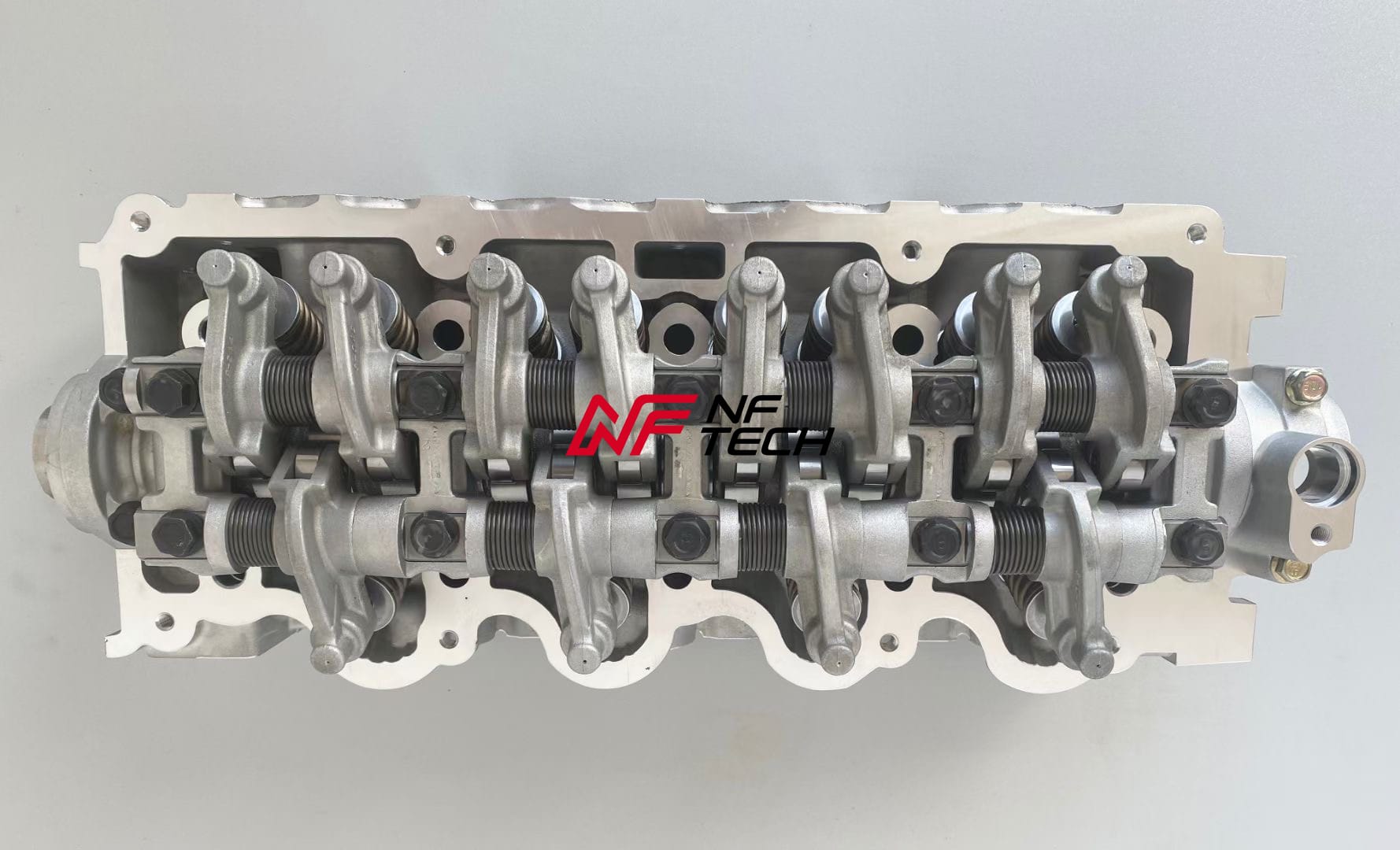

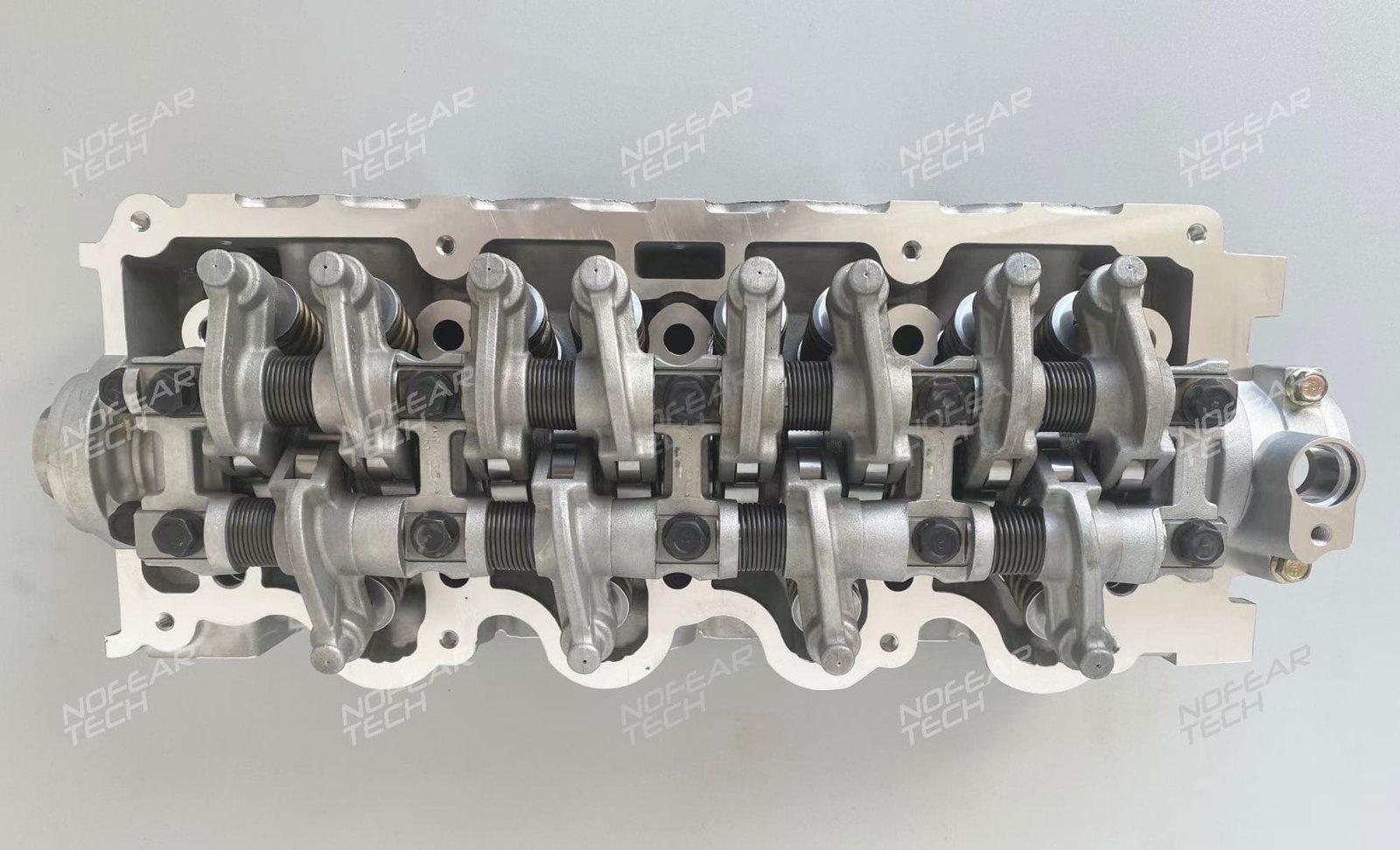

G4EK G4EH cylinder head camshaft and valve springs pre-installed
G4EK G4EH engine code stamp close-up – OEM 22100-22620

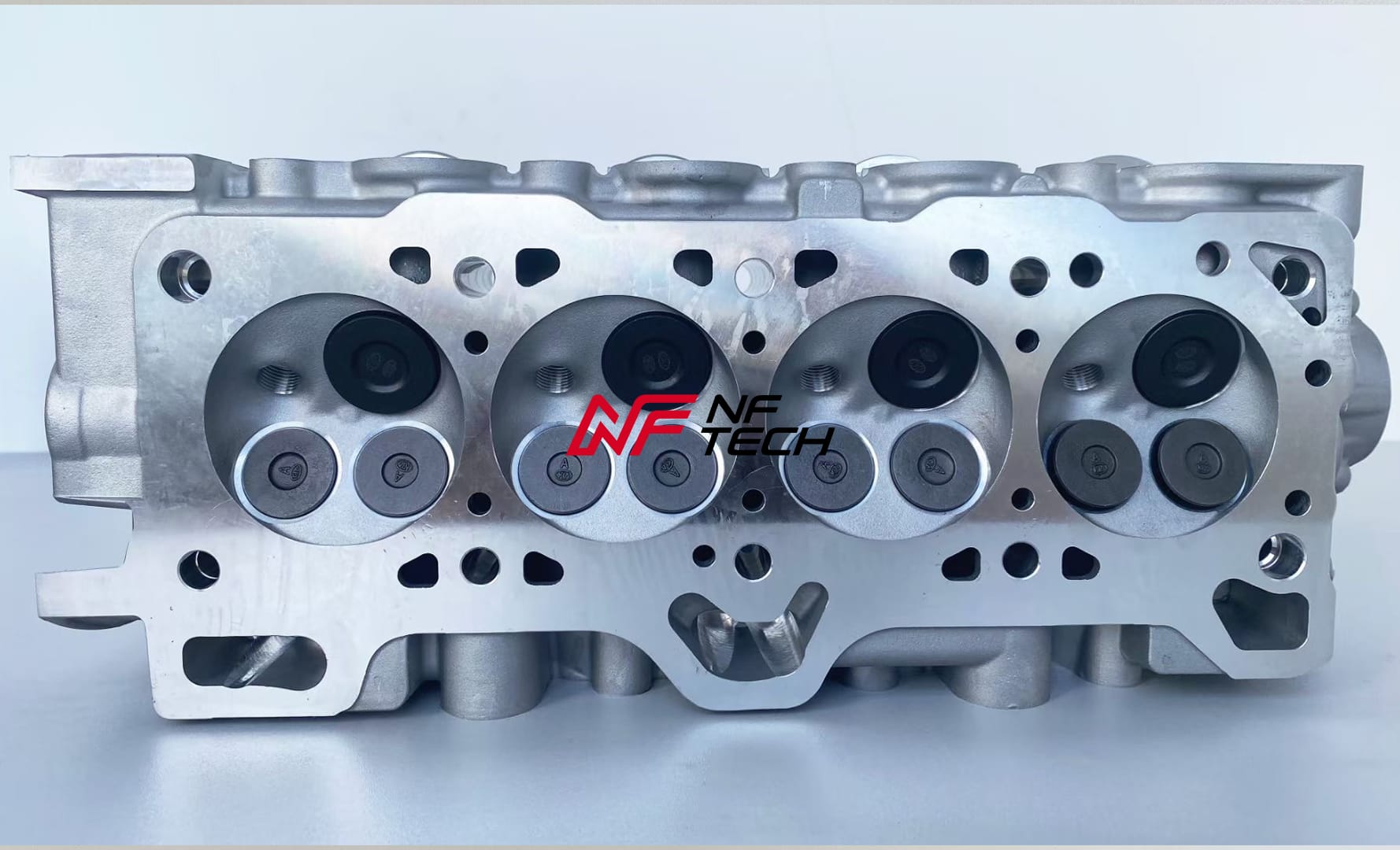

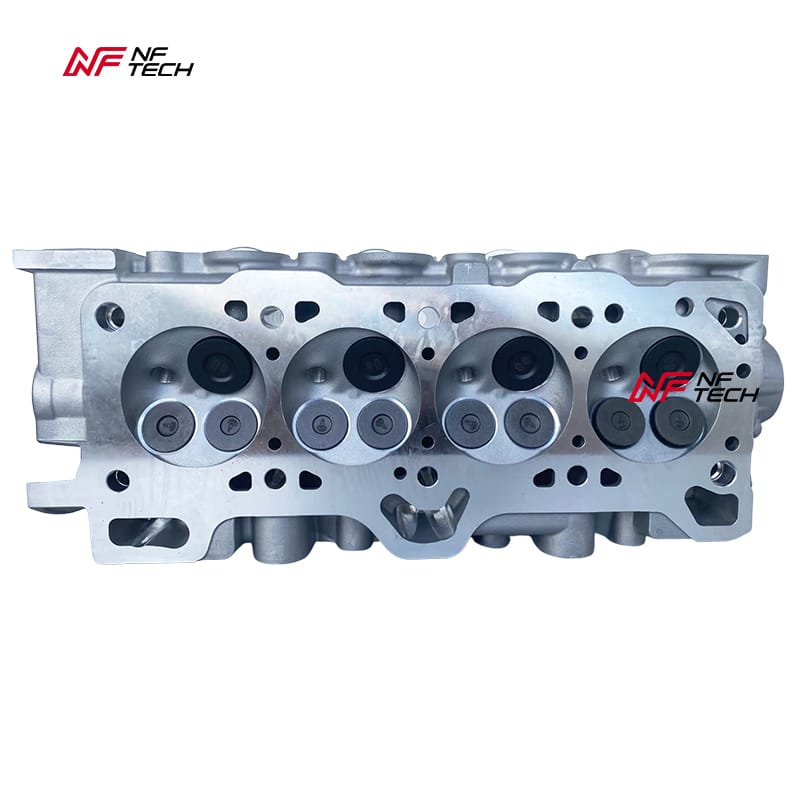

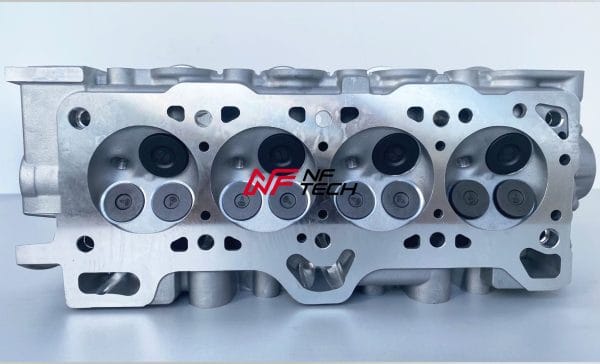

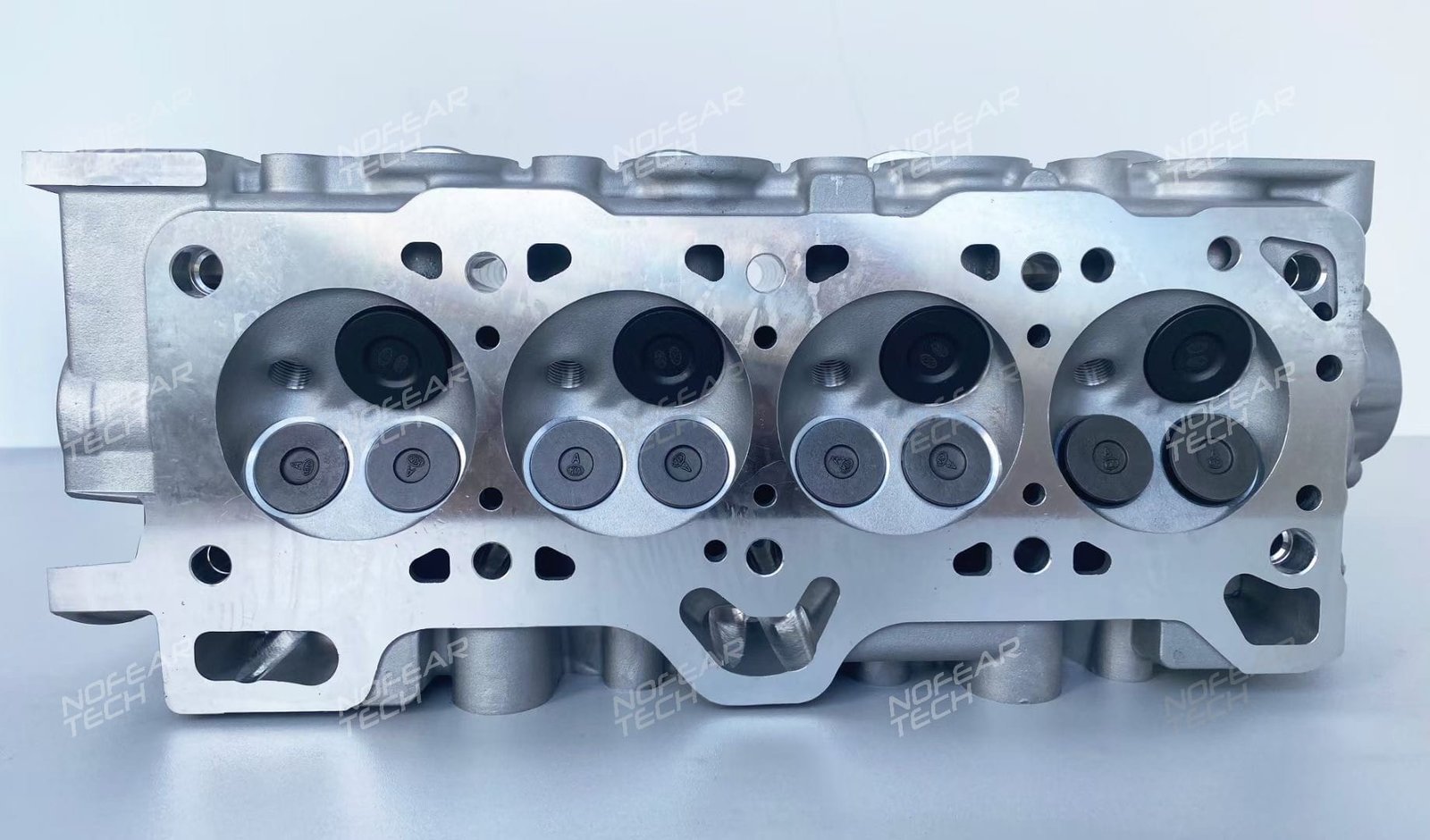

G4EK G4EH cylinder head combustion chamber detail – Alpha engine

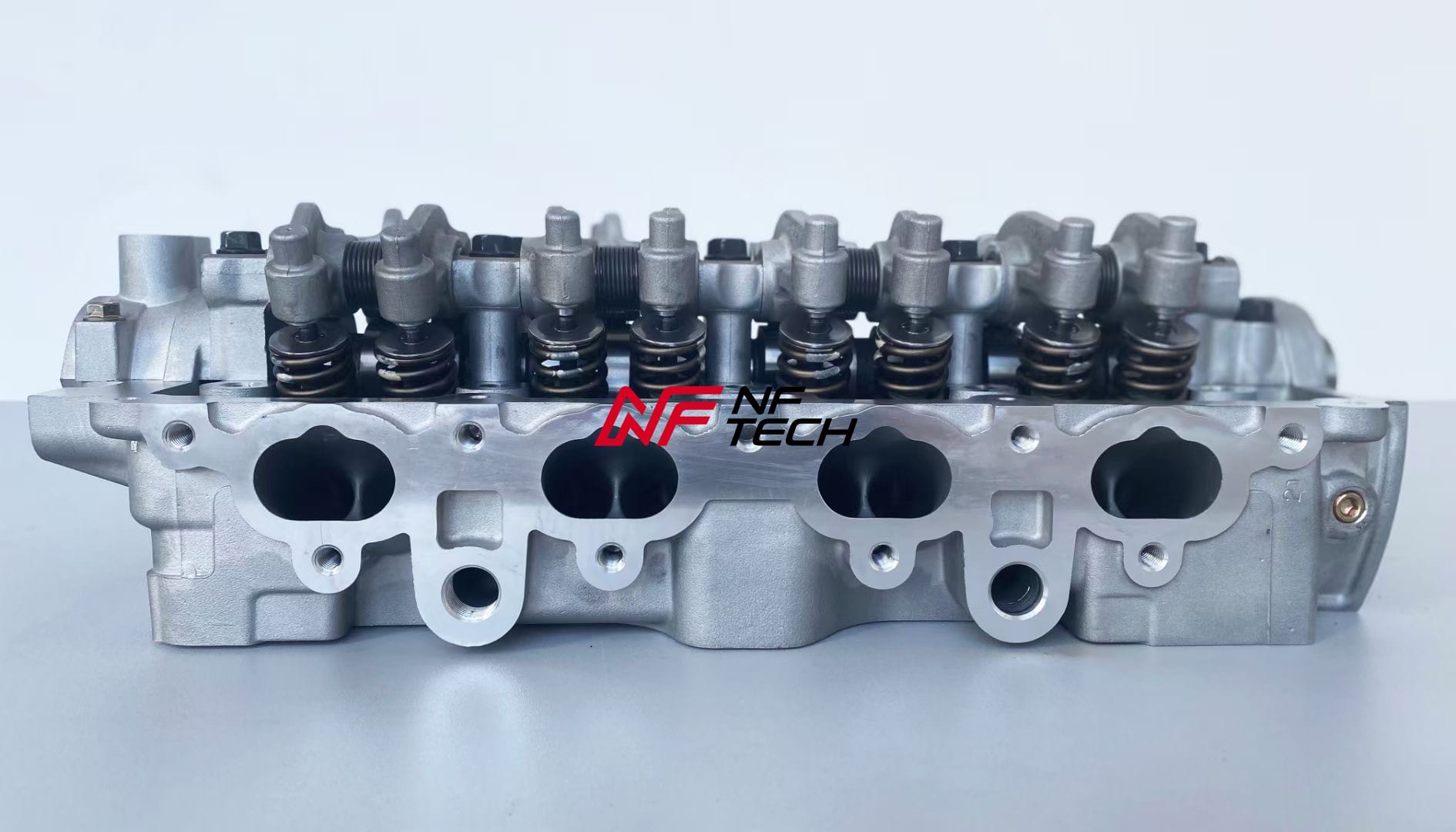

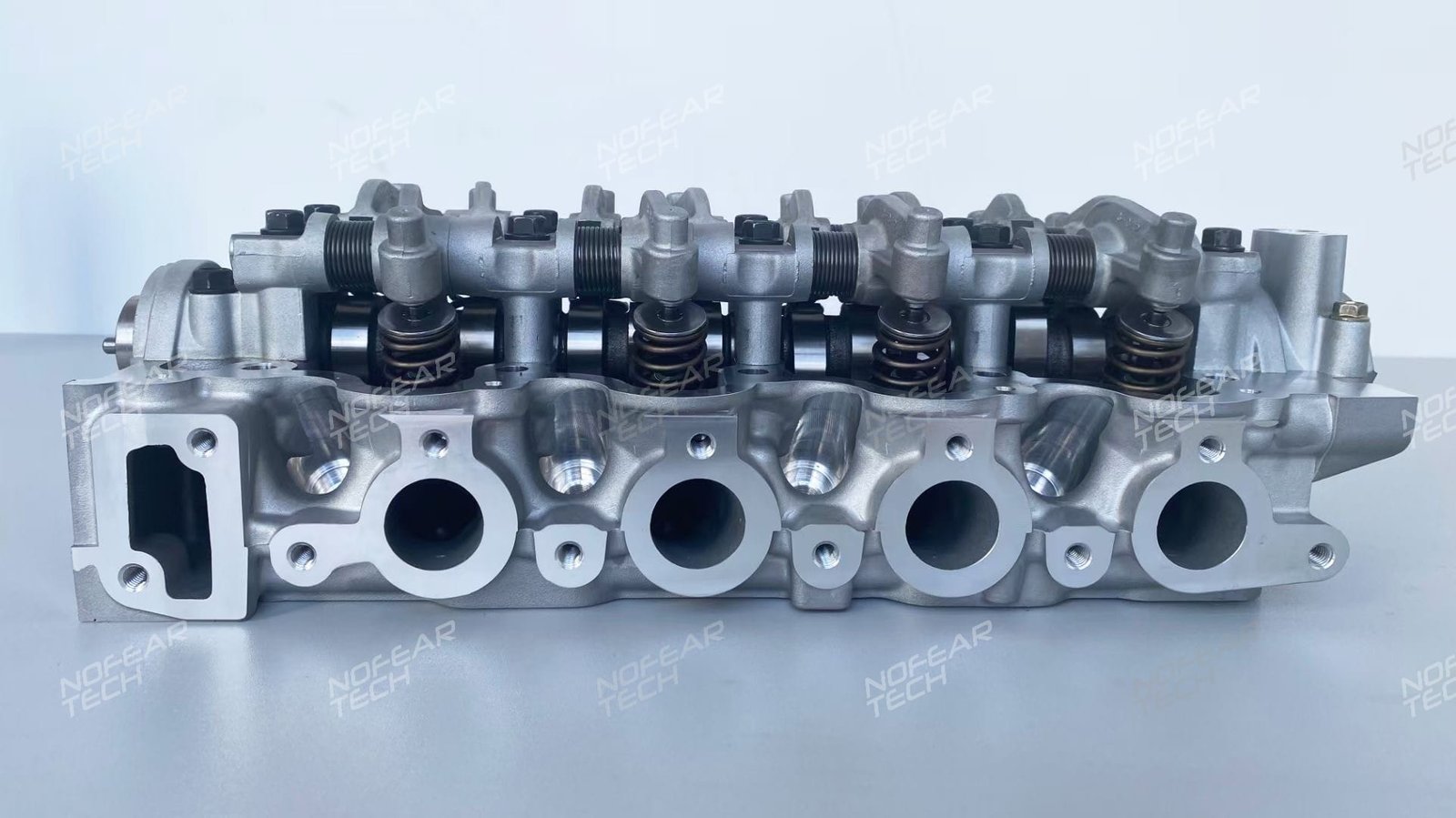

G4EK G4EH cylinder head exhaust side – Hyundai Kia 1.3L 1.5L SOHC

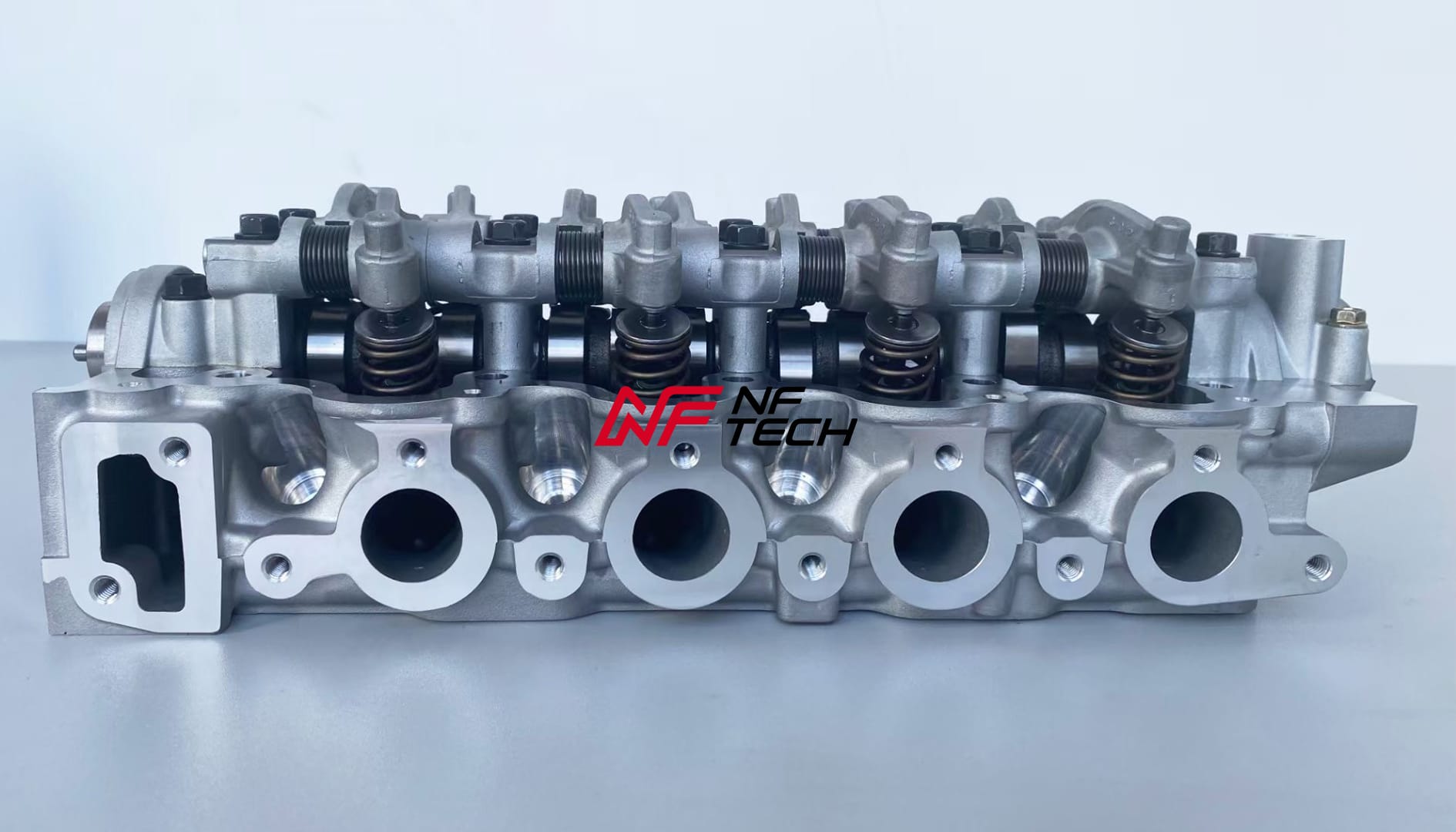

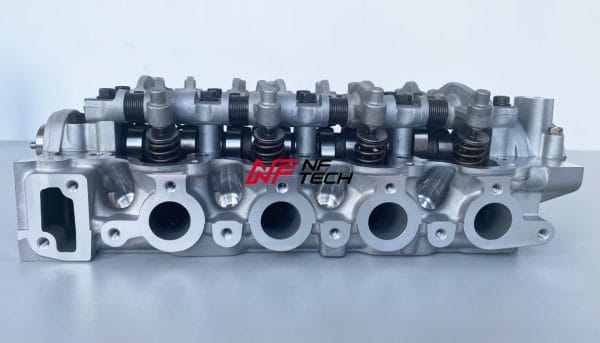

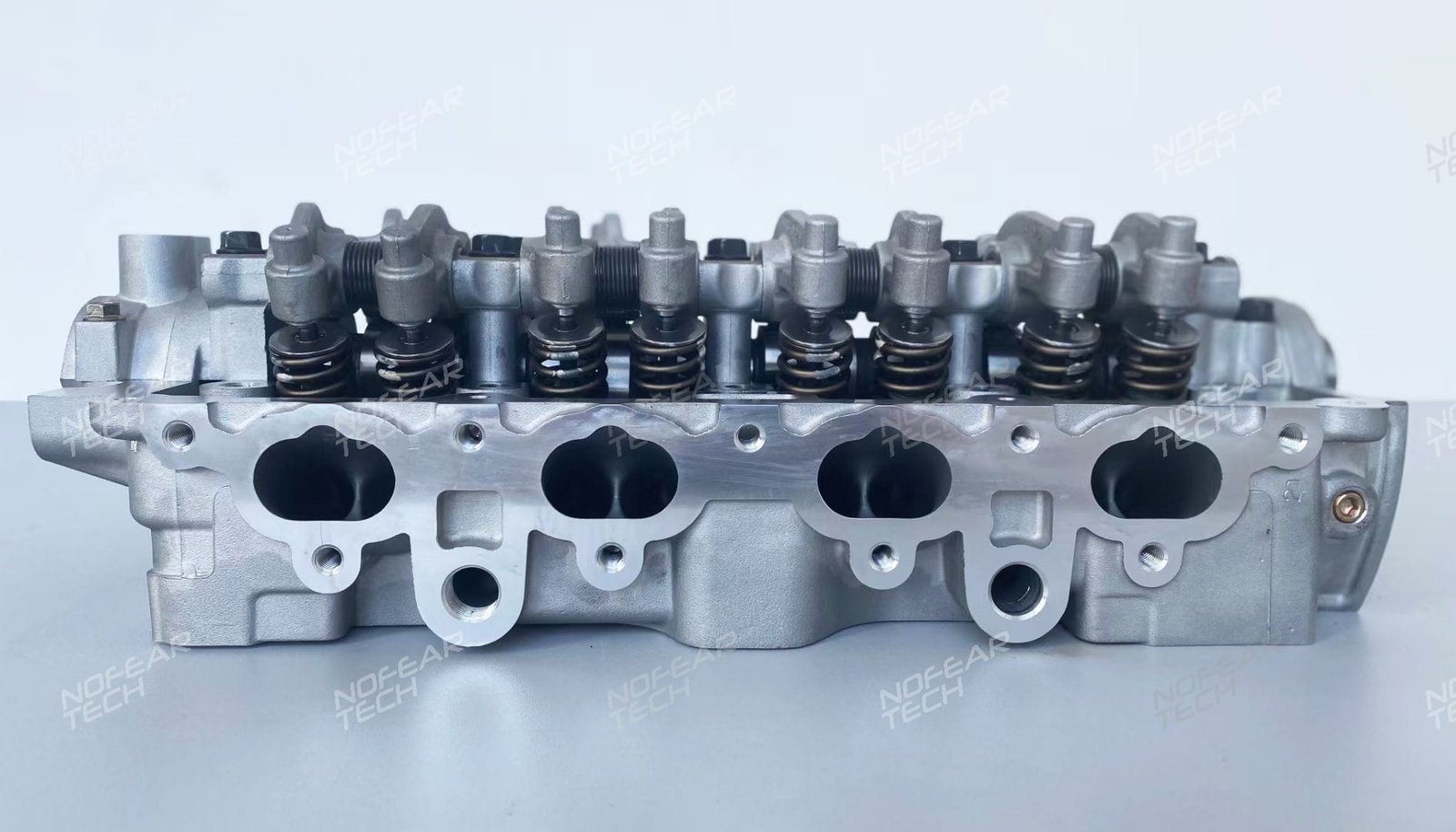

G4EK G4EH cylinder head intake side with valves and camshaft installed

Hyundai G4EK Complete Cylinder Head 22100-22620

Brand new G4EK / G4EH cylinder head assembly with valves and camshafts pre-installed.

Precision-manufactured to OEM specifications for Hyundai and Kia vehicles powered by the 1.5L G4EK or 1.3L G4EH SOHC petrol engine. Ready to bolt onto your engine block after transferring your external parts. Ideal for head replacement, engine repair or rebuild.

  • Engine Code: G4EK (1.5L) / G4EH (1.3L) – Alpha SOHC 12V
  • Displacement: 1.5 Litre (1495 cc) / 1.3 Litre (1341 cc)
  • Configuration: Inline 4-cylinder, SOHC 12-valve
  • Fuel Type: Petrol / Gasoline
  • Condition: New – Cylinder Head Assembly (Valves & Camshafts Pre-Installed)
  • OEM: Hyundai 22100-22620 / 22100-22621
  • Warranty: 12 months
  • Compatible models: Hyundai Accent (X3), Excel, Atos, Lantra, Scoupe, Kia Sephia, Pride (confirm via OEM number)
Get A Quote

Description

G4EK / G4EH Cylinder Head Assembly – Hyundai / Kia 1.3L / 1.5L Alpha

G4EK / G4EH cylinder head assembly for Hyundai and Kia 1.3L and 1.5L Alpha SOHC petrol engines. Brand new, with valves and camshafts pre-installed. Direct fit for Accent, Excel, Atos, Lantra, Scoupe, Sephia and Pride. OEM 22100-22620.

What’s Included

  • Complete cylinder head casting – precision-machined and pressure-tested
  • 12 valves – intake and exhaust, heat-resistant (3 per cylinder)
  • Valve springs, spring seats and retainers
  • Valve stem seals and valve guides (pre-installed)
  • Camshaft (SOHC)
  • Hydraulic lifters (pre-installed)
  • Camshaft bearing caps and bolts (torqued to specification)
  • Core plugs and oil gallery plugs (installed)

Note: Valve cover, timing belt, fuel injectors, ignition coils, intake manifold and exhaust manifold are NOT included. Transfer these from your original engine.

Vehicle Compatibility

Fits the following Hyundai and Kia models equipped with the G4EK or G4EH engine:

  • Hyundai Accent 1 (X3) – 1.3 / 1.5 12V (1994 – 2000)
  • Hyundai Excel – 1.3 / 1.5 12V (1994 – 2000)
  • Hyundai Atos – 1.3 12V (select markets, 1997 – 2003)
  • Hyundai Lantra 2 (RD) – 1.5 12V (1995 – 2000)
  • Hyundai Scoupe 1 (X2) – 1.5 12V (1991 – 1996)
  • Kia Sephia – 1.3 12V (1995 – 1999)
  • Kia Pride – 1.3 12V (select variants, 1995 – 2000)

Always verify your engine code and OEM part number before ordering.

OEM Part Number Cross-Reference

  • Hyundai: 22100-22620, 22100-22621
  • Related references: 22100-22600, 22100-22200, 22100-22010, 22100-22011, 22100-22020

Why Buy This G4EK / G4EH Cylinder Head Assembly

  • 100% brand new – not reconditioned or repaired
  • Pressure-tested for leaks and cracks
  • Pre-installed valves and camshaft save hours of fitting time
  • 12-month warranty included
  • Packed in a reinforced crate for safe international freight
  • Fast global shipping to port or door
