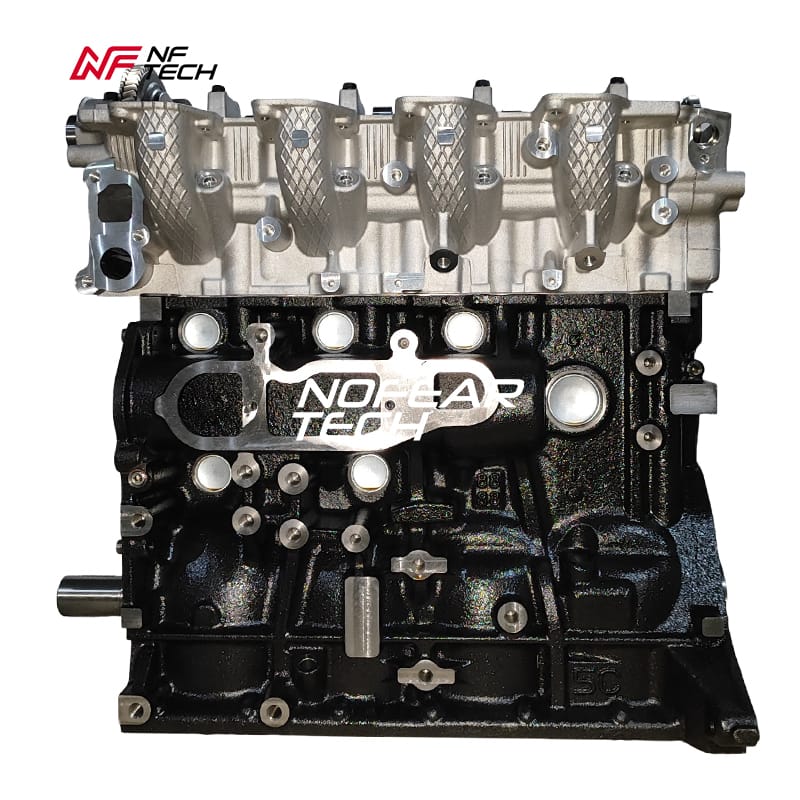

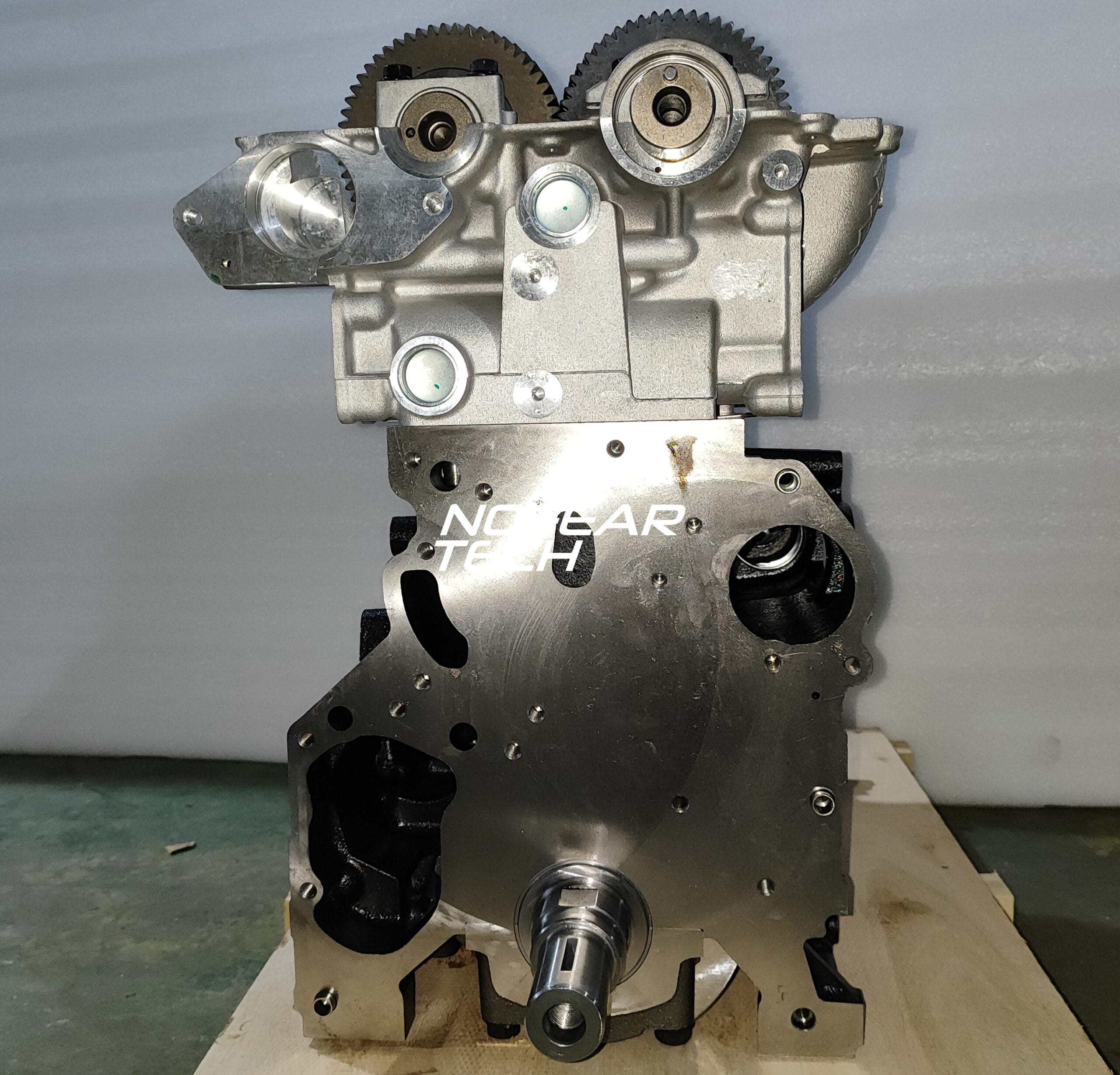

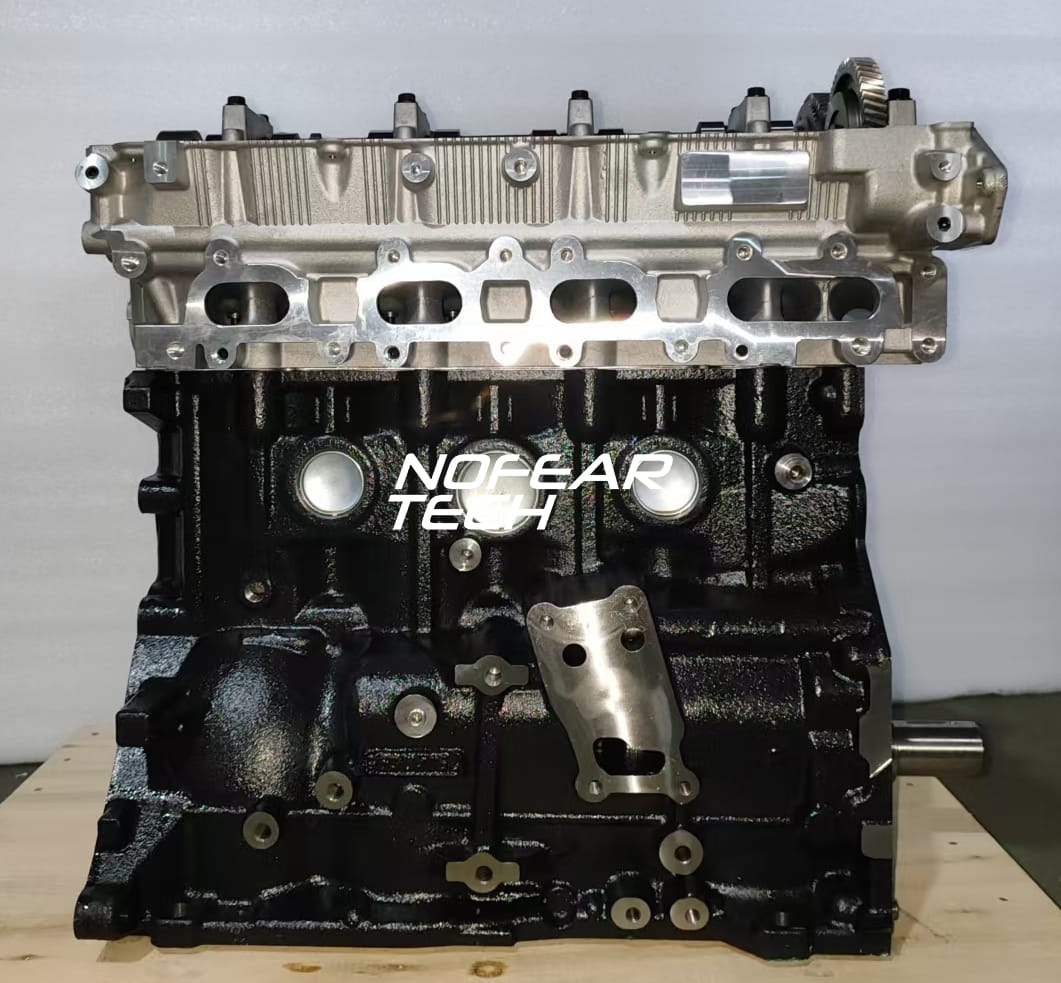

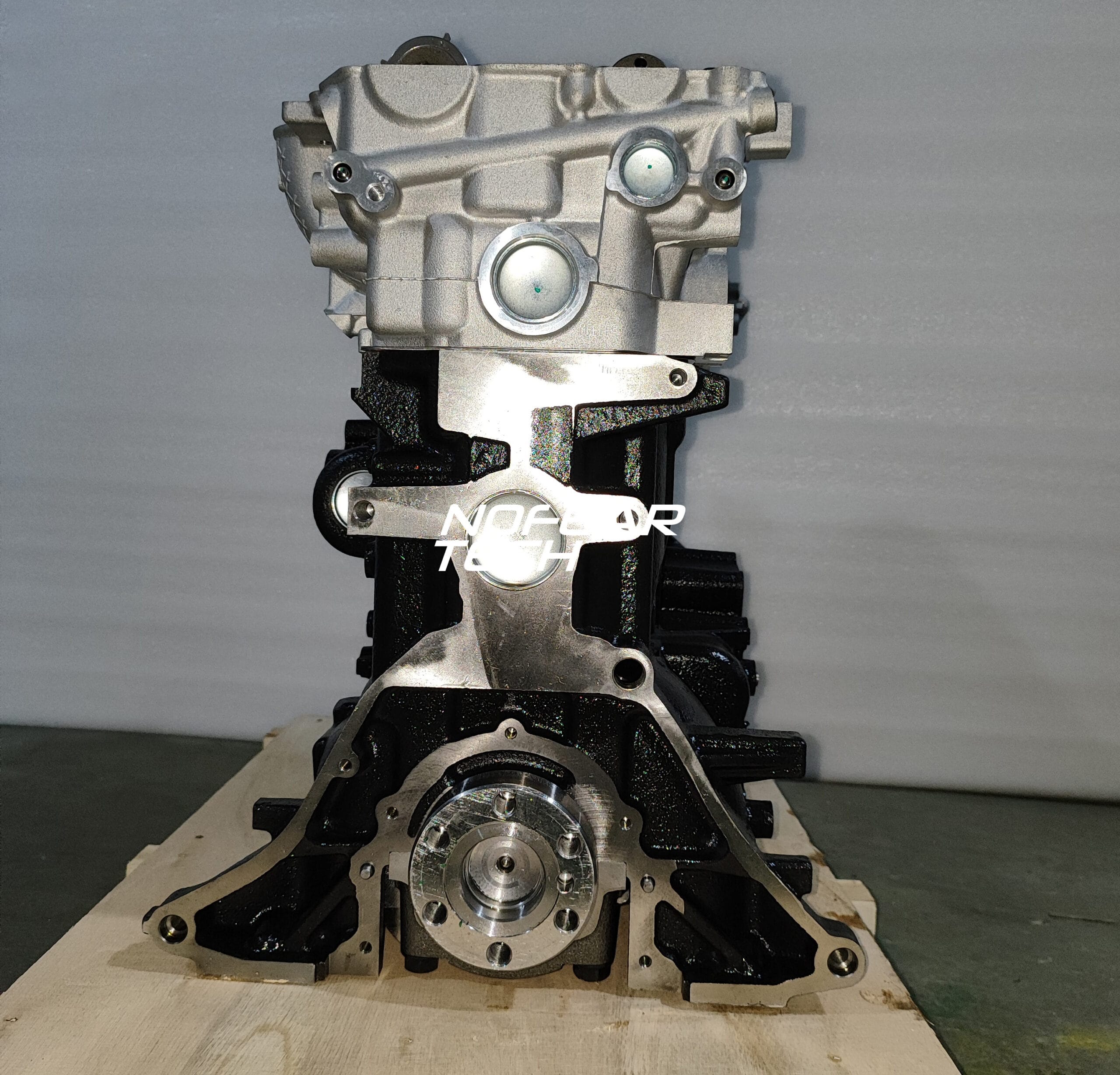

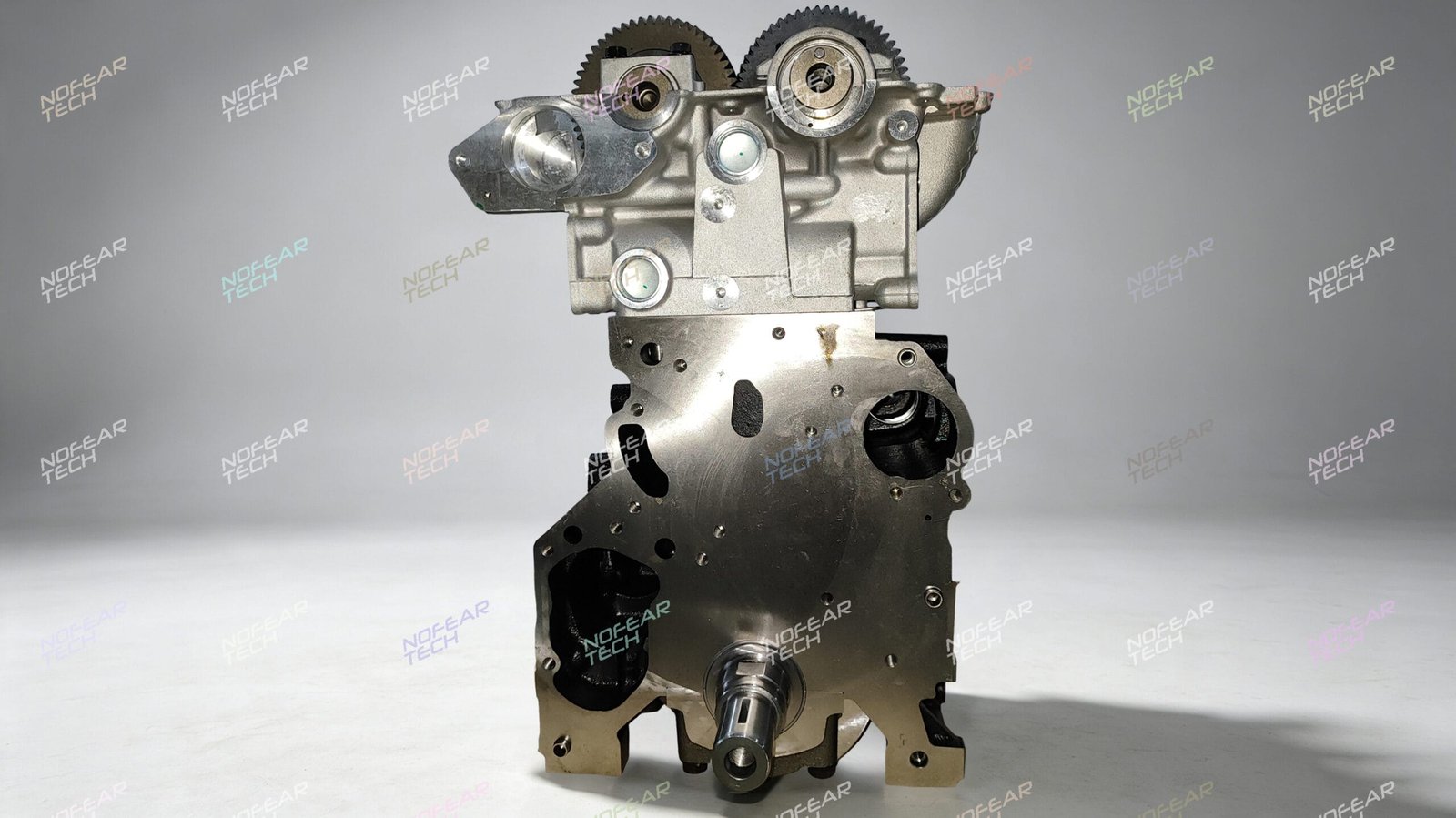

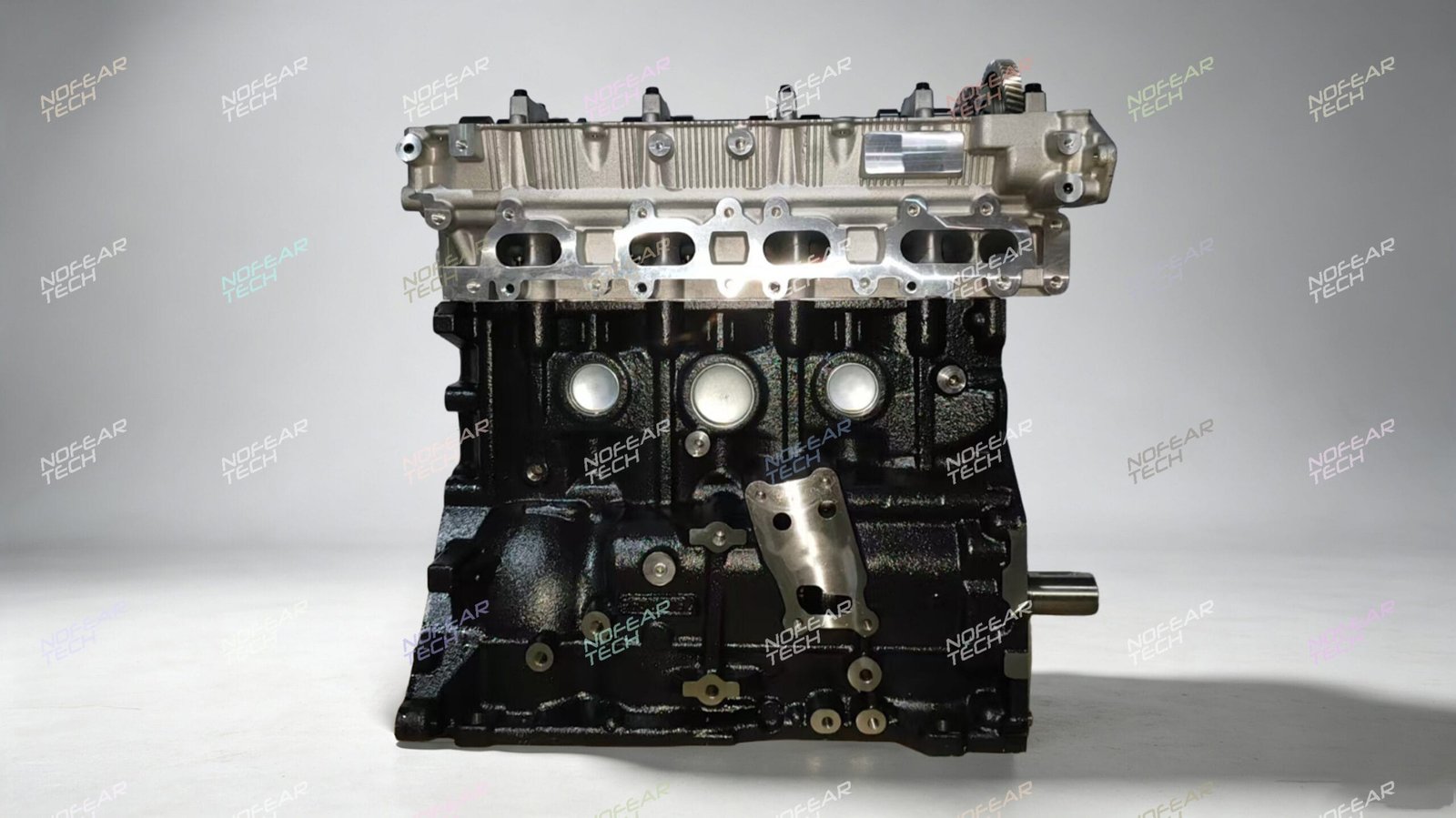

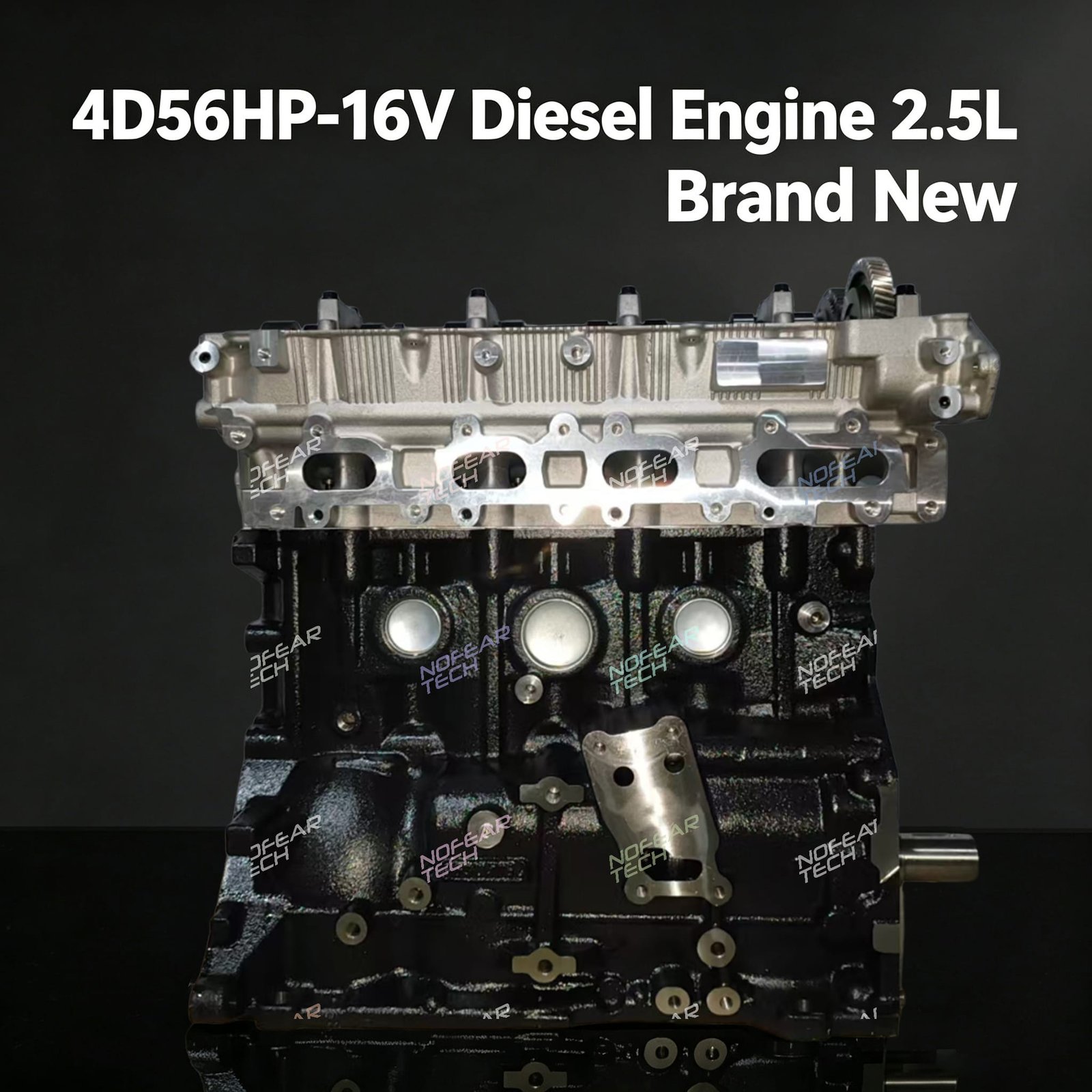

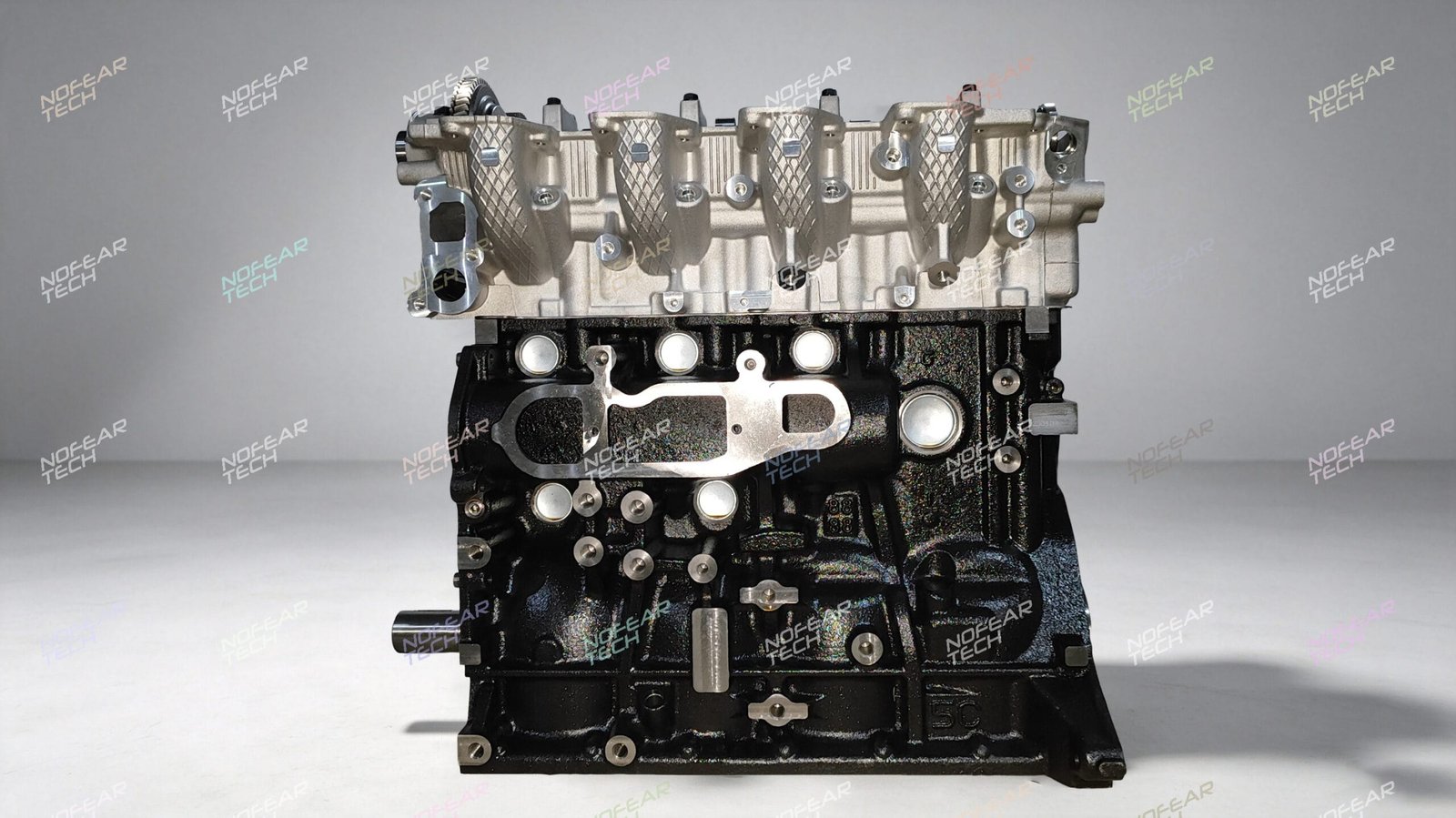

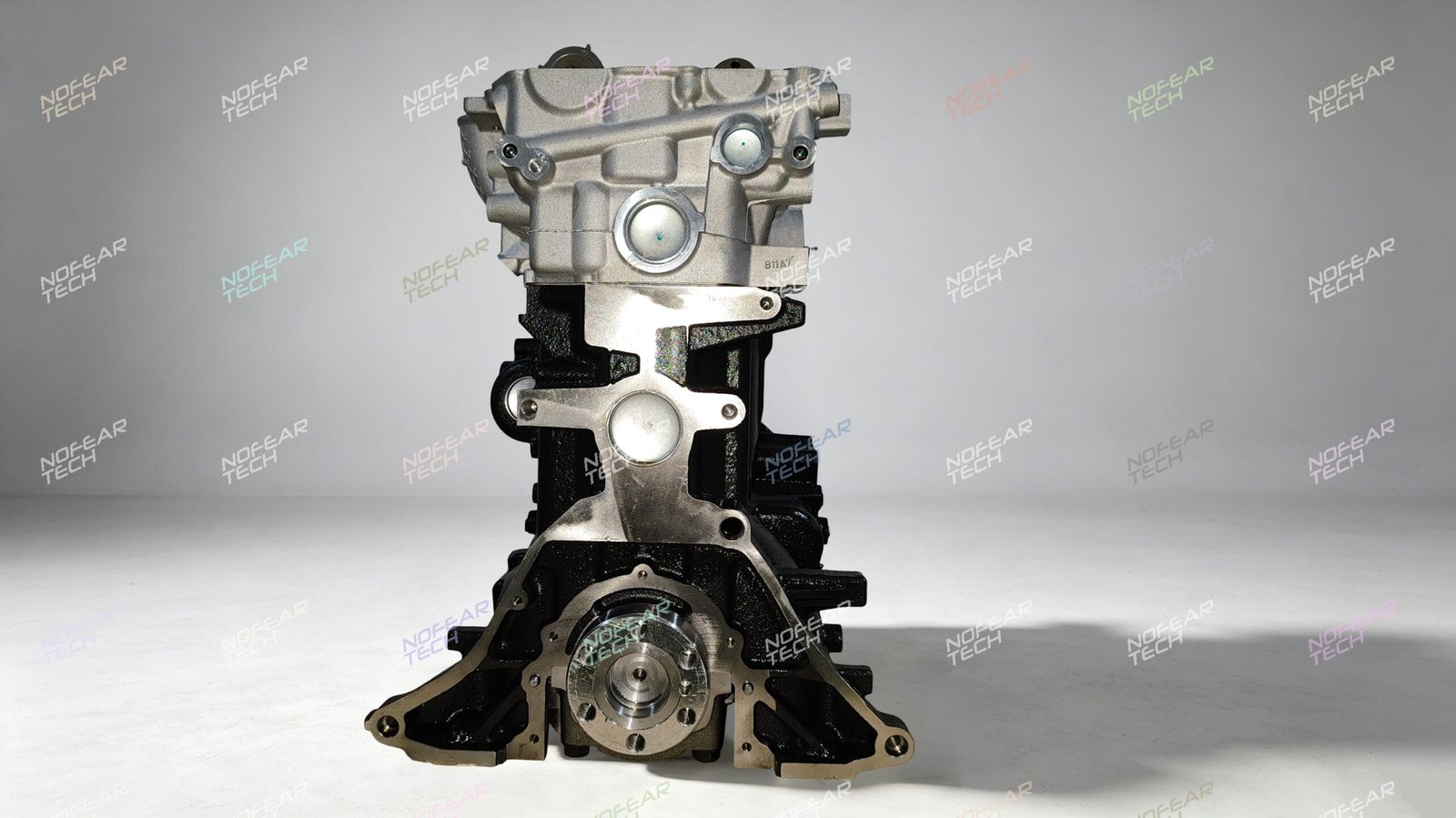

Mitsubishi 4D56U / 4D56HP 2.5L Diesel 16V Bare Engine / Long Block – Complete Head & Block Assembly

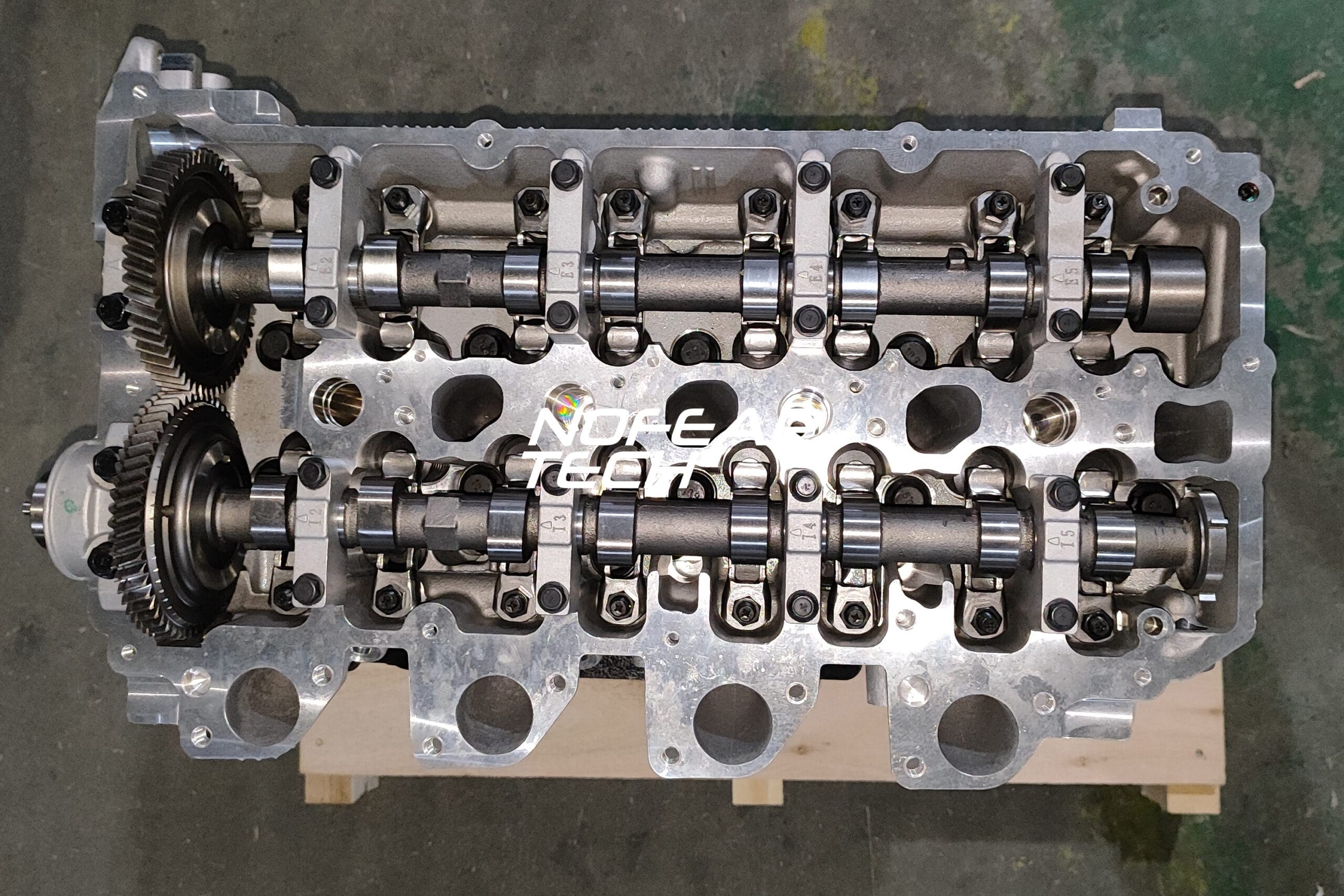

This 4D56U / 4D56HP bare engine is a complete long block core built to OEM standards for Mitsubishi vehicles. It includes the complete cylinder head assembly (valves, springs, camshafts, rocker arms) and the complete cylinder block assembly (pistons, rings, crankshaft, connecting rods). It is supplied without the valve cover, timing cover & timing belt, oil pan, and all external accessories – exactly as required for a cost‑effective rebuild where those components are transferred from your original engine.
The 4D56U and 4D56HP are the high‑power 16‑valve versions of the legendary 4D56 diesel family, featuring a DOHC 16‑valve cylinder head and turbocharging for significantly improved performance over the older 8‑valve variants.
Vehicle Compatibility
The Mitsubishi 4D56U / 4D56HP 2.5L turbo diesel engine was fitted to a range of modern pickup trucks and SUVs. Always verify your engine code before purchase. Common applications include:
- Mitsubishi Triton / L200 / Strada 2.5 DI‑D High Power (2005 – 2015, various generations)
- Mitsubishi Pajero Sport / Challenger 2.5 DI‑D High Power (2008 – 2015)
- Mitsubishi Pajero / Shogun 2.5 DI‑D High Power (select markets)
- Other Mitsubishi or affiliated models originally fitted with the 4D56U / 4D56HP engine code
Please confirm your engine code is “4D56U” or “4D56HP” before ordering. This is a bare engine assembly; all external components must be transferred from your original engine.
Technical Specifications
| Engine Code | 4D56U / 4D56HP (2.5L Diesel, 16V) |
| Displacement | 2.5 Litre (2477 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | DOHC 16-valve (4 valves per cylinder) |
| Fuel System | Common Rail Direct Injection (DI‑D) or Electronically Controlled Injection (depending on generation) |
| Power Output | Approx. 136–178 hp (depending on variant and tune) |
| Torque Output | Approx. 314–400 Nm |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum 16V |
| Bore × Stroke | 91.1 mm × 95 mm |
| Compression Ratio | 16.5:1 |
| Timing Drive | Chain (or belt depending on generation) |
| Turbocharging | Variable Geometry Turbocharger (VGT) & Intercooled |
| Recommended Engine Oil | 5W-30 or 5W-40 (diesel, depending on climate) |
| Engine Oil Capacity | Approx. 6.5 – 7.5 litres |
| Emission Standards | EURO 4/5 (depending on generation) |
| Fuel Type | Diesel |
| Engine Type | Bare Engine / Long Block (Head & Block Only) |
| Condition | Brand New |
What’s Included – What’s NOT Included
Included (supplied with this assembly):
- Complete cylinder head assembly – valves, valve springs, camshafts, rocker arms
- Complete cylinder block assembly – pistons, piston rings, crankshaft, connecting rods, bearings
NOT Included (must be transferred from your old engine):
- Valve cover / rocker cover
- Timing cover & timing belt/chain kit
- Oil pan / sump
- Intake manifold, exhaust manifold
- Turbocharger
- Fuel injection pump, injectors, glow plugs
- Alternator, starter motor
- Water pump
- Engine wiring harness, ECU and all external sensors
This bare engine is intended for workshops and experienced installers. The missing parts must be taken from your original engine.
Why Choose This 4D56U / 4D56HP Bare Engine
- 100% brand new – not remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Complete head and block package – ideal for rebuilds
- High‑power 16V version for improved performance
- Packed in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a 4D56U engine for sale, a 4D56HP replacement engine, or a Mitsubishi 2.5 high‑power diesel long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
