Description

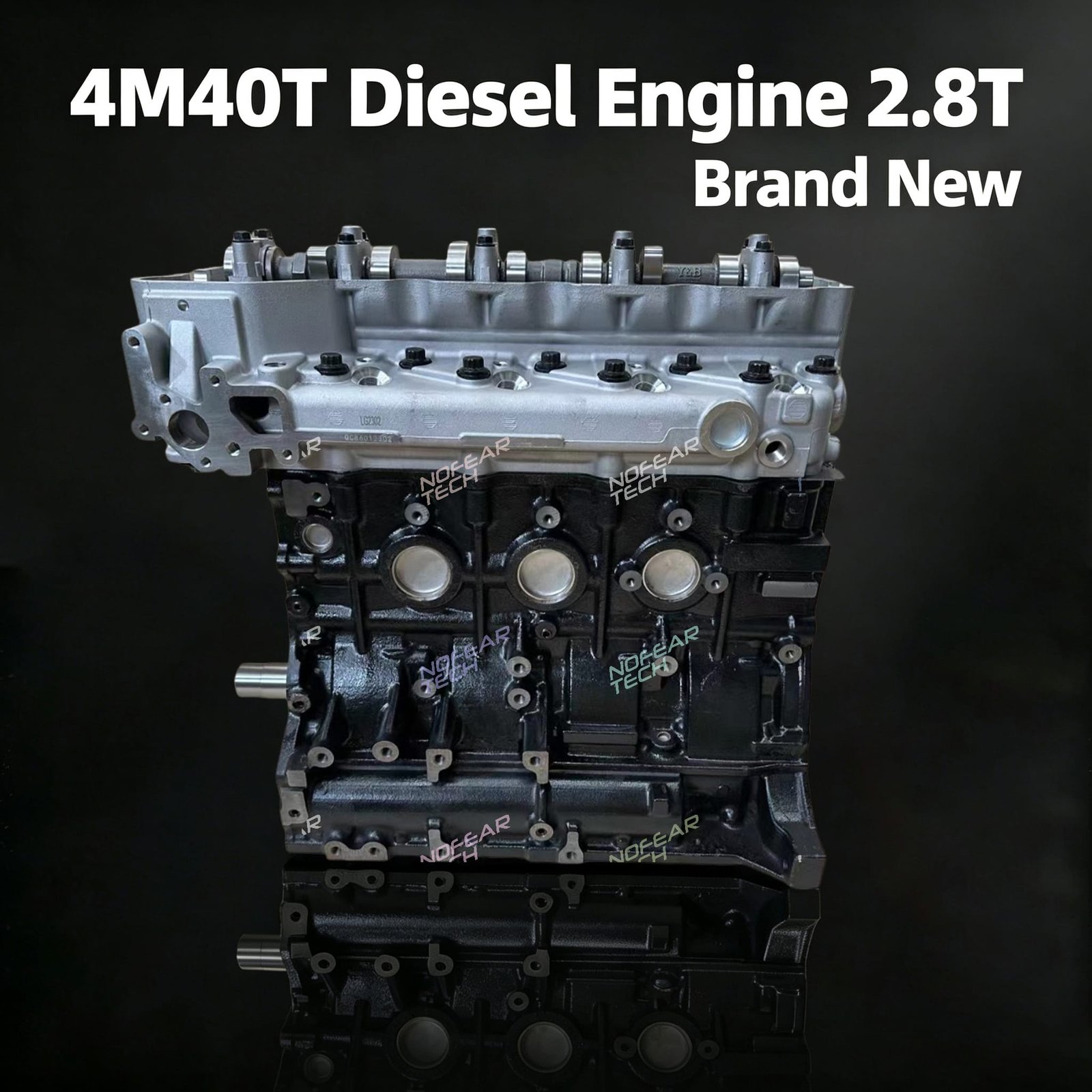

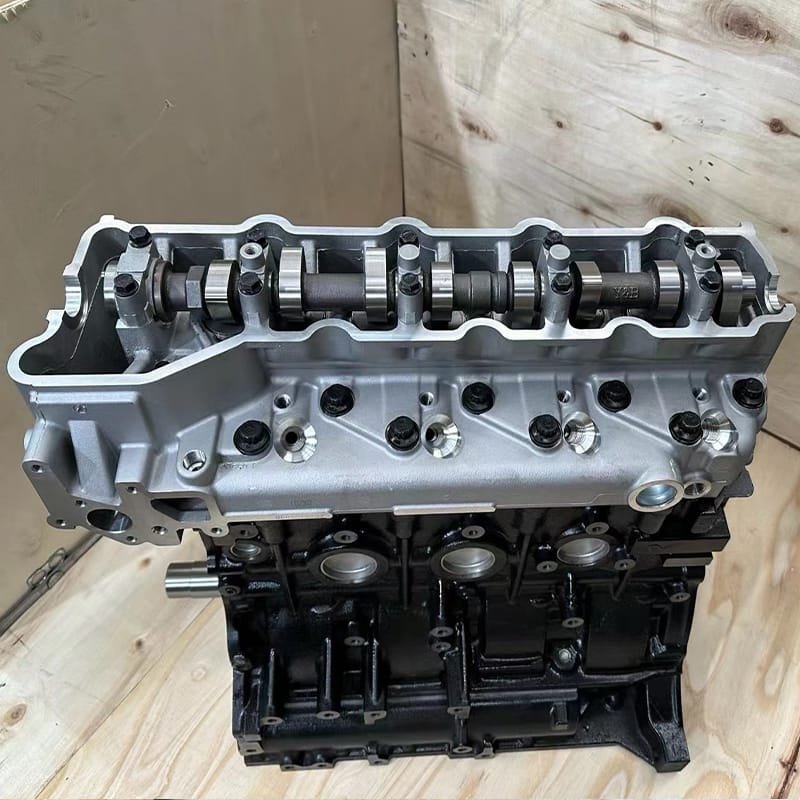

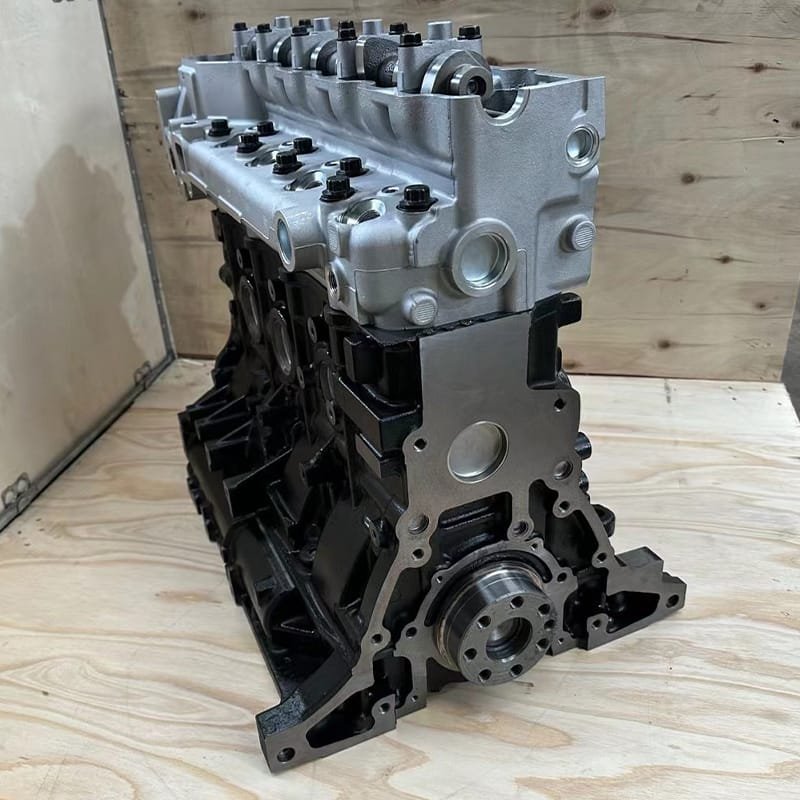

Mitsubishi 4M40 / 4M40T 2.8L Diesel Bare Engine / Long Block – Complete Head & Block Assembly
This 4M40 / 4M40T bare engine is a complete long block core built to OEM standards for Mitsubishi vehicles. It includes the complete cylinder head assembly (valves, springs, camshaft, rocker arms) and the complete cylinder block assembly (pistons, rings, crankshaft, connecting rods). It is supplied without the valve cover, timing cover & timing chain, oil pan, and all external accessories – exactly as required for a cost‑effective rebuild where those components are transferred from your original engine.
This listing covers three versions of the 4M40 family:
- 4M40 Non‑Turbo – 80 hp @ 4000 rpm, 198 Nm @ 2000 rpm
- 4M40T Non‑Intercooled Turbo – 125 hp @ 4000 rpm, 294 Nm @ 2000 rpm
- 4M40T Intercooled Turbo – 140 hp @ 4000 rpm, 314 Nm @ 2000 rpm
Please confirm which variant you require before ordering.
Vehicle Compatibility
The Mitsubishi 4M40 / 4M40T 2.8L diesel engine is a proven workhorse fitted to a wide range of SUVs and vans. Always verify your engine code before purchase. Common applications include:
- Mitsubishi Pajero / Montero / Shogun 2.8D (1993 – 2006, various generations)
- Mitsubishi Delica / L400 / Space Gear 2.8D (1994 – 2007)
- Mitsubishi Challenger / Pajero Sport 2.8D (1996 – 2010, early models)
- Mitsubishi L200 / Triton 2.8D (select markets, early versions)
- Other Mitsubishi or affiliated models originally fitted with the 4M40/4M40T engine code
Please confirm your engine code is “4M40” or “4M40T” before ordering. This is a bare engine / long block assembly; the valve cover, timing components, oil pan and all external parts must be transferred from your original engine.
Technical Specifications
| Engine Code | 4M40 / 4M40T (2.8L Diesel) |
| Displacement | 2.8 Litre (2835 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | SOHC 8-valve (2 valves per cylinder) |
| Fuel System | Vortex Chamber (Indirect Injection) |
| Power Output | 80 hp @ 4000 rpm (Non‑Turbo) / 125 hp @ 4000 rpm (Non‑Intercooled Turbo) / 140 hp @ 4000 rpm (Intercooled Turbo) |
| Torque Output | 198 Nm @ 2000 rpm (Non‑Turbo) / 294 Nm @ 2000 rpm (Non‑Intercooled Turbo) / 314 Nm @ 2000 rpm (Intercooled Turbo) |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum 8V |
| Bore × Stroke | 95 mm × 100 mm |
| Compression Ratio | 21.0:1 |
| Hydraulic Lifters | No |
| Timing Drive | Chain |
| Phase Regulator | No |
| Turbocharging | None (Non‑Turbo) / MHI TF035HM-12T (Non‑Intercooled Turbo) / MHI TF035HM-12T (Intercooled Turbo) |
| Recommended Engine Oil | 5W-40 |
| Engine Oil Capacity | 6.5 litres |
| Emission Standards | EURO 2 (Non‑Turbo) / EURO 3 (Non‑Intercooled Turbo) / EURO 3/4 (Intercooled Turbo) |
| Fuel Type | Diesel |
| Engine Type | Bare Engine / Long Block (Head & Block Only) |
| Condition | Brand New |
What’s Included – What’s NOT Included
Included (supplied with this assembly):

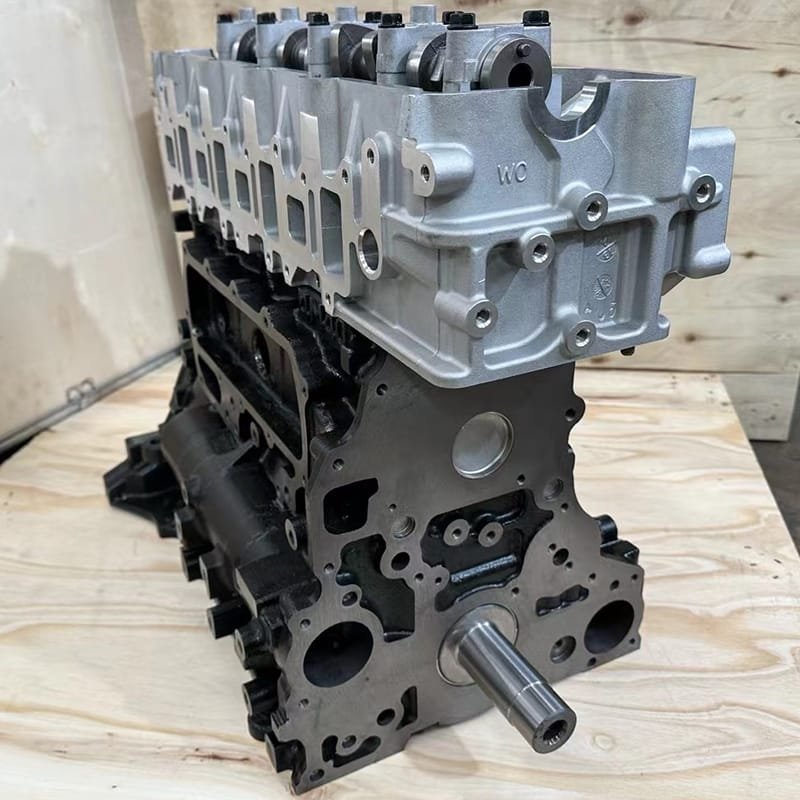

- Complete cylinder head assembly – valves, valve springs, camshaft, rocker arms

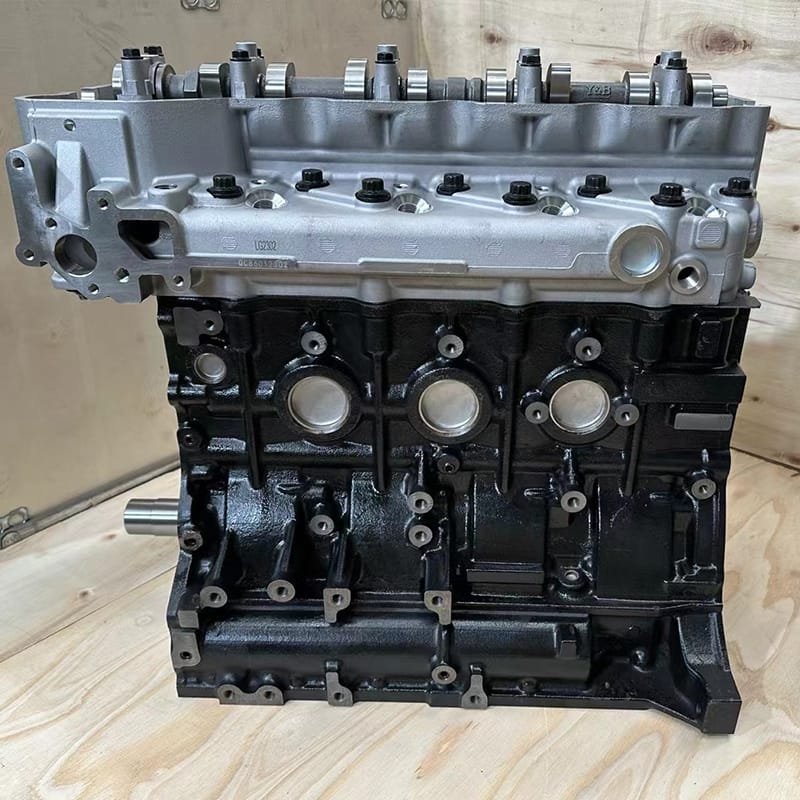

- Complete cylinder block assembly – pistons, piston rings, crankshaft, connecting rods, bearings
NOT Included (must be transferred from your old engine):
- Valve cover / rocker cover
- Timing cover & timing chain kit
- Oil pan / sump
- Intake manifold, exhaust manifold
- Fuel injection pump, injectors, glow plugs
- Turbocharger (for turbo variants)
- Alternator, starter motor
- Water pump
- Engine wiring harness, ECU and all external sensors
This bare engine is intended for workshops and experienced installers. The missing parts must be taken from your original engine.
Why Choose This 4M40 / 4M40T Bare Engine
- 100% brand new – not remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Complete head and block package – ideal for rebuilds

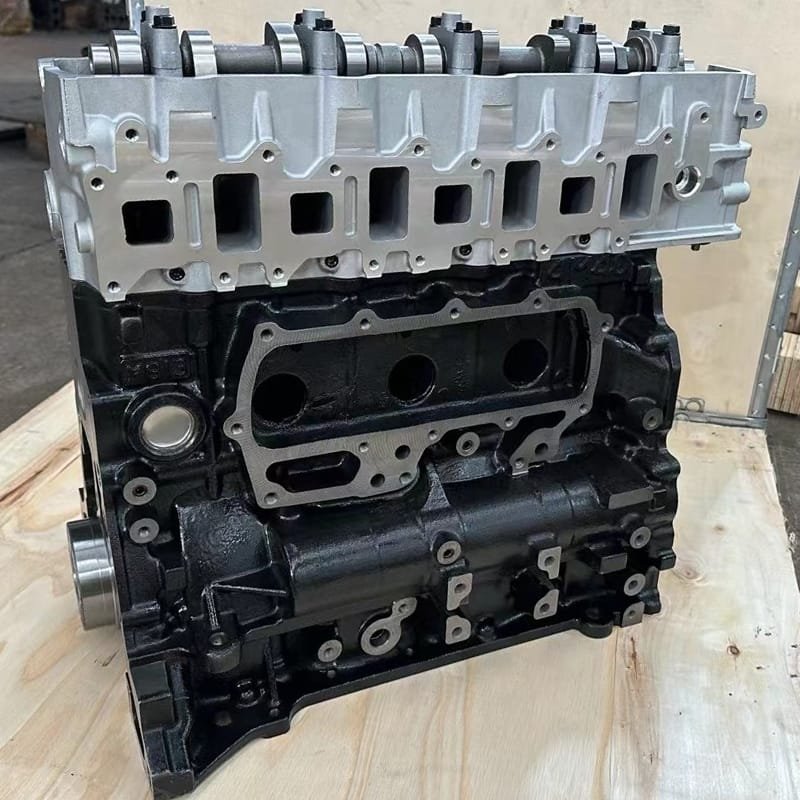

- Packed in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a 4M40 engine for sale, a 4M40T replacement engine, or a Mitsubishi 2.8 diesel long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
