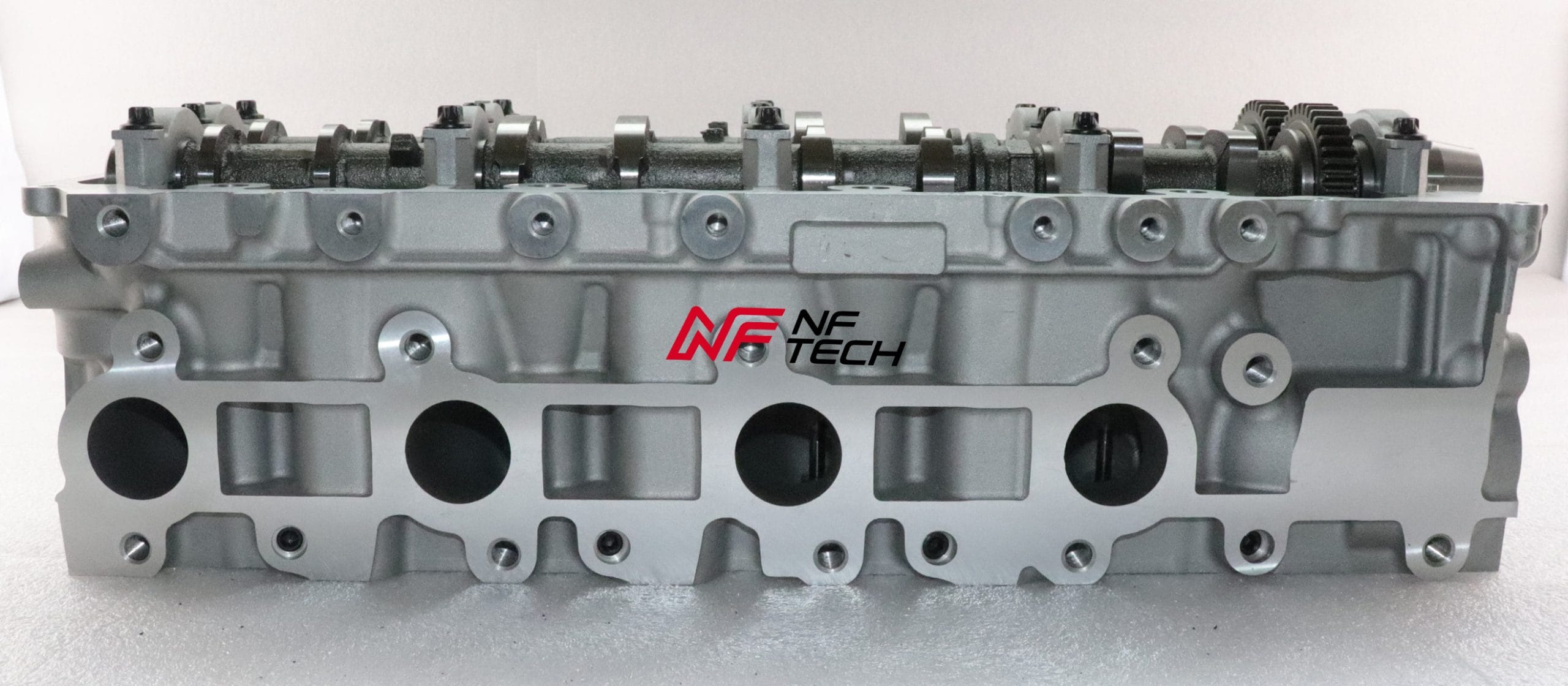

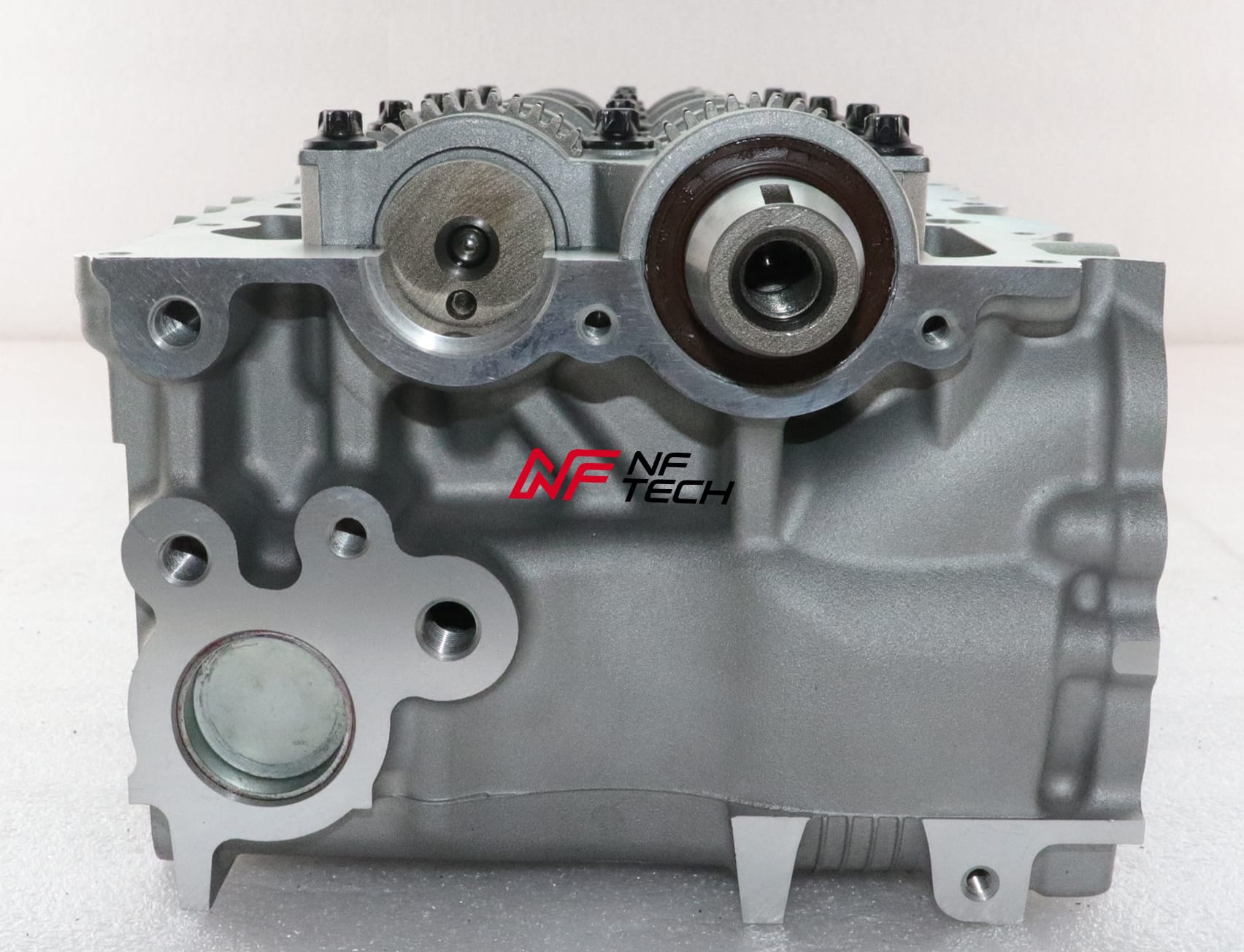

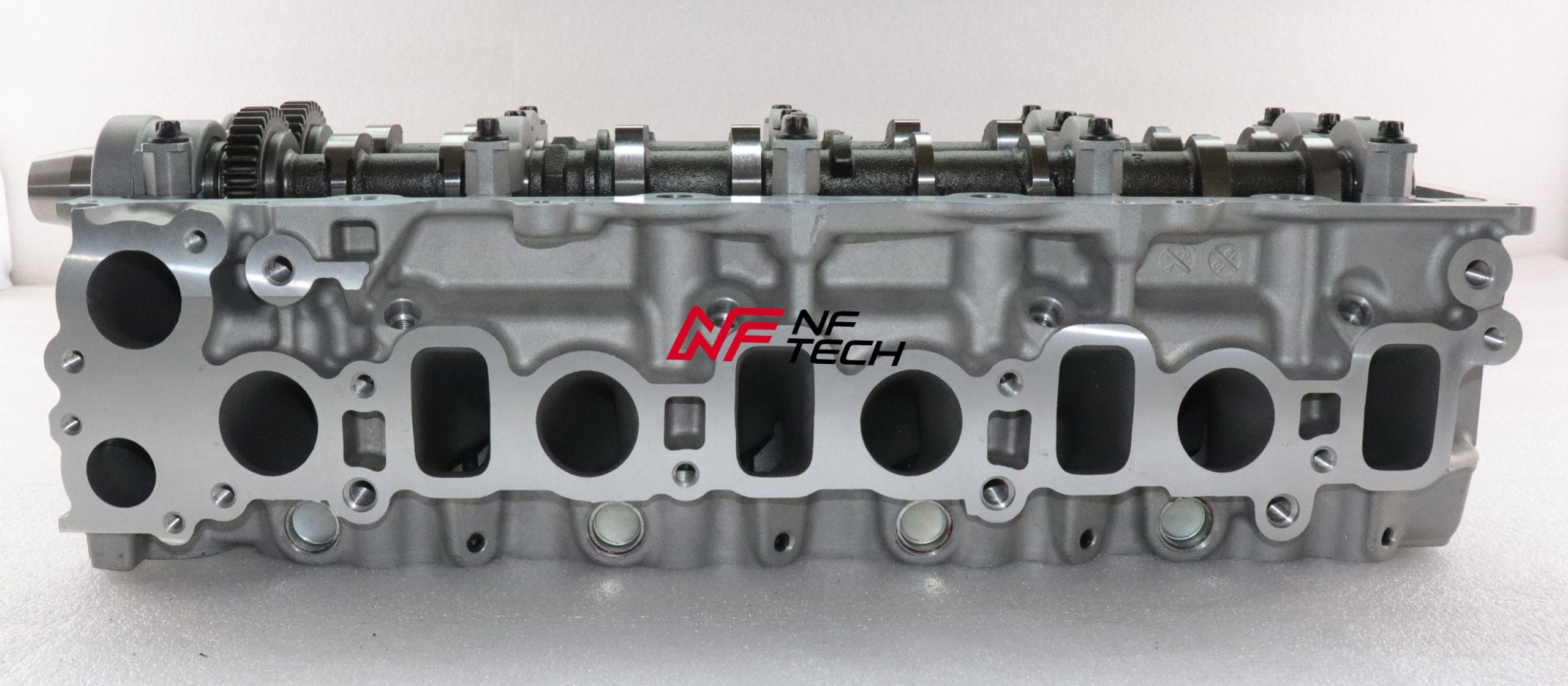

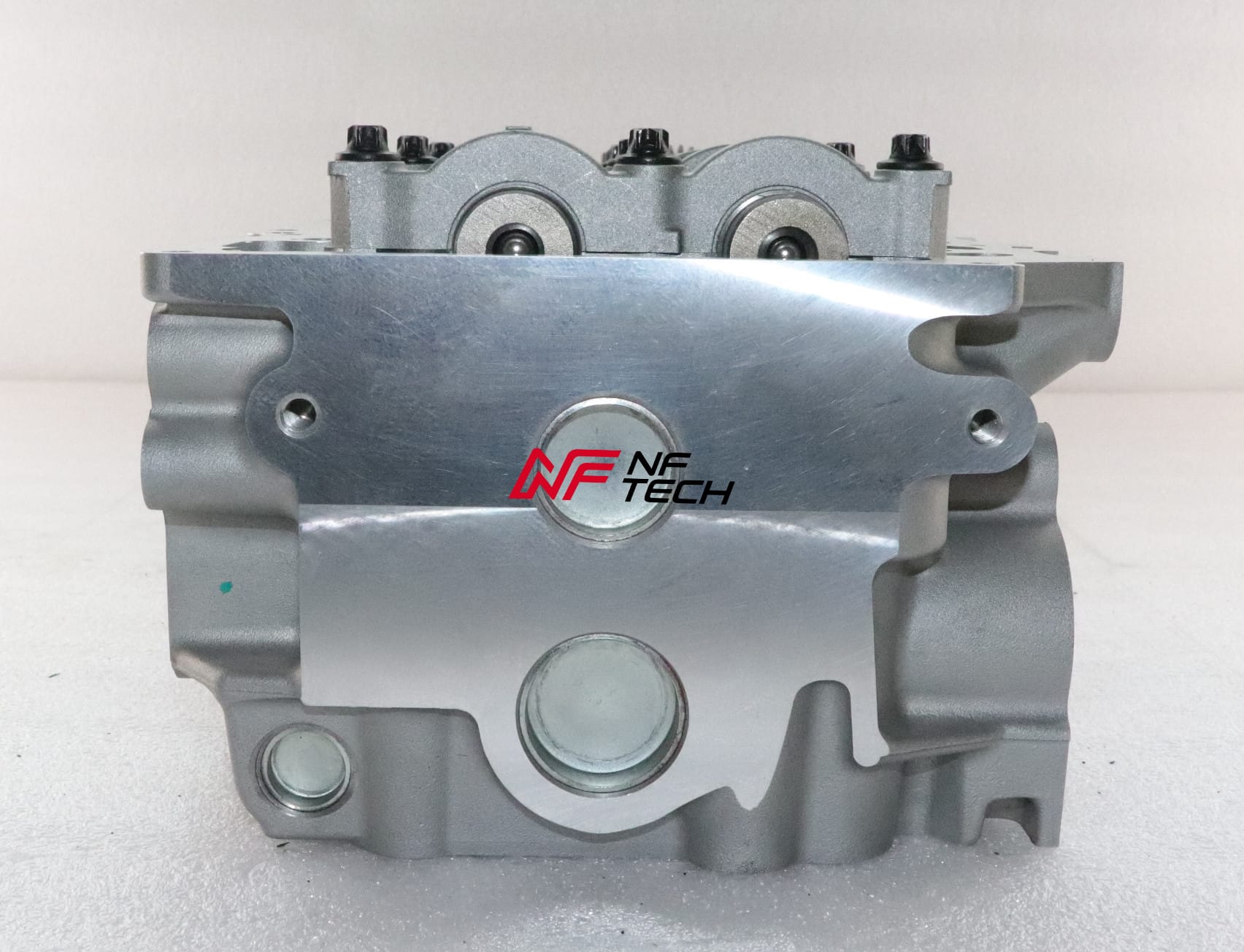

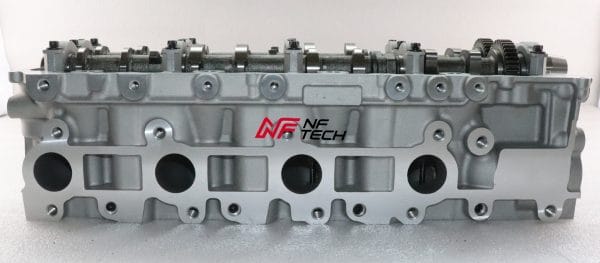

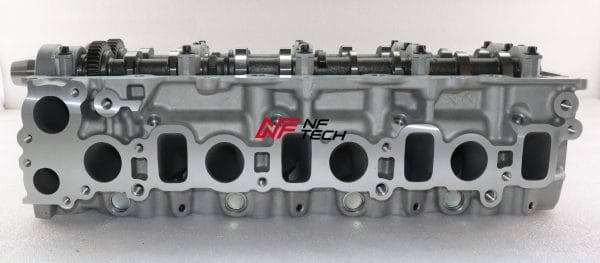

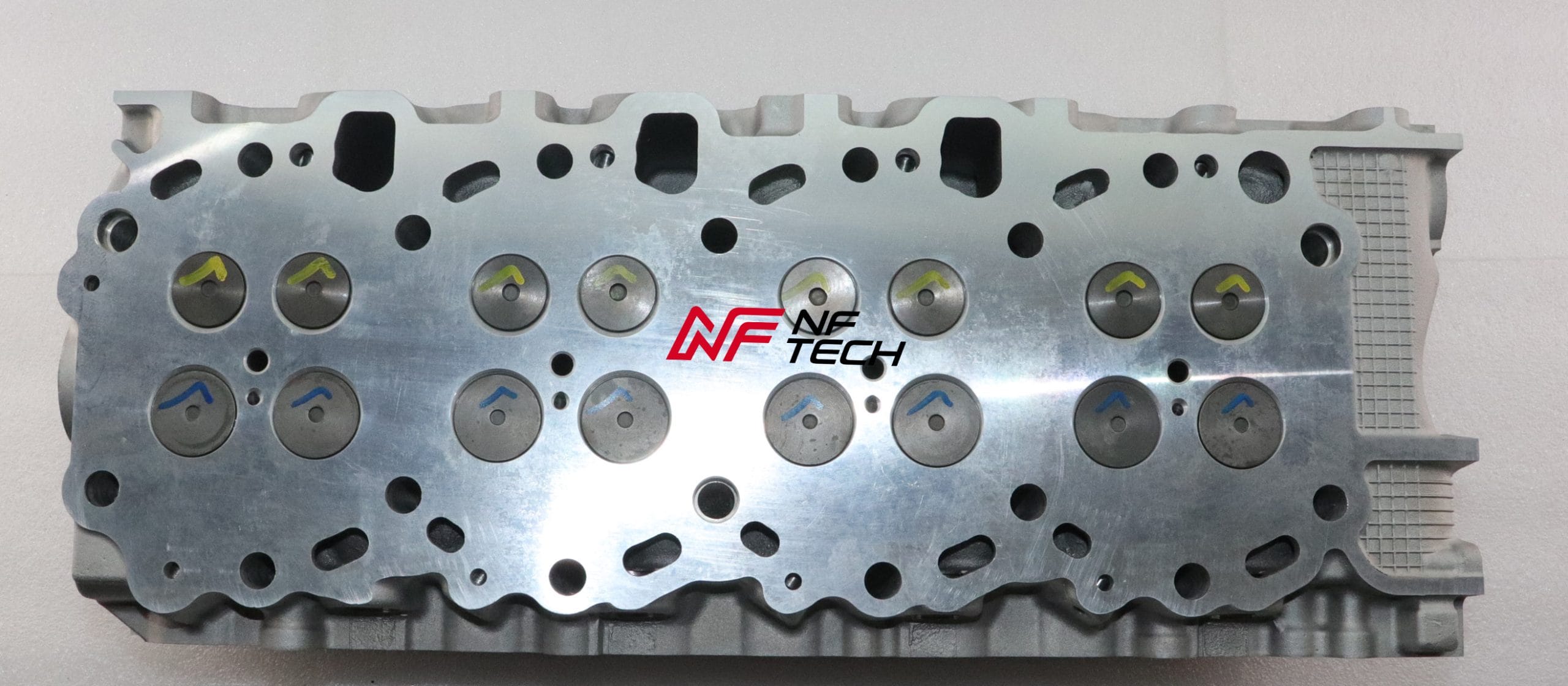

Toyota 2KD-FTV Complete Cylinder Head Assembly – Valves & Camshaft Pre-Installed

This Toyota 2KD-FTV cylinder head assembly is a brand new, factory-fresh cylinder head built to OEM standards. It comes with the complete valvetrain pre-installed, including intake and exhaust valves, valve springs, valve guides, valve seats, pre-chambers and camshaft. You simply transfer your existing external parts – saving significant time and labour during installation.

The 2KD-FTV is a 2.5-litre inline-4 DOHC 16-valve turbo diesel engine from the Toyota KD engine family, widely used in Toyota Hilux, Hiace, Fortuner, Innova, Dyna and 4Runner models from 2001 to 2019. It features a cast-iron block with an aluminum DOHC cylinder head and a common-rail direct injection system (D-4D). These engines are renowned for their durability and are still in active service worldwide, particularly in commercial, fleet and off-road applications. This complete cylinder head assembly is manufactured to exact original tolerances and pressure-tested for reliable, long-lasting performance. As a professional complete cylinder head manufacturer and OEM cylinder head supplier, we provide a direct-fit aftermarket cylinder head suitable for wholesale buyers, engine rebuilders and repair shops worldwide.

What’s Included – Complete Cylinder Head Assembly

This listing is for the cylinder head with the following components pre-installed and ready to use:

• Cylinder head casting – precision-machined, pressure-tested
• 16 valves – intake and exhaust valves, heat-resistant (4 per cylinder)
• Valve springs, spring seats and retainers
• Valve stem seals (already fitted)
• Valve guides (pressed in)

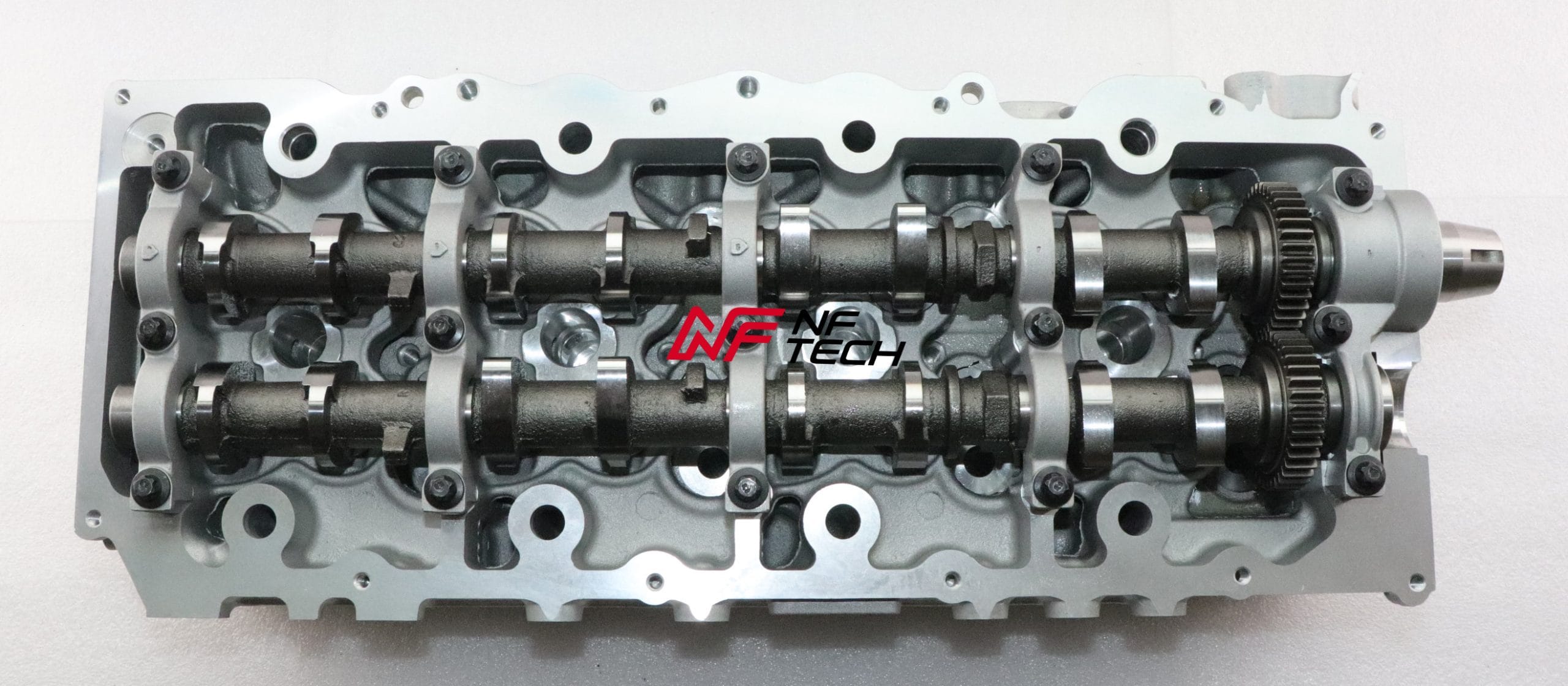

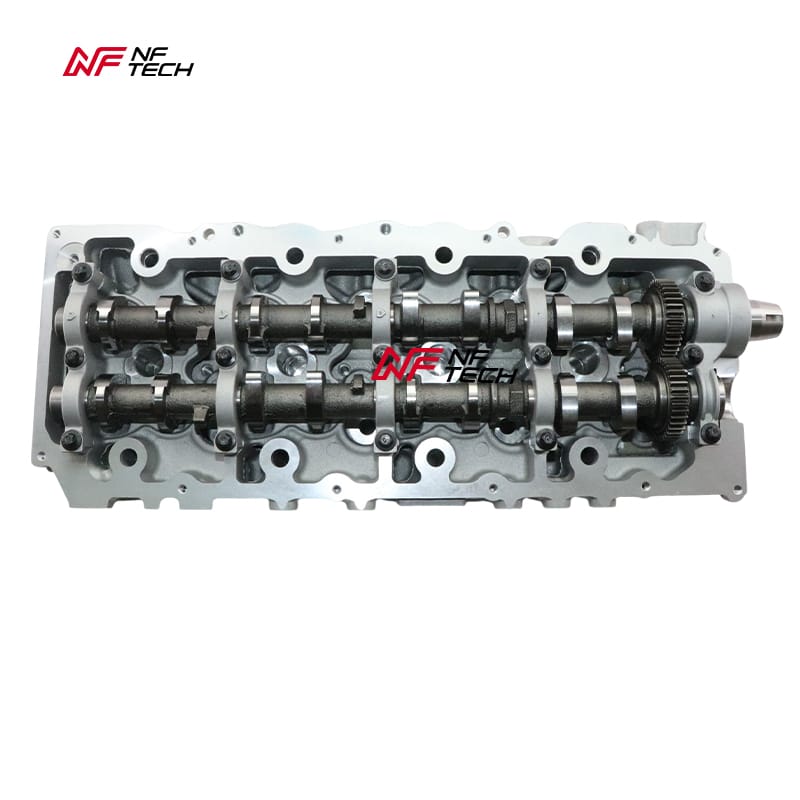

• Camshafts (DOHC – intake and exhaust)
• Camshaft bearing caps and bolts (torqued to specification)
• Pre-chambers (installed)
• Core plugs and oil gallery plugs (installed)
• Valve clearances pre-set – no manual adjustment required

Note: This is a cylinder head assembly, so the following external components are NOT included and must be transferred from your old head or purchased separately:

• Valve cover / rocker cover
• Timing belt, tensioner and guides (belt & gear drive)
• Head bolts
• Head gasket and other gaskets
• Fuel injectors and glow plugs
• Intake and exhaust manifolds
• Turbocharger (CT16 or similar, depending on model)
• Sensors, wiring and external actuators

Vehicle Compatibility

The Toyota 2KD-FTV 2.5L D-4D diesel engine was fitted to a wide range of Toyota models. Always verify your engine code and OEM part number before purchase. Common applications include:

• Toyota Hilux / Vigo – KUN25 / KUN26 / KUN35 (2.5 D-4D, 2WD & 4WD, 2001–2015)
• Toyota Hiace – KDH200 / KDH201 / KDH220 / KDH222 (2001–2019)
• Toyota Fortuner – 2.5 D-4D (2005–2015)
• Toyota Innova / Kijang – 2.5 D-4D (2004–2016)
• Toyota Dyna / ToyoAce – KDY220 / KDY230 / KDY250 / KDY260 (2001–2011)
• Toyota 4Runner – select markets with 2KD-FTV
• Other vehicles equipped with the 2KD-FTV engine (confirm via OEM number)

Why Choose This Toyota 2KD-FTV Cylinder Head Assembly

• 100% brand new – never reconditioned or repaired
• Pressure-tested and vacuum-tested for leaks
• OEM-grade aluminum alloy with reinforced coolant passages resists thermal fatigue cracking
• Pre-installed valves and camshafts save hours of fitting time
• Comes with an 12-month warranty for peace of mind
• Packed in a reinforced crate for safe international freight
• Fast global shipping to port or door

If you need a Toyota 2KD-FTV cylinder head for sale or a complete replacement head assembly, this unit gives your engine a factory-fresh start. Order now for a reliable, direct-fit solution.
