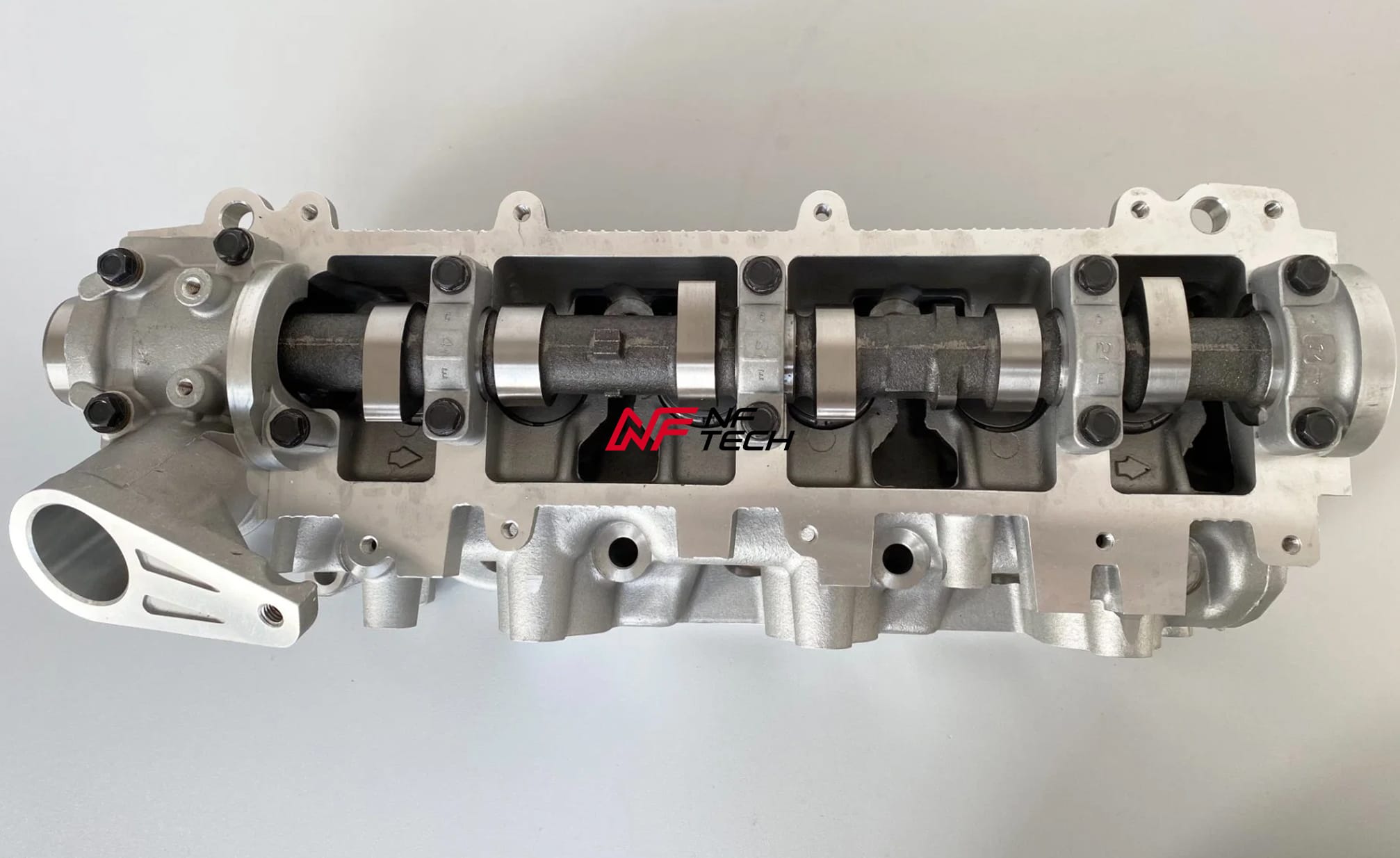

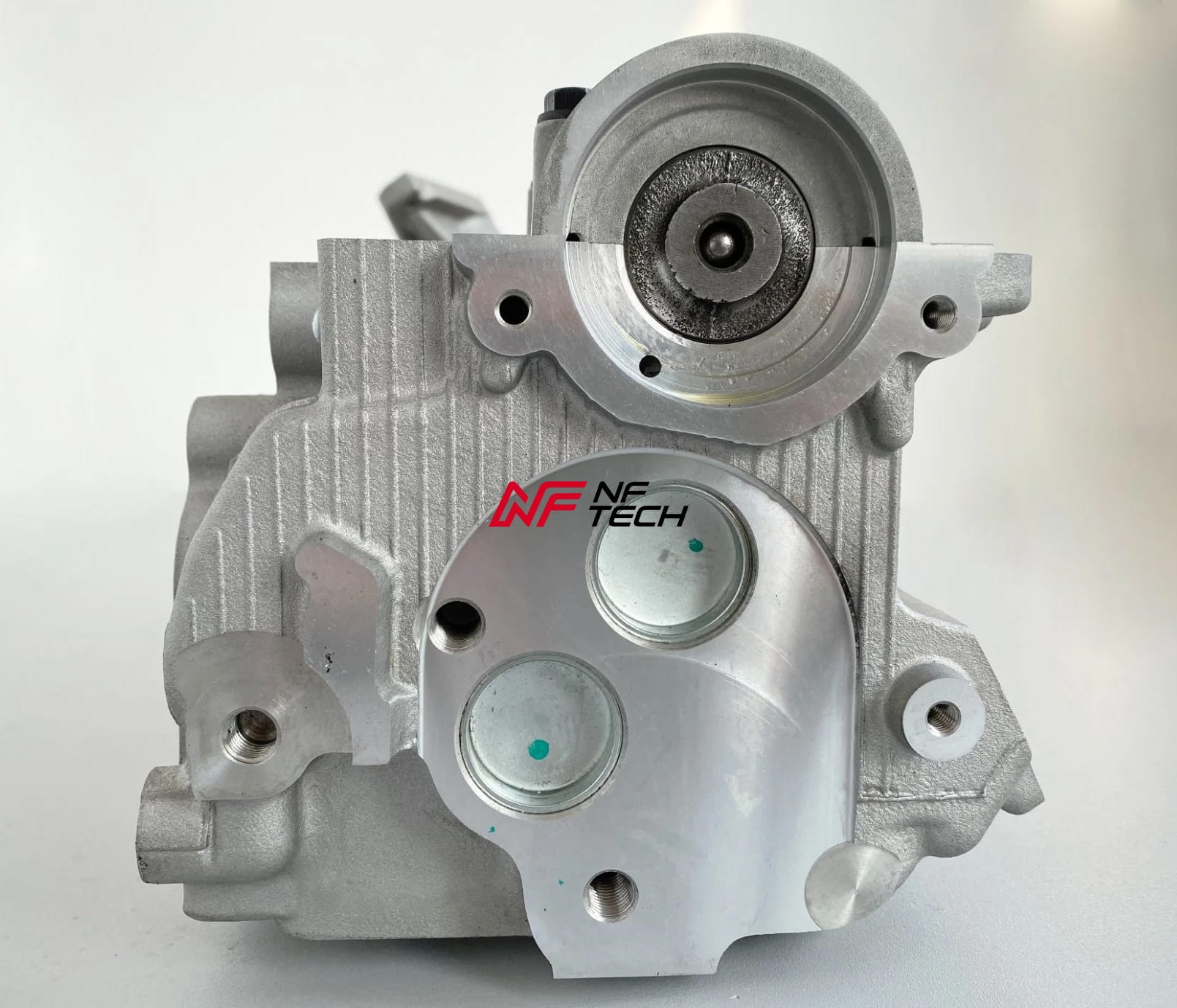

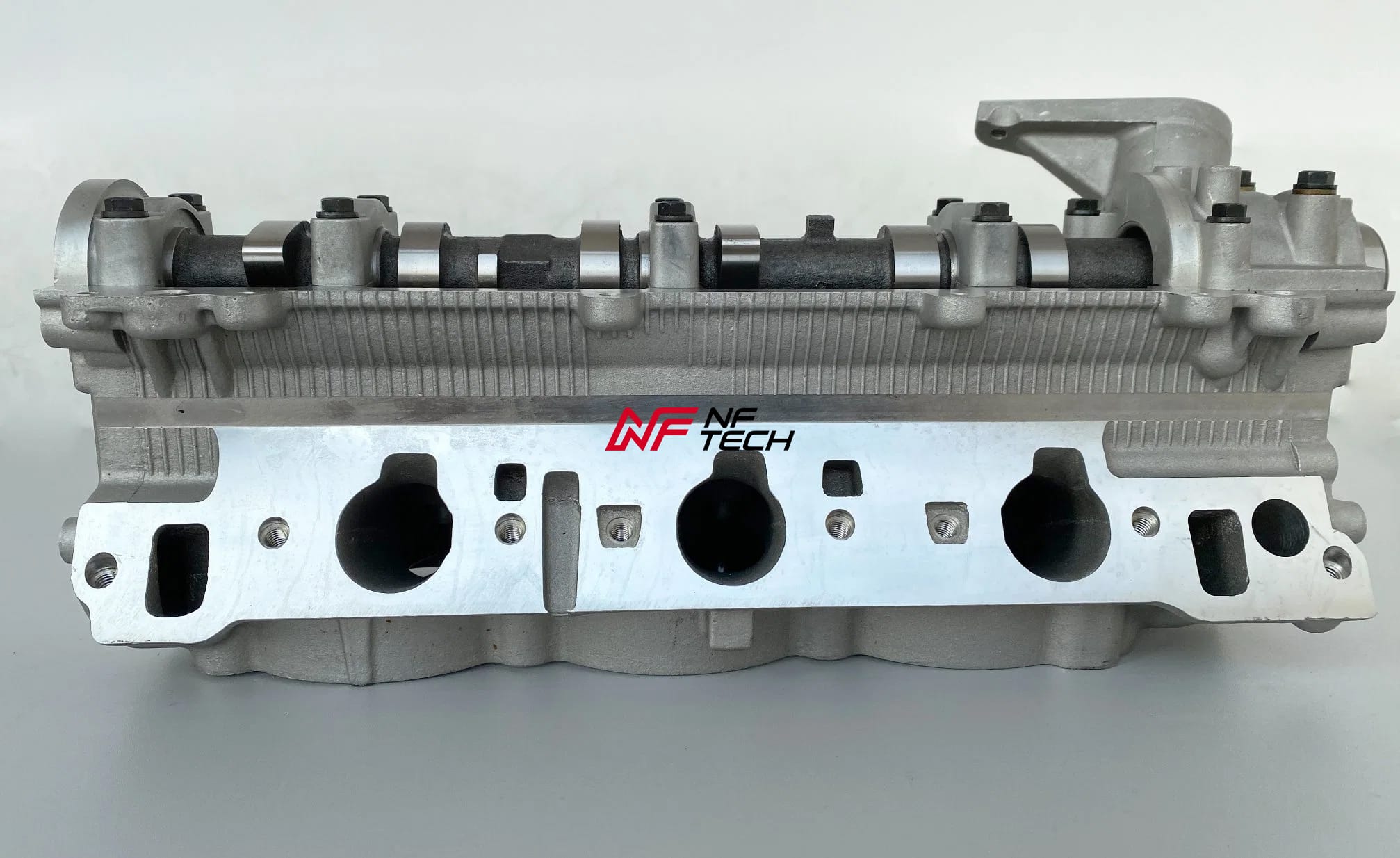

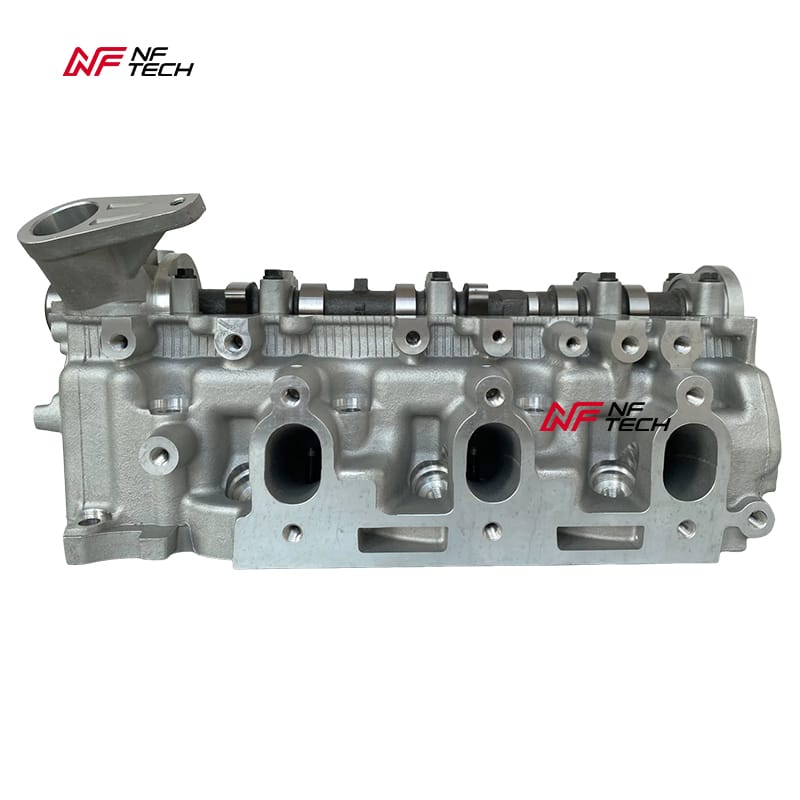

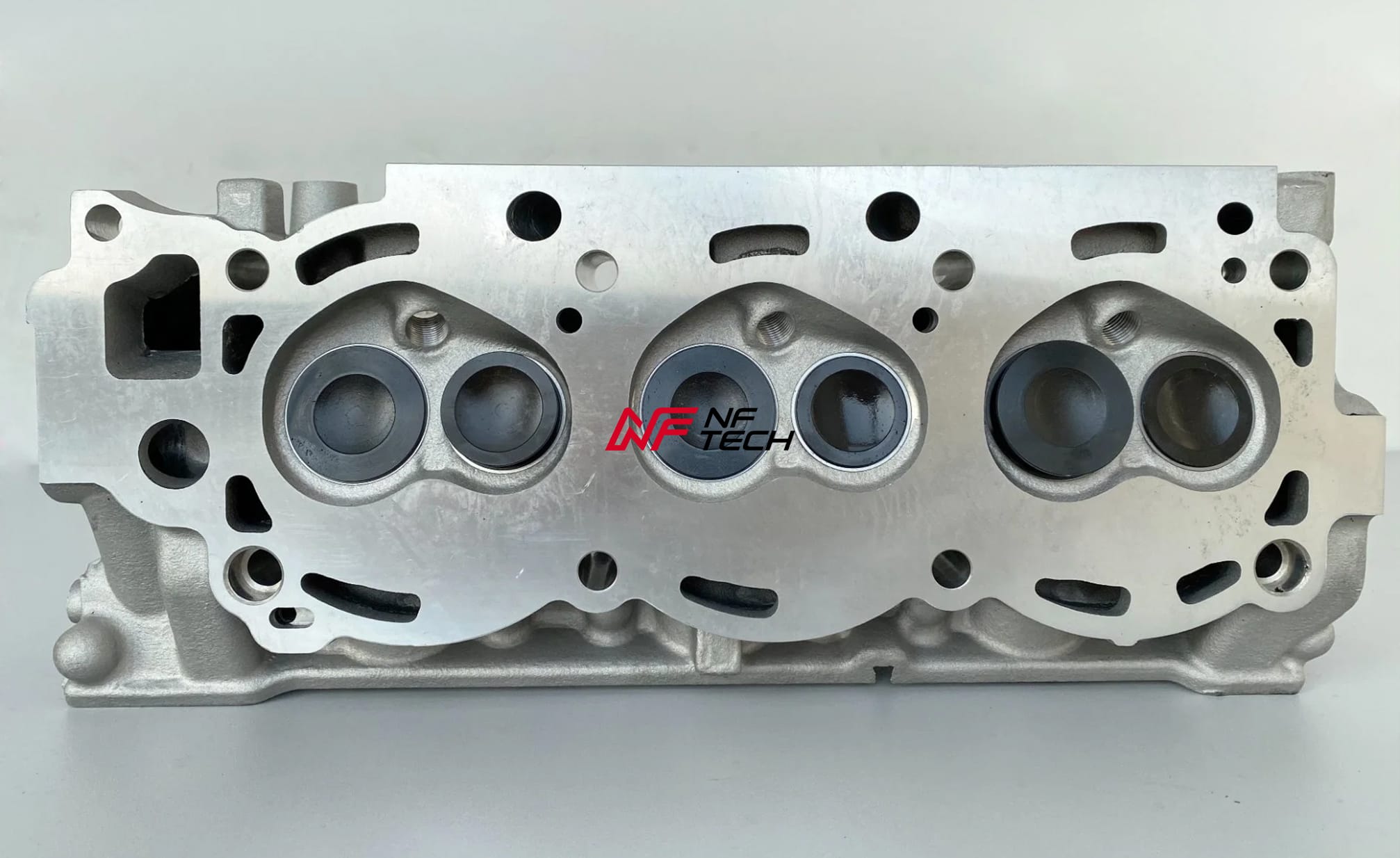

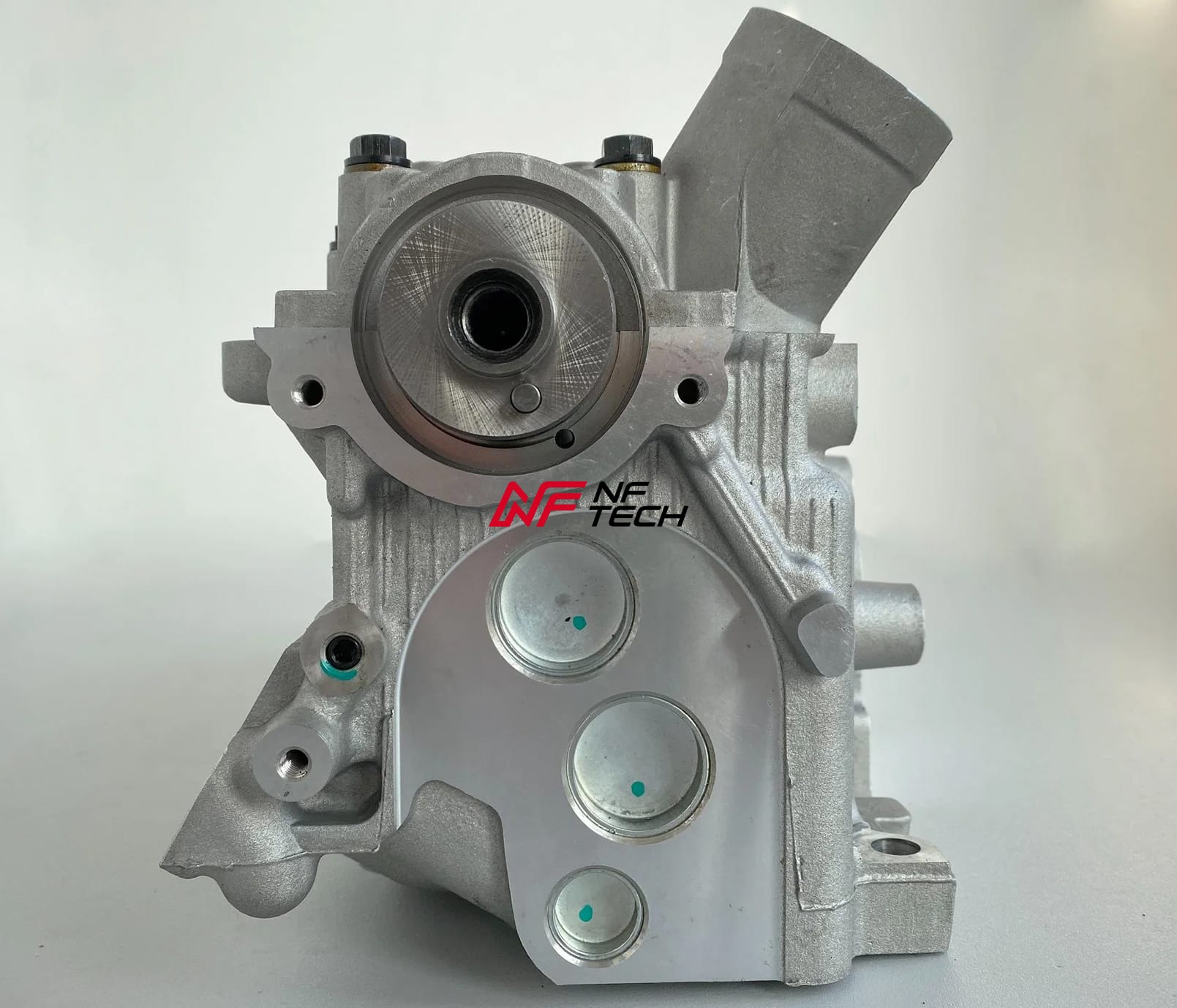

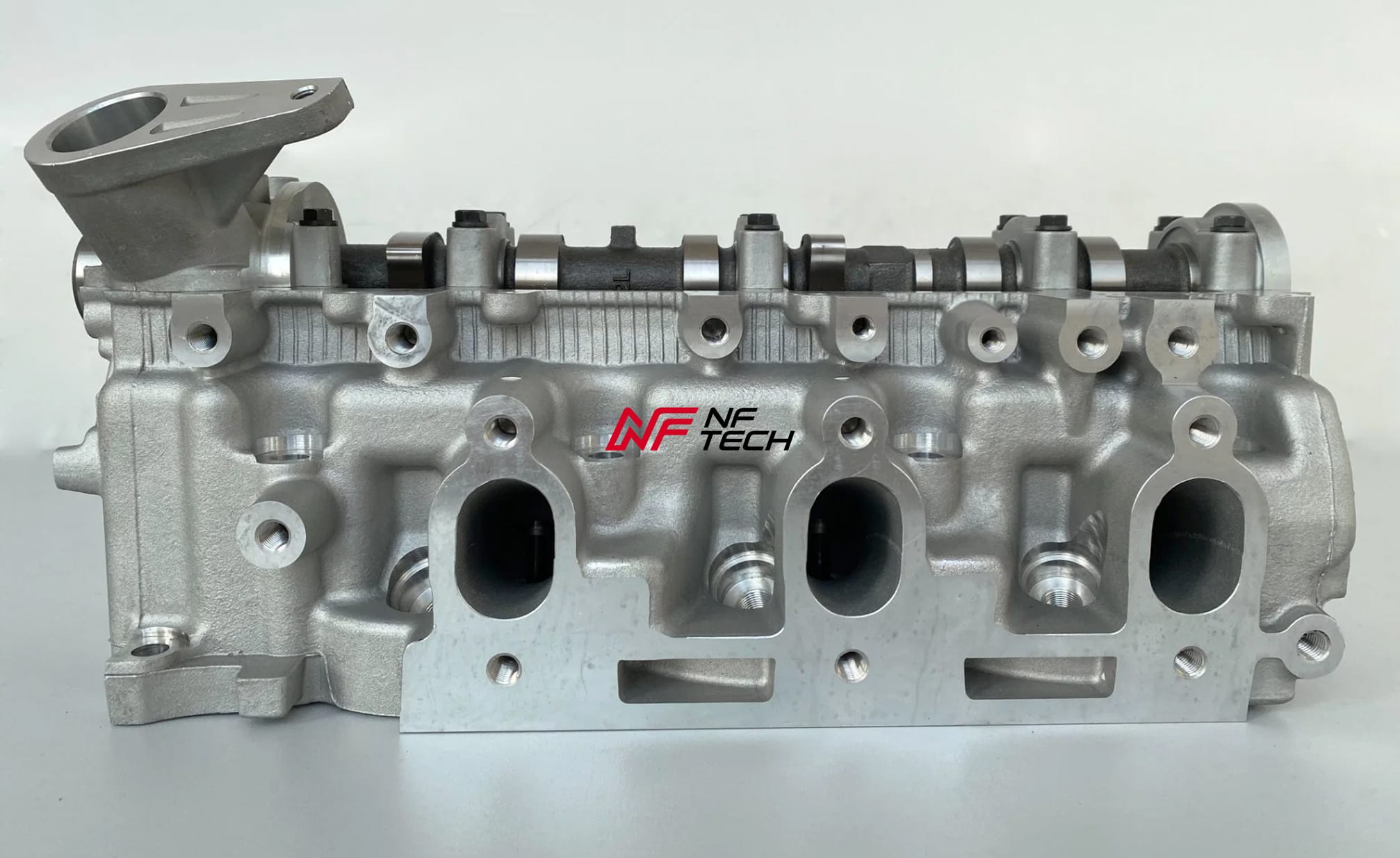

Toyota 3VZ-E Complete Cylinder Head Assembly – Valves & Camshaft Pre-Installed

This Toyota 3VZ-E cylinder head assembly is a brand new, factory-fresh cylinder head built to OEM standards. It comes with the complete valvetrain pre-installed, including intake and exhaust valves, valve springs, retainers, valve stem seals, valve guides and camshaft. You simply transfer your existing external parts – saving significant time and labour during installation.

The 3VZ-E is a 3.0-litre V6 SOHC 12-valve petrol engine from the Toyota VZ engine family, widely used in Toyota 4Runner, Pickup / Hilux, T100 and Hilux Surf models from 1988 to 1995. It features a durable cast-iron block with an aluminum SOHC cylinder head and electronic fuel injection (EFI), factory-rated at 150 hp and 180 lb-ft of torque.[reference:0] These engines are renowned for their reliability and are still in active service worldwide, particularly in commercial, fleet and off-road applications. This complete cylinder head assembly is manufactured to exact original tolerances and pressure-tested for reliable, long-lasting performance. As a professional complete cylinder head manufacturer and OEM cylinder head supplier, we provide a direct-fit aftermarket cylinder head suitable for wholesale buyers, engine rebuilders and repair shops worldwide.

What’s Included – Complete Cylinder Head Assembly

This listing is for the cylinder head with the following components pre-installed and ready to use:

• Cylinder head casting – precision-machined, pressure-tested
• 12 valves – intake and exhaust valves, heat-resistant (2 per cylinder)
• Valve springs, spring seats and retainers
• Valve stem seals (already fitted)
• Valve guides (pressed in)
• Camshaft (SOHC)
• Camshaft bearing caps and bolts (torqued to specification)
• Core plugs and oil gallery plugs (installed)
• Valve clearances pre-set – no manual adjustment required

Note: This is a cylinder head assembly, so the following external components are NOT included and must be transferred from your old head or purchased separately:

• Valve cover / rocker cover
• Timing belt, tensioner and guides
• Head bolts
• Head gasket and other gaskets
• Fuel injectors and spark plugs
• Intake and exhaust manifolds
• Sensors, wiring and external actuators

Vehicle Compatibility

The Toyota 3VZ-E 3.0L V6 petrol engine was fitted to a range of Toyota models. Always verify your engine code and OEM part number before purchase. Common applications include:

• Toyota 4Runner – N120 / N130 (1988–1995)
• Toyota Pickup / Hilux – N80 / N90 / N100 / N110 (1988–1995)
• Toyota T100 – VCK10 / VCK20 (1993–1994)
• Toyota Hilux Surf – VZN130G (1991–1995)[reference:1]
• Other vehicles equipped with the 3VZ-E engine (confirm via OEM number)

Why Choose This Toyota 3VZ-E Cylinder Head Assembly

• 100% brand new – never reconditioned or repaired
• Pressure-tested and vacuum-tested for leaks
• OEM-grade materials and exact machining tolerances
• Pre-installed valves and camshaft save hours of fitting time
• Comes with an 12-month warranty for peace of mind
• Packed in a reinforced crate for safe international freight
• Fast global shipping to port or door

If you need a Toyota 3VZ-E cylinder head for sale or a complete replacement head assembly, this unit gives your engine a factory-fresh start. Order now for a reliable, direct-fit solution.
