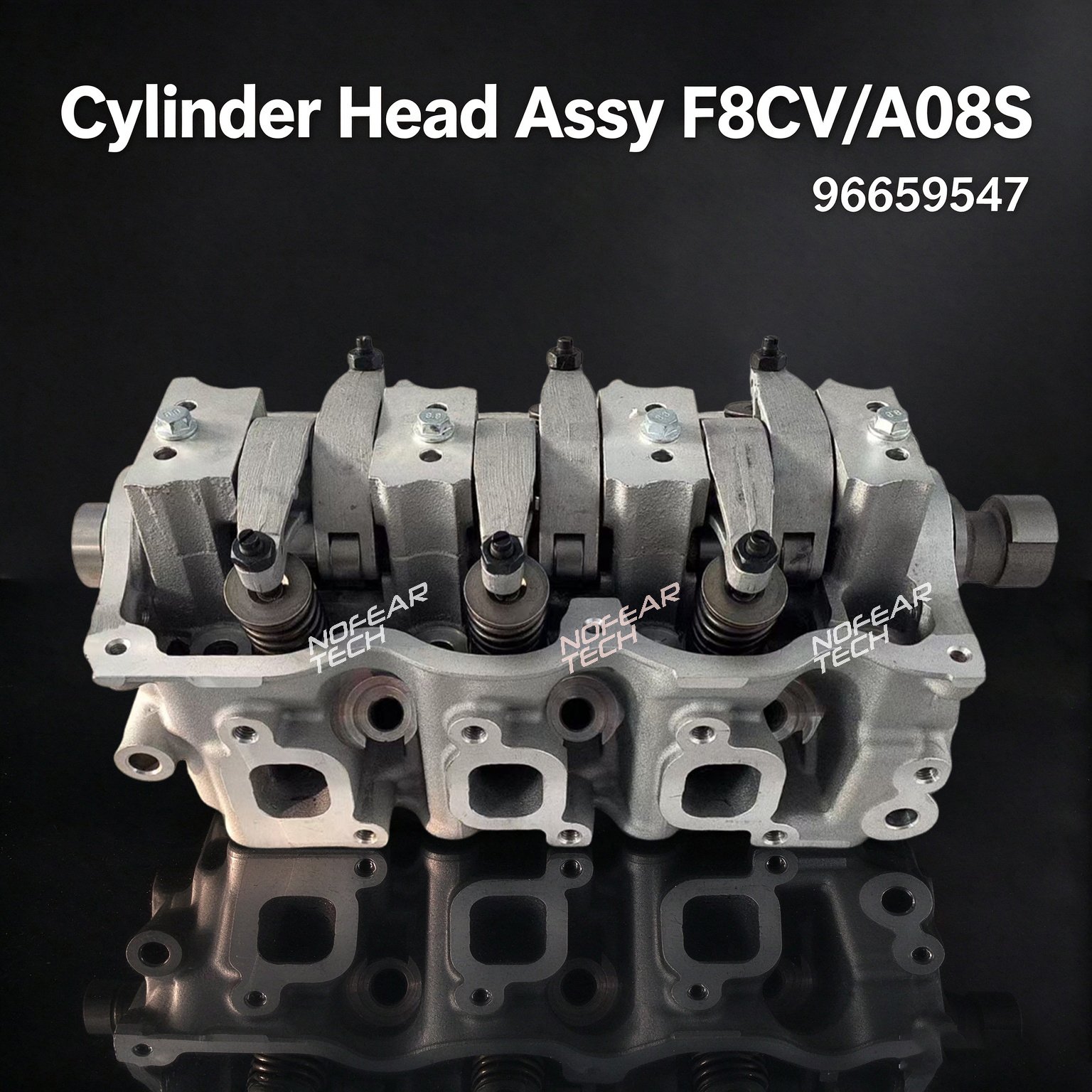

Chevrolet / Daewoo A08S3 Cylinder Head Assembly – Matiz / Spark / Tico / Damas

This Chevrolet / Daewoo A08S3 cylinder head assembly is a brand new, factory-fresh replacement for the 0.8-litre inline-3 petrol engine used across the Matiz, Spark, Tico and Damas ranges. It is supplied with valves and camshaft fitted according to your confirmed stock configuration — the standard OEM reference 96659547 is listed in both bare and complete forms, so confirm your stock physically before ordering.

What’s Included – Fitted to the Head (Confirmed Configuration Only)

• Complete cylinder head casting — precision-machined and pressure-tested
• 6 valves — intake and exhaust, heat-resistant (2 per cylinder) — if your stock is a complete assembly; the bare casting 96659547 does not include valves
• Valve springs, spring seats and retainers — if valves are fitted
• Valve stem seals and valve guides — fitted
• Camshaft — SOHC, 6-valve profile — only if your stock is a complete assembly; bare castings do not include the camshaft
• Rocker arms and rocker shaft — fitted — if camshaft is fitted
• Camshaft bearing caps — torqued to specification
• Core plugs and oil gallery plugs — installed

What you transfer from your original head: camshaft and rocker assembly (if not included in your stock), mechanical lifters, valve cover, timing belt kit (belt, tensioner and idler), head bolts (always fit new stretch bolts), head gasket and remaining gaskets, fuel injectors, spark plugs, ignition leads or coil pack, intake manifold, exhaust manifold and any sensors or brackets mounted to the head.

Vehicle Compatibility — Model and Engine Code Detail

The Short Description lists the basic model range. The fitment below is the model-level detail needed to confirm the correct casting before ordering. The A08S3 casting is shared across a wide range of Chevrolet and Daewoo platforms, but emission equipment and ignition type differ between model years and markets — match the OE reference to your original head.

• Chevrolet Matiz (M200, M250) — A08S3 0.8L, approximately 2005–2010
• Chevrolet Spark (M150, M200) — A08S3 0.8L, approximately 2000–2009
• Daewoo Matiz (M100) — F8CV 0.8L, approximately 1998–2000; M150 2000–2018; M200 2005–2009
• Daewoo Tico (A100) — F8CV 0.8L, approximately 1991–2001
• Daewoo Damas / Chevrolet Le Chi — A08S3 / F8CV 0.8L, select years and markets

This cylinder head is specific to the A08S3 / F8CV 0.8L SOHC 6-valve petrol engine. It is NOT interchangeable with the 1.0L B10S1, the 1.2L B12S1, or any four-cylinder engine in the Chevrolet / Daewoo range.

OEM Part Number Cross-Reference

• Primary references: 96659547, 96659548
• Related references: 96642708, 96642705, 96316210
• Engine code cross-reference: A08S3, F8CV,

Why Buy This A08S3 Cylinder Head Assembly

• 100% brand new — not reconditioned or repaired
• Pressure-tested and vacuum-tested for leaks and porosity before dispatch
• Flatness-checked to OEM tolerance
• Available in bare and complete configurations — confirm your stock before ordering
• Correct A08S3 casting for Matiz, Spark, Tico and Damas applications
• Fast global shipping to port or door
