Description

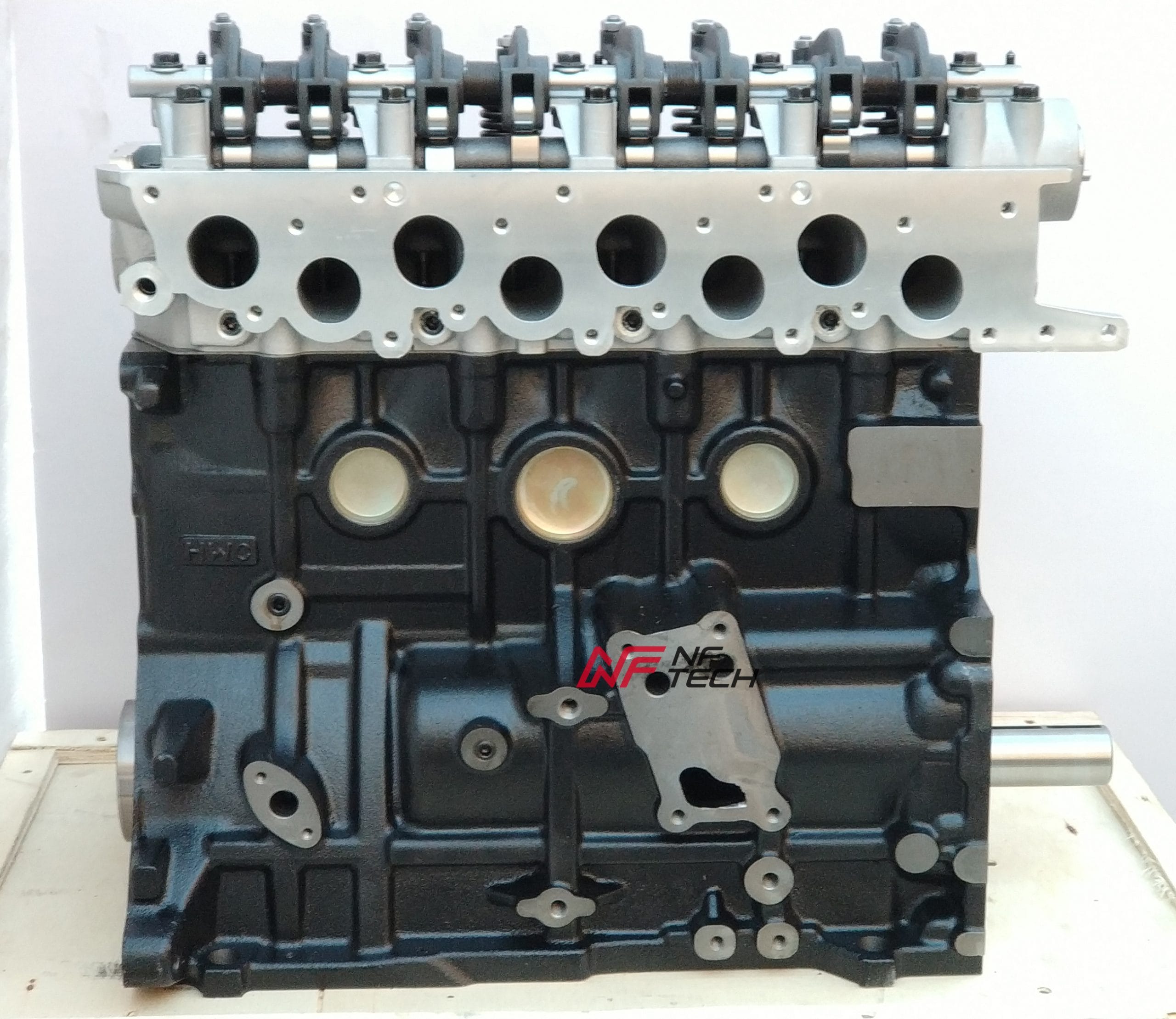

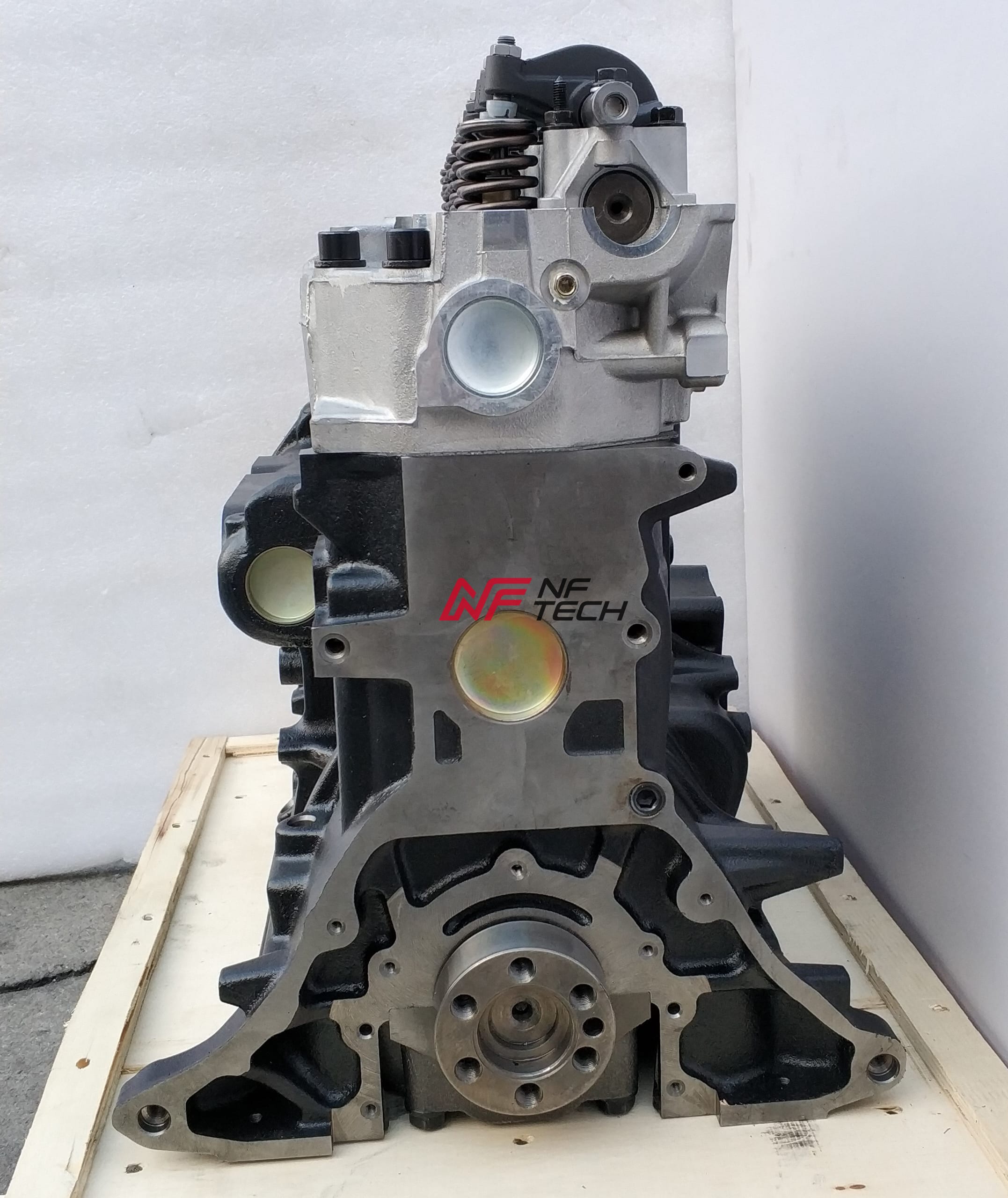

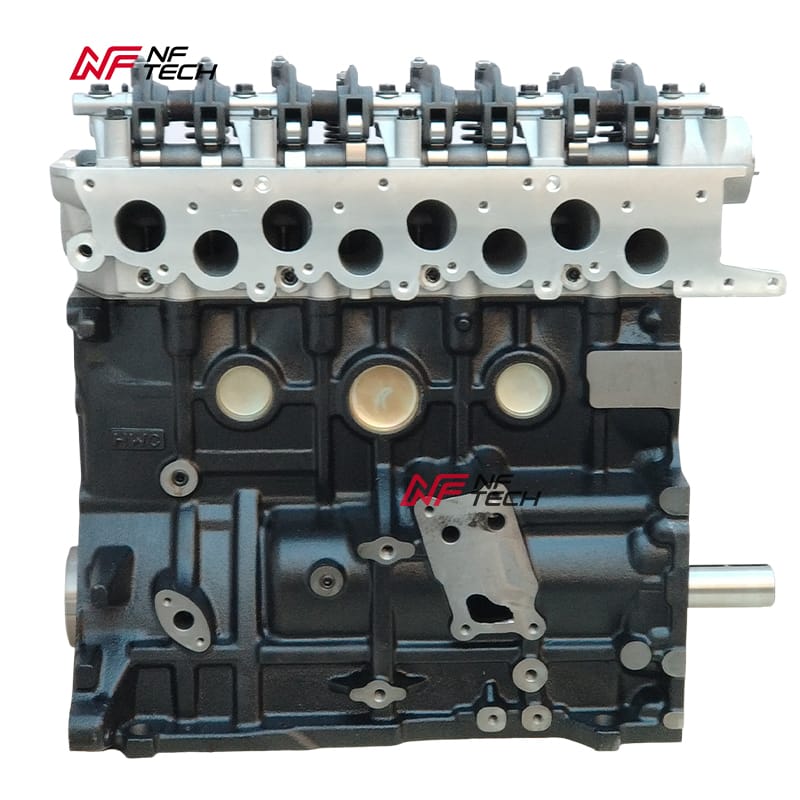

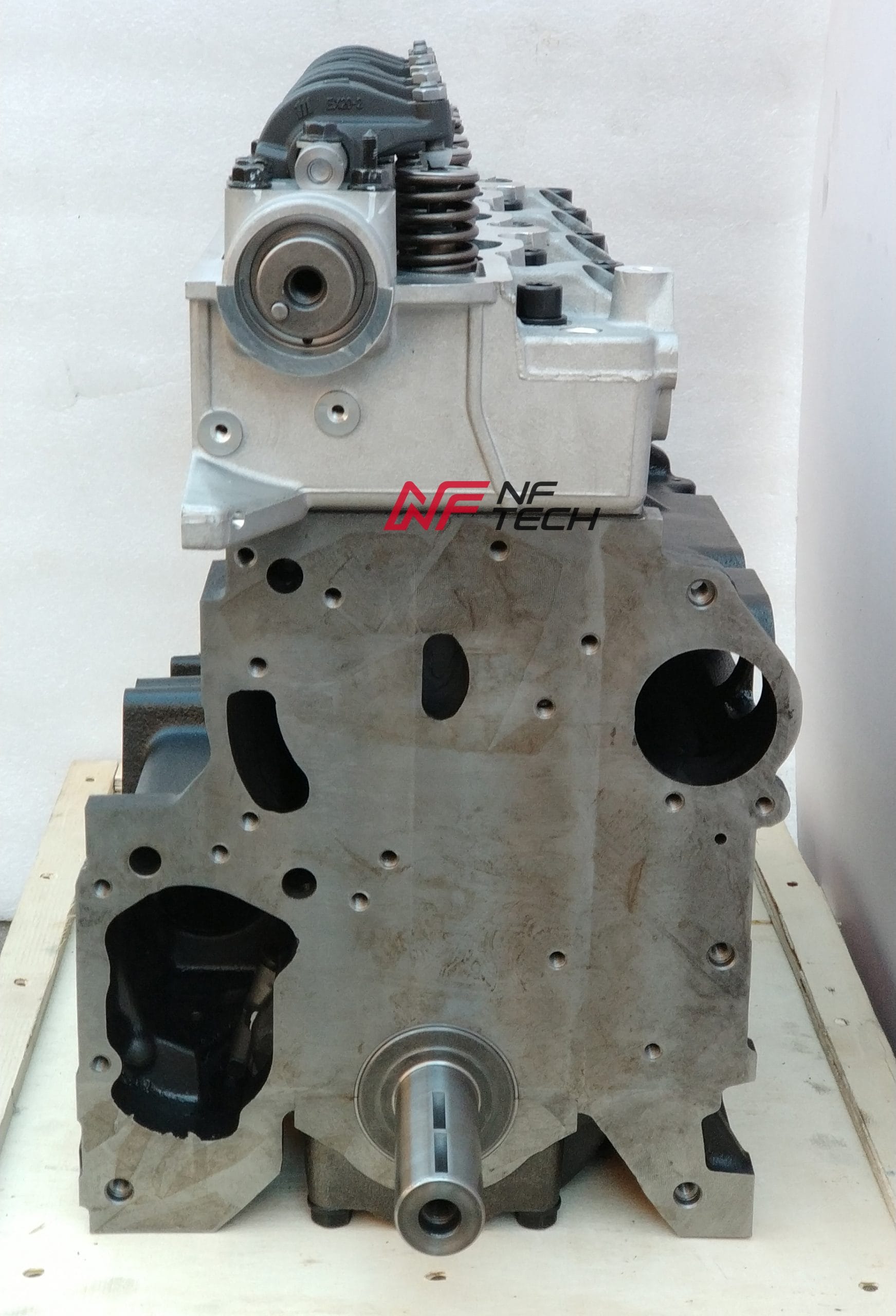

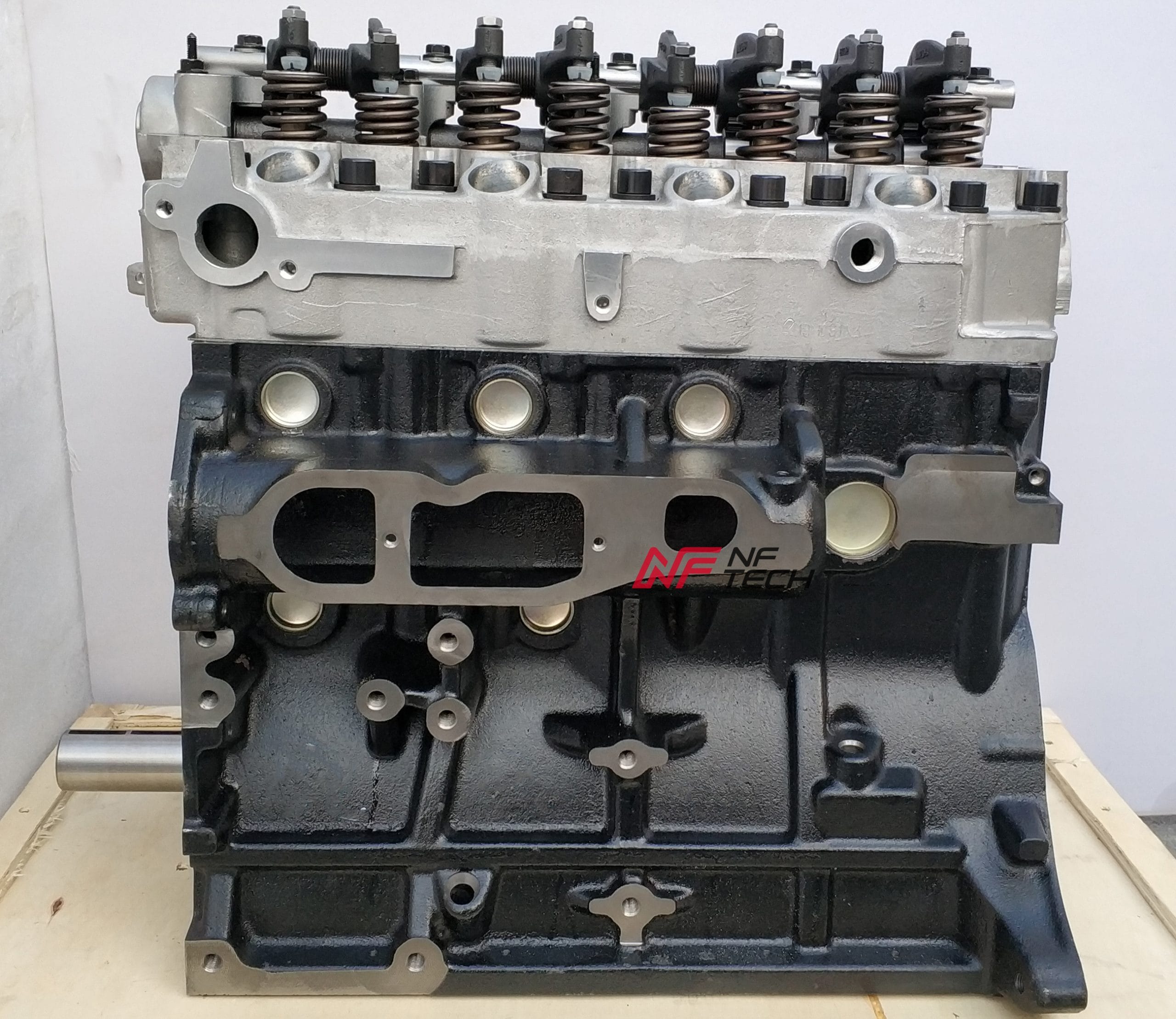

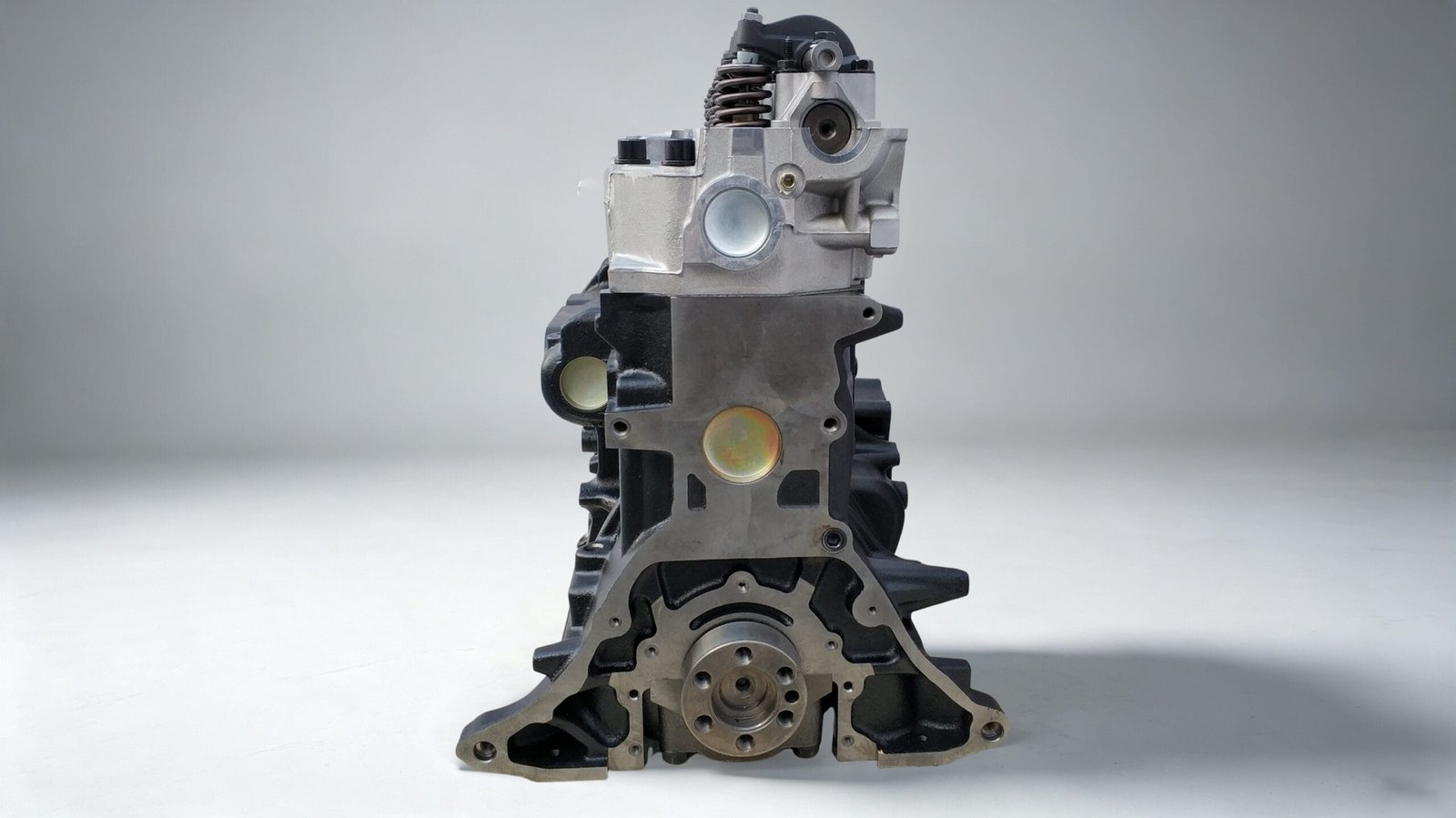

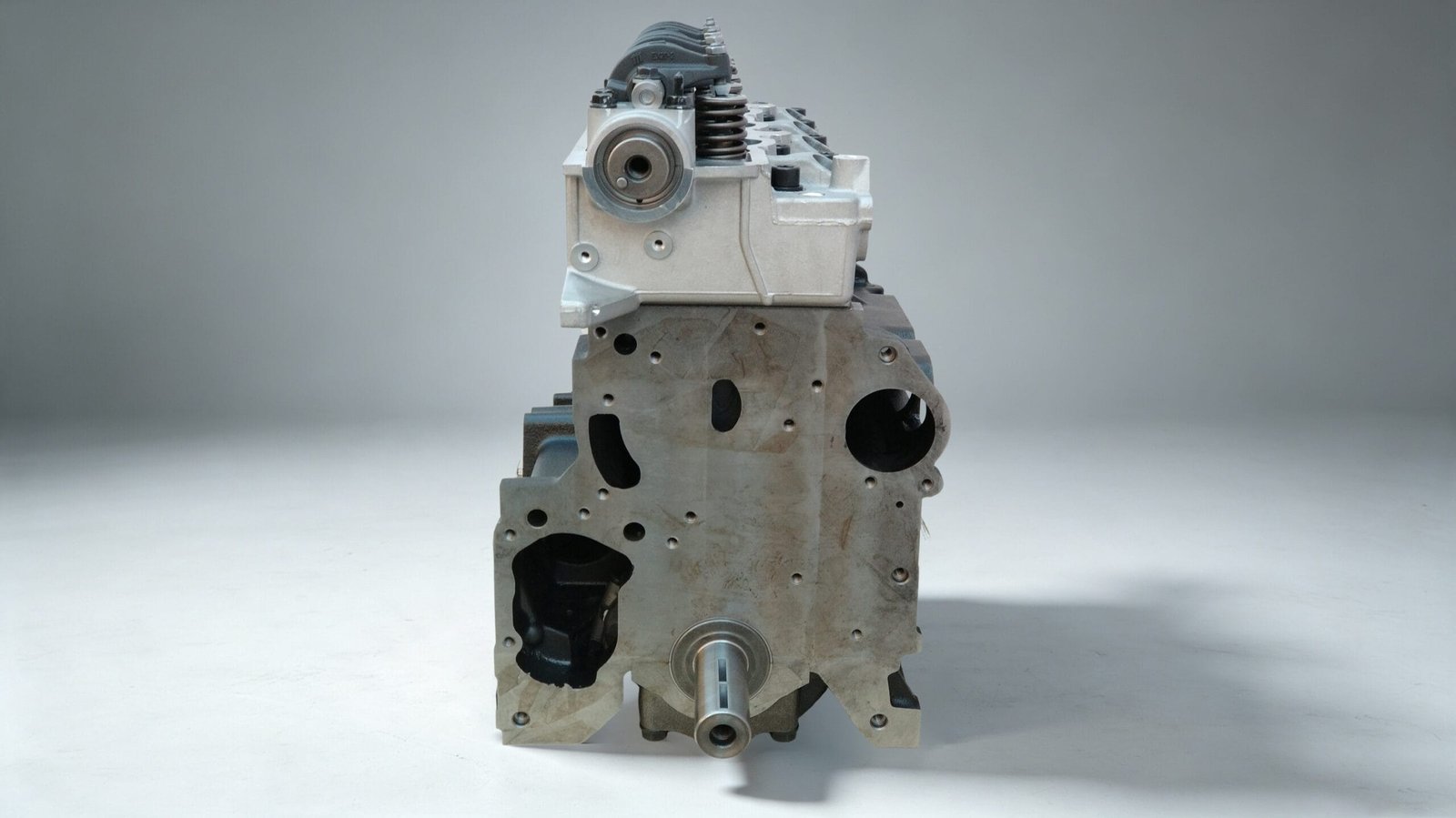

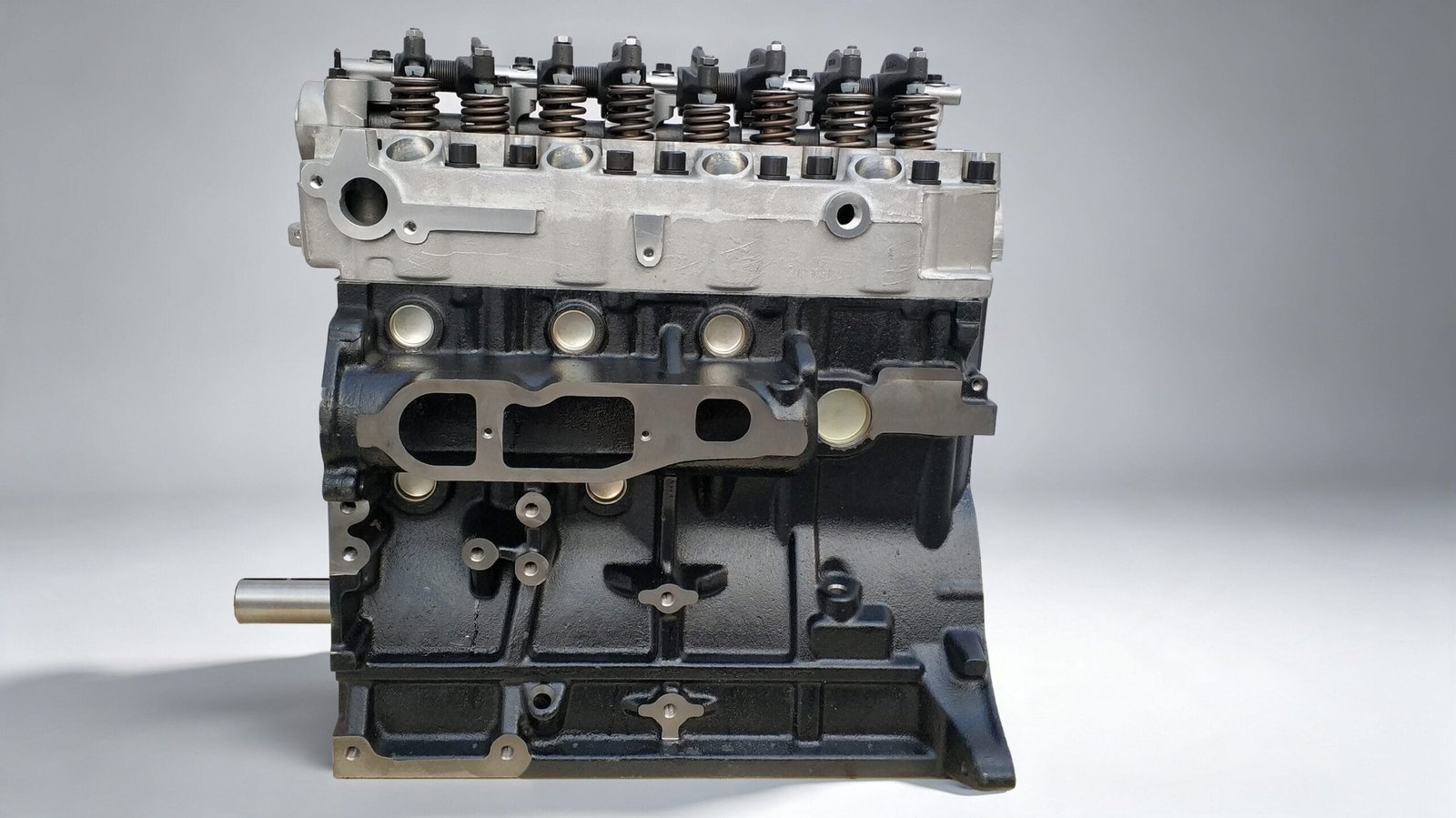

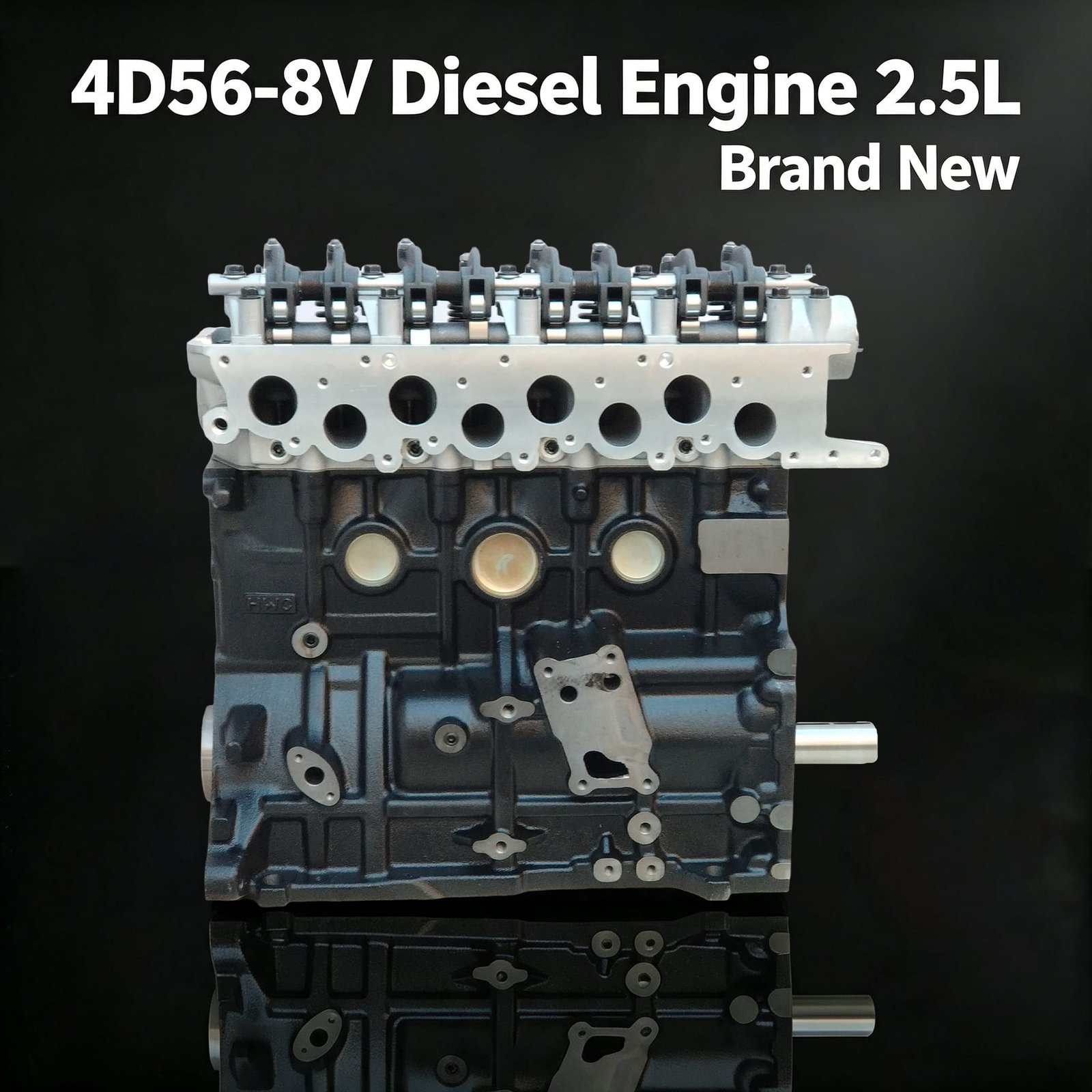

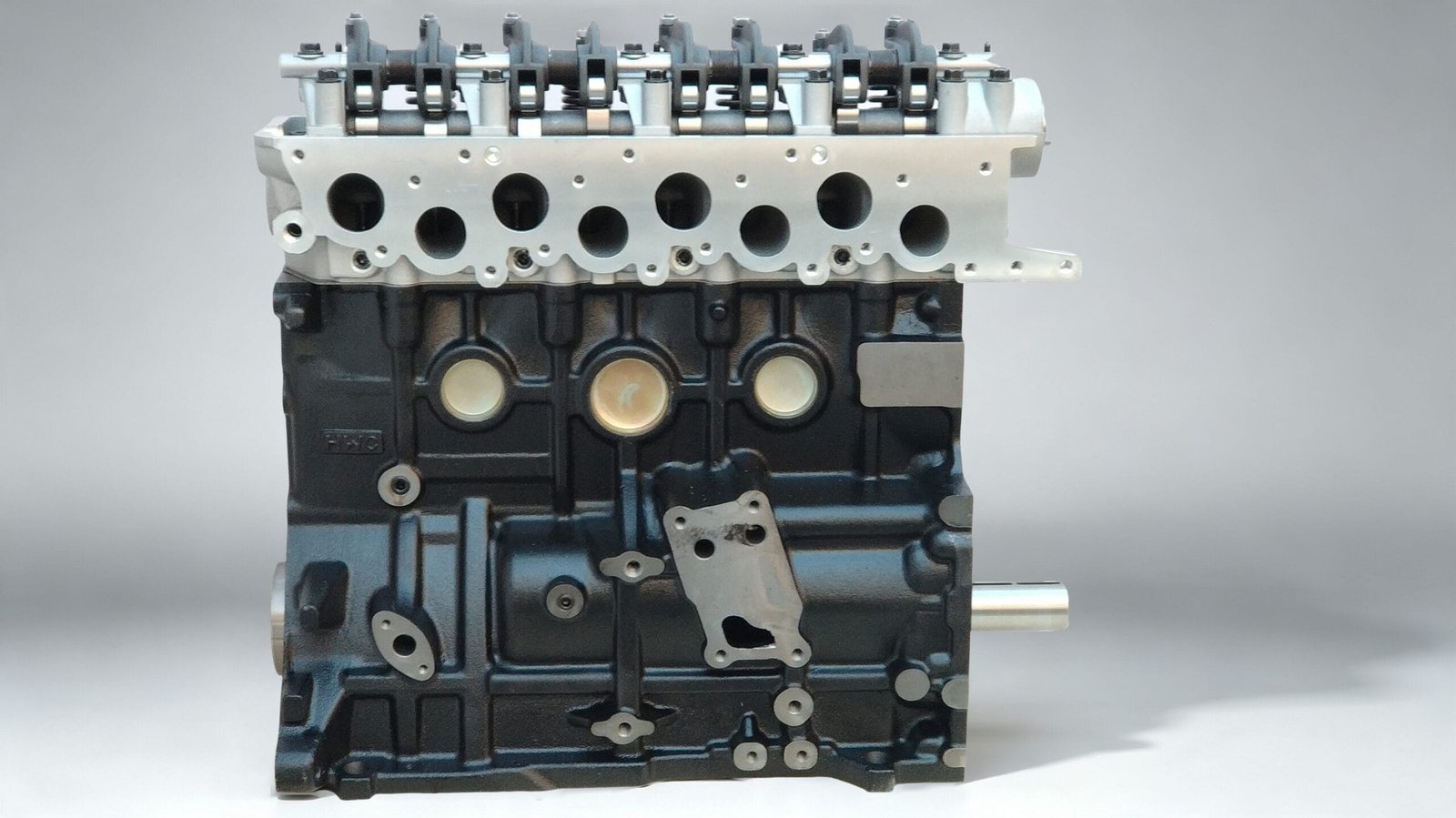

Mitsubishi 4D56 / 4D56T 2.5L Diesel Bare Engine / Long Block – Complete Head & Block Assembly
This 4D56 / 4D56T bare engine is a complete long block core built to OEM standards for Mitsubishi vehicles. It includes the complete cylinder head assembly (valves, springs, camshaft, rocker arms) and the complete cylinder block assembly (pistons, rings, crankshaft, connecting rods). It is supplied without the valve cover, timing cover & timing belt/chain, oil pan, and all external accessories – exactly as required for a cost‑effective rebuild where those components are transferred from your original engine.
This listing covers both the naturally aspirated 4D56 and the turbocharged 4D56T variants. Please confirm which version you require before ordering.
Vehicle Compatibility
The Mitsubishi 4D56 / 4D56T 2.5L diesel engine is a legendary workhorse fitted to a wide range of trucks, SUVs and vans. Always verify your engine code before purchase. Common applications include:
- Mitsubishi L200 / Triton / Strada 2.5D (1986 – 2015, various generations)
- Mitsubishi Pajero / Montero / Shogun 2.5D (1982 – 2006, select variants)
- Mitsubishi Delica / L400 / Space Gear 2.5D (1994 – 2007)
- Mitsubishi Challenger / Pajero Sport 2.5D (1996 – 2010, early models)
- Mitsubishi Canter 2.5D (light truck, select versions)
- Other Mitsubishi or affiliated models originally fitted with the 4D56/4D56T engine code
Please confirm your engine code is “4D56” or “4D56T” before ordering. This is a bare engine / long block assembly; the valve cover, timing components, oil pan and all external parts must be transferred from your original engine.
Technical Specifications
| Engine Code | 4D56 / 4D56T (2.5L Diesel, 8V) |
| Displacement | 2.5 Litre (2477 cc) |
| Cylinder Configuration | Inline 4-cylinder |
| Valvetrain | SOHC 8-valve (2 valves per cylinder) |
| Fuel System | Indirect Injection Diesel (4D56) / Direct or Indirect Injection Diesel (4D56T, depending on generation) |
| Power Output | Approx. 75–85 hp (4D56) / 82–100 hp (4D56T, depending on version) |
| Torque Output | Approx. 170–200 Nm (4D56) / 200–240 Nm (4D56T) |
| Cylinder Block Material | Cast Iron R4 |
| Cylinder Head Material | Aluminum |
| Bore × Stroke | 91.1 mm × 95 mm |
| Compression Ratio | 21.0:1 (4D56) / 21.5:1 (4D56T) |
| Timing Drive | Belt (or gears, depending on generation) |
| Turbocharging | No (4D56) / Yes, turbocharged & intercooled (4D56T) |
| Recommended Engine Oil | 5W-40 or 10W-40 (diesel) |
| Engine Oil Capacity | Approx. 5.5 – 6.5 litres |
| Emission Standards | EURO 2–4 (depending on version) |
| Fuel Type | Diesel |
| Engine Type | Bare Engine / Long Block (Head & Block Only) |
| Condition | Brand New |
What’s Included – What’s NOT Included
Included (supplied with this assembly):

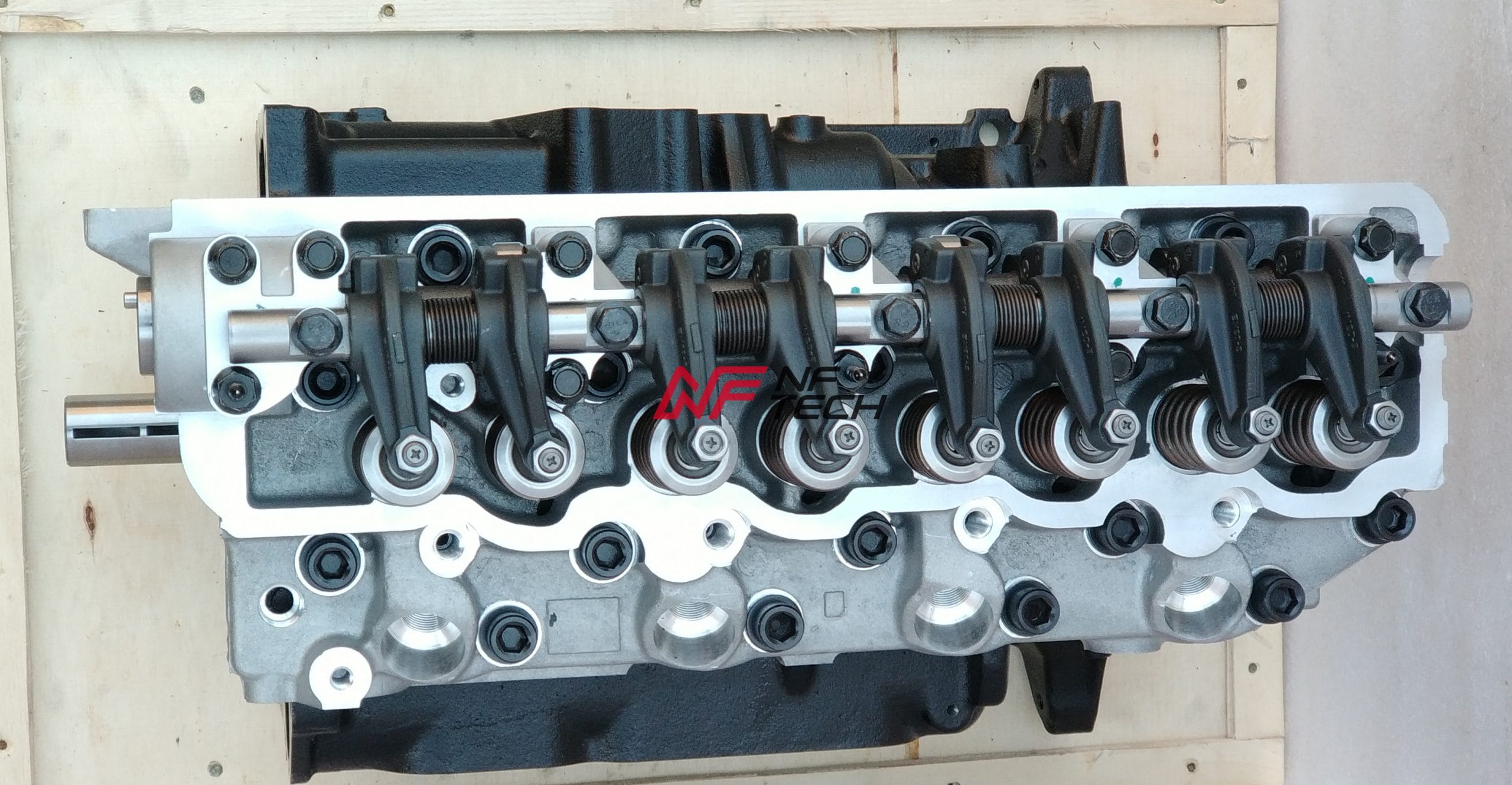

- Complete cylinder head assembly – valves, valve springs, camshaft, rocker arms
- Complete cylinder block assembly – pistons, piston rings, crankshaft, connecting rods, bearings
NOT Included (must be transferred from your old engine):
- Valve cover / rocker cover
- Timing cover & timing belt/gear kit
- Oil pan / sump
- Intake manifold, exhaust manifold
- Fuel injection pump, injectors, glow plugs
- Turbocharger (for 4D56T)
- Alternator, starter motor
- Water pump
- Engine wiring harness, ECU and all external sensors
This bare engine is intended for workshops and experienced installers. The missing parts must be taken from your original engine.
Why Choose This 4D56 / 4D56T Bare Engine
- 100% brand new – not remanufactured or refurbished
- Factory compression and oil pressure tested
- OEM‑grade materials and machining tolerances
- Complete head and block package – ideal for rebuilds
- Packed in a reinforced wooden crate for safe international freight
- Comprehensive warranty – check our warranty page for details
- Fast global shipping to port or door
If you are looking for a 4D56 engine for sale, a 4D56T replacement engine, or a Mitsubishi 2.5 diesel long block, this premium bare engine gives your vehicle a factory‑fresh start. Order now for a reliable, direct‑fit solution.
